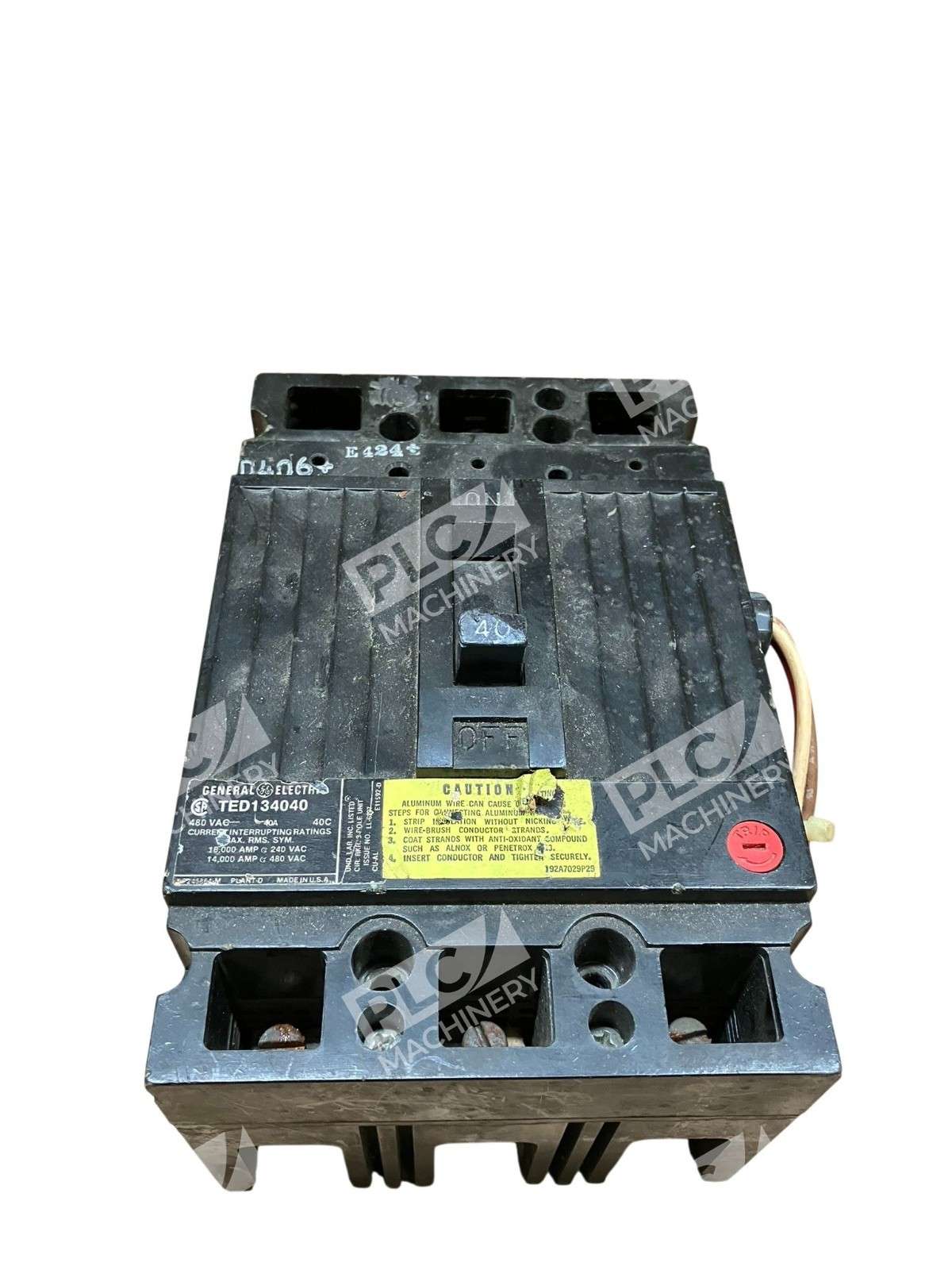

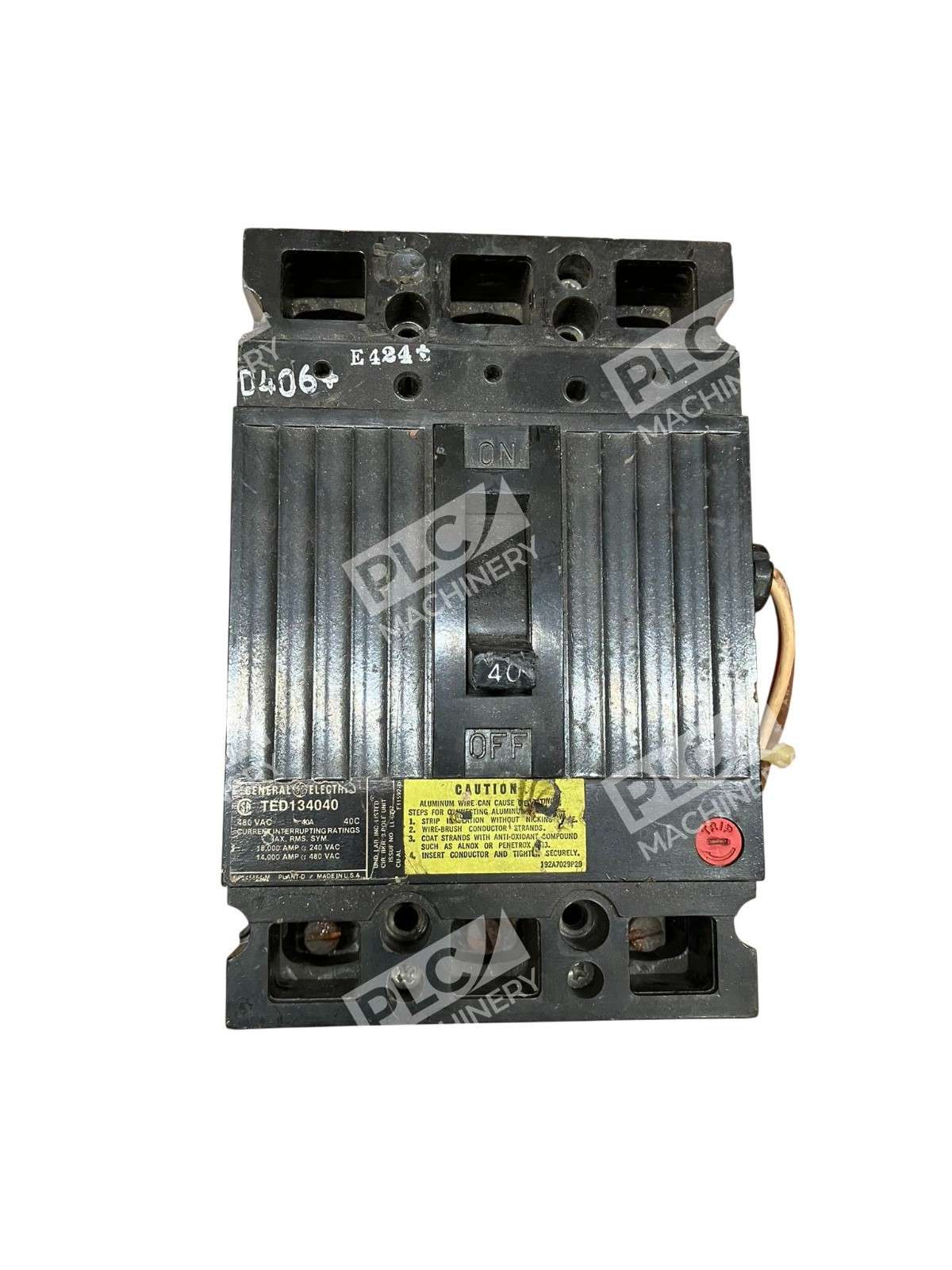

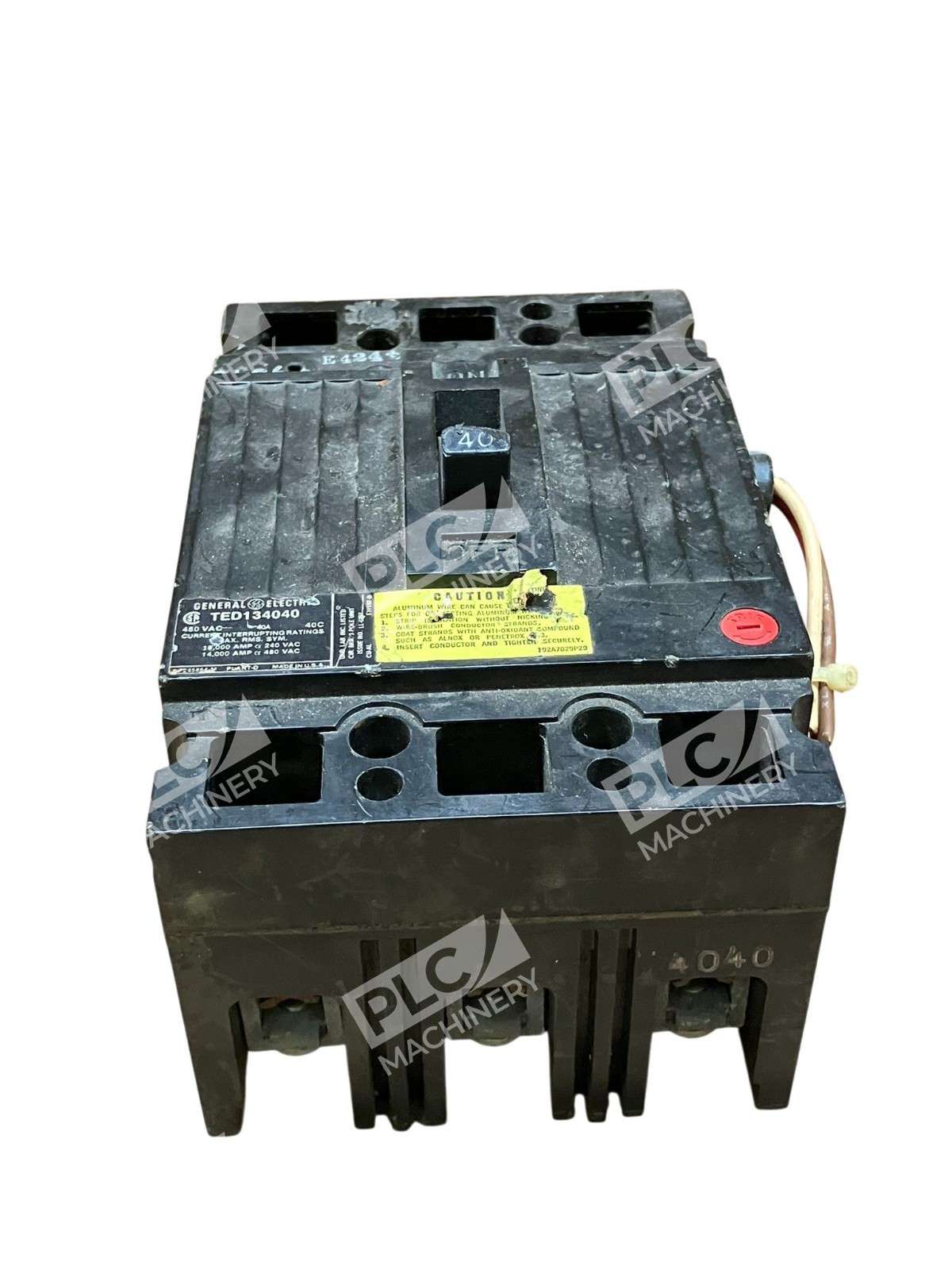

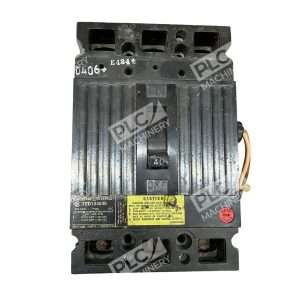

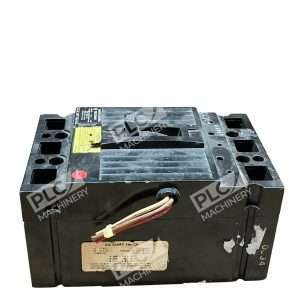

The General Electric TED134040 is a 3-pole molded case circuit breaker designed for industrial and commercial power distribution systems. With a current rating of 40 amperes and a voltage rating of 480 VAC, it offers reliable protection against overloads and short circuits.

**Key Features:**

– **Amperage Rating:** 40 A
– **Voltage Rating:** 480 VAC
– **Number of Poles:** 3
– **Interrupting Capacity:** 18 kA at 480 VAC
– **Trip Unit:** Thermal Magnetic with Long-Time and Instantaneous (LI) functions
– **Mounting Type:** Bolt-On
– **Frame Type:** E150
– **Terminal Type:** Copper/Aluminum Line and Load Lugs
– **Dimensions:** 6-5/16 in H x 4-1/8 in W x 3-3/8 in D
– **Weight:** Approximately 3 lbs

This circuit breaker is suitable for reverse feed applications and is constructed with high dielectric strength materials, ensuring durability and safety. It complies with UL 489 and CSA standards, making it a reliable choice for various electrical distribution and control applications.
