General Electric GE Relay Test Plug 12XLA12A1

General Electric GE Relay Test Plug 12XLA12A1

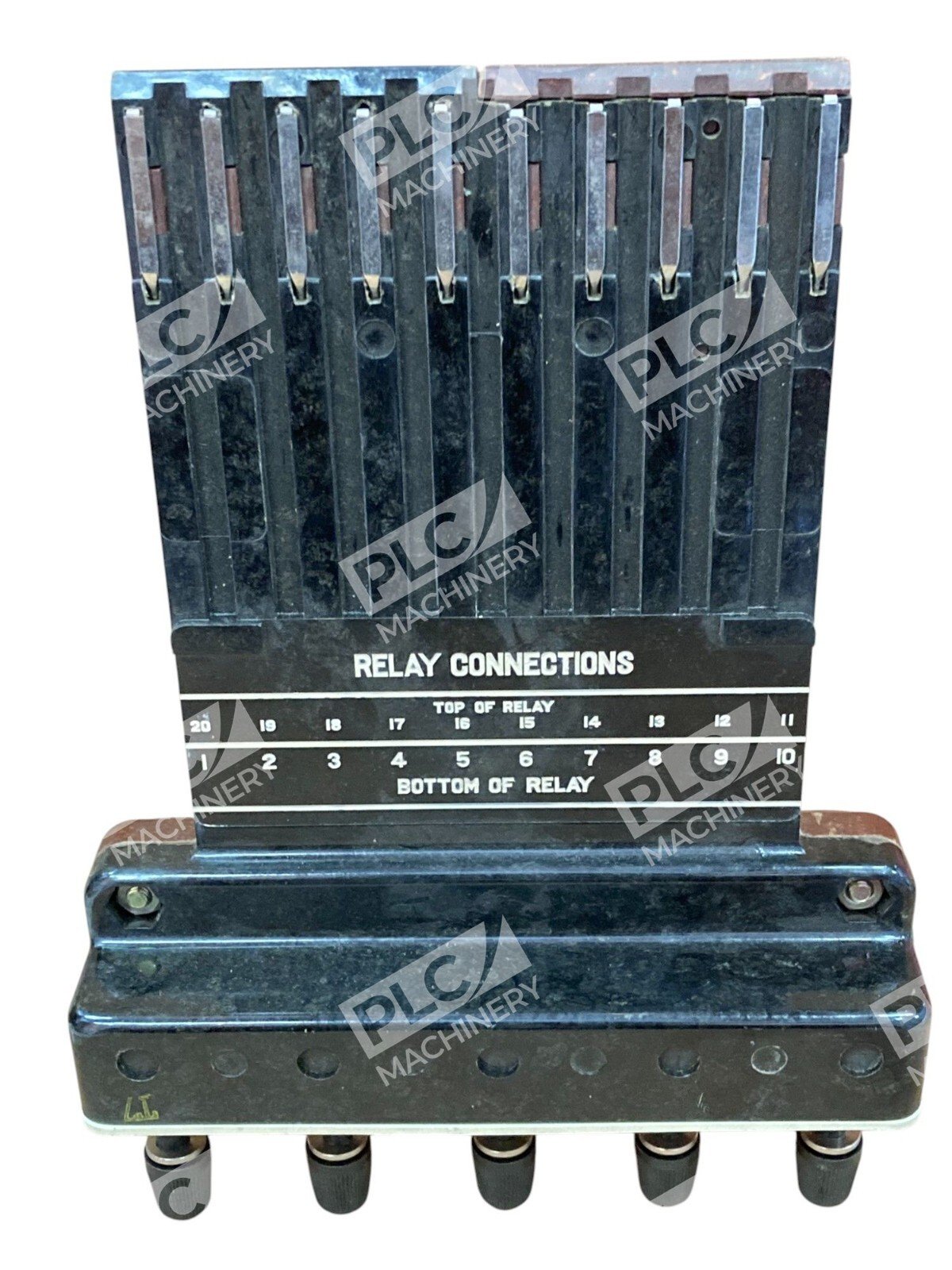

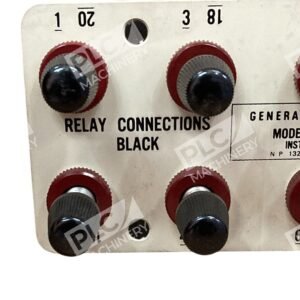

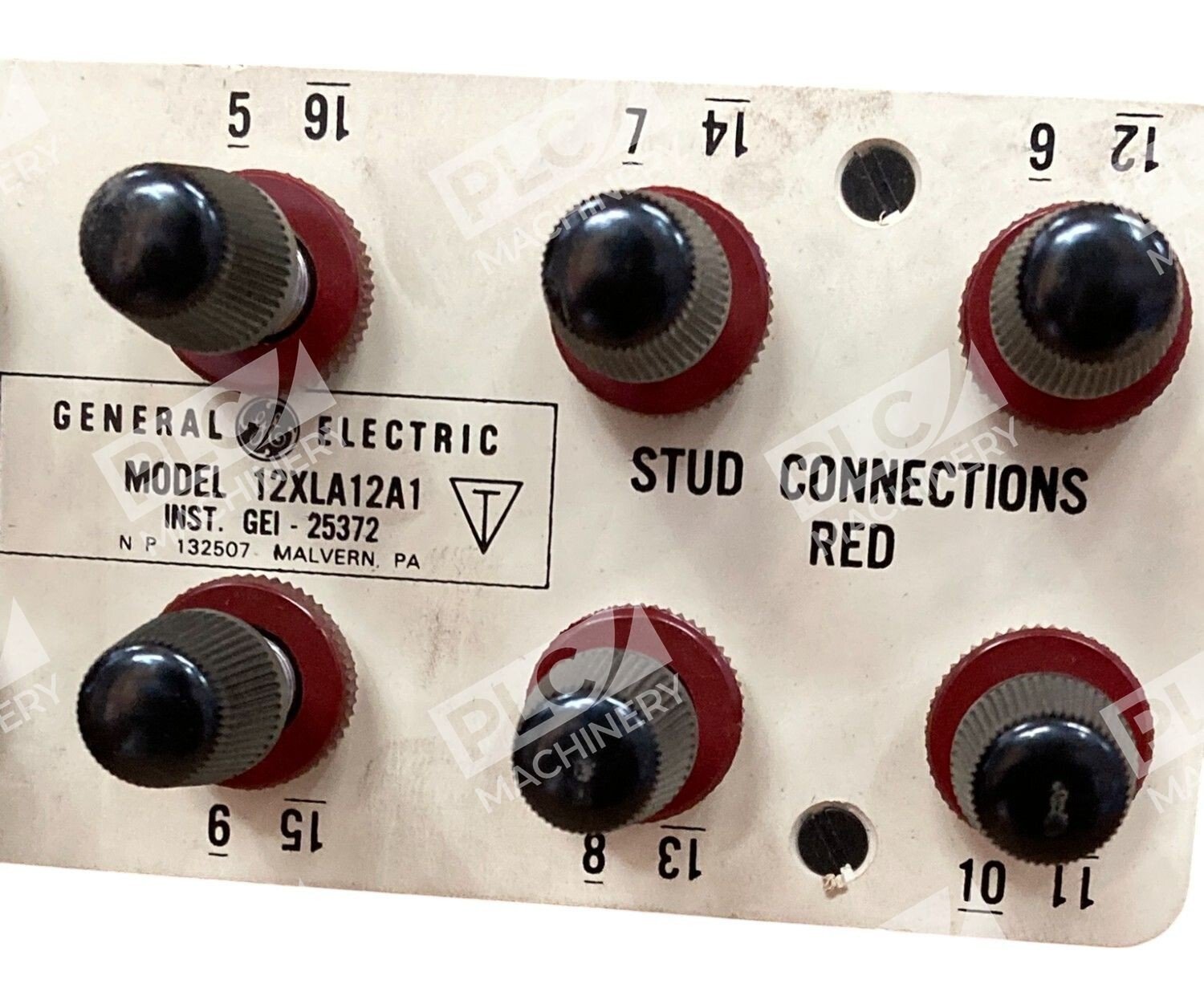

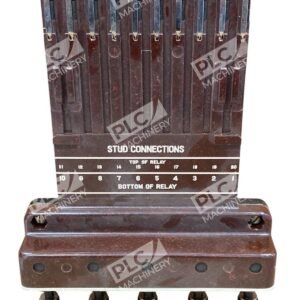

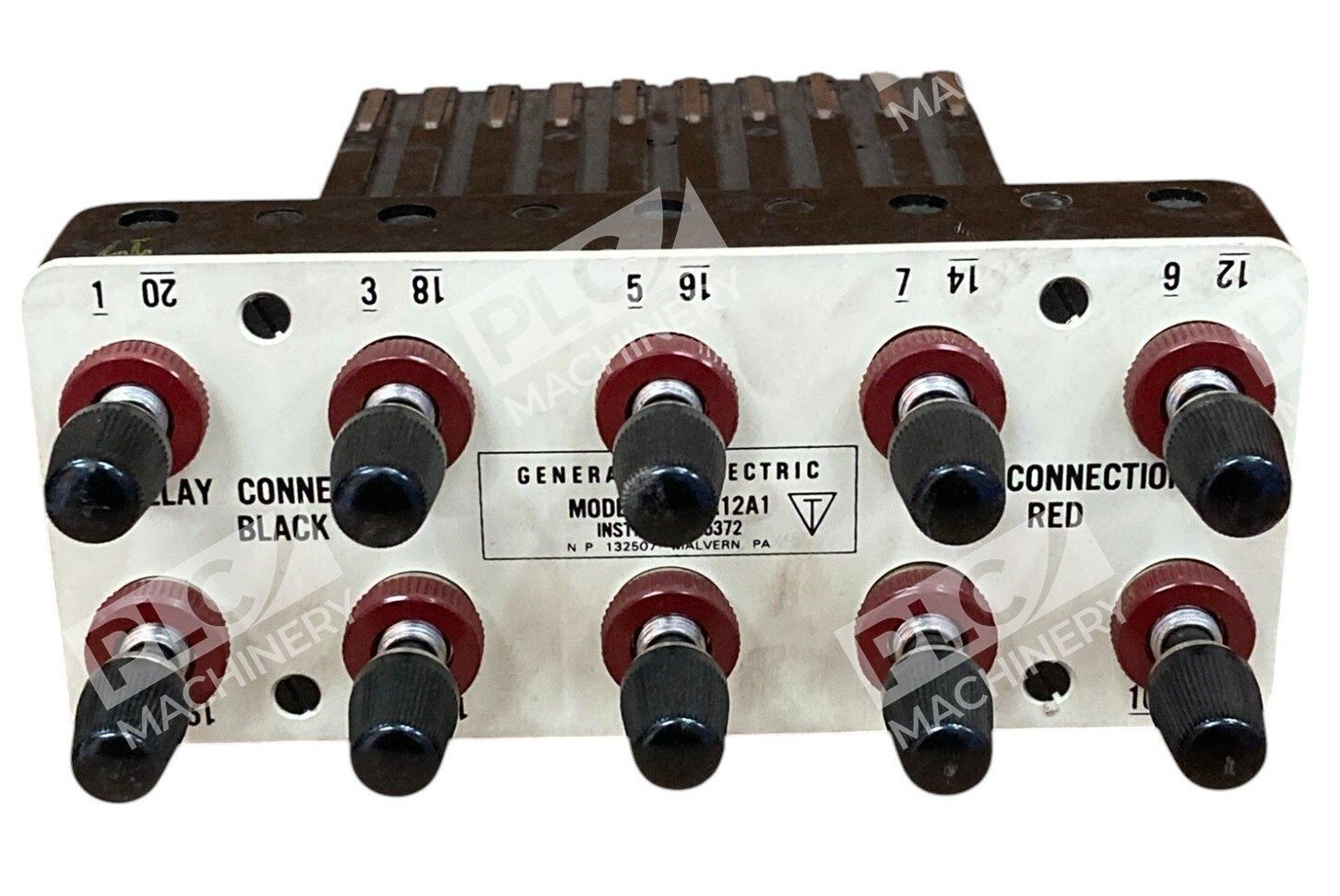

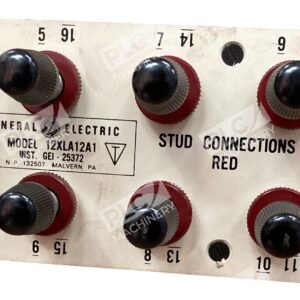

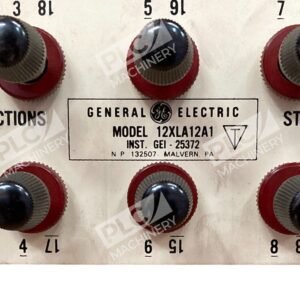

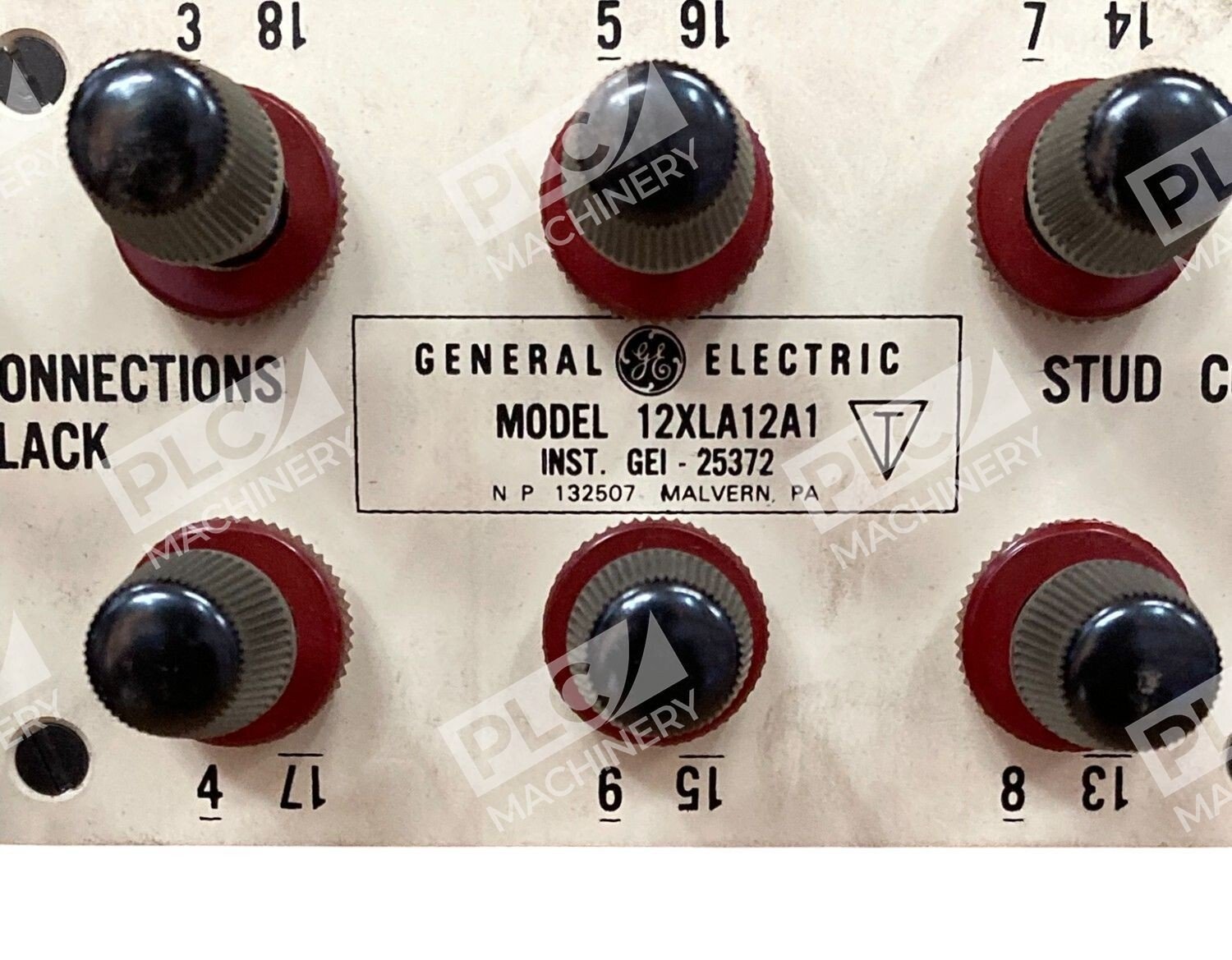

The General Electric 12XLA12A1 Relay Test Plug is an essential tool designed for efficient testing of drawout case relays and meters without the need for removal from their cases. By substituting the regular connecting plug with the 12XLA12A1, technicians can perform comprehensive diagnostics seamlessly.

Key Features

• Seamless Integration: The 12XLA12A1 test plug replaces the standard connecting plug, allowing for uninterrupted testing without disconnecting any wiring.
• Versatile Power Application: This model enables power to be applied to the relay from either the existing equipment source or an independent external source, providing flexibility during testing procedures.
• Enhanced Conductivity: To ensure minimal contact resistance and reliable performance, the contact fingers of the test plug are silver-plated.

Applications

The 12XLA12A1 is ideal for maintenance and testing scenarios where drawout relays or meters require evaluation without disrupting their operational setup. Its design facilitates quick and safe testing, making it a valuable asset in various industrial and commercial settings.

Specifications

• Model Number: 12XLA12A1
• Type: Relay Test Plug
• Compatibility: Designed for use with drawout relays and meters
• Contact Material: Silver-plated fingers for low-contact resistance

Incorporating the General Electric 12XLA12A1 Relay Test Plug into your testing equipment ensures efficient and reliable performance, streamlining the maintenance and verification processes of your relay systems.
