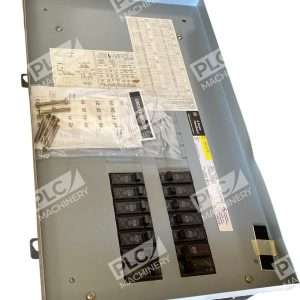

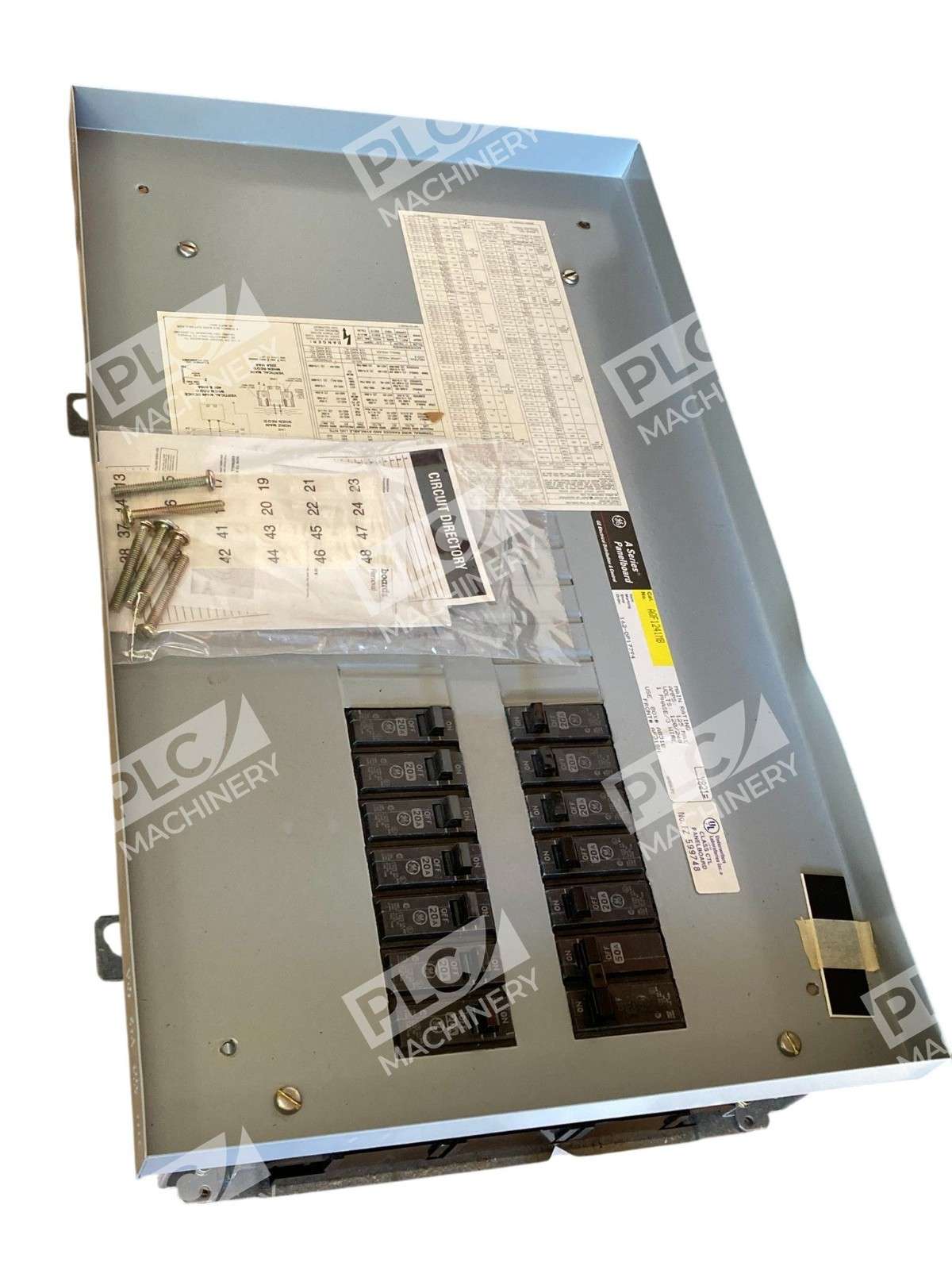

General Electric AQF1241MB Series Panelboard Interior 125A 120/240V
The General Electric AQF1241MB Series Panelboard Interior is a robust and reliable solution for electrical distribution in residential and commercial settings. Designed to handle up to 125 amperes at 120/240 volts, this panelboard interior ensures efficient and safe power management.
Key Features

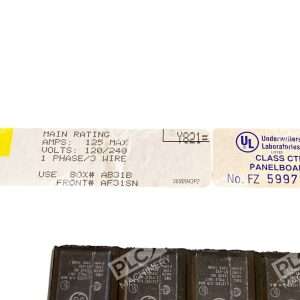

- Amperage Rating: 125A
- Voltage: 120/240V
- Phase: Single-phase, 3-wire system
- Branch Circuit Capacity: Accommodates up to 24 circuits
- Main Lug Configuration: Main lug only
- Bus Material: Aluminum bus for efficient conductivity

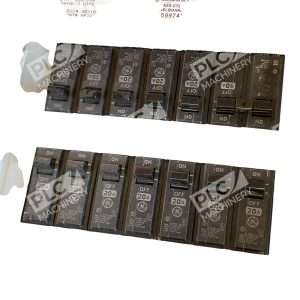

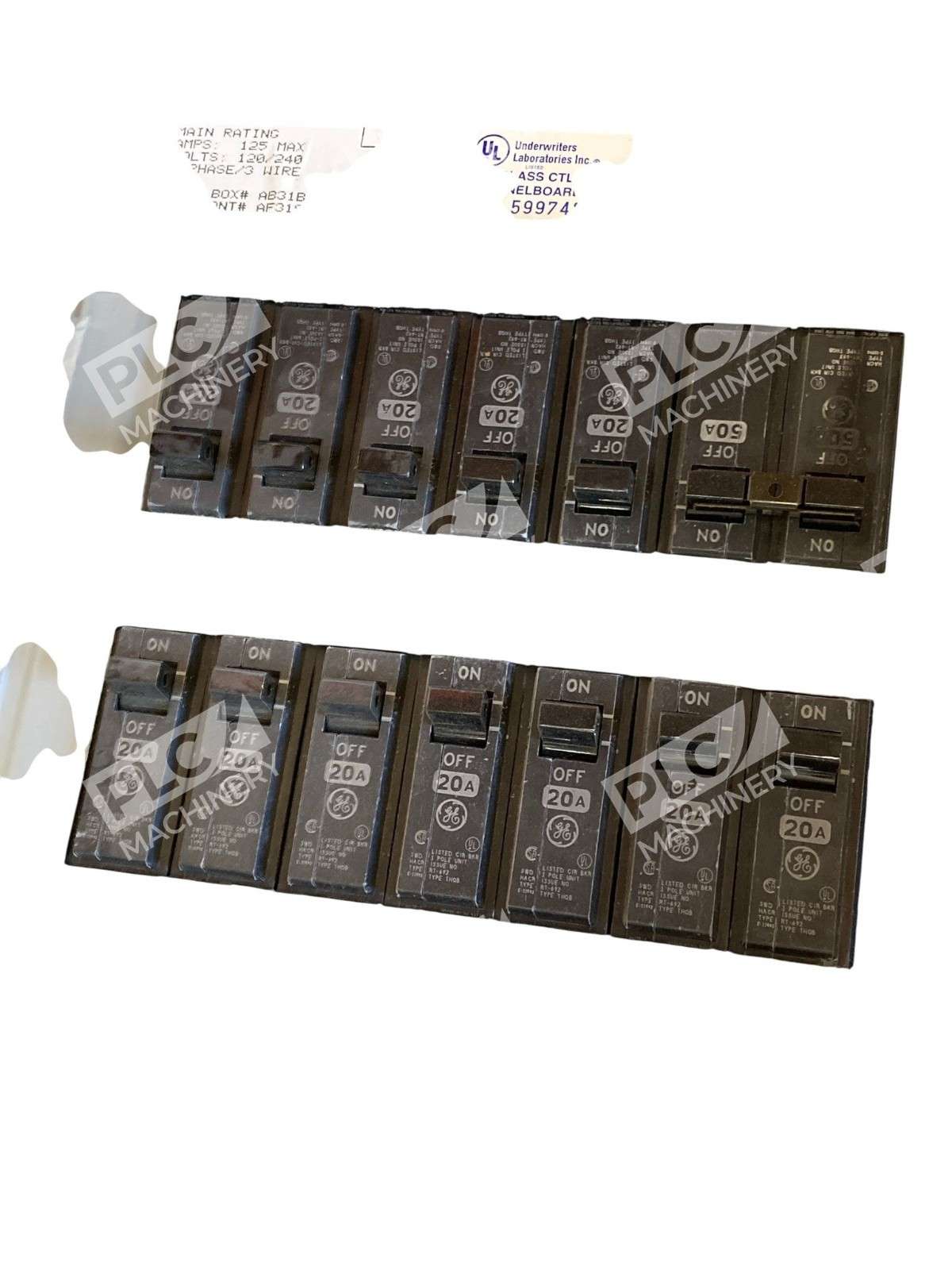

- Compatibility: Supports THQB bolt-on breakers
Design and Construction

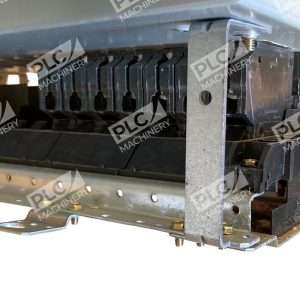

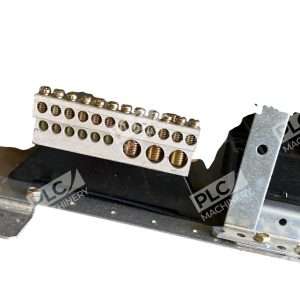

The AQF1241MB features a durable galvanized steel enclosure, providing robust protection for internal components. Its compact design facilitates straightforward installation, making it suitable for various applications. The panelboard’s interior is factory-assembled on a rigid steel frame, ensuring structural integrity and longevity.
Applications
This panelboard interior is ideal for residential and light commercial applications, offering a dependable solution for power distribution needs. Its capacity to support multiple circuits makes it versatile for various electrical configurations.
Installation and Compliance
Designed for ease of installation, the AQF1241MB complies with industry standards, ensuring safety and reliability. It is compatible with a range of GE A-Series enclosures and fronts, allowing for flexible installation options to meet specific project requirements.
For detailed specifications and installation guidelines, refer to the manufacturer’s documentation or consult with a certified electrician to ensure proper setup and compliance with local electrical codes.
