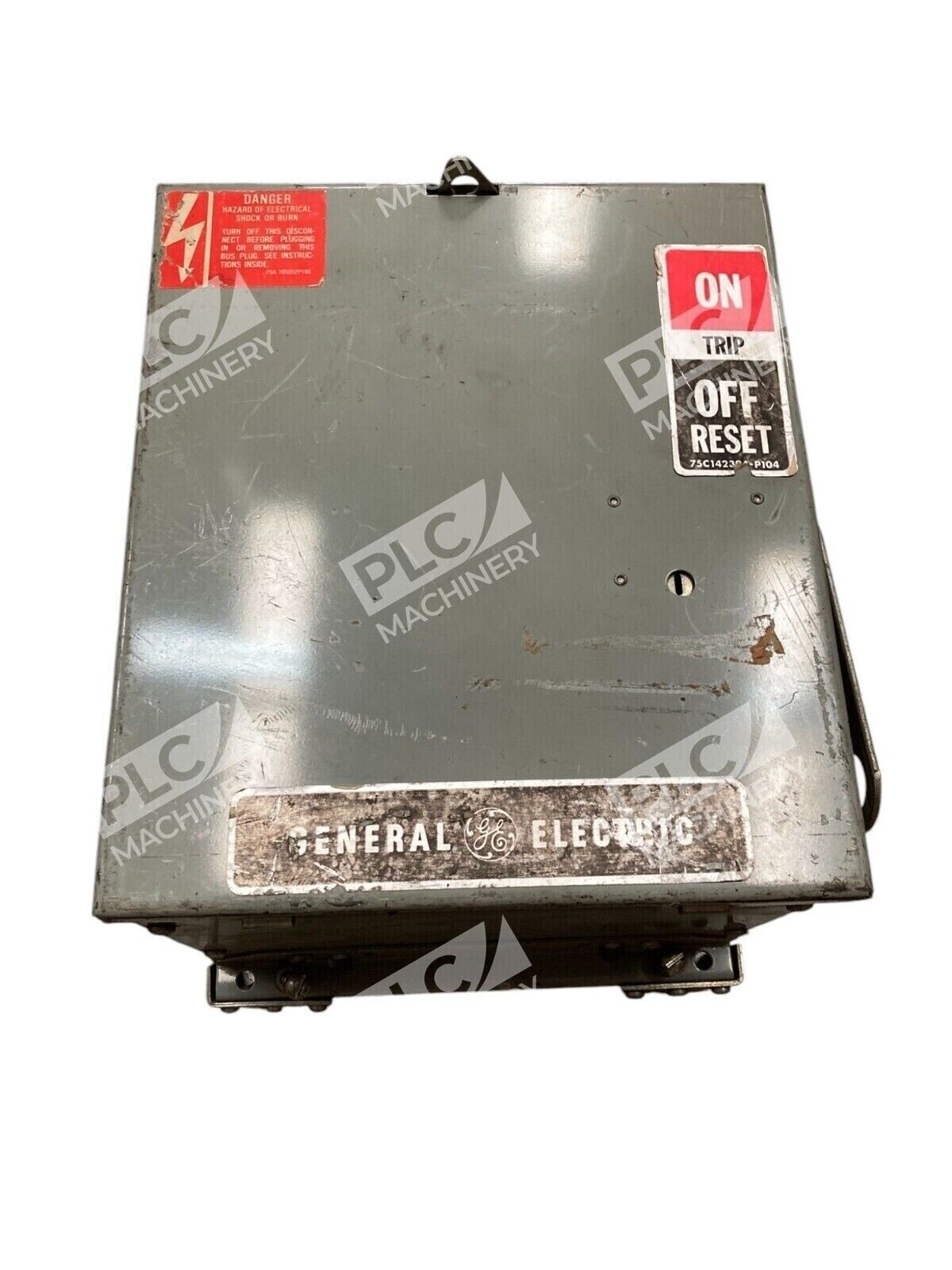

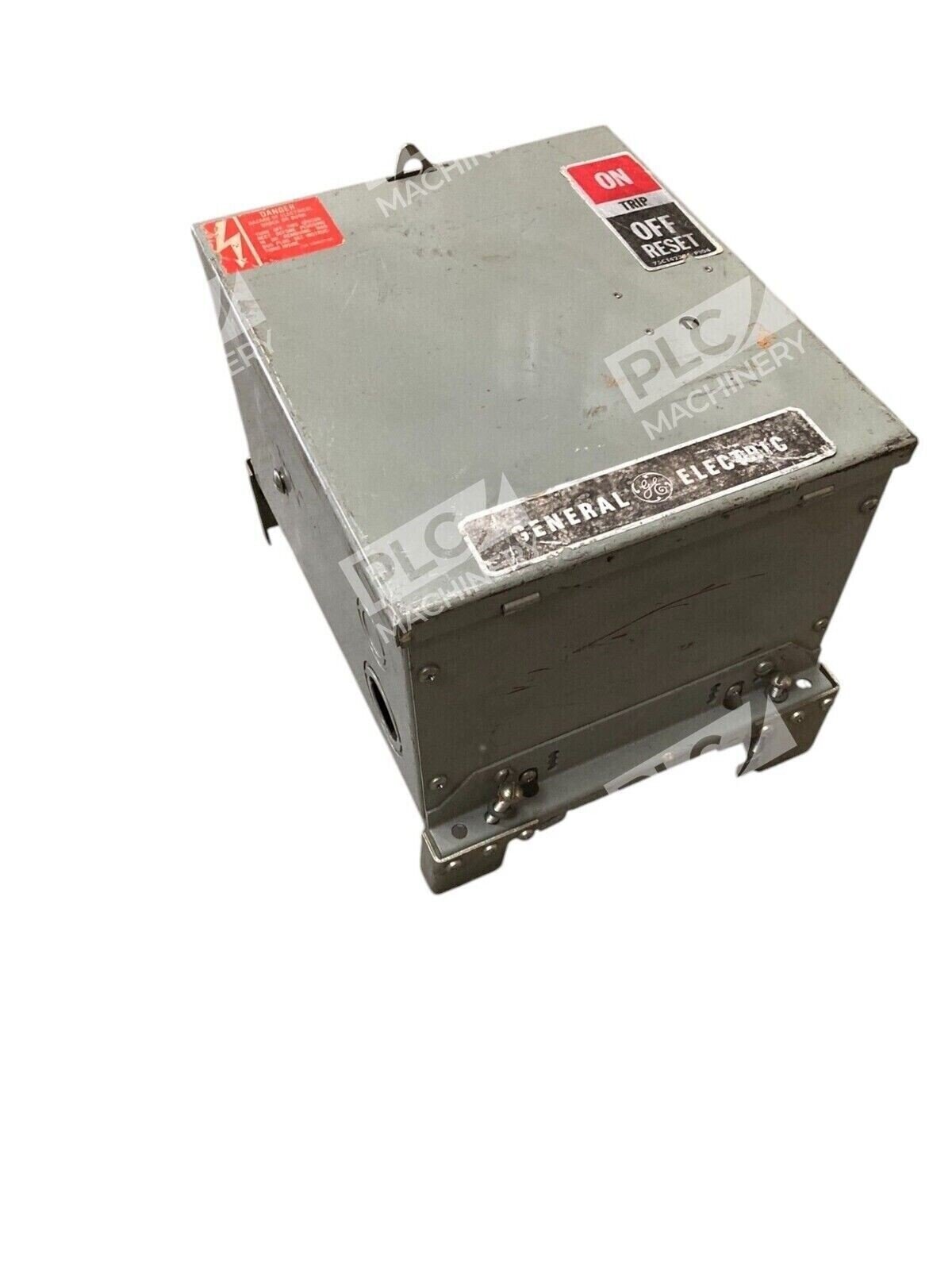

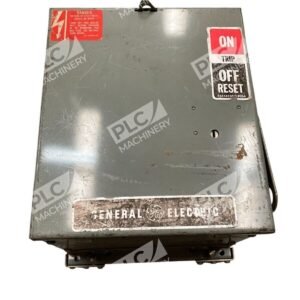

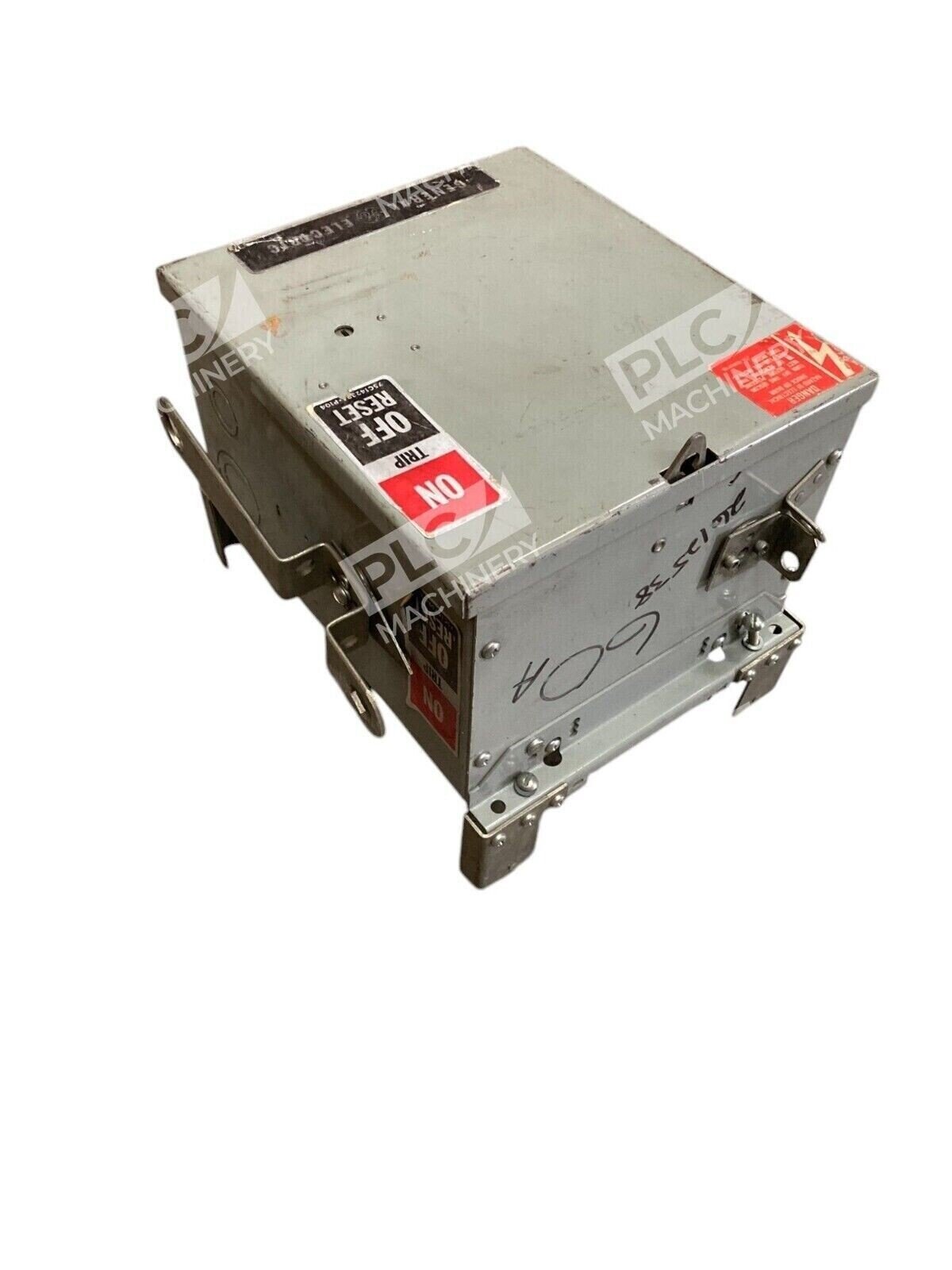

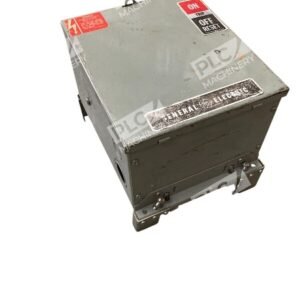

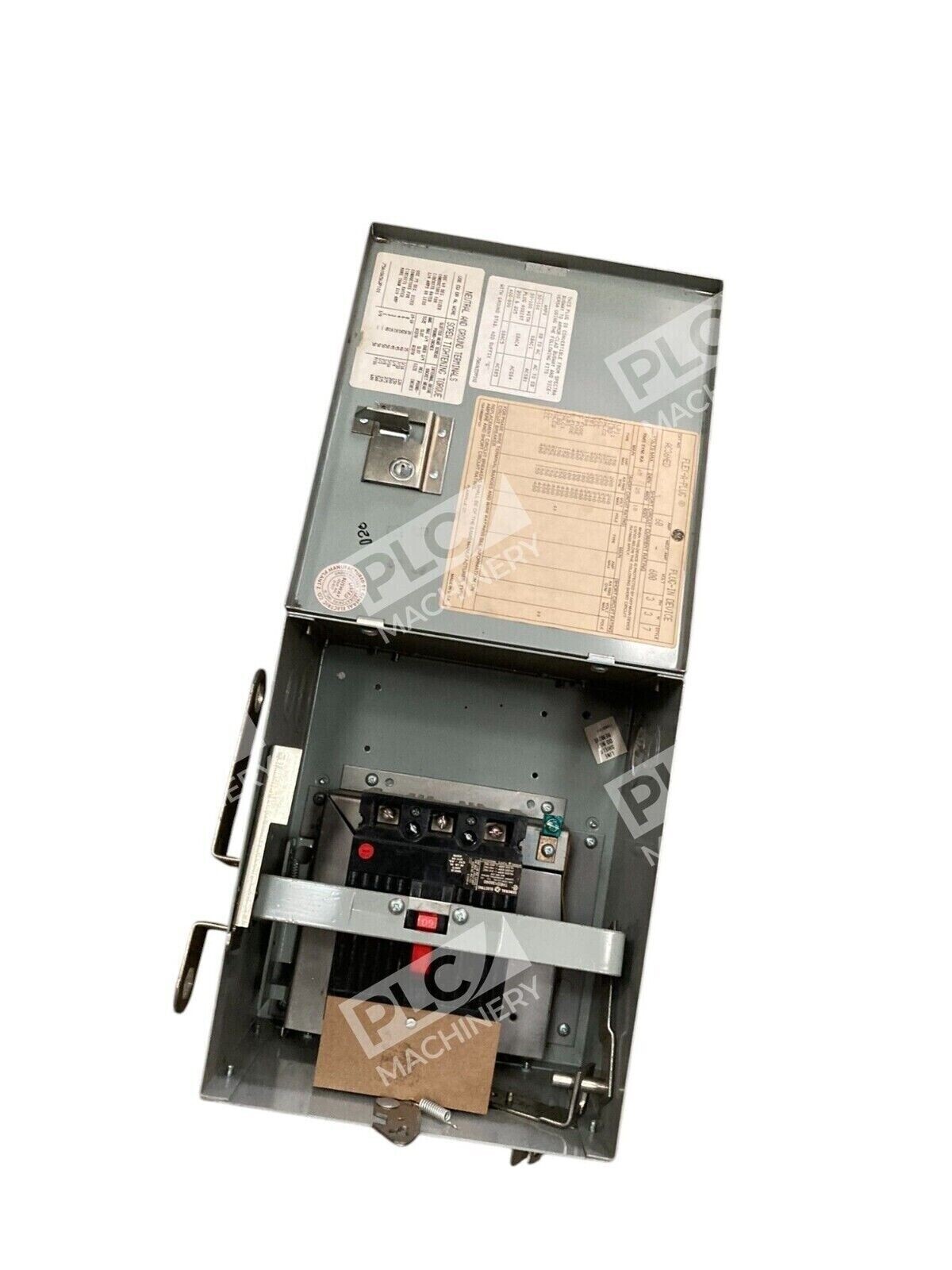

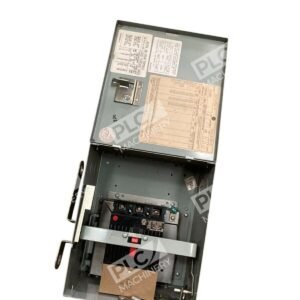

The General Electric Flex-A-Plug Plug-In Device, model AC36HED with THED136060, is a robust solution designed for efficient power distribution in commercial and industrial settings.
Key Features
- Amperage and Voltage Ratings: This device supports a 60-amp current at 600 volts, accommodating demanding electrical loads.
- Phase and Wiring Configuration: Engineered for a 4-phase, 3-wire system, it ensures compatibility with complex electrical infrastructures.

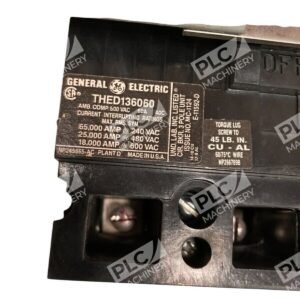

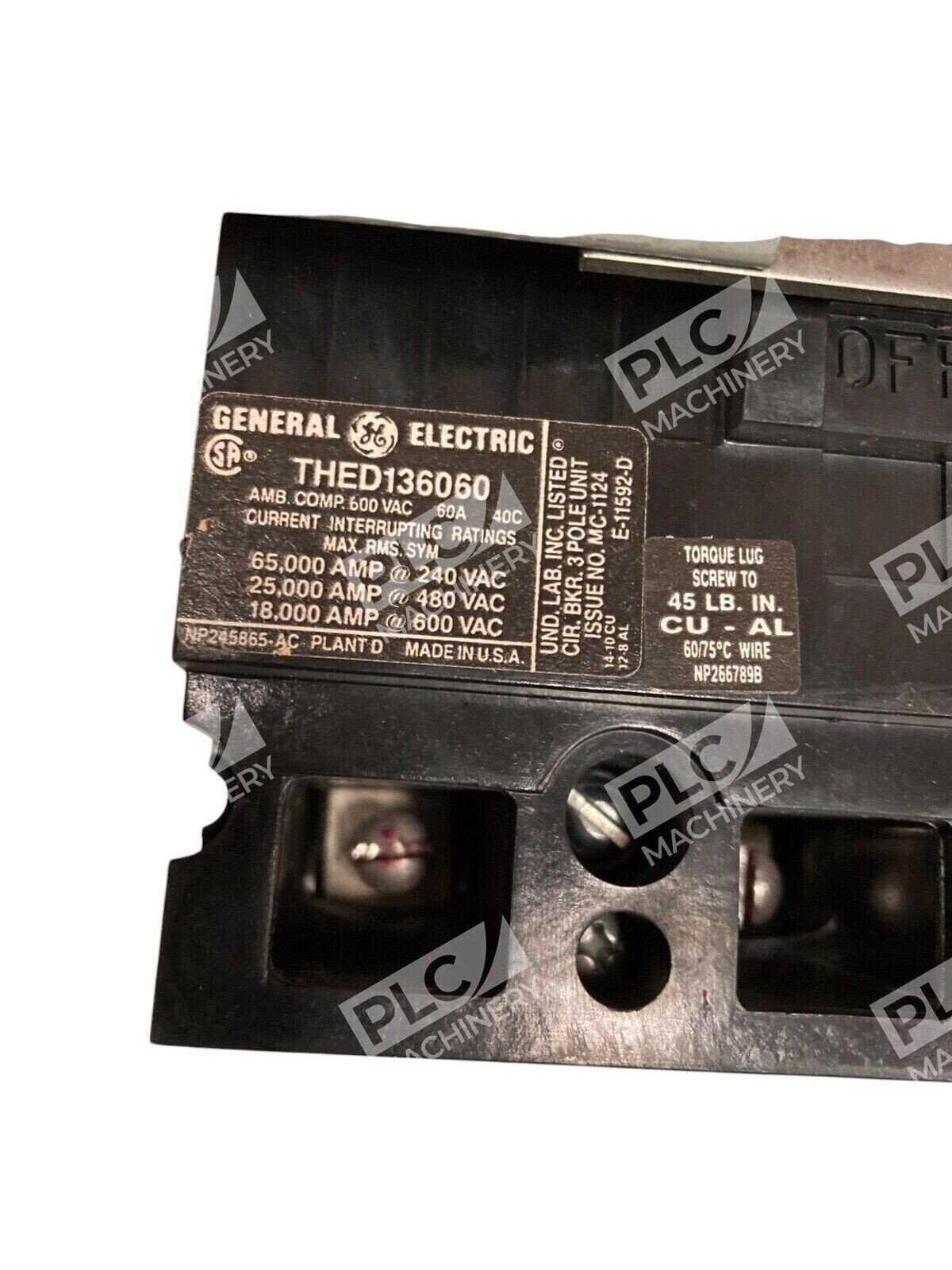

- Integrated Circuit Breaker: The included THED136060 molded case circuit breaker offers thermal magnetic protection, providing both long-time and instantaneous functions to safeguard against overloads and short circuits.
- Interrupting Capacity: With an interrupting capacity of 25kA at 480V, the THED136060 breaker ensures reliable performance under high fault conditions.
- Construction and Design: The Flex-A-Plug design facilitates easy installation and maintenance, while the bolt-on connection ensures a secure and stable setup.
Applications
Ideal for use in panelboards and switchboards, this plug-in device is suitable for various applications requiring dependable circuit protection and efficient power distribution.
Specifications
- Manufacturer: General Electric
- Model Number: AC36HED with THED136060
- Amperage Rating: 60A
- Voltage Rating: 600V
- Phase: 4-Phase
- Wiring Configuration: 3-Wire
- Circuit Breaker Type: Molded Case, Thermal Magnetic
- Interrupting Capacity: 25kA at 480V
- Connection Type: Bolt-On
This combination of the Flex-A-Plug device and the THED136060 circuit breaker delivers a reliable and efficient solution for managing electrical distribution and protection in demanding environments.
