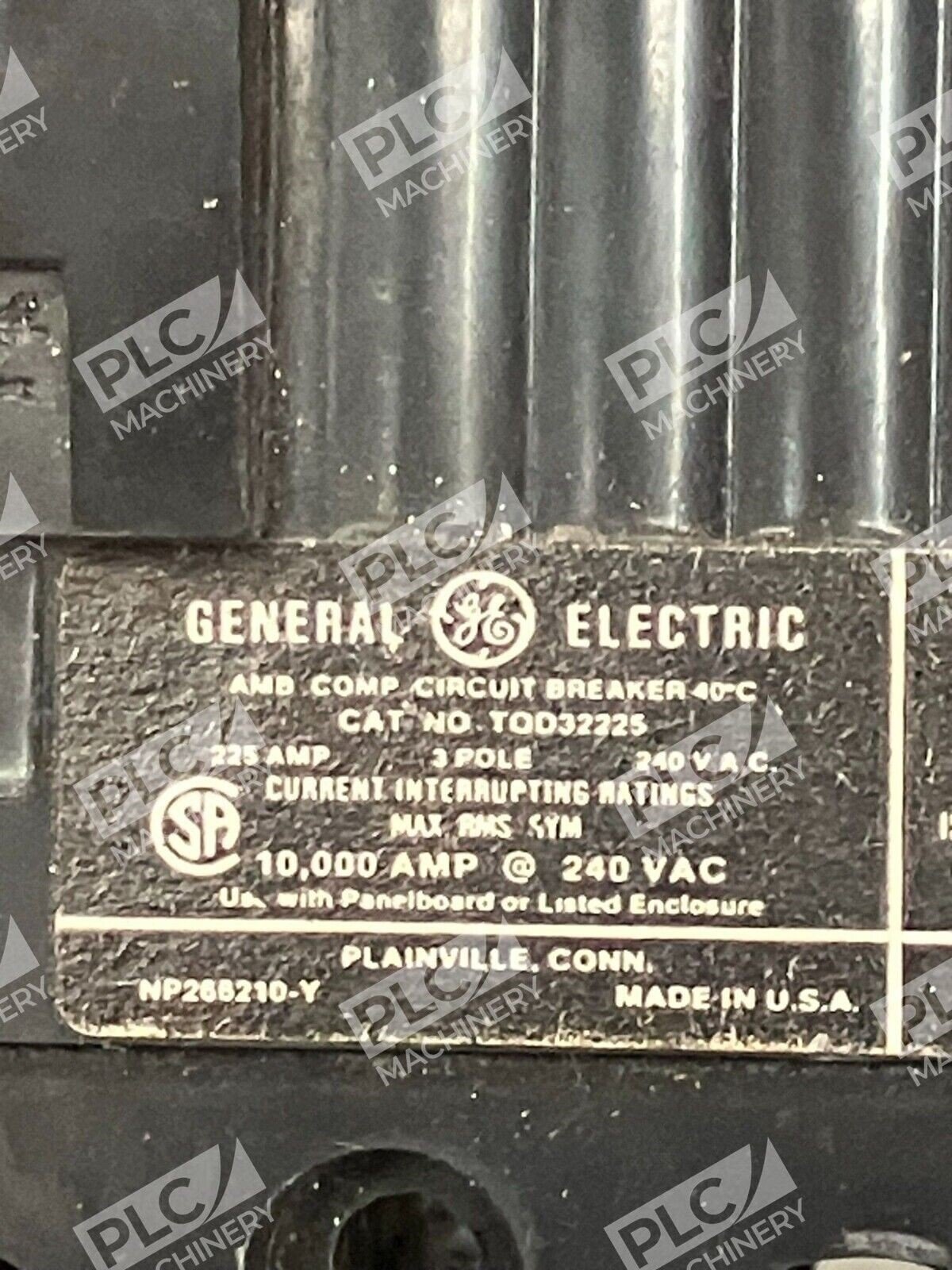

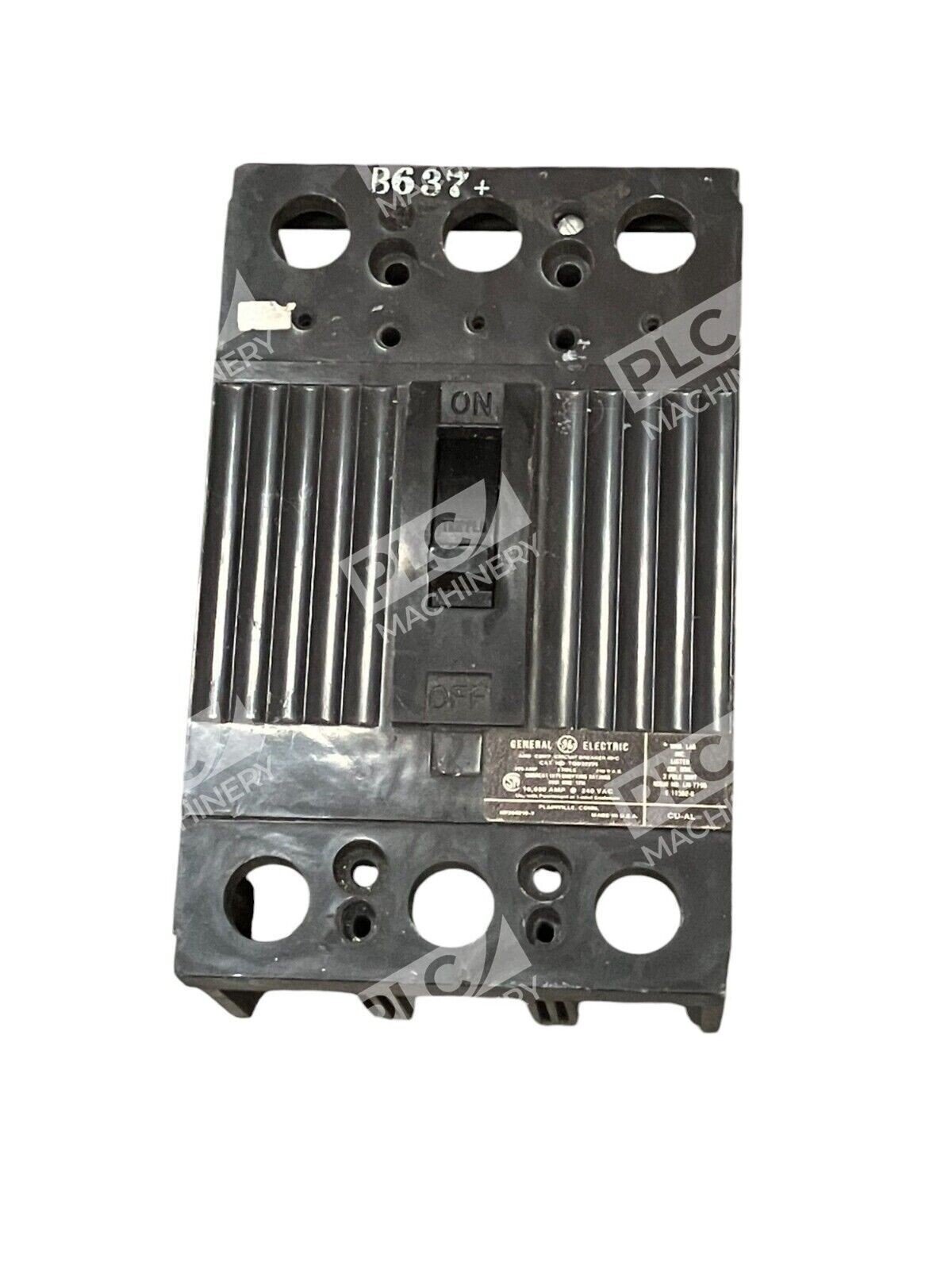

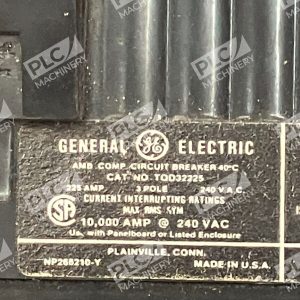

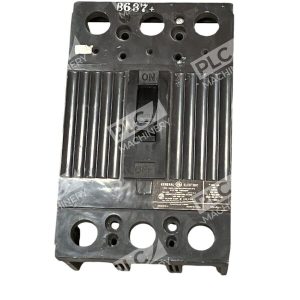

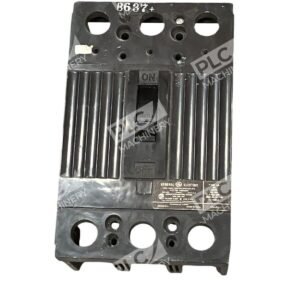

General Electric 225A 3 Pole 240VAC Circuit Breaker TOD32225

General Electric 225A 3-Pole 240VAC Circuit Breaker TOD32225

The General Electric TOD32225 is a robust molded case circuit breaker designed to provide reliable overcurrent protection in commercial and industrial electrical systems. With a 225-ampere rating and a 3-pole configuration, it is suitable for three-phase applications operating at 240 volts AC.

Key Features

• Amperage Rating: 225A
• Voltage Rating: 240V AC
• Poles: 3
• Interrupting Capacity: 10kA at 240V
• Protection Type: Thermal Magnetic
• Trip Functions: Long-Time and Instantaneous (LI)
• Connection Type: Bolt-On
• Operating Temperature: Up to 40°C

Design and Construction

The TOD32225 features a molded case design that ensures durability and longevity. Its thermal magnetic trip unit provides both long-time and instantaneous trip functions, offering comprehensive protection against overloads and short circuits. The bolt-on connection facilitates secure and straightforward installation, making it a practical choice for various electrical setups.

Applications

This circuit breaker is ideal for use in commercial and industrial environments where reliable circuit protection is essential. Its 3-pole configuration makes it suitable for three-phase systems, and the 225A rating allows it to handle substantial electrical loads effectively.

Compliance and Standards

The General Electric TOD32225 complies with industry standards, ensuring safety and performance in electrical installations. Its interrupting capacity of 10kA at 240V meets the requirements for many commercial and industrial applications.

In summary, the General Electric TOD32225 225A 3-Pole 240VAC Circuit Breaker offers a reliable and efficient solution for protecting electrical circuits in demanding environments. Its combination of thermal magnetic protection, robust construction, and compliance with industry standards makes it a valuable component in any electrical system.
