General Electric 1 Pole 20A Circuit Breaker THQL120

General Electric 1 Pole 20A Circuit Breaker THQL120

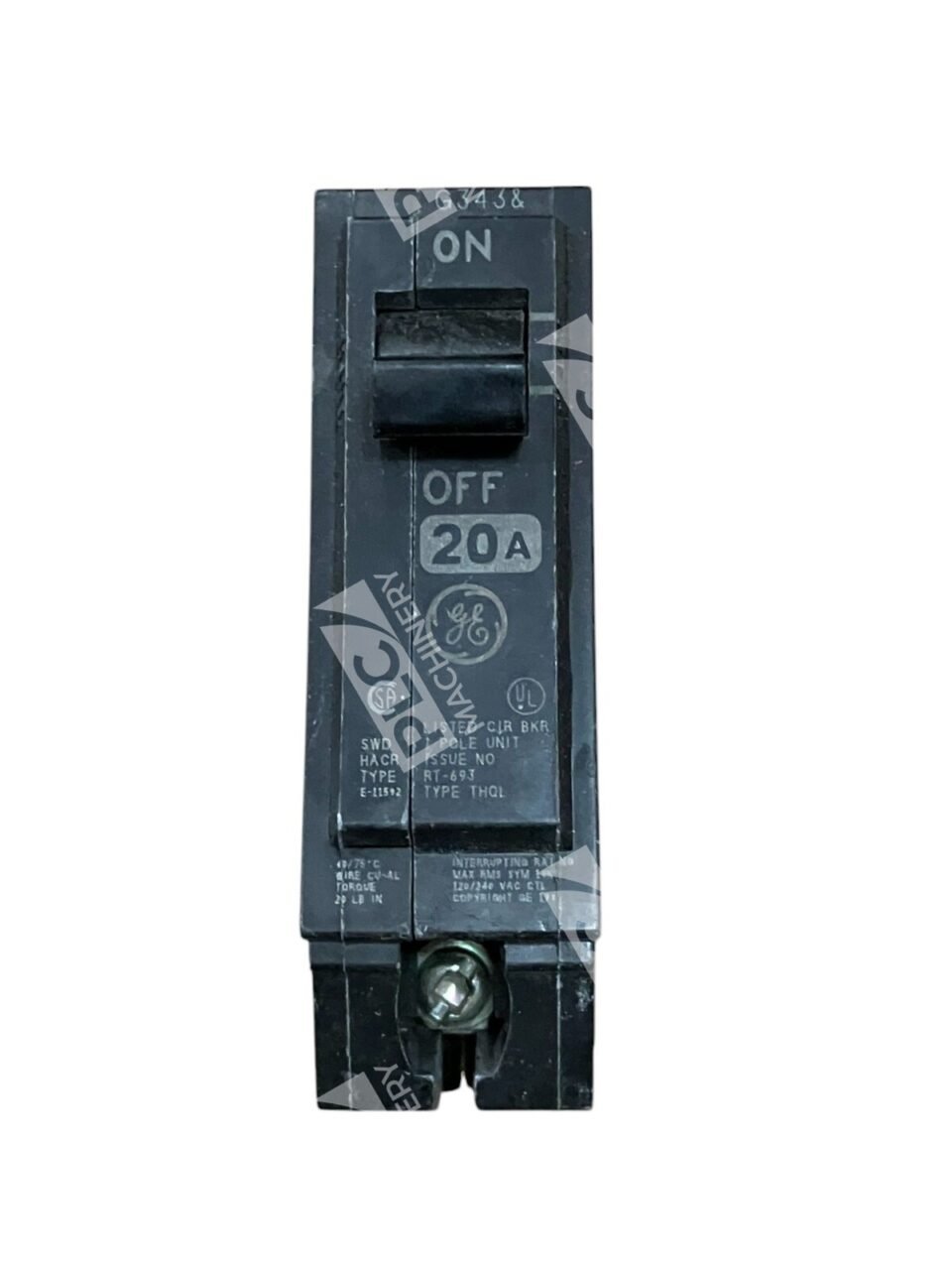

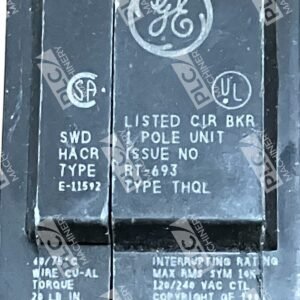

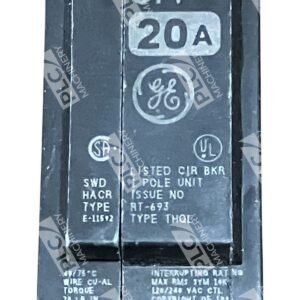

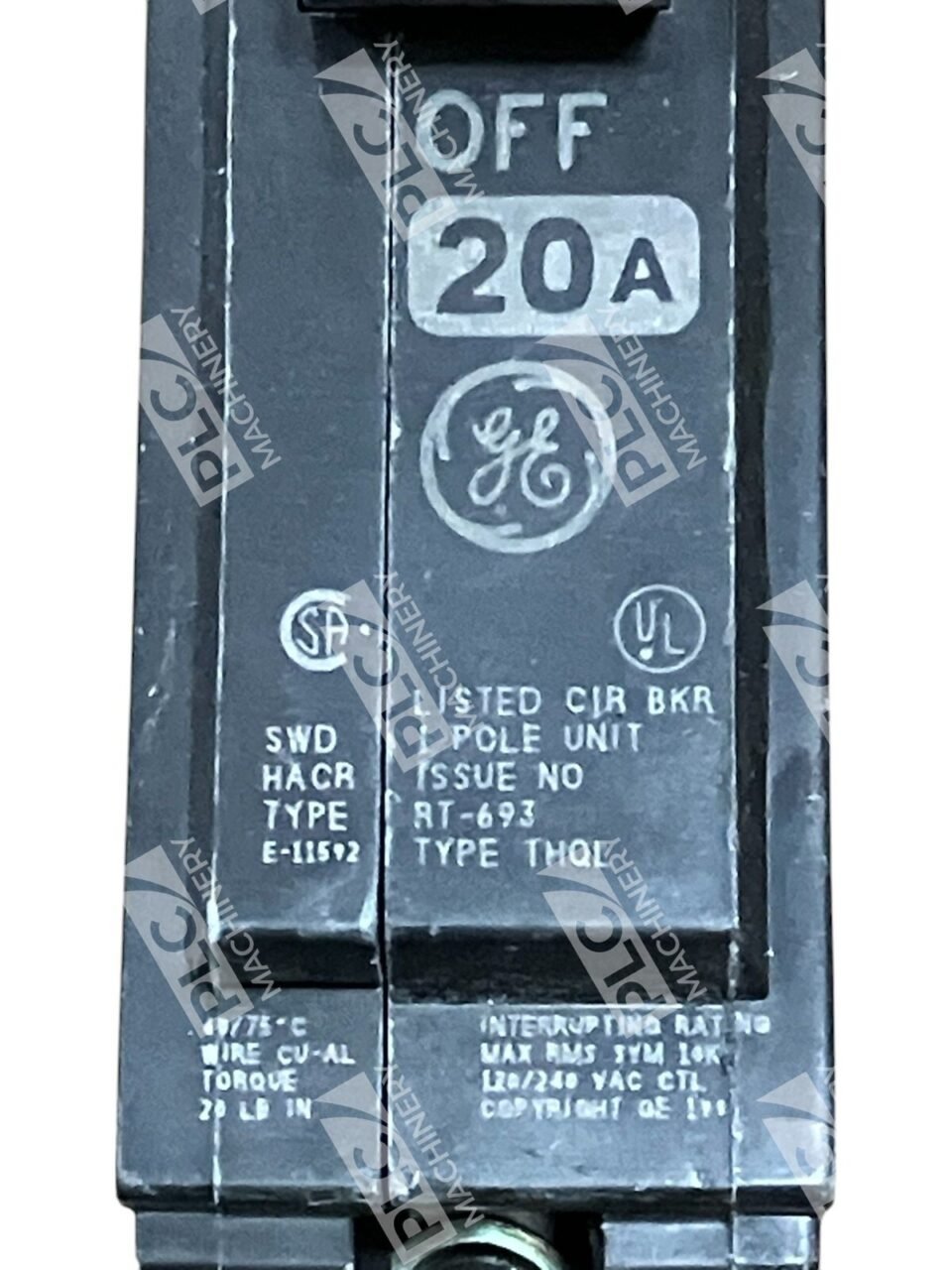

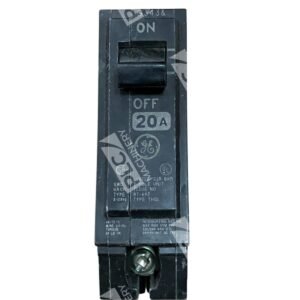

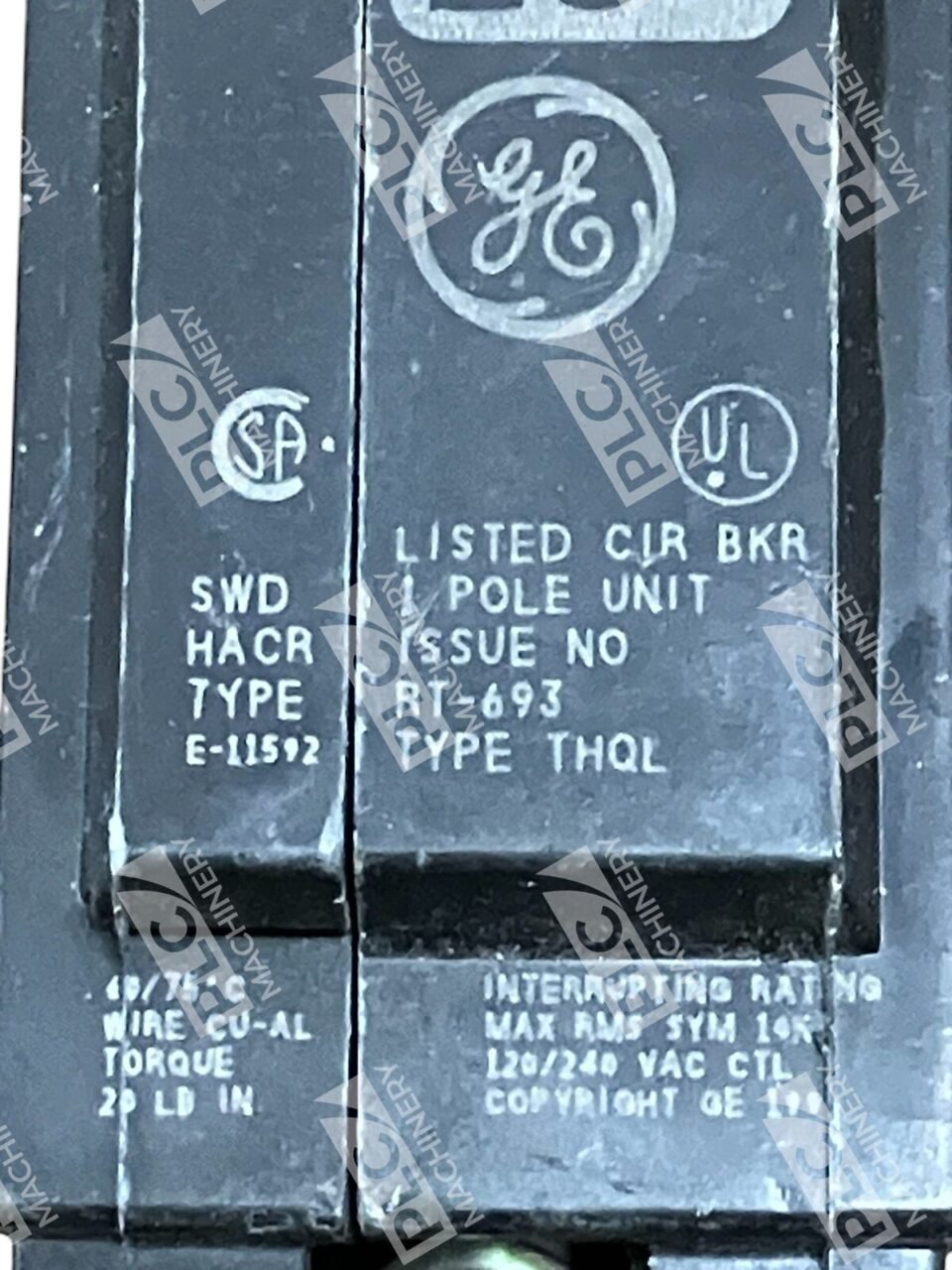

The General Electric THQL120 is a single-pole, 20-amp circuit breaker designed for residential and commercial applications. As part of GE’s Q-Line series, this breaker offers reliable protection for electrical circuits, ensuring safety and performance.

Key Features

• Amperage: 20 Amps
• Voltage Rating: 120/240V AC
• Number of Poles: 1
• Interrupting Rating: 10,000 AIC at 120/240V AC
• Mounting Style: Plug-In
• Trip Type: Thermal Magnetic
• Terminal Connection: Screw Clamp
• Frame Size: 100A/THQ
• Dimensions: 1″ W x 2-3/8″ D x 3-9/32″ H
• Wire Size Compatibility: 14 to 8 AWG (Copper), 12 to 8 AWG (Aluminum)
• Certifications: UL Listed

Design and Construction

The THQL120 features a compact design, measuring 1 inch in width per pole, making it suitable for installations where space is limited. Its heat-resistant thermoset case and cover provide stability and structural integrity, ensuring long-term durability. The breaker is equipped with a quick-make, quick-break switch mechanism, enhancing its reliability in protecting electrical circuits.

Applications

This circuit breaker is compatible with GE’s Power Mark Gold Load Centers and AQ Lighting Panels, making it ideal for various residential and commercial electrical systems. Its plug-in mounting style allows for easy installation and replacement, catering to the needs of electricians and maintenance personnel.

Safety and Compliance

GE’s THQL120 circuit breaker is UL listed, meeting industry standards for safety and performance. The breaker trips to the center position, providing a clear visual indication of a tripped circuit, which aids in quick identification and resolution of electrical issues.

In summary, the General Electric THQL120 1 Pole 20A Circuit Breaker combines compact design, reliable performance, and ease of installation, making it a suitable choice for protecting electrical circuits in both residential and commercial settings.
