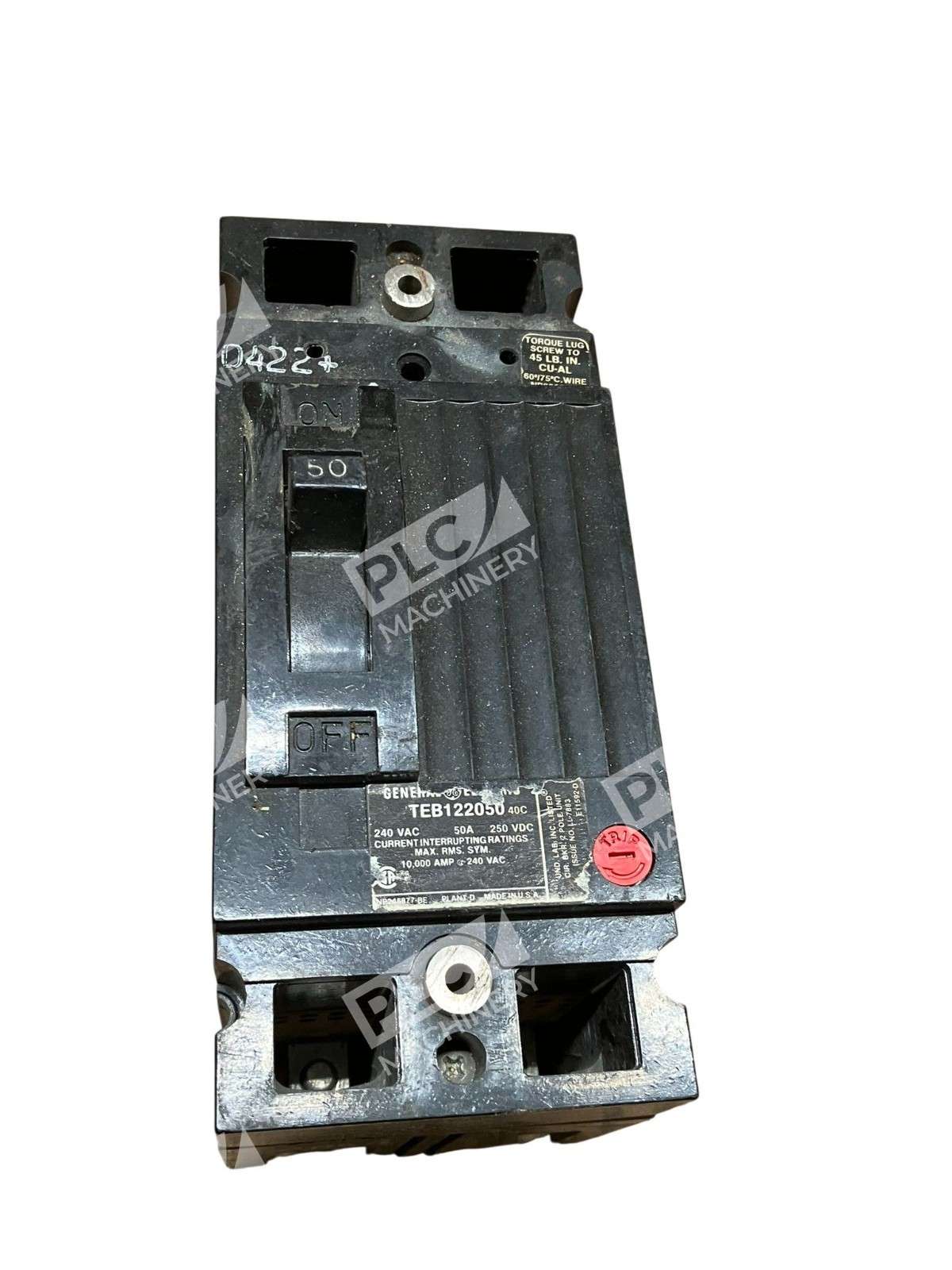

GE TEB122050 Circuit Breaker: Reliable 50A 2-Pole Protection
The GE TEB122050 is a robust molded case circuit breaker designed to deliver dependable electrical protection in various applications. As part of GE’s E150 product line, this breaker combines thermal magnetic trip technology with a compact design, ensuring both safety and efficiency.
Key Features
- Amperage Rating: 50 Amps
- Voltage Rating: 240 VAC
- Number of Poles: 2

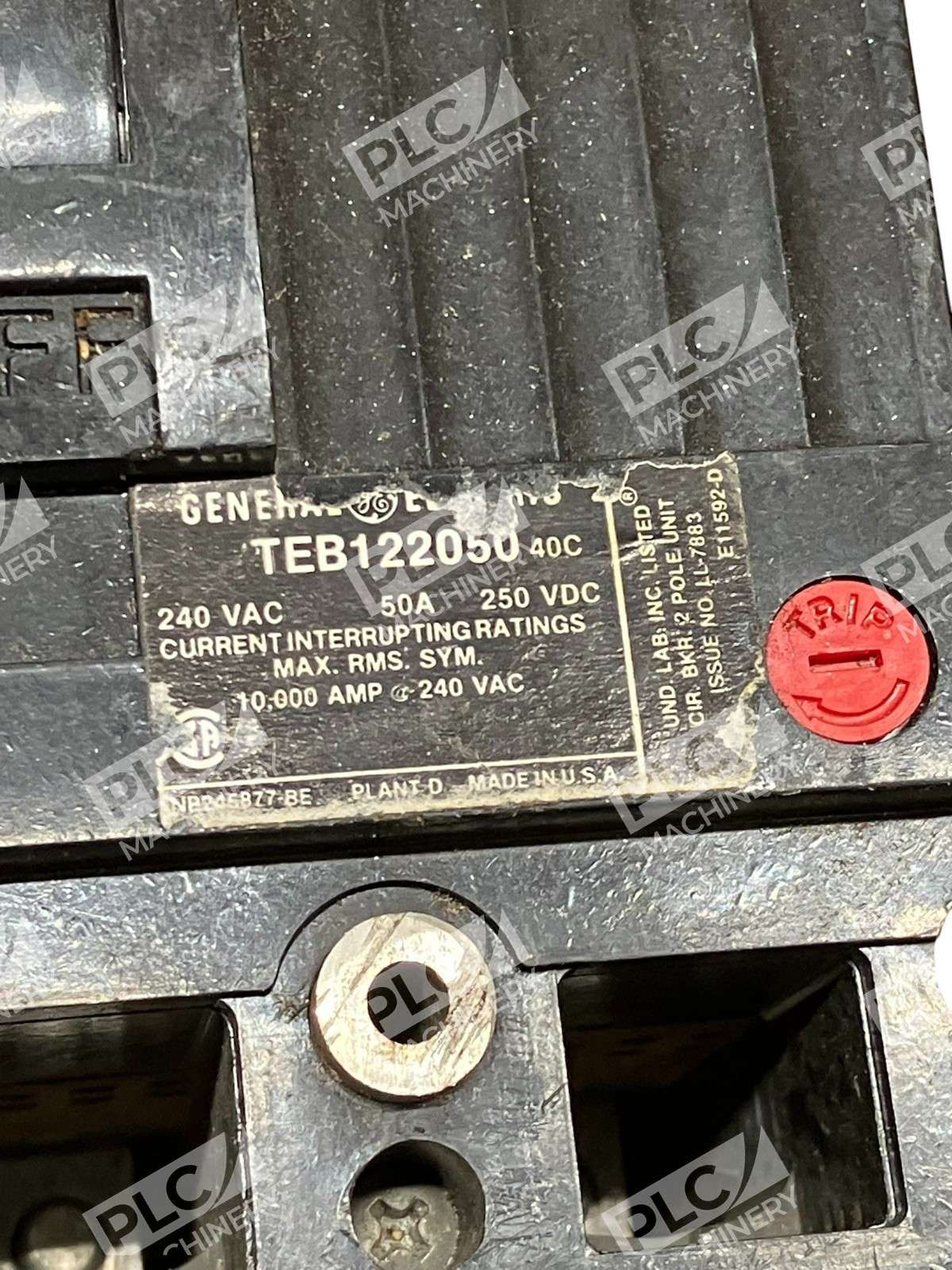

- Interrupting Capacity: 10 kA at 240V
- Trip Type: Non-Interchangeable Thermal Magnetic (Long-Time and Instantaneous)
- Mounting Type: Bolt-On
- Connection Type: Line and Load Side Lugs
- Frame Type: E150
- Operating Temperature: 10 to 50°C
Design and Construction

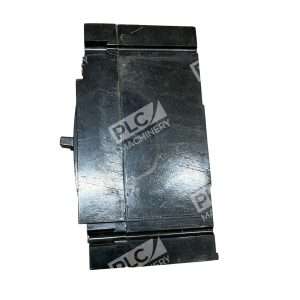

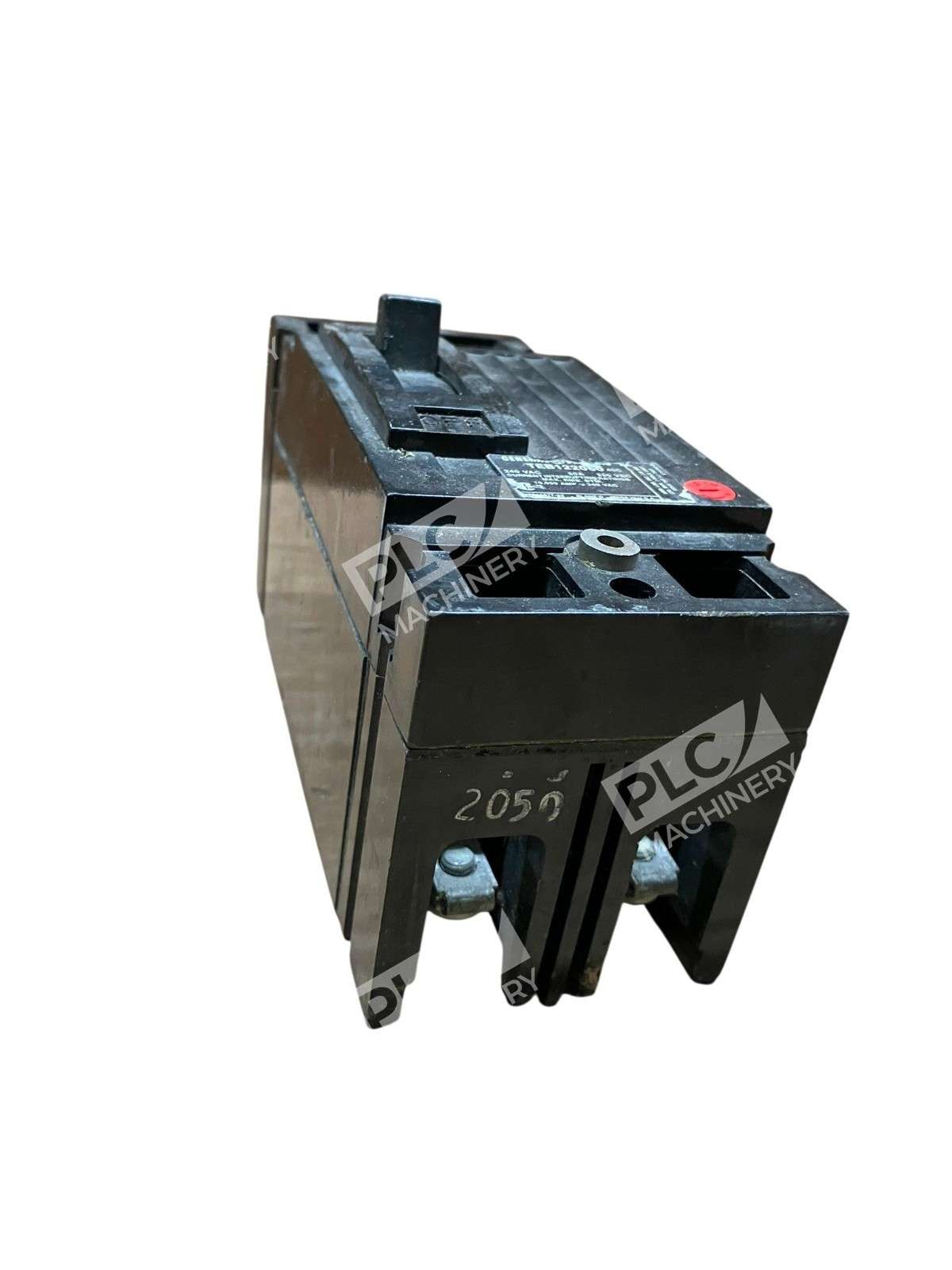

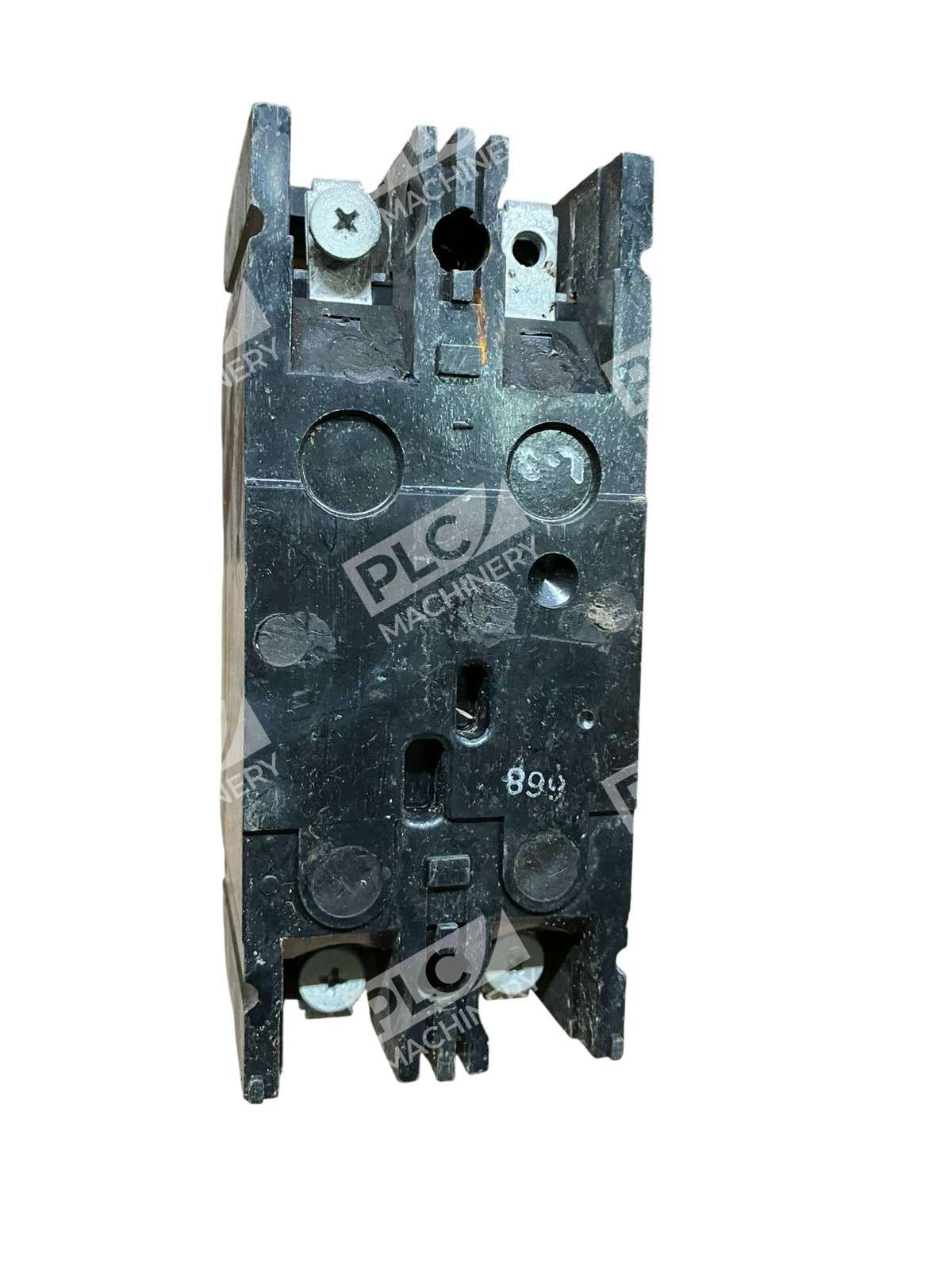

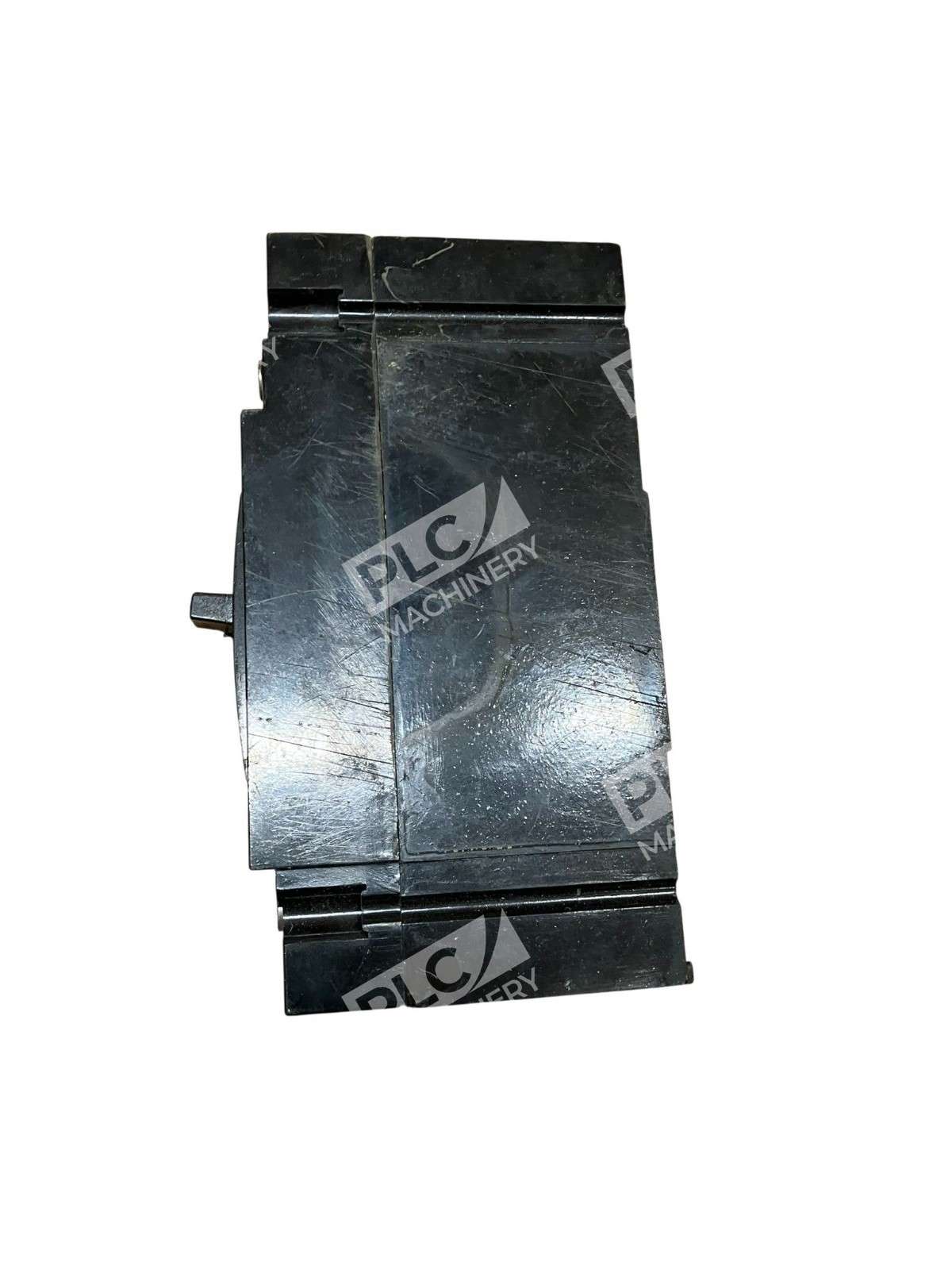

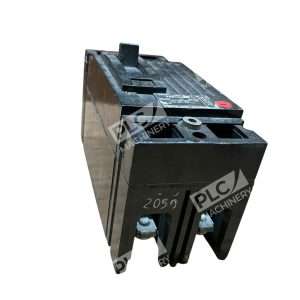

Constructed with high-strength plastic, the TEB122050 measures 2-3/4 inches in width, 3-3/8 inches in depth, and 6-5/16 inches in height. Its compact size allows for easy integration into various electrical panels and systems. The pivot/toggle handle actuator ensures straightforward operation, while the line and load lug connections accommodate wire sizes ranging from 8 to 6 AWG.
Performance and Reliability
Equipped with a thermal magnetic trip unit, the TEB122050 provides both long-time and instantaneous protection against overloads and short circuits. Its 10 kA interrupting capacity at 240V ensures it can handle significant fault conditions, enhancing system safety. Additionally, this breaker is suitable for reverse feed applications, offering flexibility in installation.
Applications
The GE TEB122050 is ideal for industrial applications, including switchboards, motor control centers, lighting, power, and customized control panelboards. Its reliable performance and robust construction make it a preferred choice for electrical distribution and control systems.
Certifications and Standards
This circuit breaker meets industry standards, including CSA LR57114 and UL E11592 certifications, ensuring compliance with safety and performance requirements.
In summary, the GE TEB122050 Circuit Breaker offers a combination of reliability, safety, and versatility, making it a valuable component in various electrical systems requiring 50A protection.
