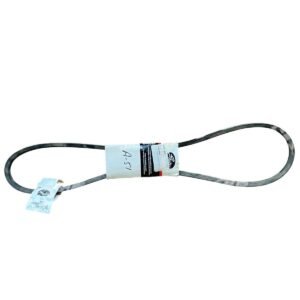

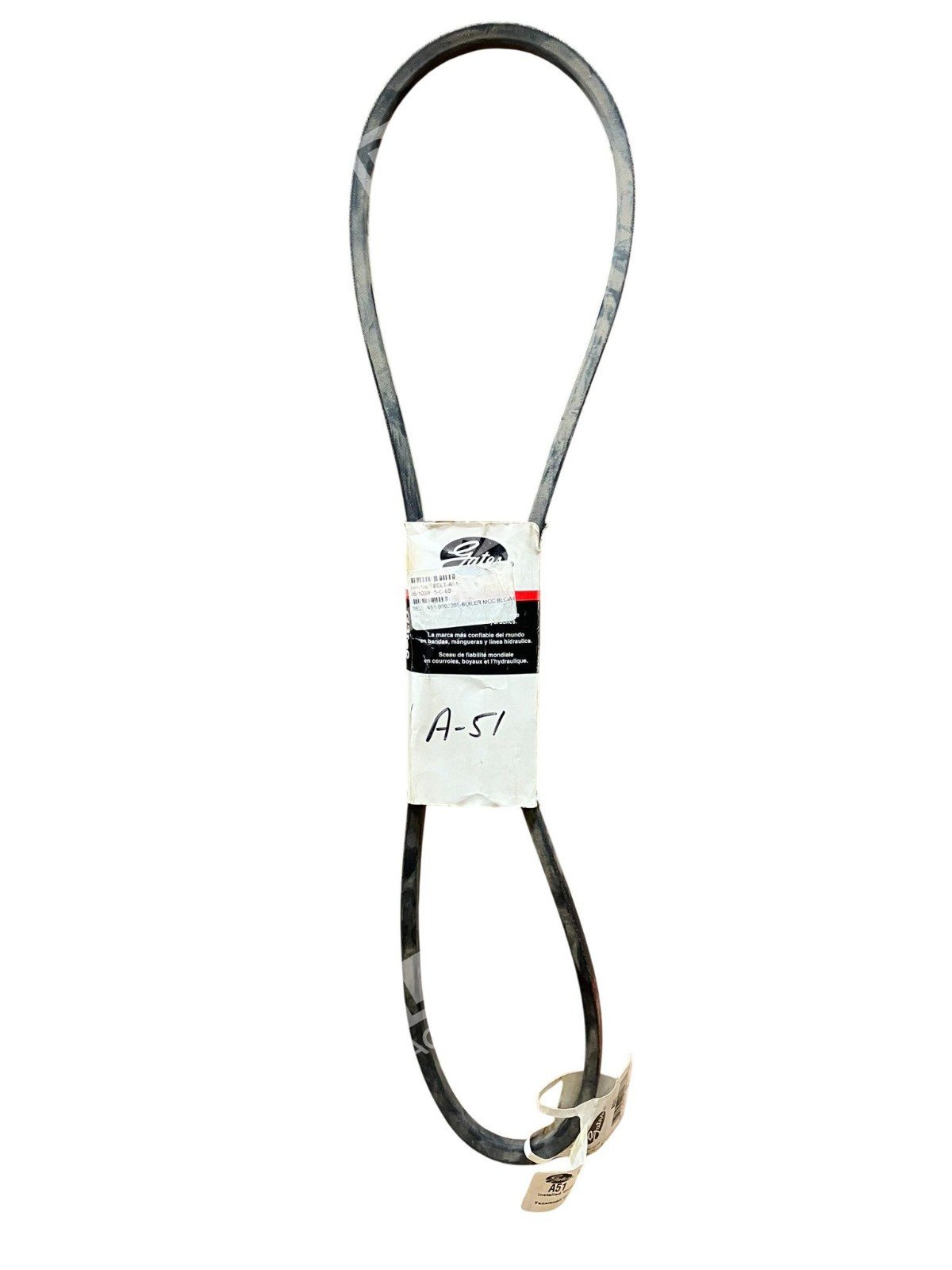

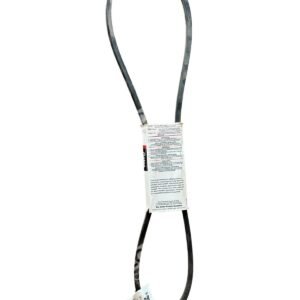

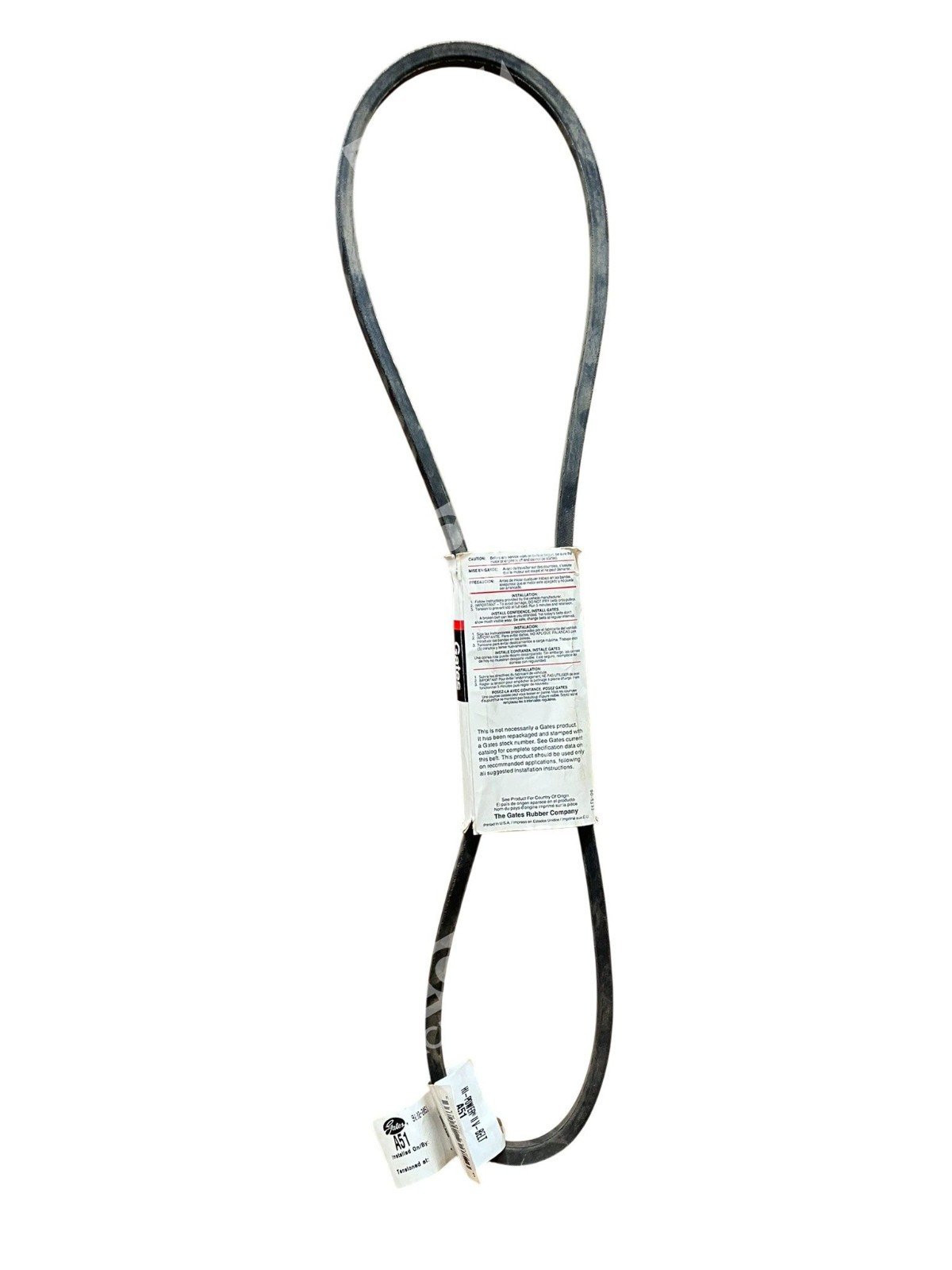

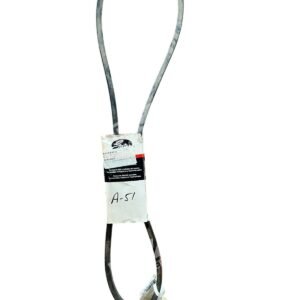

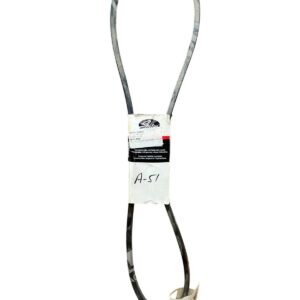

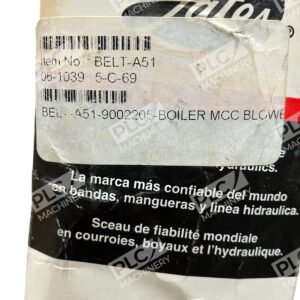

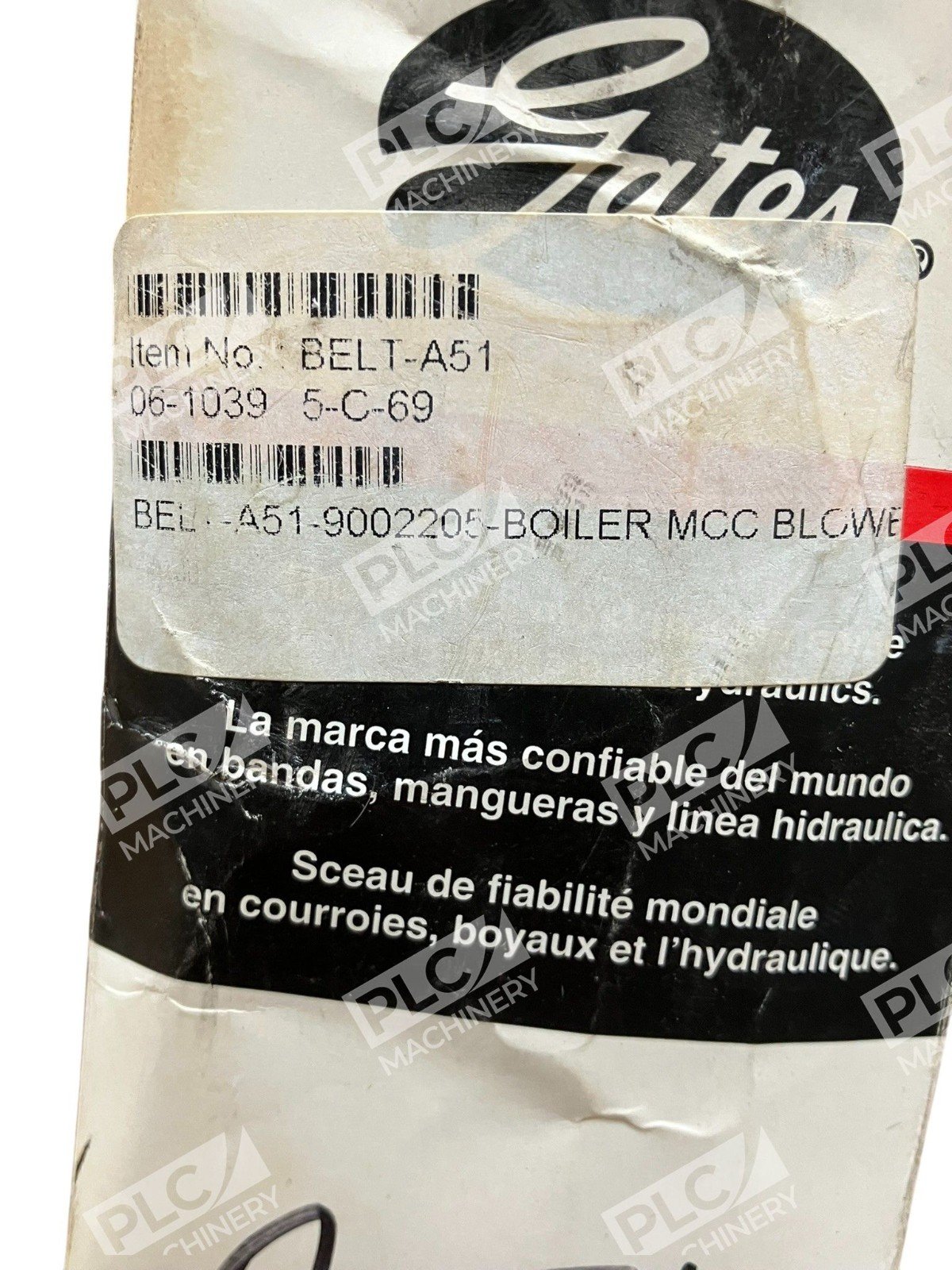

Gates BELT-A51 Hi-Power II Wrapped Classical Section V-Belt

Gates BELT-A51 Hi-Power II Wrapped Classical Section V-Belt

The Gates BELT-A51 Hi-Power II V-Belt is engineered for exceptional reliability in both agricultural and industrial applications. Its unique arched top design provides superior strength, effectively preventing dishing and distortion of the tensile section. This design ensures that each cord is properly aligned, allowing for equal load distribution and enhanced performance.

Key Features

• Arched Top Design: Enhances strength to prevent dishing and distortion, ensuring uniform tensile loading and prolonged belt life.
• Flex-Bonded Cords: Strongly bonded to the belt body, these cords distribute loads evenly and absorb bending stress without deterioration.
• Flex-Weave™ Cover: A patented fabric construction that offers extended protection against oil, dirt, and heat, thereby increasing the belt’s lifespan.
• Oil and Heat Resistance: Meets ARPM/RMA IP-3-2 standards, ensuring durability in challenging environments.
• Static Conductivity: Complies with IP-3-3 requirements, making it suitable for use in conditions where static discharge is a concern.
• Temperature Range: Operates efficiently between -22°F to +140°F (-30°C to +60°C), accommodating various environmental conditions.
• REACH and RoHS 2 Compliance: Adheres to environmental and safety standards, ensuring responsible manufacturing practices.

Specifications

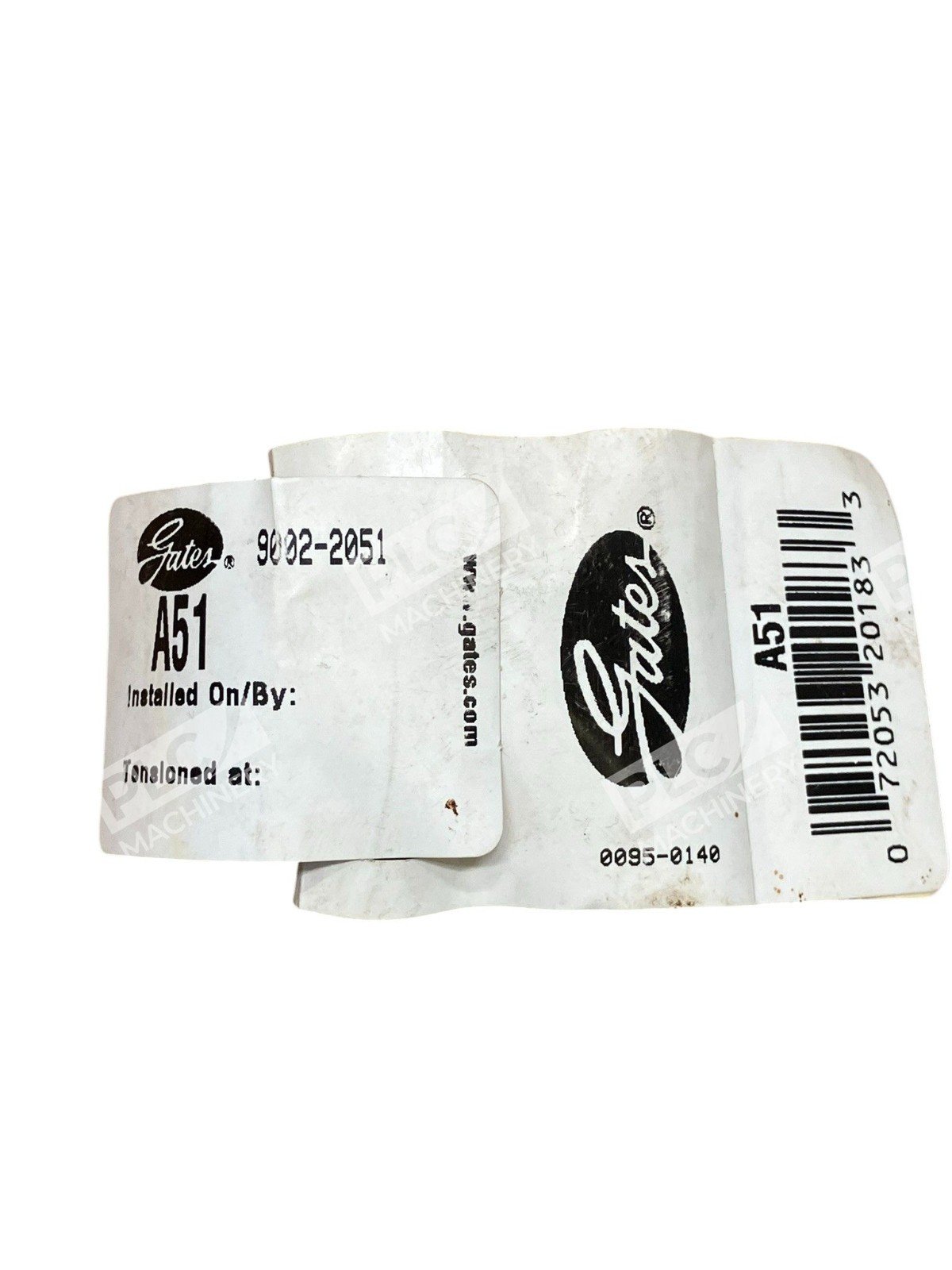

• Part Number: A51
• Product Number: 90022051
• Cross Section: A
• Top Width: 0.5 inches (13 mm)
• Effective Length: 52.91 inches (1344 mm)
• Outside Circumference: 53 inches (1346 mm)
• Thickness: 0.35 inches (9 mm)
• Material: SBR (Styrene-Butadiene Rubber)
• Cord Material: Polyester

The Gates BELT-A51 Hi-Power II V-Belt is a reliable choice for demanding applications, offering durability, efficiency, and compliance with industry standards.
