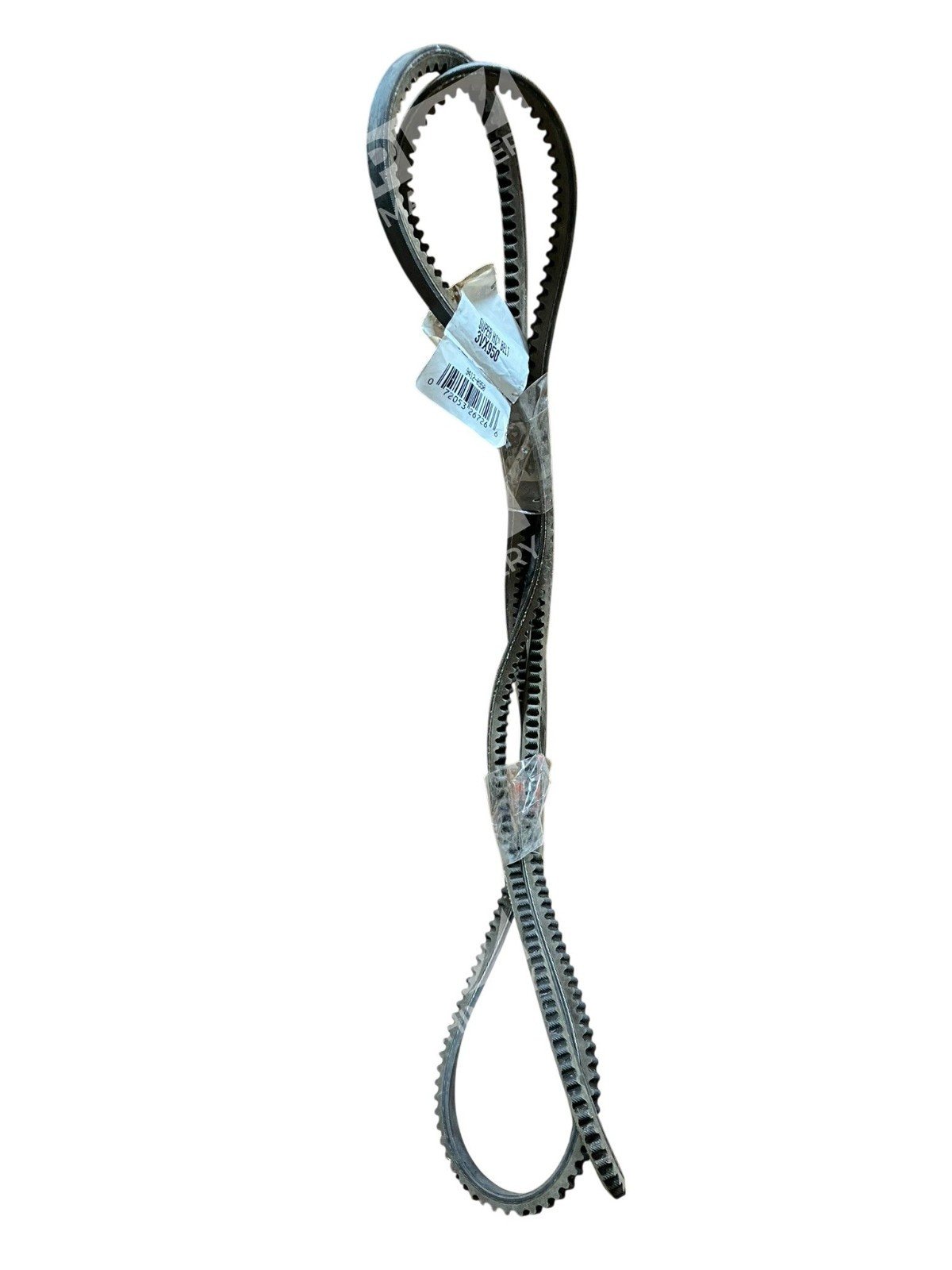

Gates 9412-0950 Super HC Belt 3VX950

Gates 9412-0950 Super HC Belt 3VX950

The Gates 9412-0950 Super HC Belt 3VX950 is a high-performance, narrow-section V-belt engineered for demanding industrial applications where space, weight, and horsepower capacity are critical. Its advanced design and materials provide superior flexibility, strength, and efficiency.

Key Features

• Flex-Bonded Tensile Cords: Vulcanized as a single unit, these cords offer exceptional resistance to tensile and flexing forces, fatigue, and shock loads. ([gates.com](https://www.gates.com/in/en/power-transmission/v-belts/bandless-v-belt.p.9516-000000-000000.v.IN-9201-7395.html?utm_source=openai))
• Precision-Ground Straight Sidewalls: Ensure uniform wedging action and proper fit in pulley grooves, enhancing belt life and reducing maintenance. ([gates.com](https://www.gates.com/in/en/power-transmission/v-belts/bandless-v-belt.p.9516-000000-000000.v.IN-9201-7395.html?utm_source=openai))
• Molded Notches: Reduce and evenly distribute thermal and bending stresses, increasing flexibility and transmission efficiency. ([gates.com](https://www.gates.com/in/en/power-transmission/v-belts/bandless-v-belt.p.9516-000000-000000.v.IN-9201-7395.html?utm_source=openai))
• Patented Ethylene Elastomeric Compound: Provides high-temperature tolerance and exceptional strength, protecting the belt against heat, ozone, and sunlight. ([gates.com](https://www.gates.com/in/en/power-transmission/v-belts/bandless-v-belt.p.9516-000000-000000.v.IN-9201-7395.html?utm_source=openai))
• Flex-Weave™ Cover: Offers extended protection against oil, contaminants, and heat, prolonging belt lifespan. ([gates.com](https://www.gates.com/in/en/power-transmission/v-belts/bandless-v-belt.p.9516-000000-000000.v.IN-9201-7395.html?utm_source=openai))

Specifications

• Section: 3VX
• Nominal Outside Length: 95 inches (2413 mm)
• Top Width Per Strand: 3/8 inch (10 mm)
• Nominal Thickness: 0.33 inch (8 mm)
• Effective Length: 94.819 inches (2408 mm)
• Operating Temperature Range: -60°F to +250°F (-51°C to +121°C)
• Compliance: Meets ARPM/RMA IP-3-2 oil and heat resistant standards and IP-3-3 static conductivity requirements; REACH and RoHS 2 compliant. ([gates.com](https://www.gates.com/in/en/power-transmission/v-belts/bandless-v-belt.p.9516-000000-000000.v.IN-9201-7395.html?utm_source=openai))

Applications

The Gates 3VX950 Super HC Belt is ideal for industrial heavy-duty, narrow-section V-belt drives, especially where high speeds, high-speed ratios, or small pulley diameters are required. Its compact design allows for more efficient drive systems by reducing the size of pulleys, bearings, guards, and mounts. ([gates.com](https://www.gates.com/in/en/power-transmission/v-belts/bandless-v-belt.p.9516-000000-000000.v.IN-9201-7395.html?utm_source=openai))

Benefits

• Enhanced Power Transmission: Transmits up to three times the horsepower compared to similarly sized belts. ([gates.com](https://www.gates.com/in/en/power-transmission/v-belts/bandless-v-belt.p.9516-000000-000000.v.IN-9201-7395.html?utm_source=openai))
• Extended Belt Life: Precision engineering and high-quality materials result in longer service life and reduced maintenance costs. ([gates.com](https://www.gates.com/in/en/power-transmission/v-belts/bandless-v-belt.p.9516-000000-000000.v.IN-9201-7395.html?utm_source=openai))
• Compact Drive Design: Allows for smaller, more economical drive systems without sacrificing performance. ([gates.com](https://www.gates.com/in/en/power-transmission/v-belts/bandless-v-belt.p.9516-000000-000000.v.IN-9201-7395.html?utm_source=openai))

In summary, the Gates 9412-0950 Super HC Belt 3VX950 offers a robust and efficient solution for high-horsepower, space-constrained applications, delivering reliable performance and durability in demanding industrial environments.
