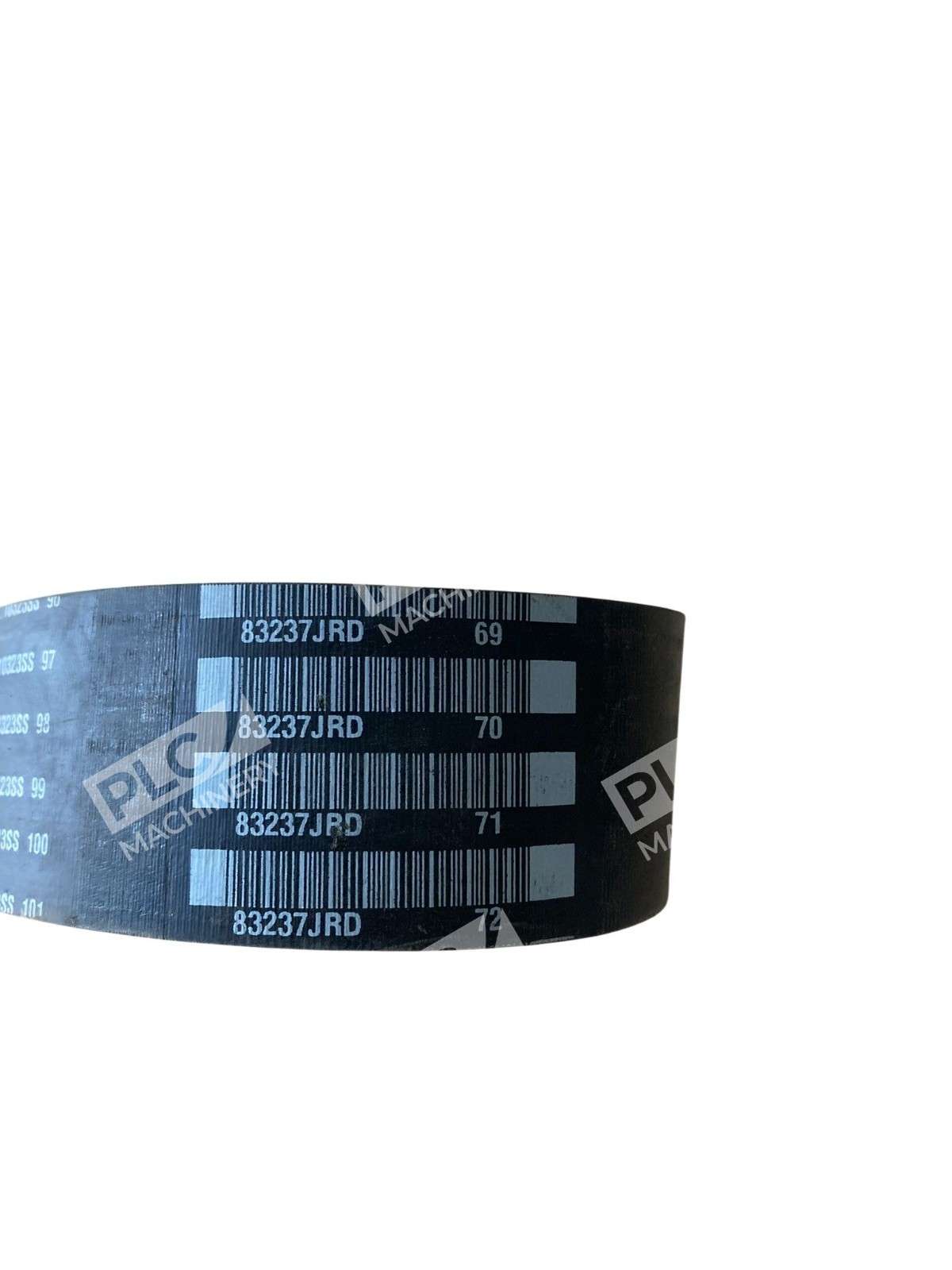

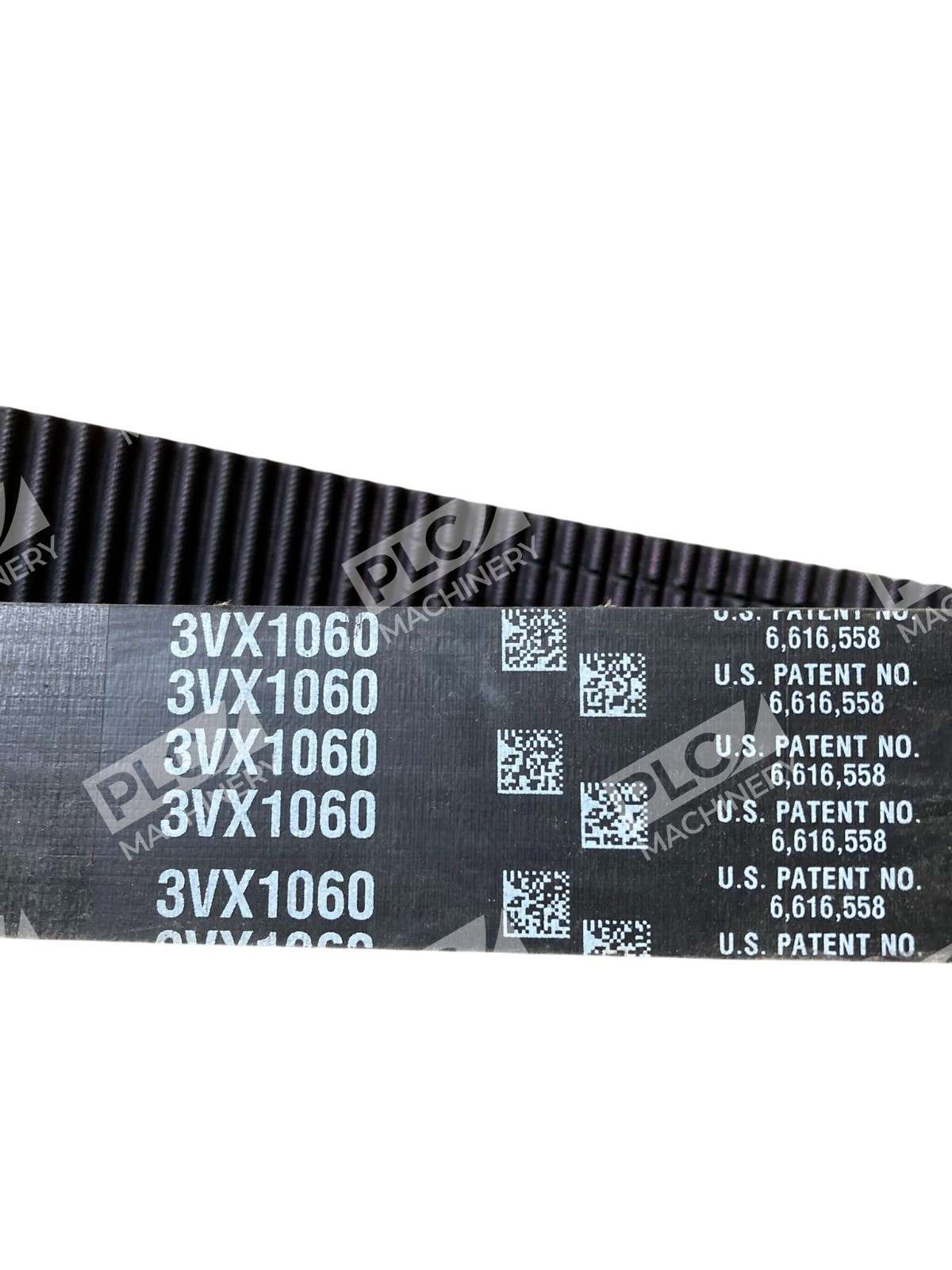

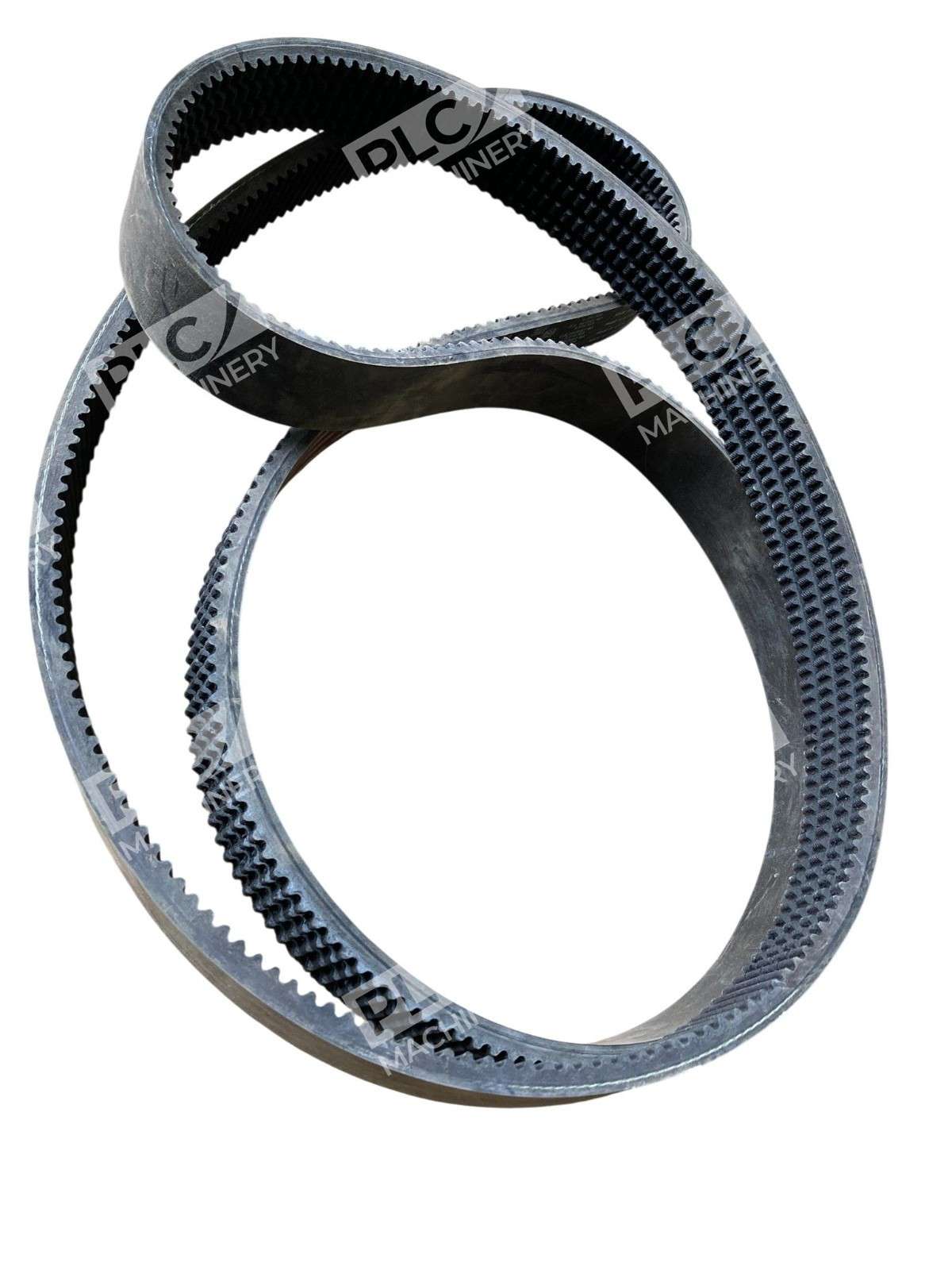

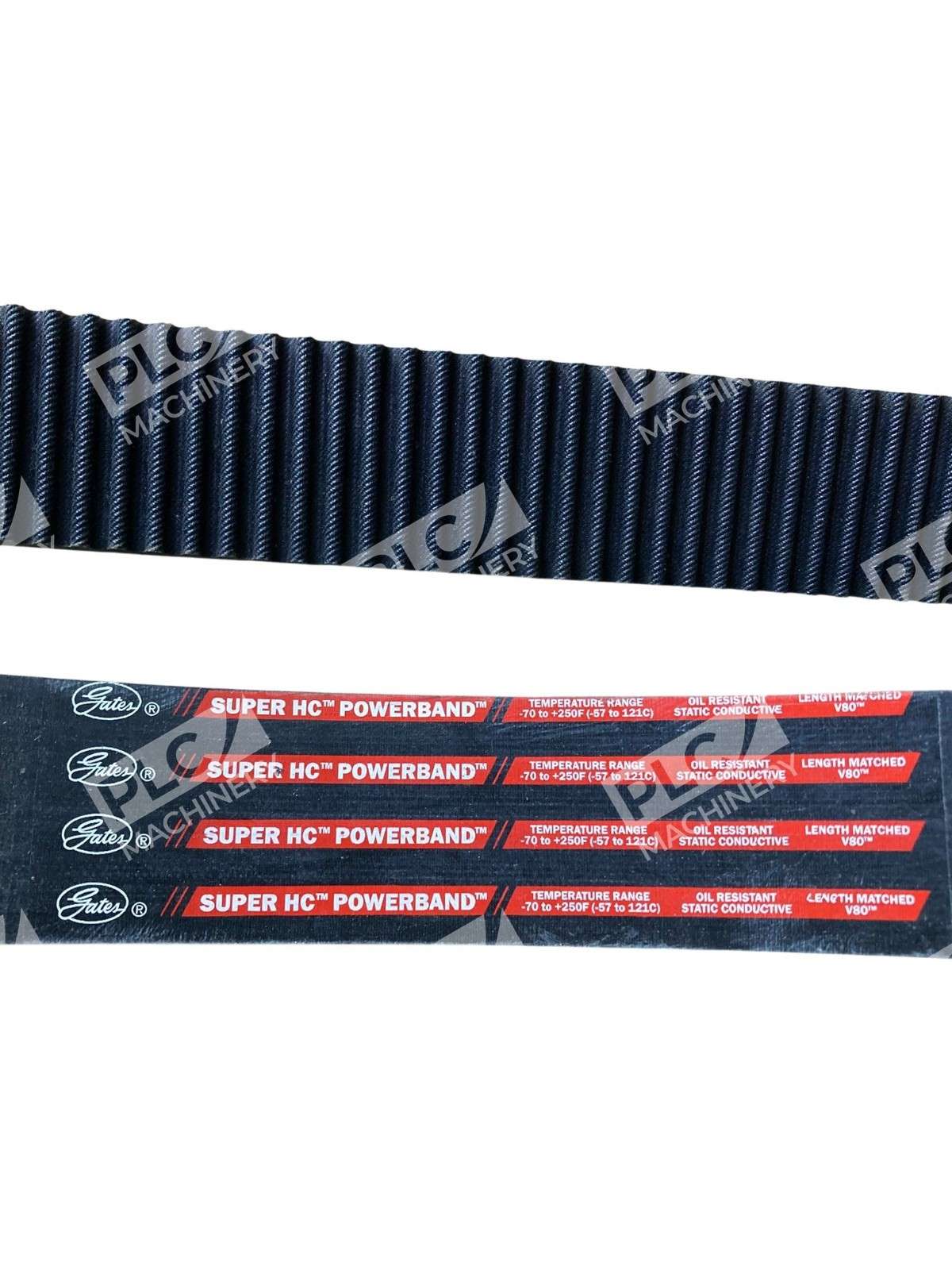

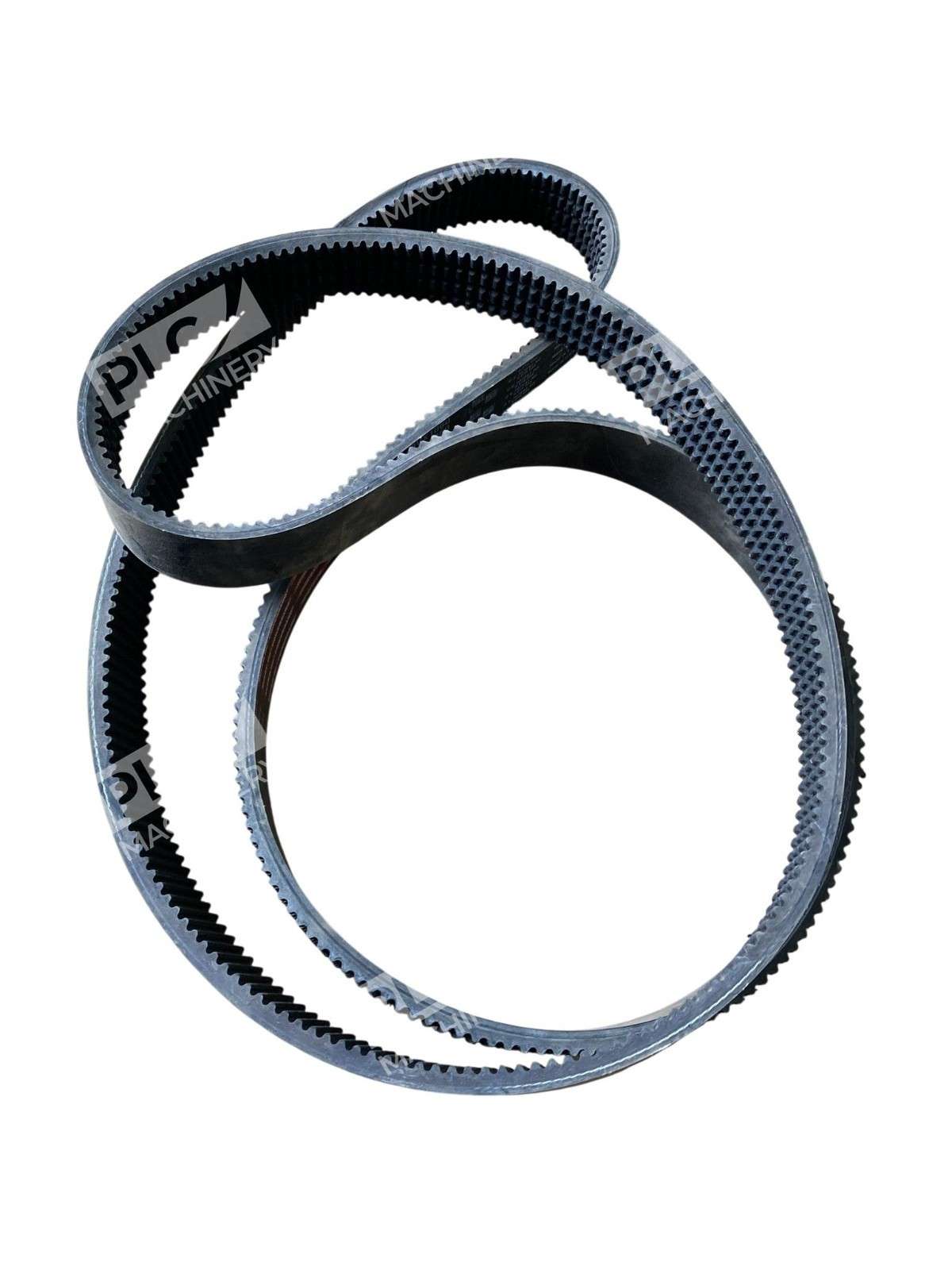

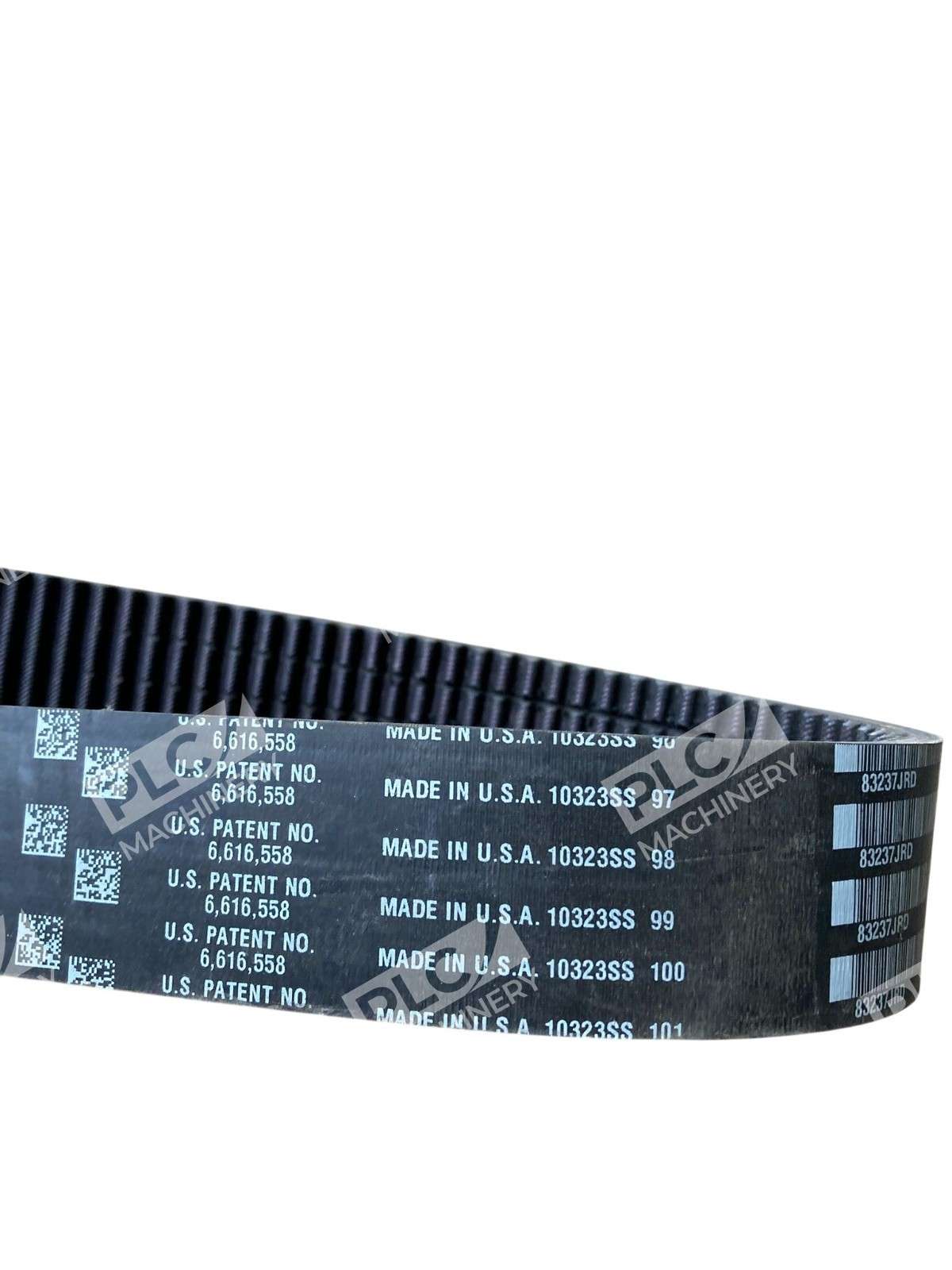

The Gates 3VX1060 Super HC PowerBand V-Belt is engineered for heavy-duty industrial applications where space, weight, and horsepower capacity are critical. This belt combines the strength of a wrapped belt construction with the efficiencies of a narrow section V-belt, allowing for more compact drive designs and significant reductions in overall drive costs.
Key Features
- Flex-Bonded Cords: These cords are strongly bonded to the belt body, ensuring equal load distribution and resistance to fatigue and shock loads. This design absorbs bending stress without cord deterioration, enhancing the belt’s durability.
- Arched Top and Concave Sidewalls: The belt’s arched top, concave sidewalls, and rounded corners provide uniform tensile loading and full pulley sidewall contact. This results in excellent belt service and reduced pulley wear.
- High Power Transmission: Capable of transmitting up to 300% more power compared to classical belts, making it suitable for demanding applications.
- Compact Design: The narrow profile allows for more compact drive designs, reducing the space required and overall drive costs.
- Compliance and Resistance: Meets ARPM/RMA IP-3-2 oil and heat-resistant standards and IP-3-3 static conductivity requirements. Additionally, it is REACH and RoHS 2 compliant, ensuring safety and environmental responsibility.
Specifications
- Part Number: 3VX1060
- Effective Length: 105.96 inches (2691 mm)
- Outside Circumference: 106.1 inches (2695 mm)
- Top Width: 0.4 inches (10 mm)
- Thickness: 0.31 inches (8 mm)
- Angle: 39 degrees
- Material: Gates Neoprene Compound
- Recommended For: Use with Super HC® Sheaves
Applications
The Gates 3VX1060 Super HC PowerBand V-Belt is ideal for all industrial heavy-duty, narrow section V-belt drives, especially in scenarios where space, weight, and horsepower capacity are critical. Its robust construction and high power transmission capabilities make it suitable for a wide range of industrial applications.
By integrating advanced design features and high-quality materials, the Gates 3VX1060 Super HC PowerBand V-Belt offers a reliable and efficient solution for demanding power transmission needs.
