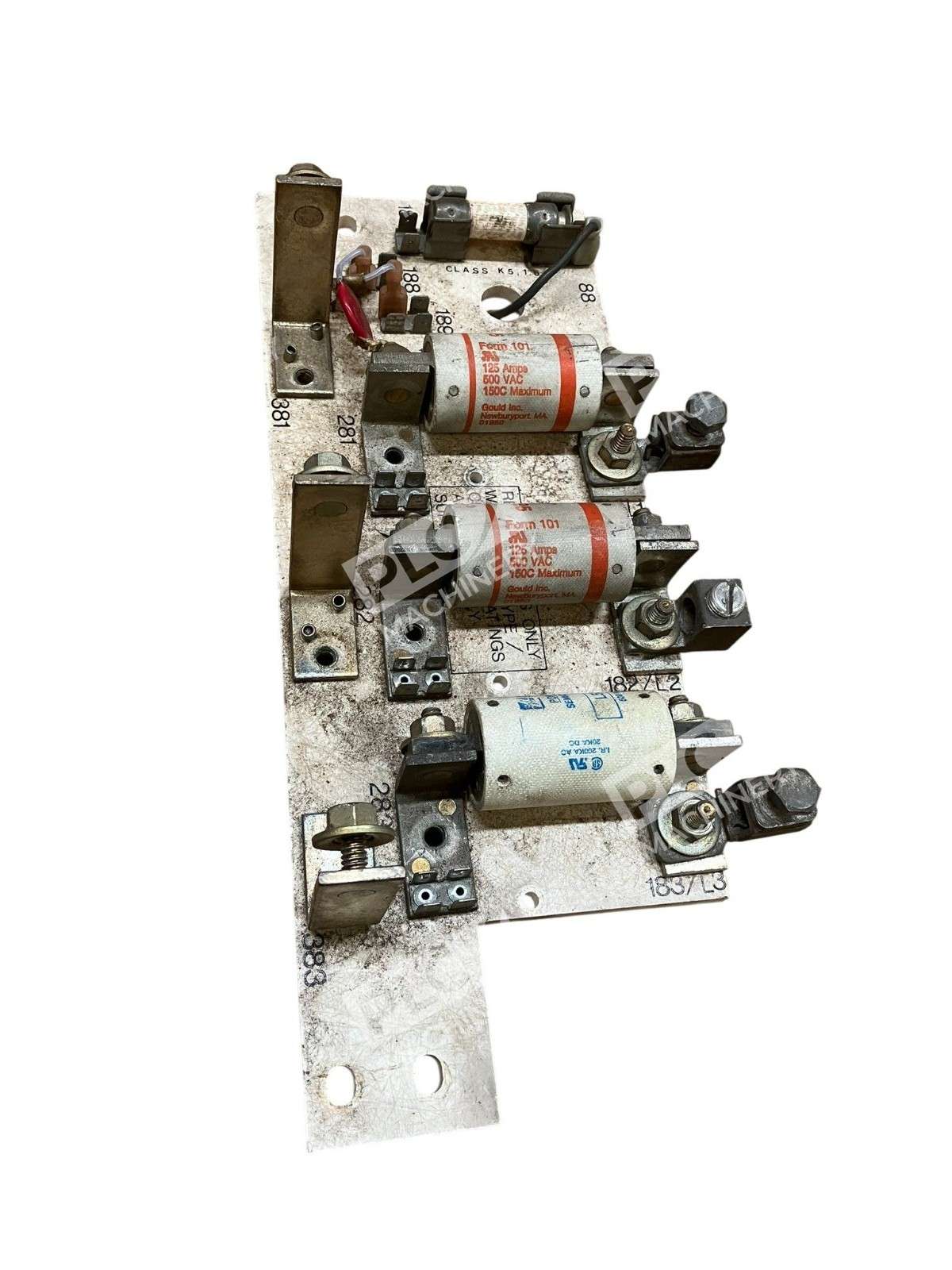

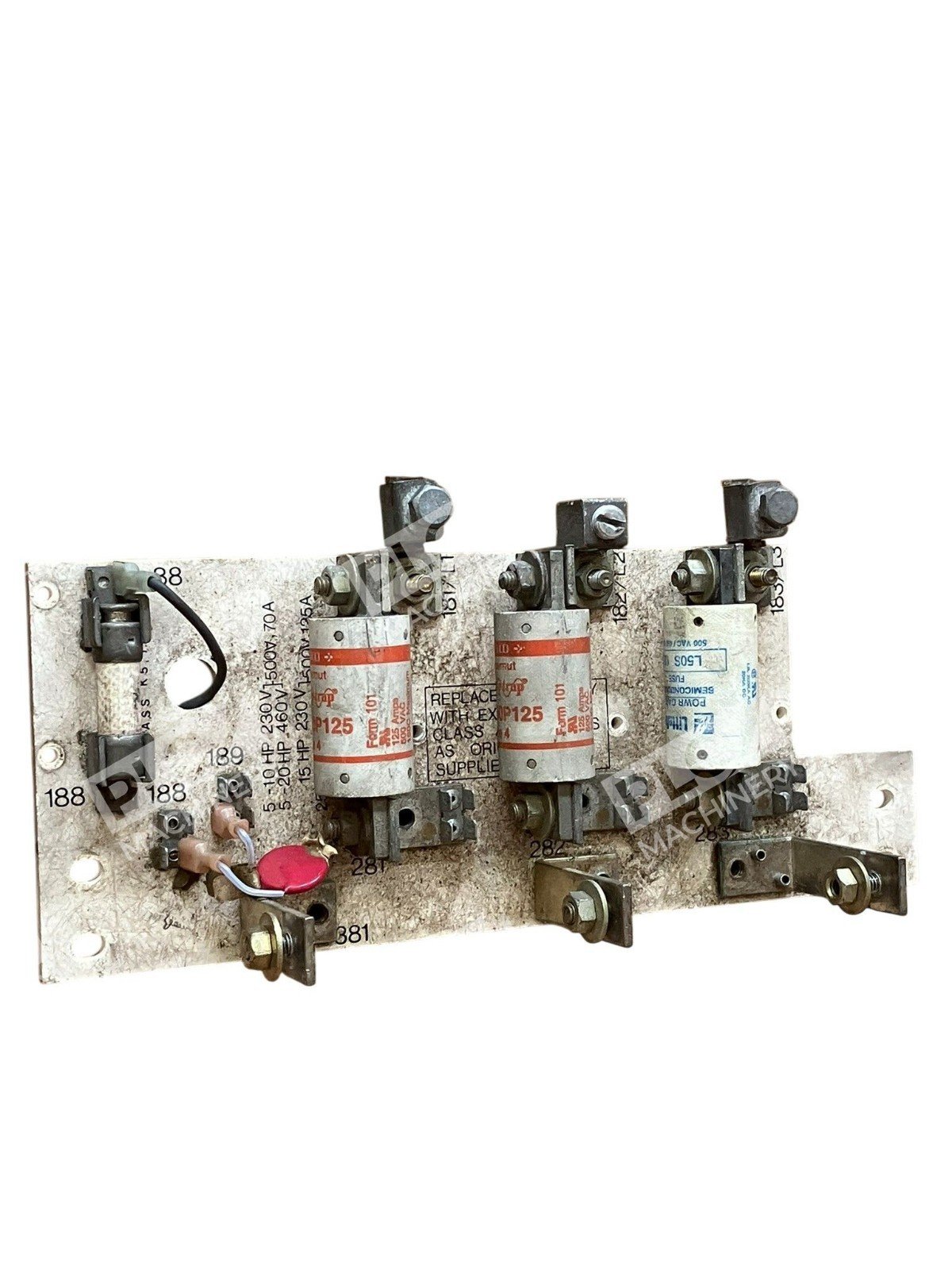

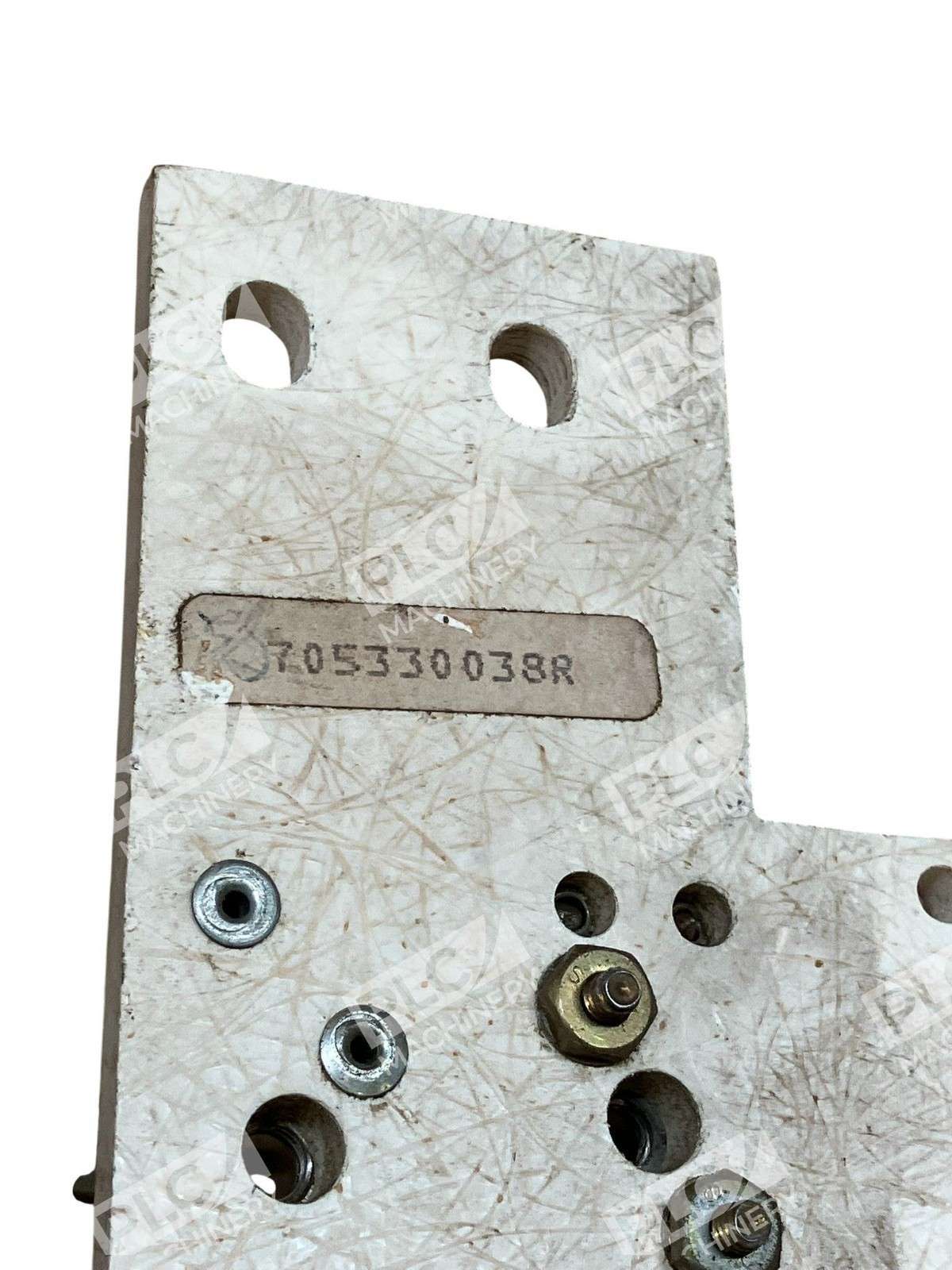

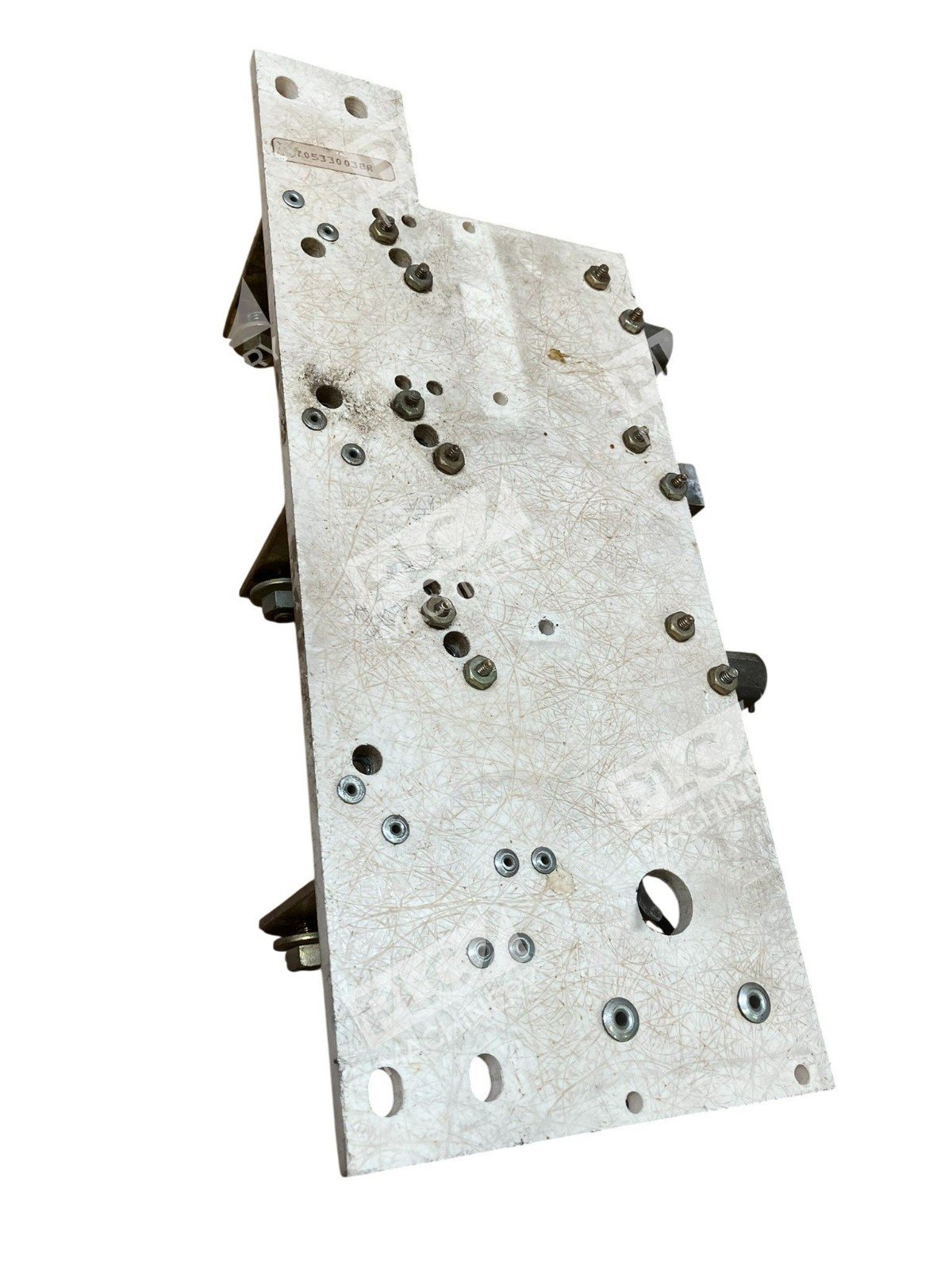

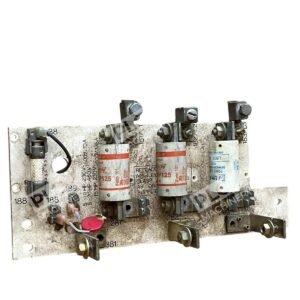

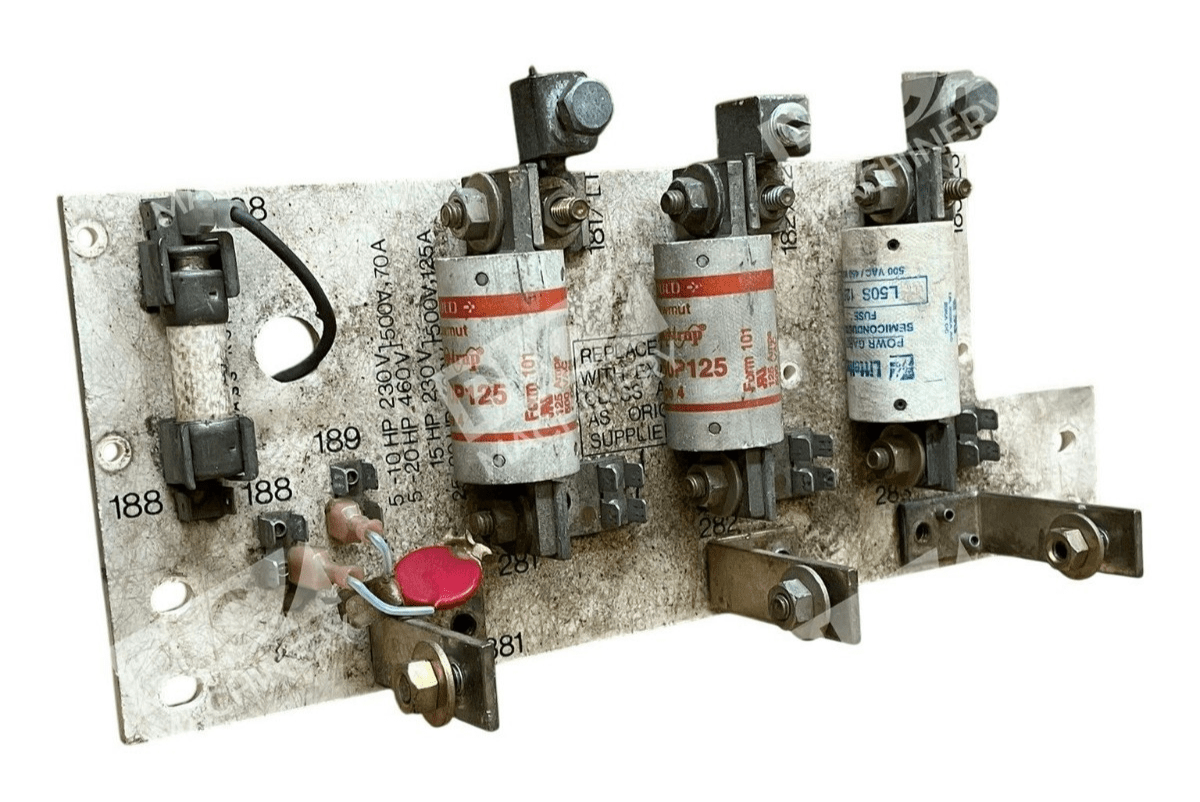

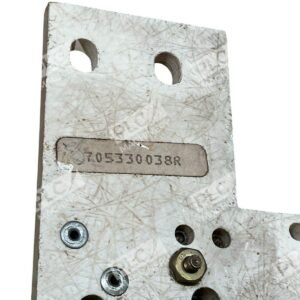

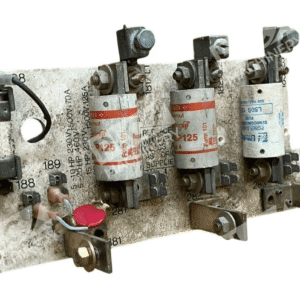

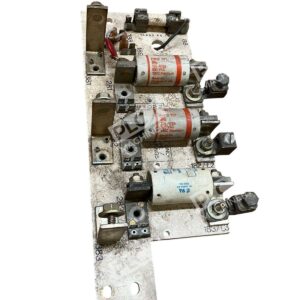

The Fuse Block Assembly 705330038R is engineered to accommodate bolt-down style fuses, providing a secure and reliable connection for electrical circuits. This assembly is designed to support fuses with a diameter of 0.56 inches and a length of 2 inches, making it suitable for various applications requiring robust fuse protection.
Constructed from durable thermoplastic material, the fuse block ensures longevity and resistance to environmental factors. Its modular design allows for easy integration into electrical panels, with options for both DIN rail and panel mounting to suit different installation requirements.
The assembly is rated for a voltage of 250V and can handle currents up to 30A, making it compatible with Class R fuses. It features box lug/slot screw connections, accommodating wire sizes ranging from 14 to 2 AWG for copper and 8 to 2 AWG for aluminum, ensuring versatility in wiring configurations.
Operating efficiently within a temperature range of -40 to 120 degrees Celsius, the fuse block is suitable for various environmental conditions. Its compact dimensions of 3.2 inches in length, 1 inch in width, and 2 inches in height allow for space-saving installations without compromising performance.
This fuse block assembly is ideal for electrical assemblies, panels, and OEM applications, offering a reliable solution for circuit protection needs.
