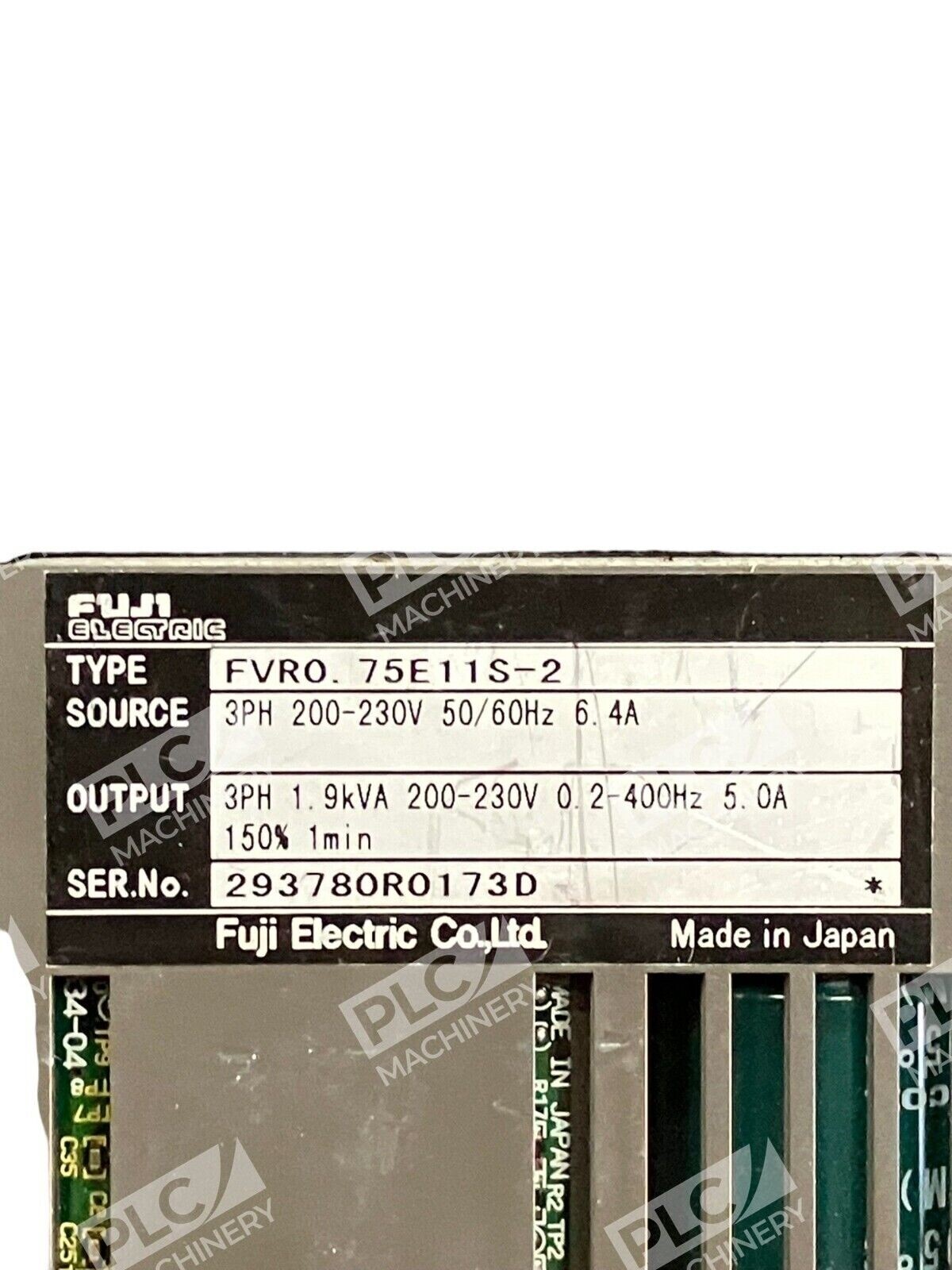

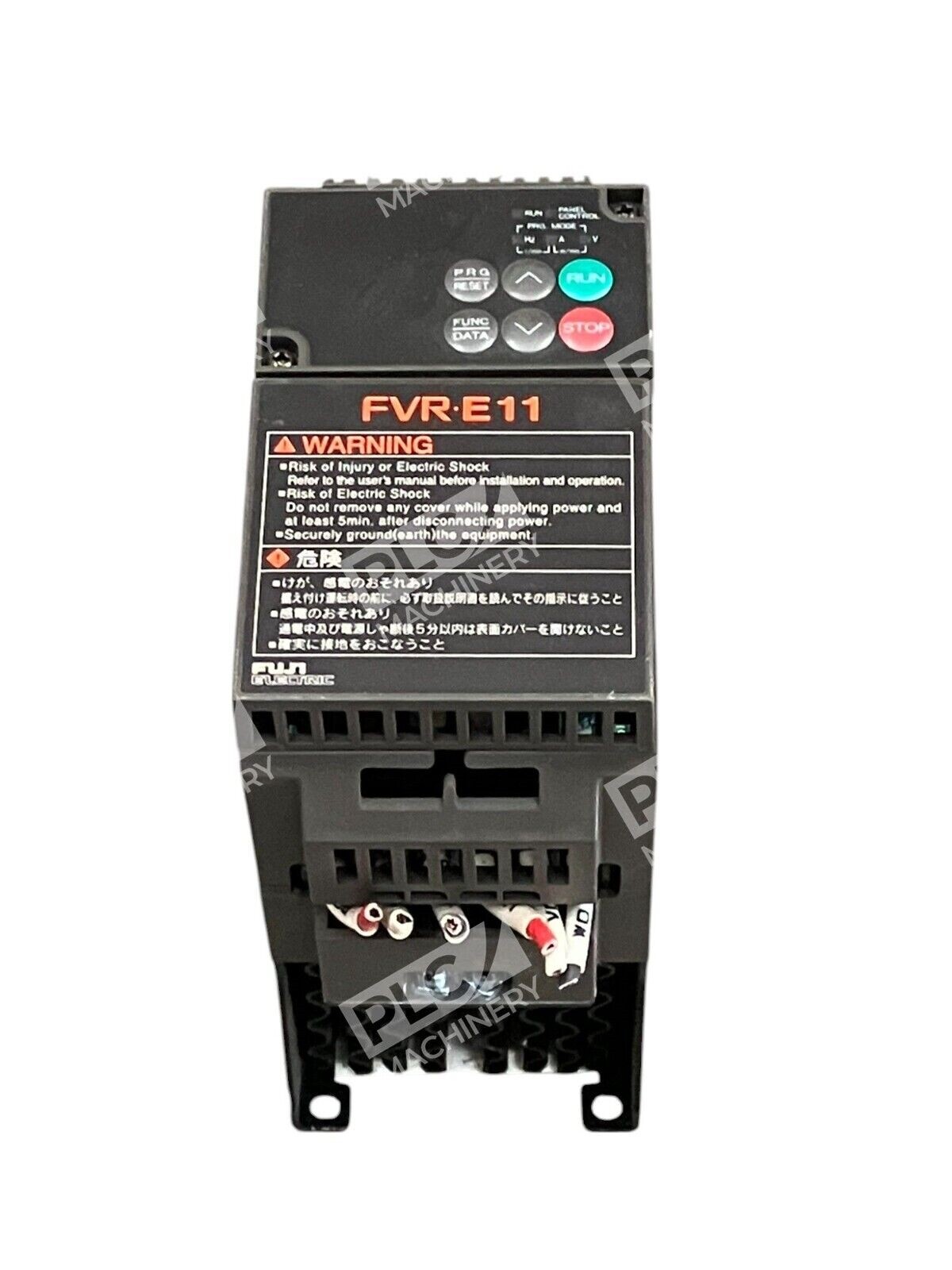

Fuji Electric 3-Phase Inverter FVR0.75E11S-2
The Fuji Electric FVR0.75E11S-2 is a robust and efficient 3-phase inverter designed to provide precise motor control in various industrial applications. This inverter is part of Fuji Electric’s FVR-E11 series, known for its reliability and performance.
Key Features
- Power Capacity: 0.75 kW (1 HP)
- Input Voltage: Three-phase 200-230V AC, 50/60 Hz
- Output Voltage: Three-phase 200-230V AC
- Output Frequency Range: 0.2 to 400 Hz
- Rated Output Current: 5.0 A
- Overload Capacity: 150% of rated current for 1 minute
- Control Method: V/f (Voltage/Frequency) control
- Protection Functions: Includes overcurrent, overvoltage, undervoltage, and overheat protection
- Enclosure Rating: IP20
- Certifications: Complies with UL, C-UL (CSA), CE, and C-Tick standards
Applications
The FVR0.75E11S-2 inverter is suitable for a wide range of applications, including:
- Pumps
- Fans
- Conveyors
- HVAC systems
- General-purpose motor control
Dimensions and Weight
- Height: 130 mm
- Width: 70 mm
- Depth: 144 mm
- Weight: Approximately 1.8 kg
The compact design of the FVR0.75E11S-2 allows for easy installation in various control panels and machinery setups.
Additional Information
This inverter features a user-friendly interface with a digital keypad for easy parameter setting and monitoring. It also supports PID control, enabling precise process control in applications requiring constant pressure, flow, or temperature.
For enhanced performance and protection, optional accessories such as EMC filters and braking resistors are available.
Please note that while the FVR0.75E11S-2 is a reliable and efficient inverter, it is essential to ensure compatibility with your specific application requirements and consult the manufacturer’s guidelines for proper installation and operation.
