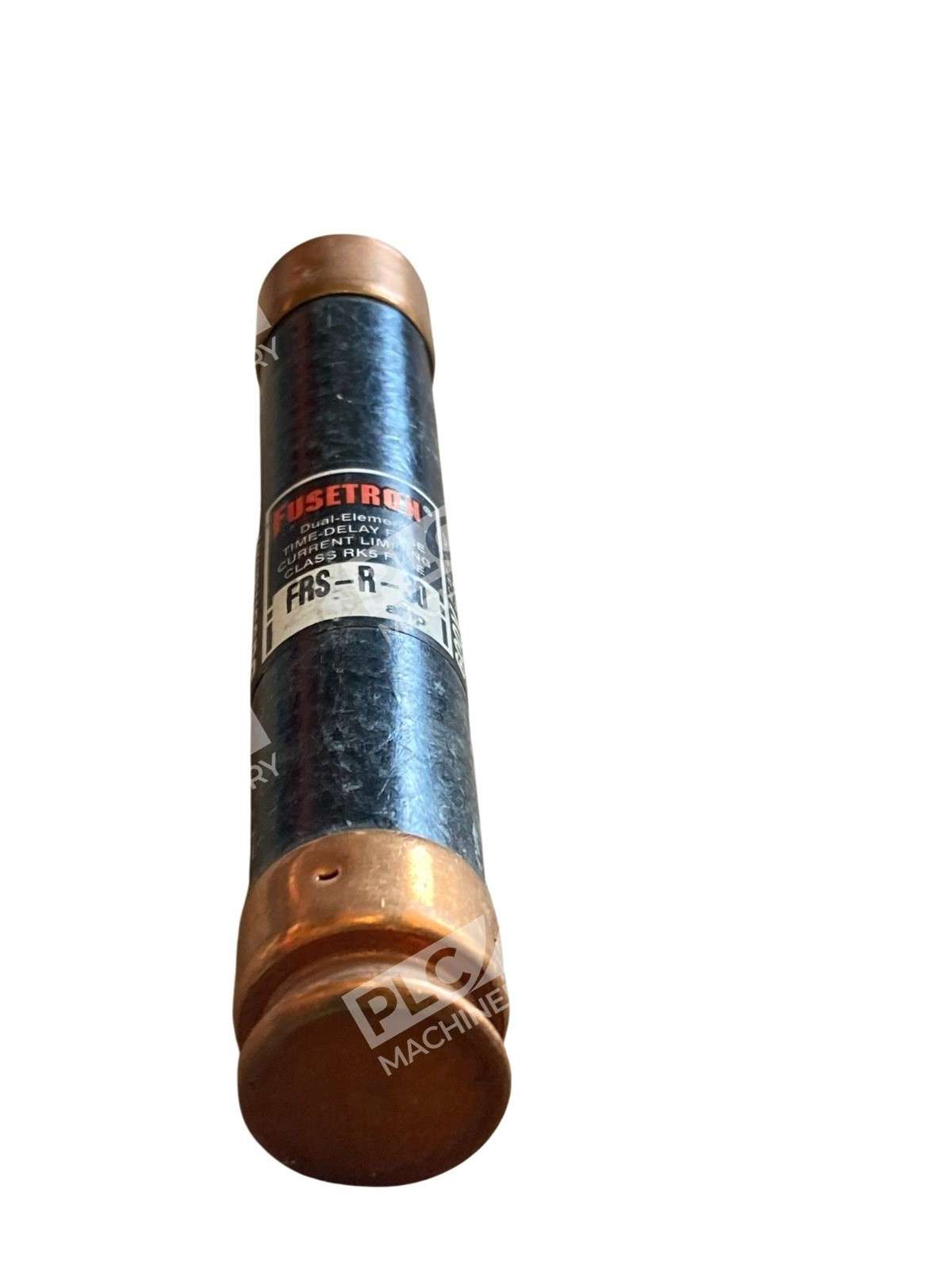

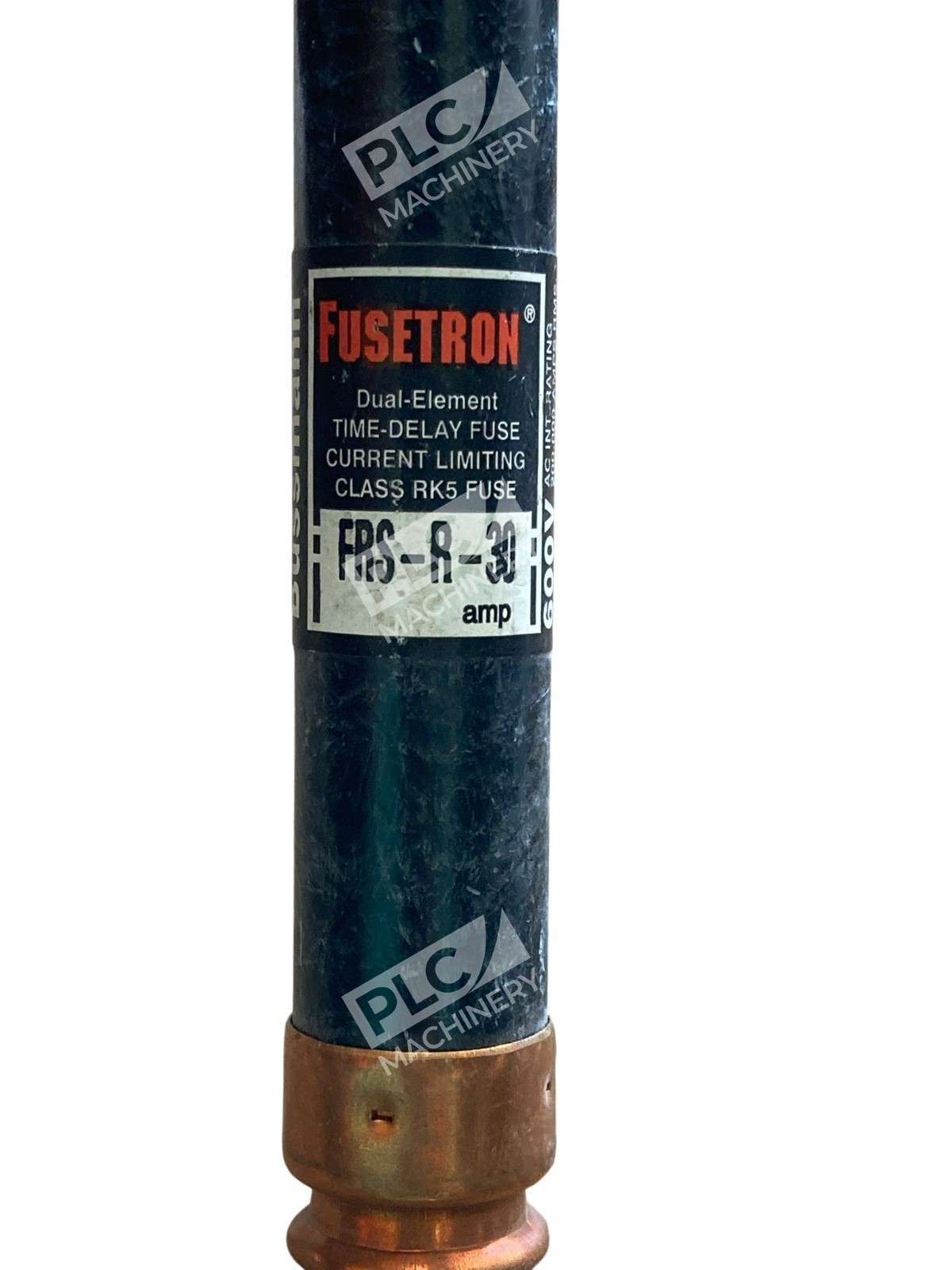

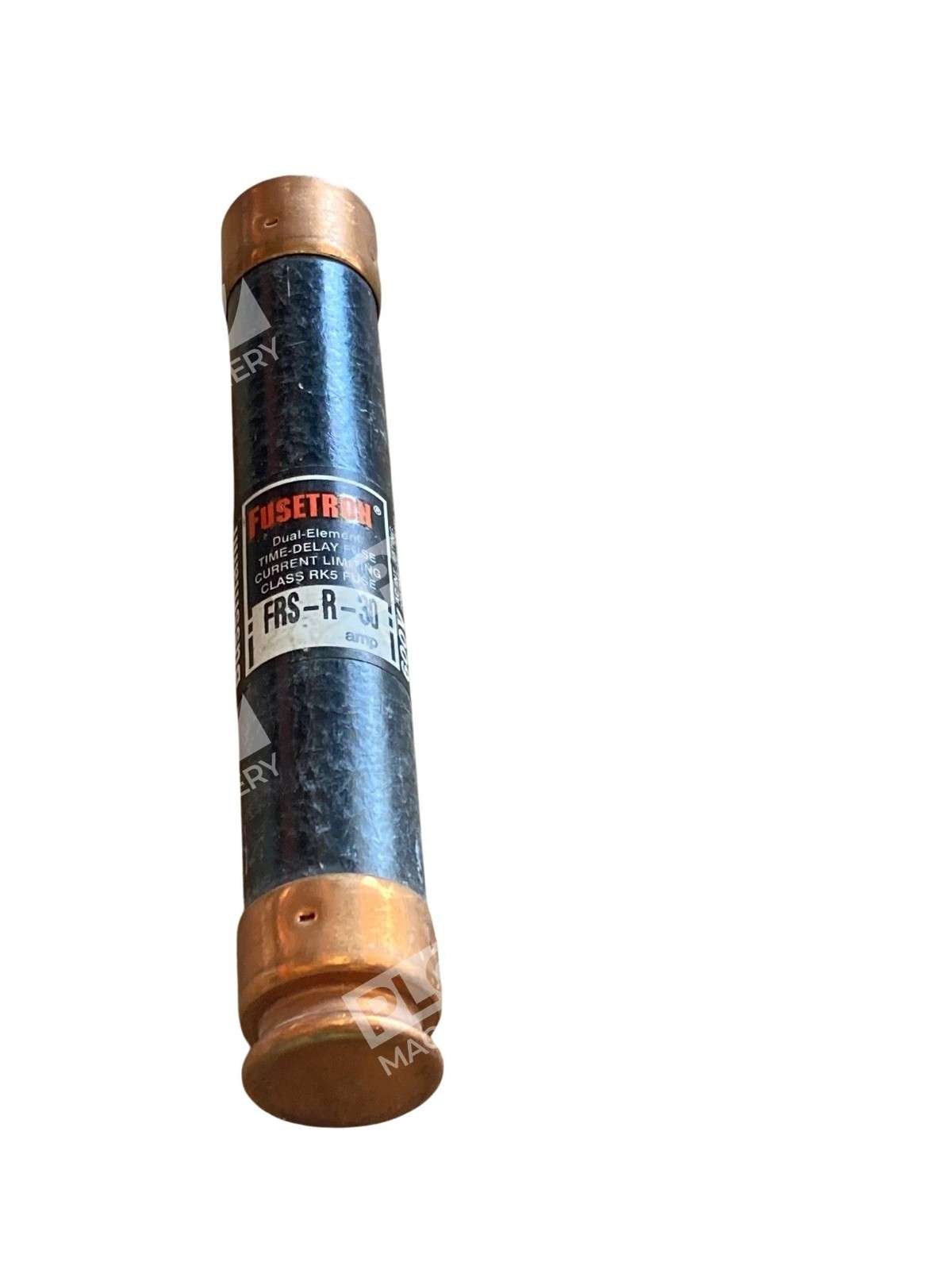

Bussmann Fusetron FRS-R-30 Dual-Element Time-Delay Fuse The Bussmann Fusetron FRS-R-30 is a 30-amp, 600 VAC/300 VDC, dual-element, time-delay fuse designed to provide superior protection for circuits subject to temporary motor overloads and surge currents. Its advanced features make it an ideal choice for various industrial applications. Key Features Dual-Element Design: Offers both high-performance short-circuit and overload protection, ensuring reliable operation in demanding environments. Time-Delay Capability: Provides a 10-second delay at 500% of the rated current, allowing the fuse to accommodate temporary inrush currents without unnecessary interruptions. Current Limitation: Helps protect downstream components from high fault currents by limiting the amount of energy let through during a fault condition. Compact and Cost-Effective: The time-delay feature permits the use of smaller fuse amp ratings, enabling the selection of smaller and more economical switches and panels. Motor Protection: Offers backup protection to motors, safeguarding against burnout from overloads and single-phasing on three-phase systems. Specifications Amperage Rating: 30 A Voltage Rating: 600 VAC / 300 VDC Interrupting Rating: 200 kA at 600 VAC; 20 kA at 300 VDC Class: RK5 Body Size: 0.81 inches in diameter x 5 inches in length Material: Fiberglass Mounting Type: Holder Terminal Type: Ferrule Standards and Approvals: UL 248-12, CSA C22.2 No. 248.12, CE Certified Applications The FRS-R-30 fuse is suitable for a wide range of applications, including: Combination starters Machinery disconnects Motor control centers Power panelboards Safety and security systems in industrial facilities Its robust design and reliable performance make it an essential component in protecting electrical systems from overloads and short circuits.
