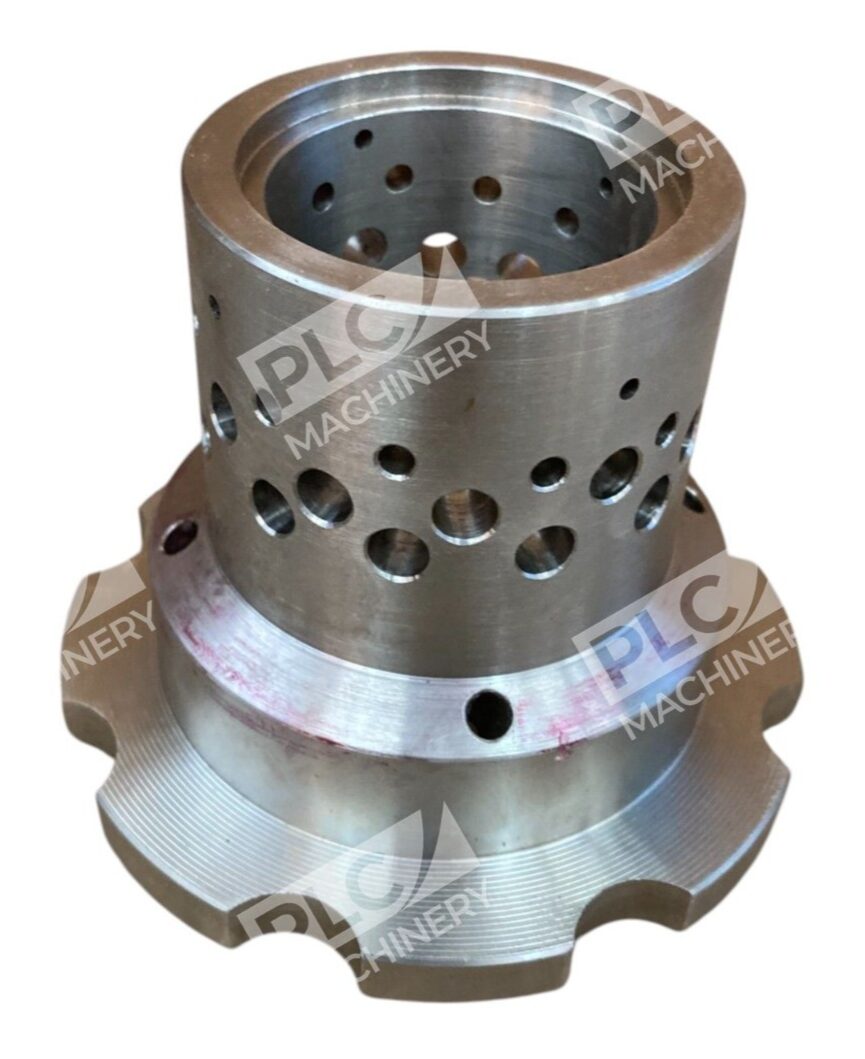

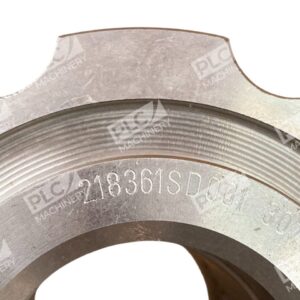

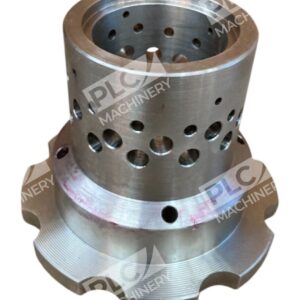

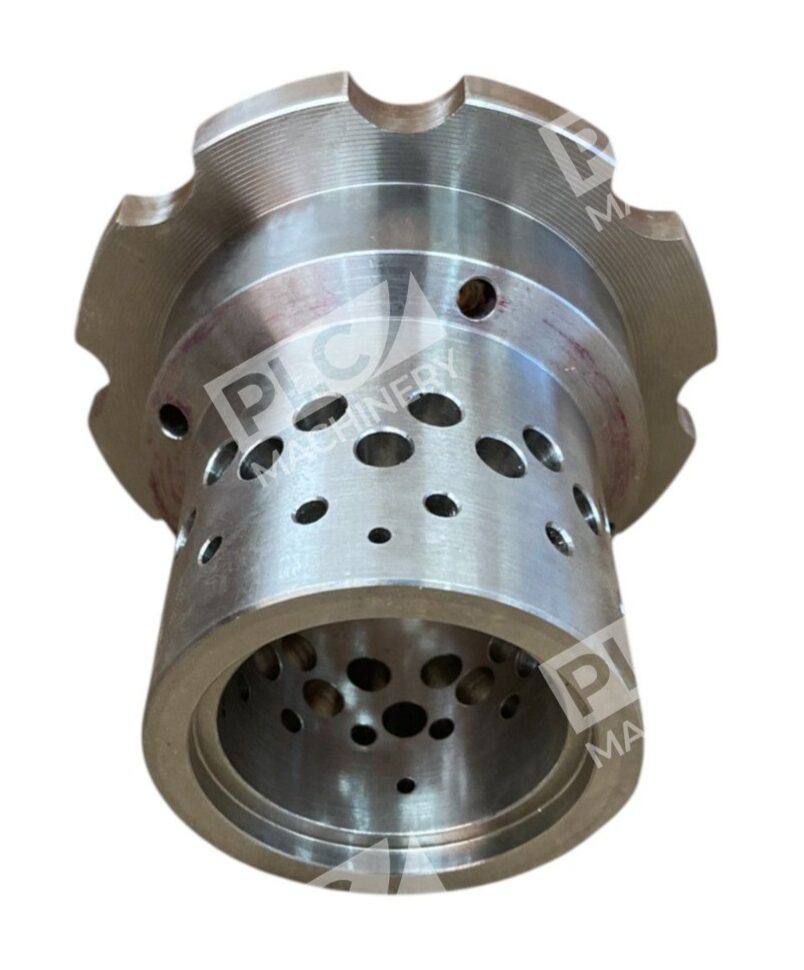

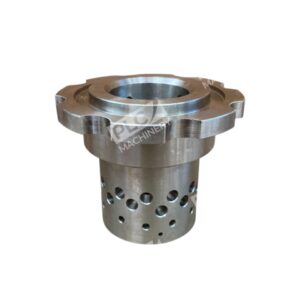

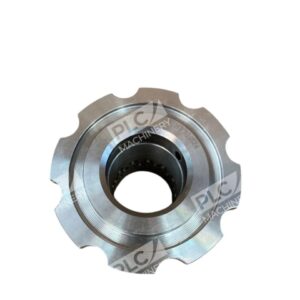

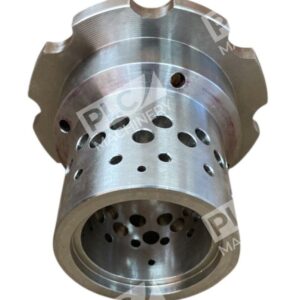

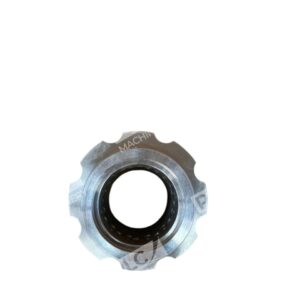

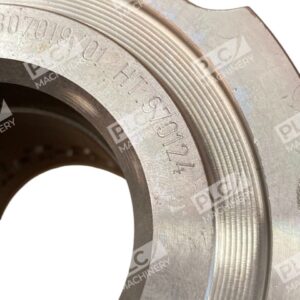

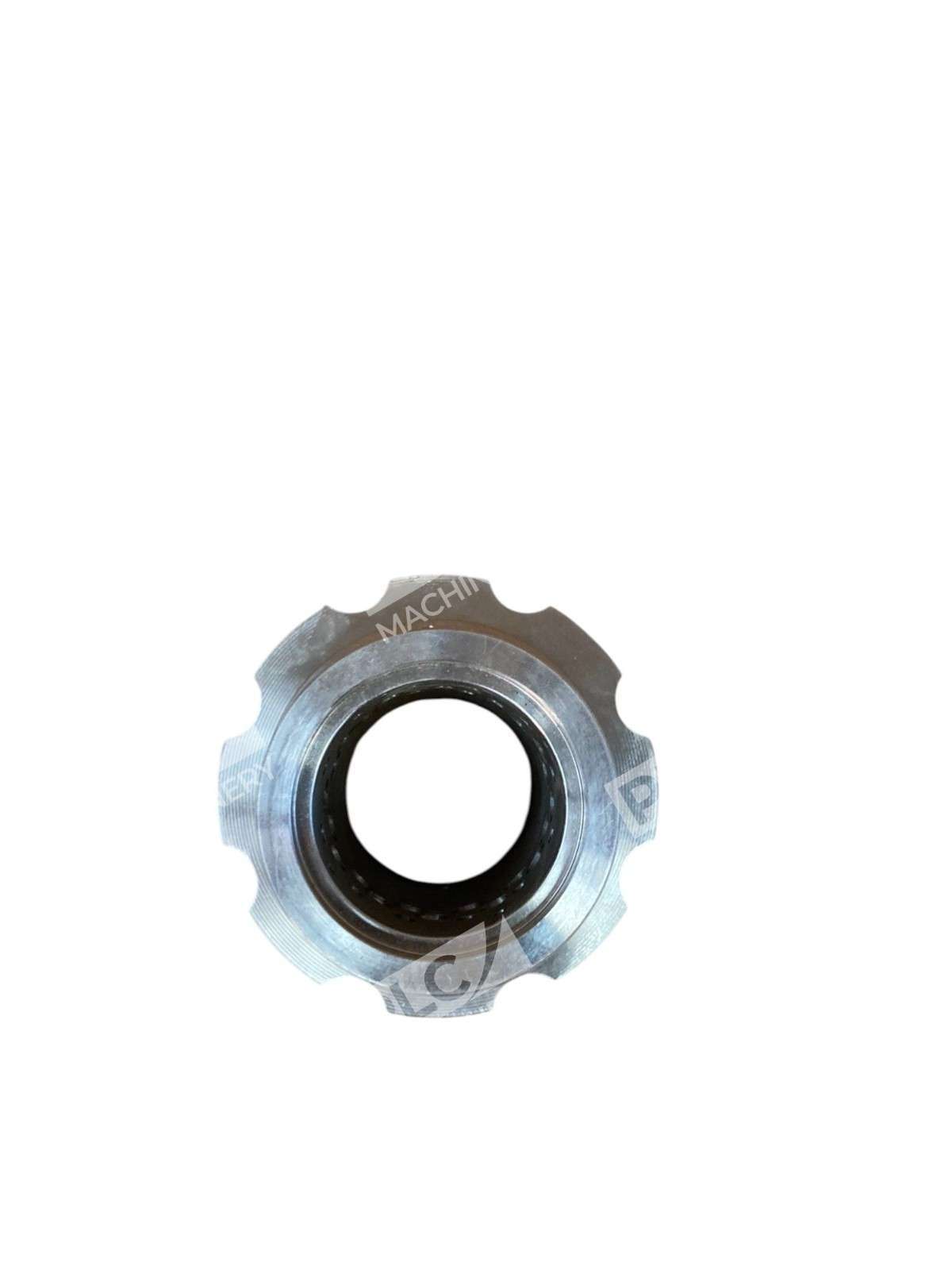

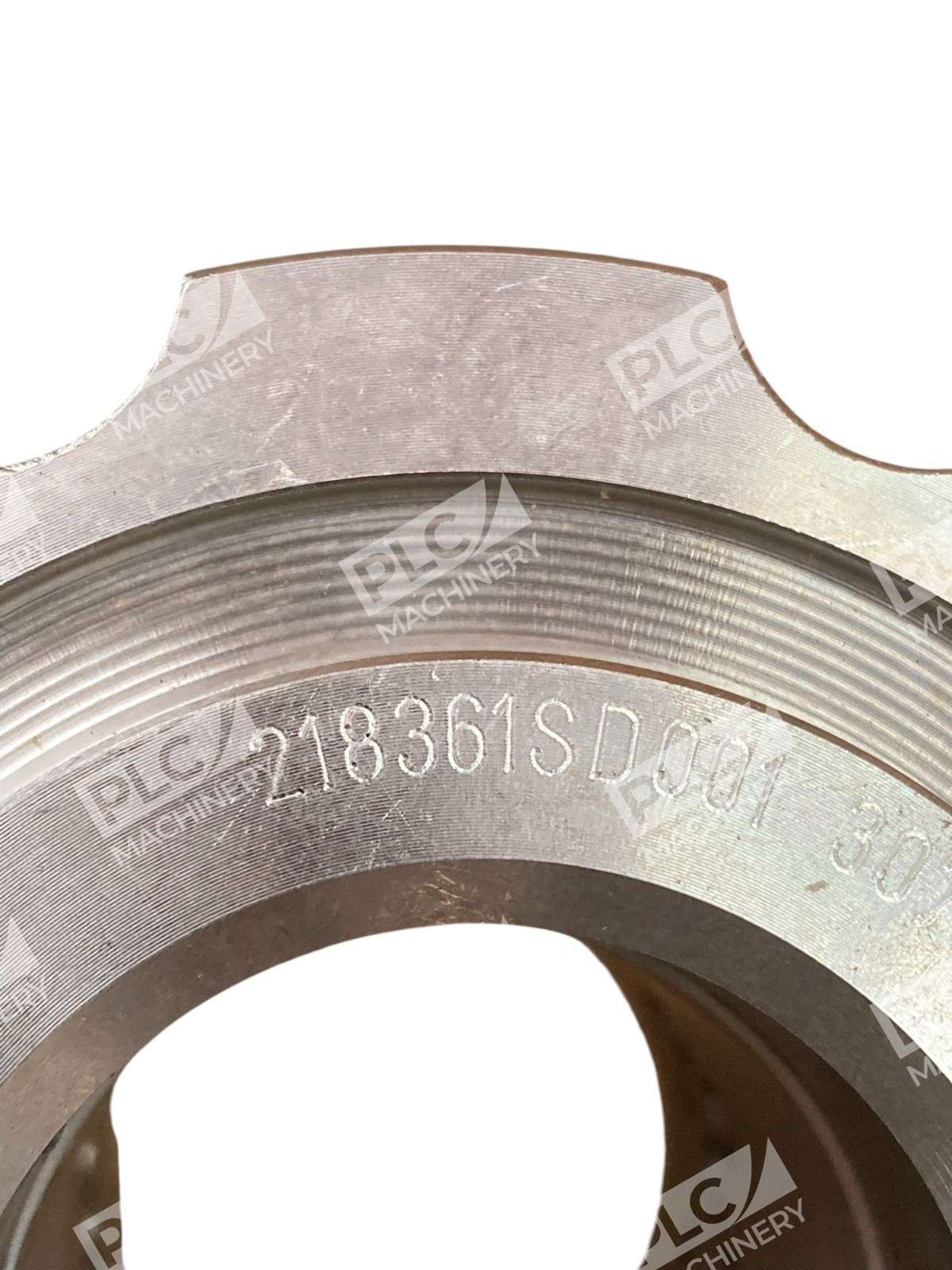

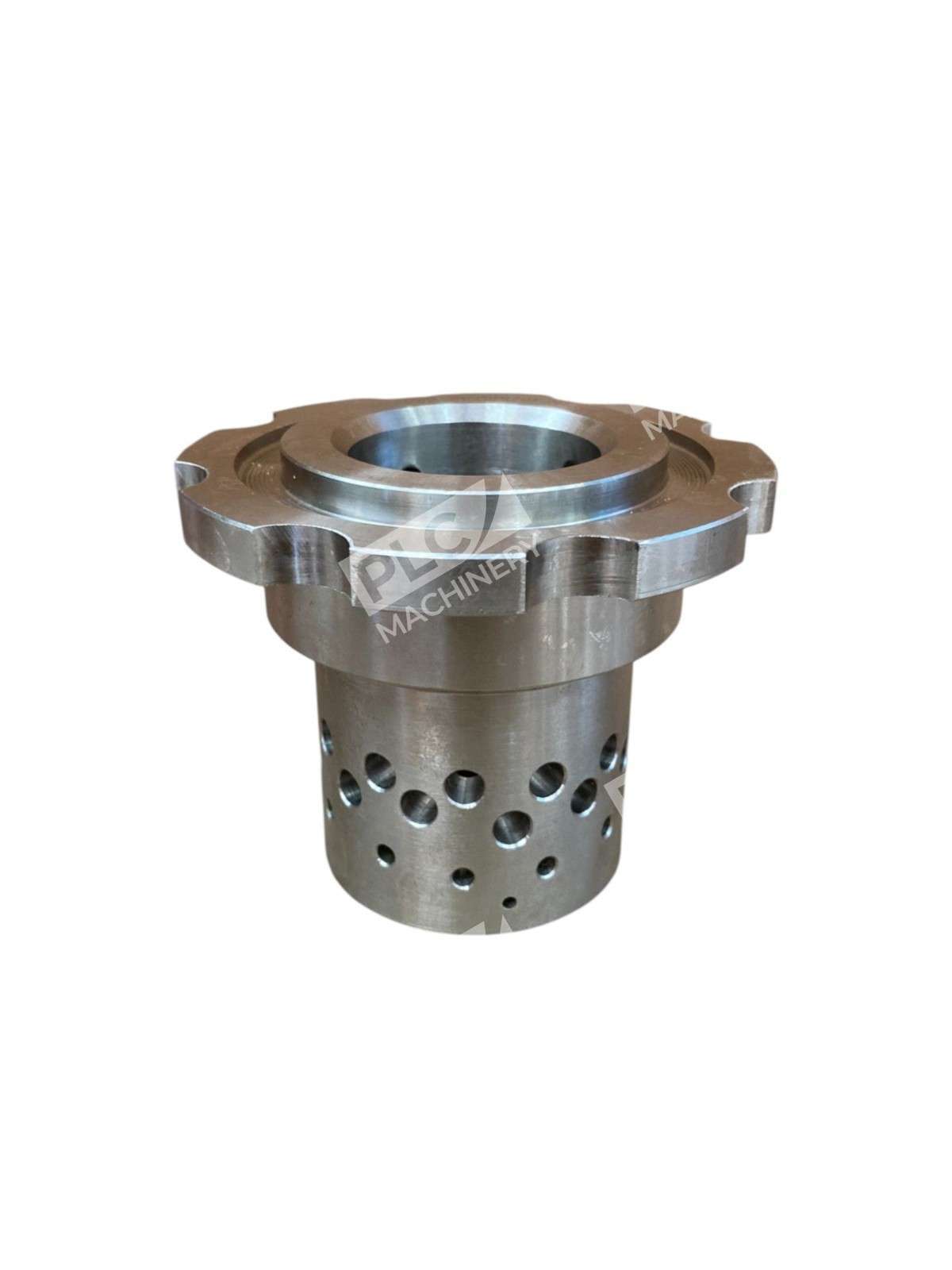

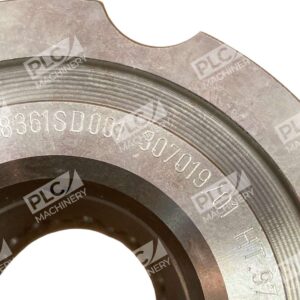

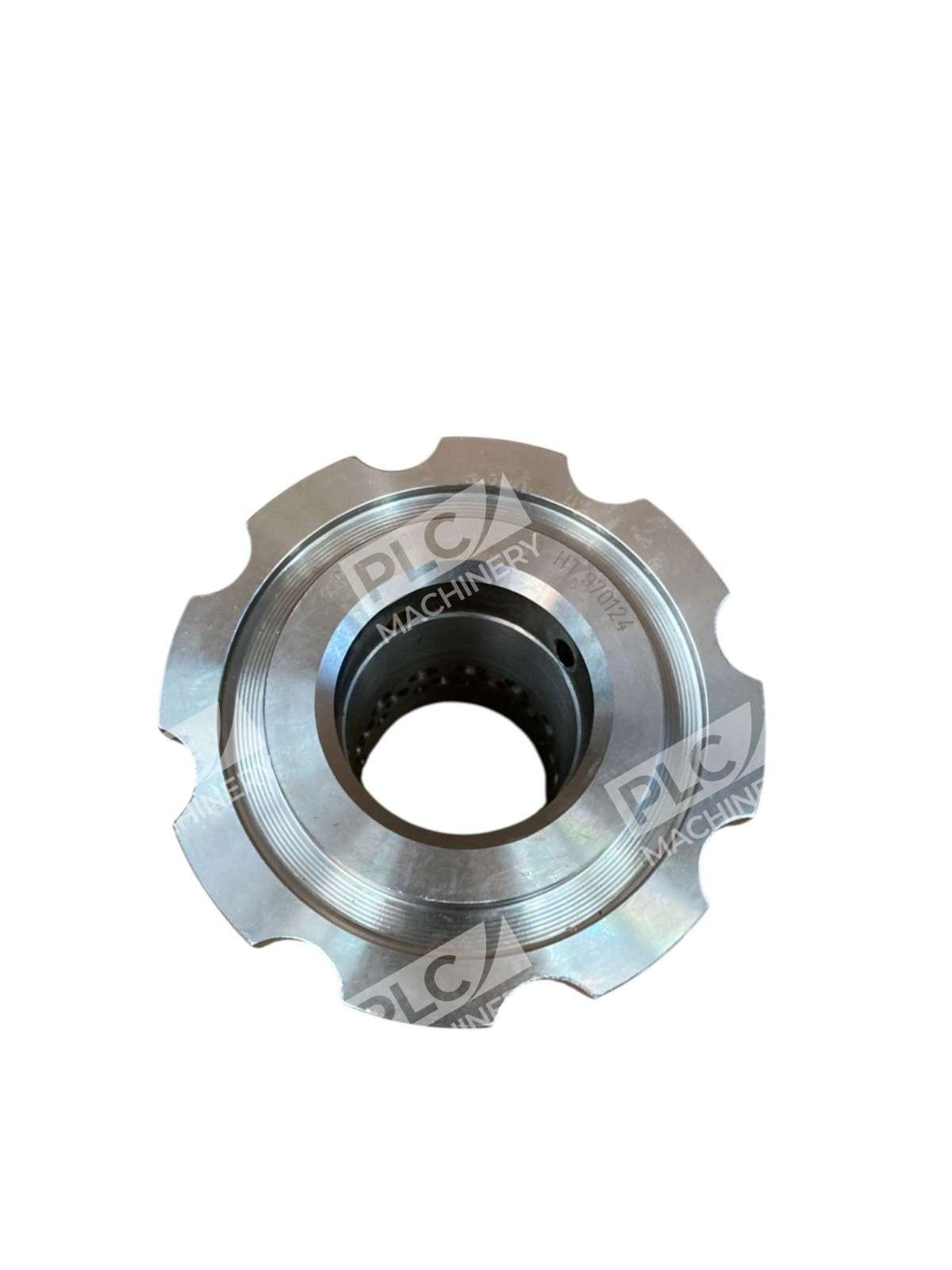

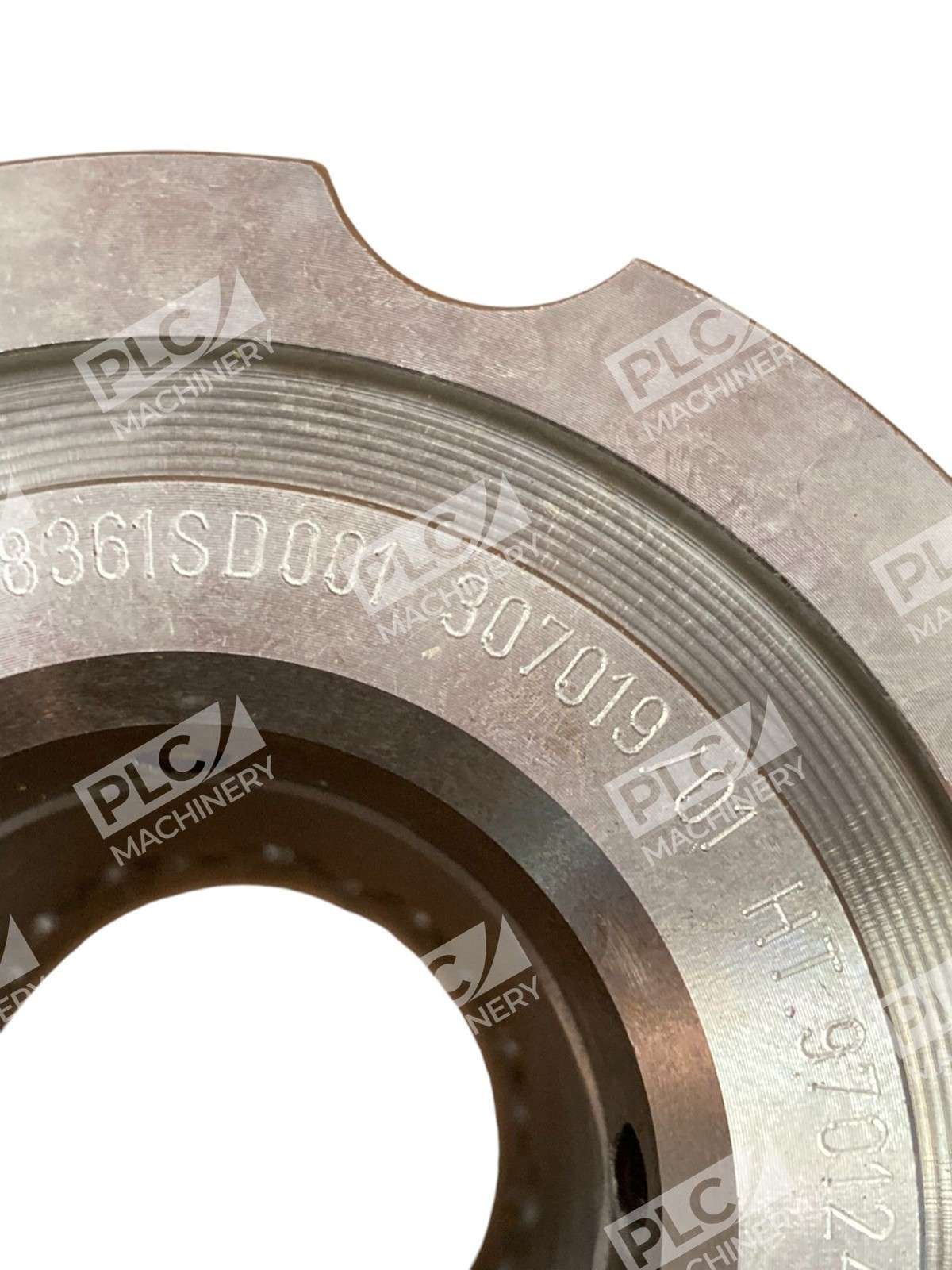

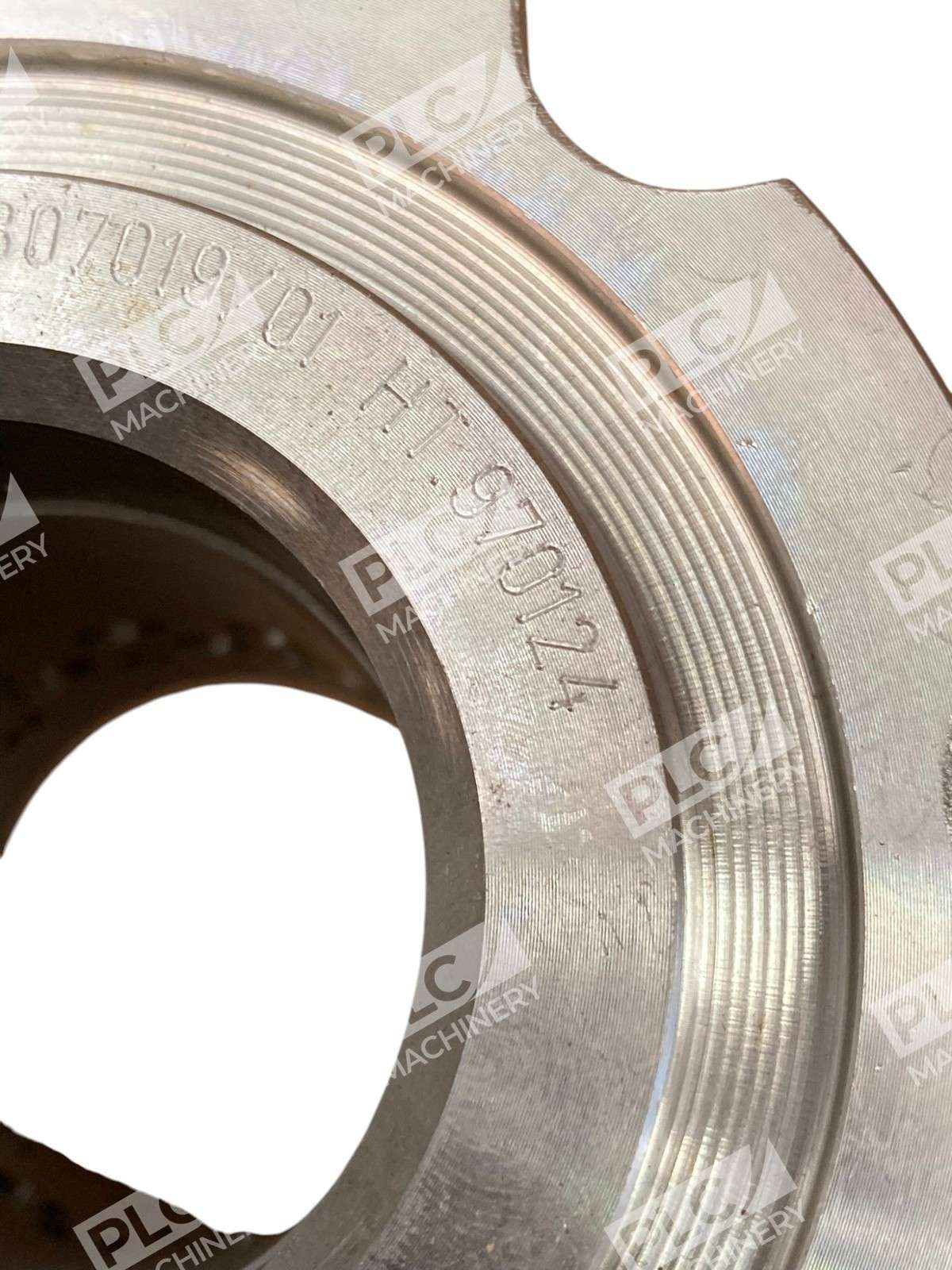

Fisher Valve Cage 218361SD001 307019 HT.970124

The Fisher Valve Cage 218361SD001 307019 HT.970124 is a critical component designed for use in Fisher’s control valves, particularly within the YD and YS three-way cage-guided valve series. These valves are engineered for both throttling and on/off services, offering balanced and unbalanced constructions to suit various industrial applications.

Key Features

• Balanced Valve Plug Construction: The YD valve’s balanced design allows for the use of smaller, more cost-effective actuators, enhancing operational efficiency.
• Versatile Application: Suitable for general converging and diverging services, these valves are adaptable to a wide range of industrial processes.
• Enhanced Sealing: The optional ENVIRO-SEAL™ packing system provides superior sealing capabilities, reducing emissions and ensuring environmental compliance.
• Durable Construction: Hardened trim materials offer excellent wear resistance, extending the lifespan of the valve components.
• Easy Maintenance: The cage-type construction simplifies inspection and removal of parts, facilitating straightforward maintenance procedures.
• Rugged Cage Guiding: Provides high valve plug stability, reducing vibration and mechanical noise during operation.

Specifications

• Certifications: CRN, CUTR, Fugitive Emissions, PED
• Critical Service: Corrosive, General Service
• Flow Characteristics: YD: Linear; YS: Equal percentage, Linear
• Materials: Carbon Steel, Stainless Steel, Cast Iron
• Operating Temperature: Standard Temperature
• Pressure Class: CL125, CL150, CL250, CL300, CL600, PN 16, PN 25, PN 40, PN 63, PN 100
• Process Connection Types: Flanged, Butt Weld, RTJ, Threaded, Socket Weld
• Shutoff Class: YD: Class II (FCI 70-2), Class IV (FCI 70-2); YS: Class IV (FCI 70-2), Class V (FCI 70-2)
• Valve Sizes: NPS 1/2, NPS 3/4, NPS 1, NPS 1-1/2, NPS 2, NPS 2-1/2, NPS 3, NPS 4, NPS 6

The Fisher Valve Cage 218361SD001 307019 HT.970124 plays a pivotal role in ensuring the optimal performance and reliability of Fisher’s YD and YS three-way cage-guided valves, making it an essential component for industries requiring precise flow control solutions.
