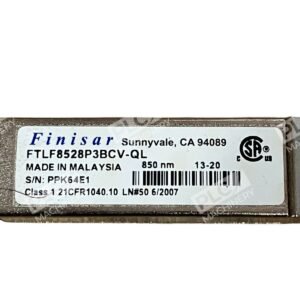

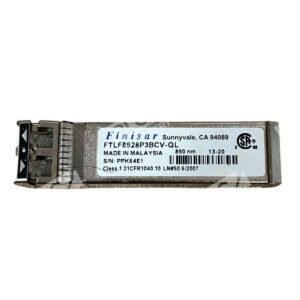

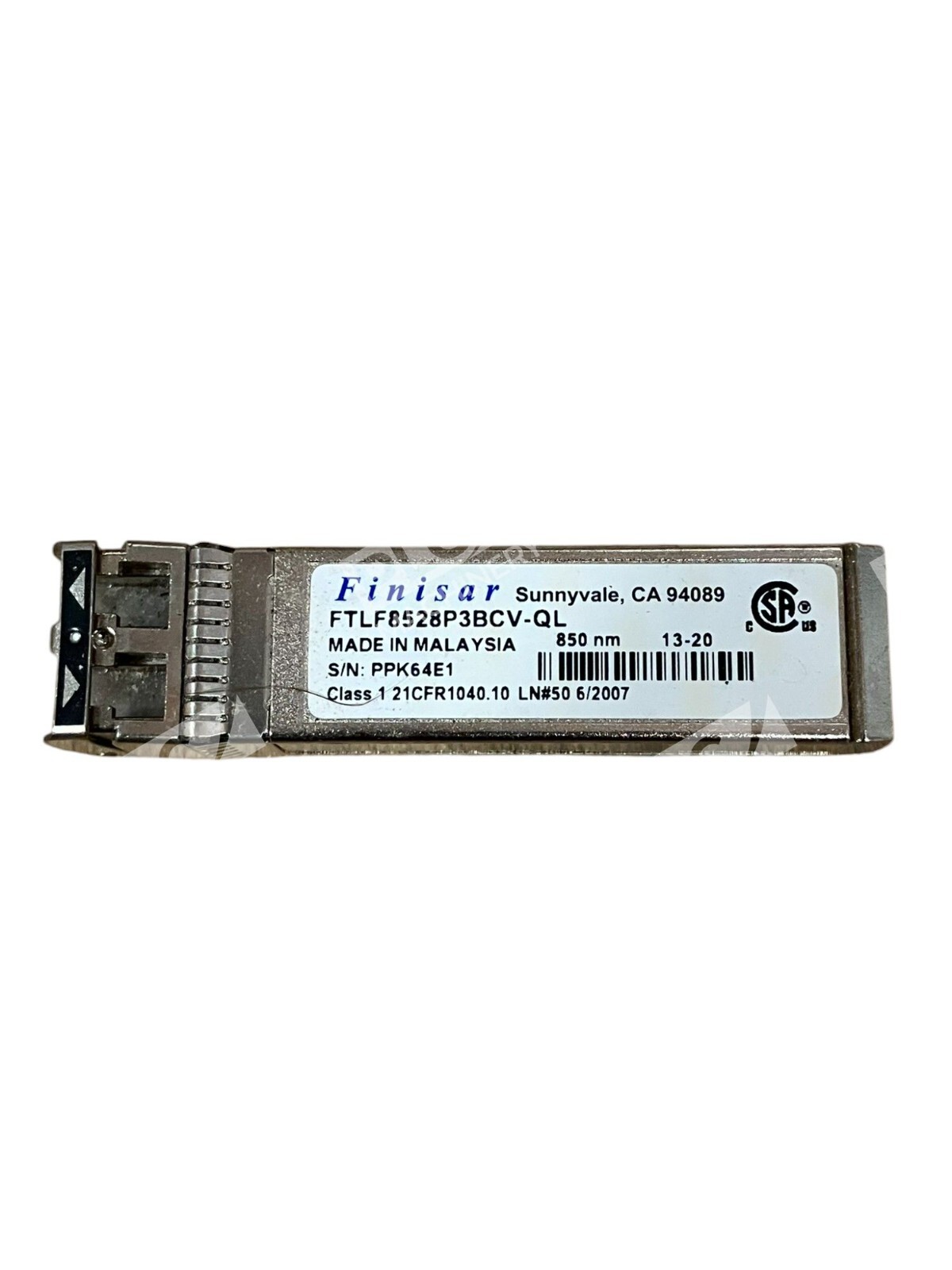

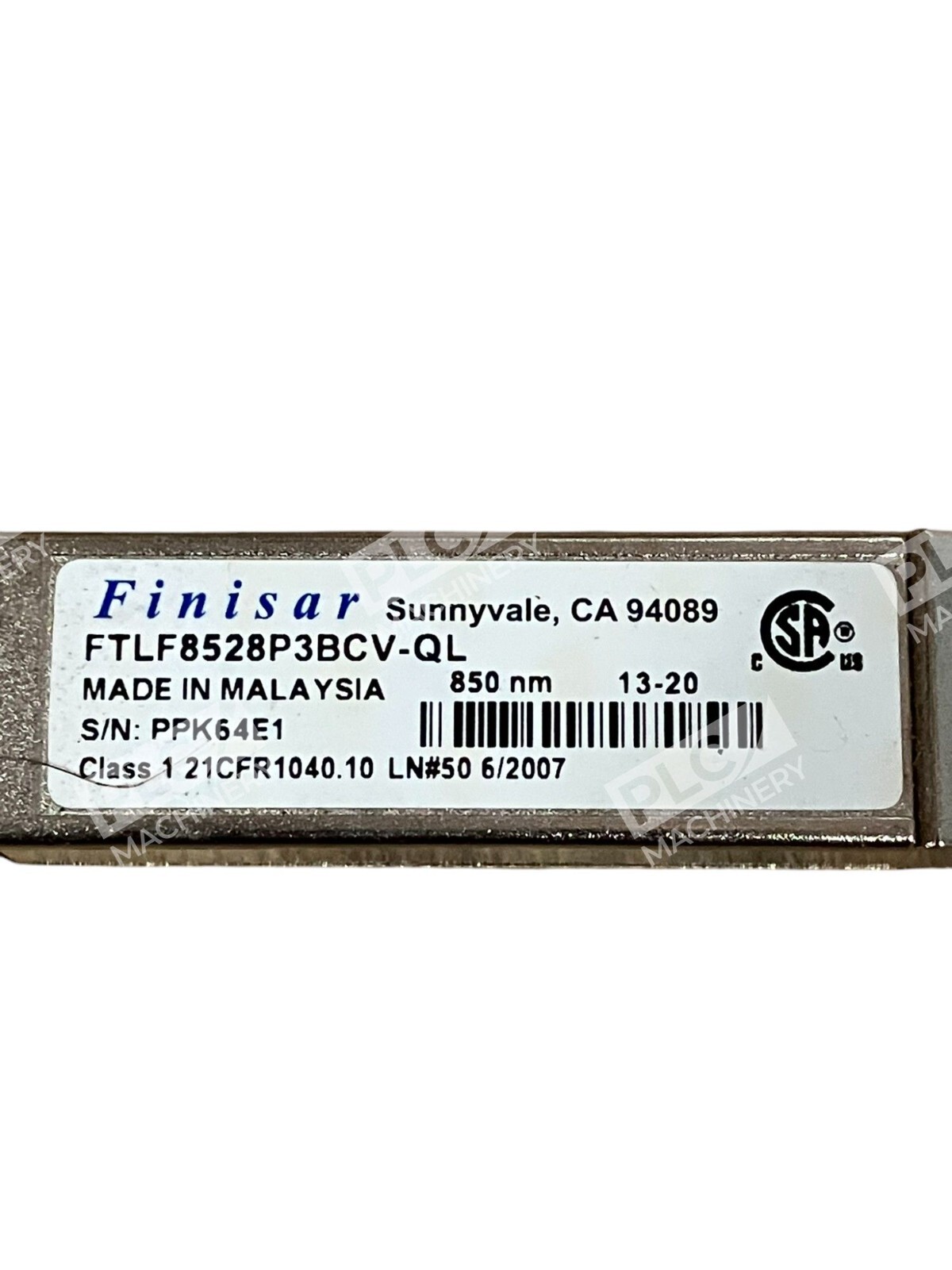

Finisar 8GB 850NM SFP Transceiver FTLF8528P3BCV-QL

Finisar 8GB 850NM SFP+ Transceiver FTLF8528P3BCV-QL

The Finisar FTLF8528P3BCV-QL is a high-performance SFP+ transceiver module designed for 8.5 Gbps Fibre Channel applications. Operating at a wavelength of 850 nm, this module utilizes multi-mode fiber (MMF) to deliver reliable and efficient data transmission over short distances.

Key Features

• Form Factor: SFP+ (Small Form-factor Pluggable)
• Data Rate: Supports bi-directional data links up to 8.5 Gbps
• Wavelength: 850 nm
• Connector Type: Duplex LC
• Fiber Type: Multi-Mode Fiber (MMF)
• Maximum Distance: Up to 150 meters on high-bandwidth 50/125 µm (OM3) MMF
• Temperature Range: Commercial operating temperature from -5°C to 70°C
• Compliance: RoHS-6 compliant (lead-free), SFF-8472, SFF-8432, SFF-8431 standards

Applications

This transceiver is ideal for various applications, including:

• 8G Fibre Channel (8.5 Gbps)
• 4G Fibre Channel (4.25 Gbps)
• 2G Fibre Channel (2.125 Gbps)
• 1G Fibre Channel (1.0625 Gbps)

Additional Specifications

• Optical Budget: Minimum of 4.6 dB
• Transmitter Type: VCSEL Laser
• Receiver Type: PIN photodiode
• Power Supply: +3.3V single power supply
• Digital Diagnostics: Supports DDM/DOM for real-time monitoring of operating parameters

The Finisar FTLF8528P3BCV-QL transceiver module is engineered to provide high-speed, reliable connectivity for Fibre Channel networks, ensuring optimal performance in data center and enterprise environments.
