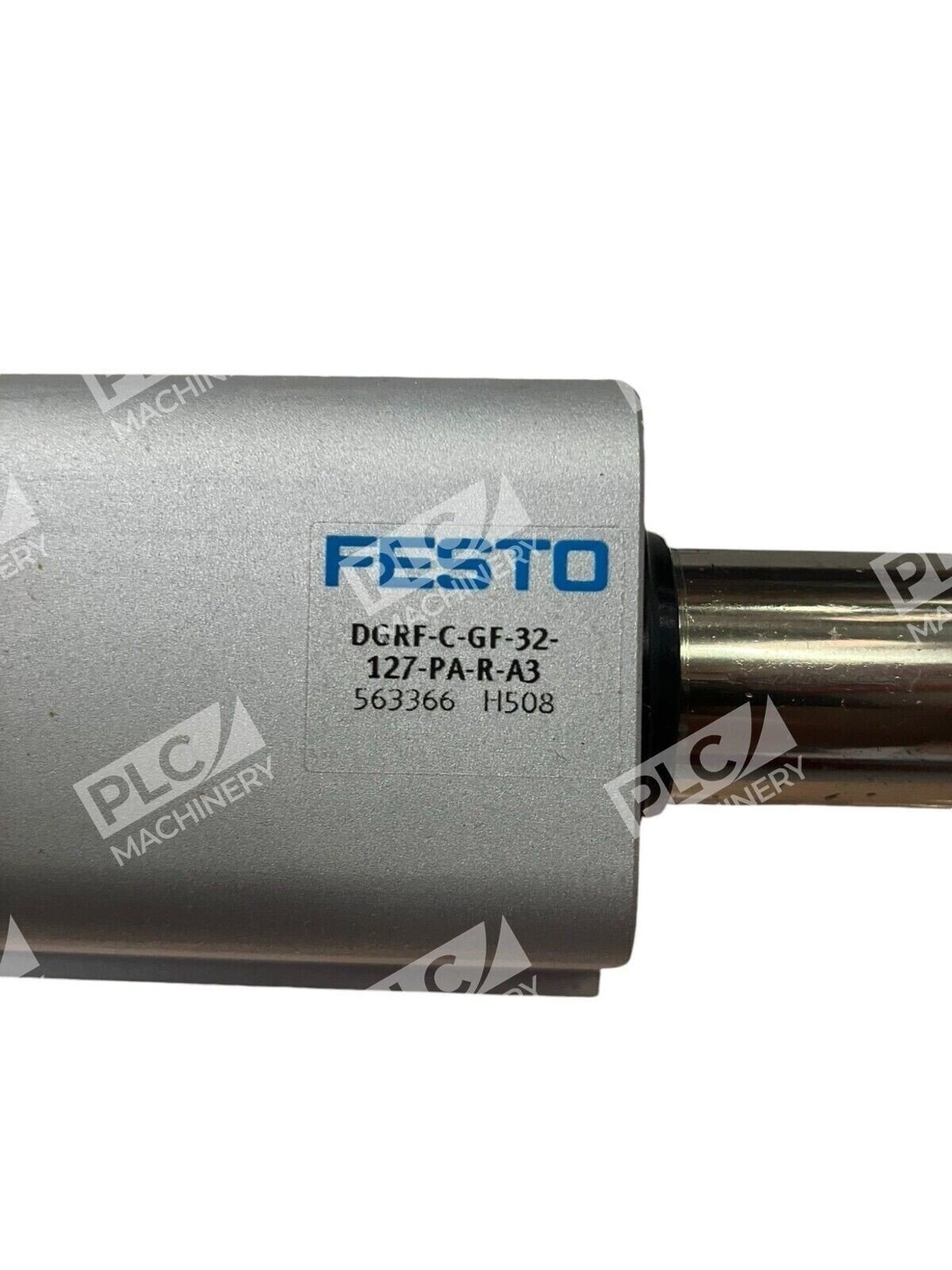

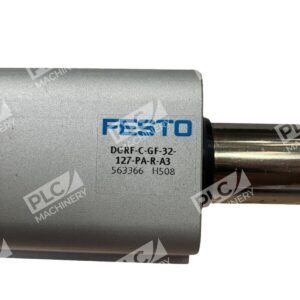

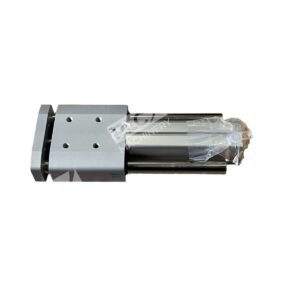

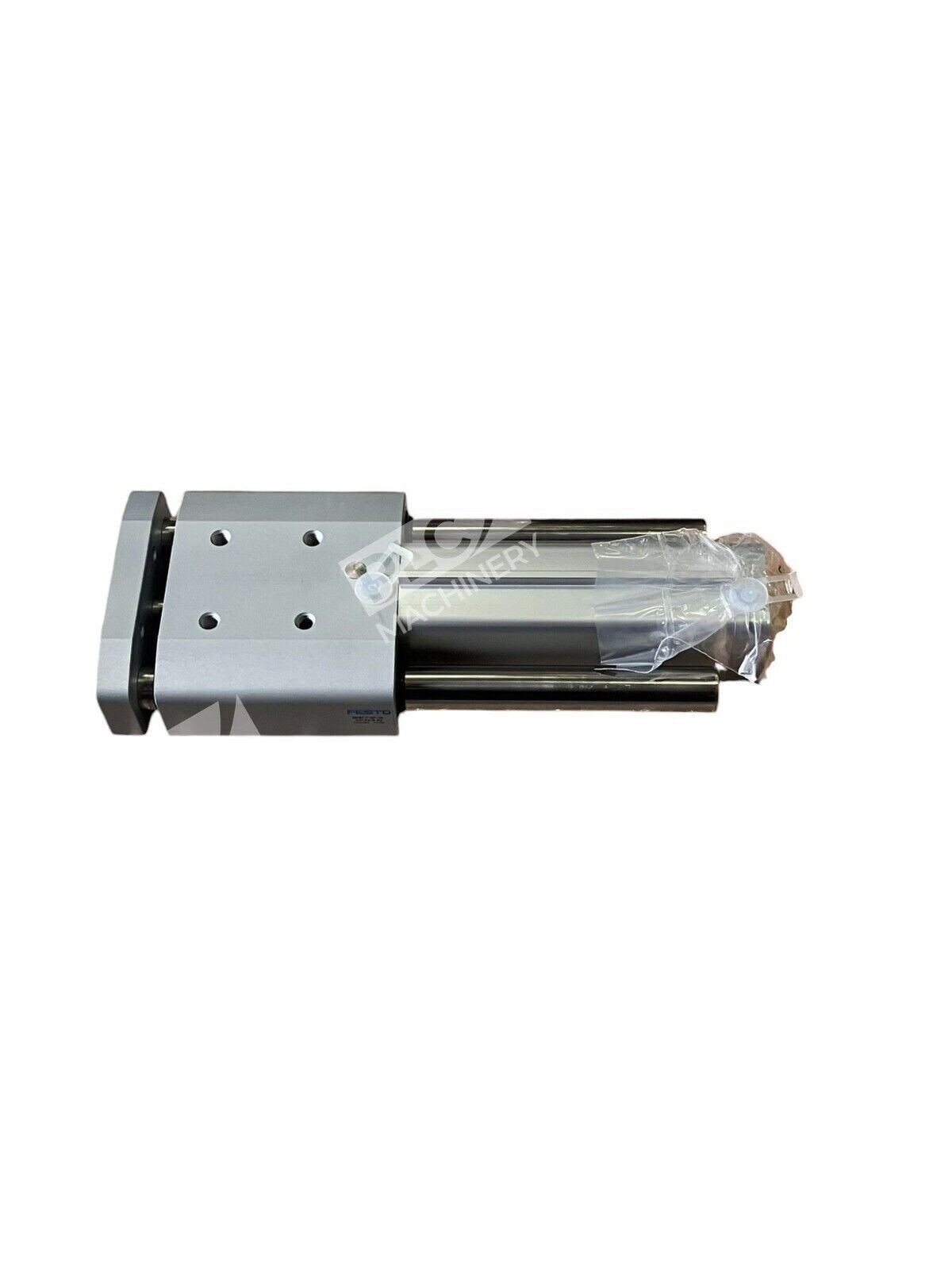

Festo 563366 H508 Pneumatic Cylinder DGRF-C-GF-32-127-PA-R-A3

Festo 563366 H508 Pneumatic Cylinder DGRF-C-GF-32-127-PA-R-A3

The Festo DGRF-C-GF-32-127-PA-R-A3 is a high-performance guided drive designed for precision and reliability in pneumatic applications. This double-acting cylinder features a clean, easy-to-maintain design, making it ideal for environments requiring stringent hygiene standards.

Key Features

• Double-Acting Operation: Ensures consistent force during both extension and retraction strokes, enhancing operational efficiency.
• Plain Bearing Guide (GF): Provides smooth linear motion and reduces friction, contributing to the longevity of the cylinder.
• Piston Diameter: 32 mm, offering a balance between compactness and power.
• Stroke Length: 127 mm, suitable for applications requiring moderate travel distances.
• Adjustable Pneumatic Cushioning (PA): Allows for fine-tuning of end-position cushioning, reducing impact forces and noise.
• Proximity Sensor Compatibility (A): Facilitates precise position sensing for enhanced process control.
• External Sensor Mounting Rail (R): Simplifies the installation of sensors, ensuring secure attachment and optimal performance.
• Scraper Variant (A3): Designed for unlubricated operation, minimizing maintenance requirements and preventing contamination.

Technical Specifications

• Operating Pressure: 2 to 12 bar, accommodating a wide range of pneumatic systems.
• Operating Medium: Compressed air in accordance with ISO 8573-1:2010 [7:4:4], ensuring compatibility with standard air quality requirements.
• Ambient Temperature Range: -20°C to 80°C, suitable for various industrial environments.
• Corrosion Resistance Class (CRC): 3, indicating high resistance to corrosion and suitability for demanding applications.
• Materials: High-alloy stainless steel guide and piston rods, with a housing and cylinder barrel made from wrought aluminum alloy, combining strength with lightweight properties.

The Festo DGRF-C-GF-32-127-PA-R-A3 guided drive is engineered to deliver precise, reliable performance in applications where cleanliness, durability, and ease of maintenance are paramount. Its robust construction and thoughtful design make it a valuable component in any pneumatic system.
