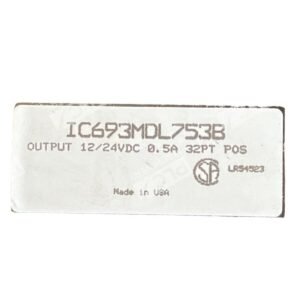

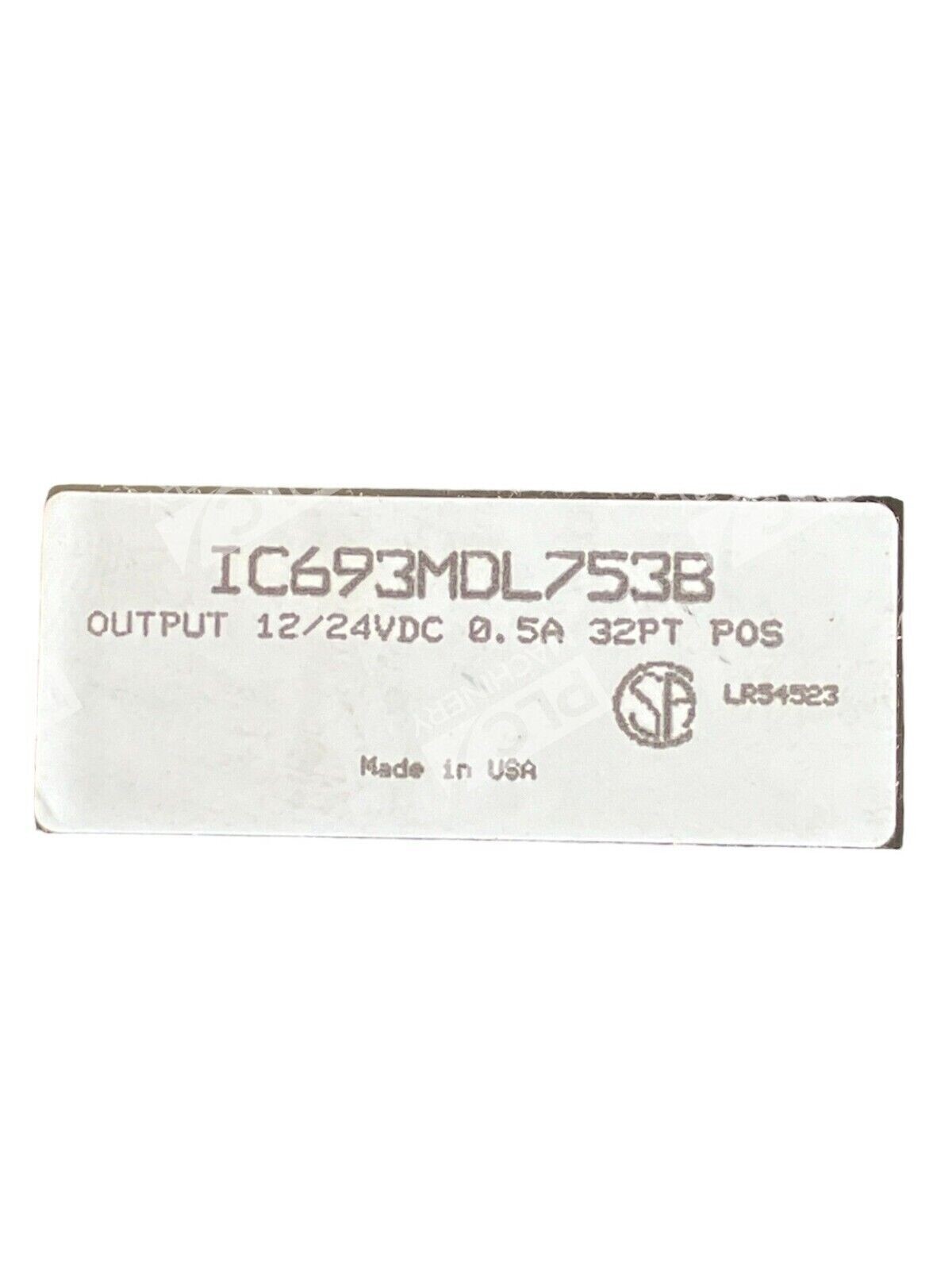

GE Fanuc IC693MDL753B 12/24VDC 0.5A 32-Point Positive Logic Output Module
The GE Fanuc IC693MDL753B is a 32-point discrete output module designed for the Series 90-30 Programmable Logic Controller (PLC) system. It provides positive logic DC voltage outputs, making it suitable for various industrial automation applications.
Key Features
- Output Configuration: 32 discrete outputs organized into four isolated groups of eight, each with its own common terminal.
- Voltage Range: Operates within a 12 to 24 volts DC range, accommodating a variety of industrial power supplies.
- Current Capacity: Each output point can source up to 0.5 amps, with a maximum of 4 amps per group.
- Isolation: Provides 1500 volts AC isolation between the field side and logic side, and 250 volts AC between groups, ensuring robust protection against electrical interference.
- Response Time: Fast on and off response times of 0.5 milliseconds, facilitating efficient control in dynamic systems.
- Compatibility: Seamlessly integrates with the Series 90-30 PLC system and can be installed in any I/O slot of the baseplate.
Technical Specifications
| Attribute | Specification |
|---|---|
| Number of Outputs | 32 (four groups of 8) |
| Output Voltage Range | 12-24V DC (+20%, -15%) |
| Output Current (Max per Point) | 0.5A |
| Output Current (Max per Group) | 4A |
| Isolation Voltage | 1500V AC between field and logic side; 250V AC between groups |
| Power Consumption | 260mA (maximum) from 5V DC bus |
| On-State Voltage Drop (Max) | 0.3V DC |
| Off-State Leakage (Max) | 0.1mA |
| Response Time (On/Off) | 0.5ms max |
| Inrush Current | 5.4A for 10ms |
| Mounting Format | DIN rail or panel mount |
| Compatible Devices | Motor starters, solenoids, indicators |
Applications
The IC693MDL753B module is ideal for controlling various devices such as motor starters, solenoids, and indicators in industrial automation settings. Its high-density design and reliable performance make it a valuable component in complex control systems.
Installation and Compatibility

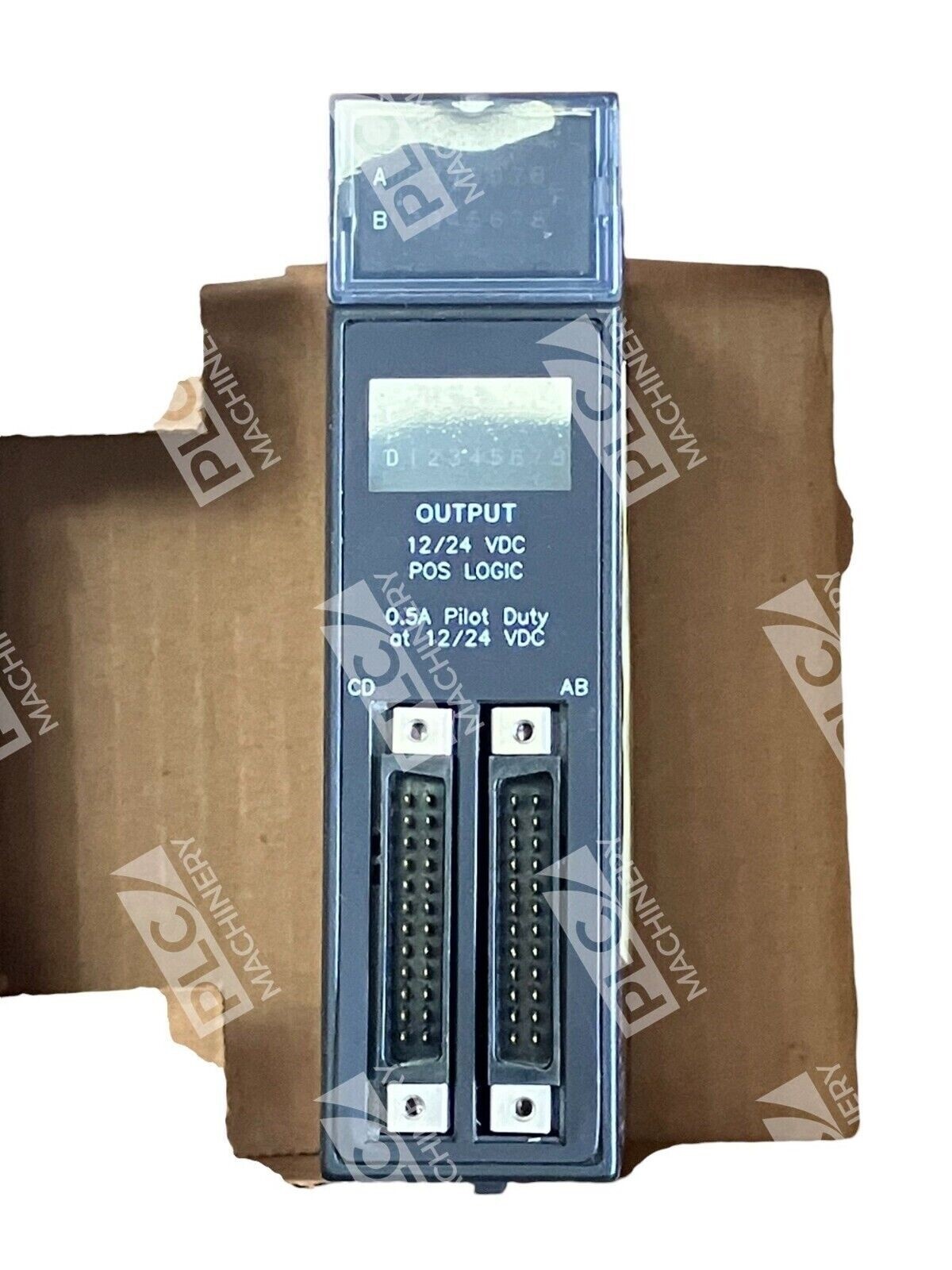

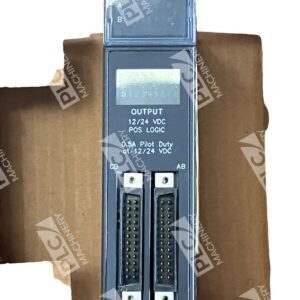

This module is compatible with the Series 90-30 PLC system and can be installed in any I/O slot of the baseplate. It features two male 24-pin connectors on the front, facilitating connections to user load devices. Output groups A and B interface through the right-side connector, while groups C and D use the left-side connector.
For detailed installation instructions and safety guidelines, please refer to the user manual specific to the IC693MDL753B model.
