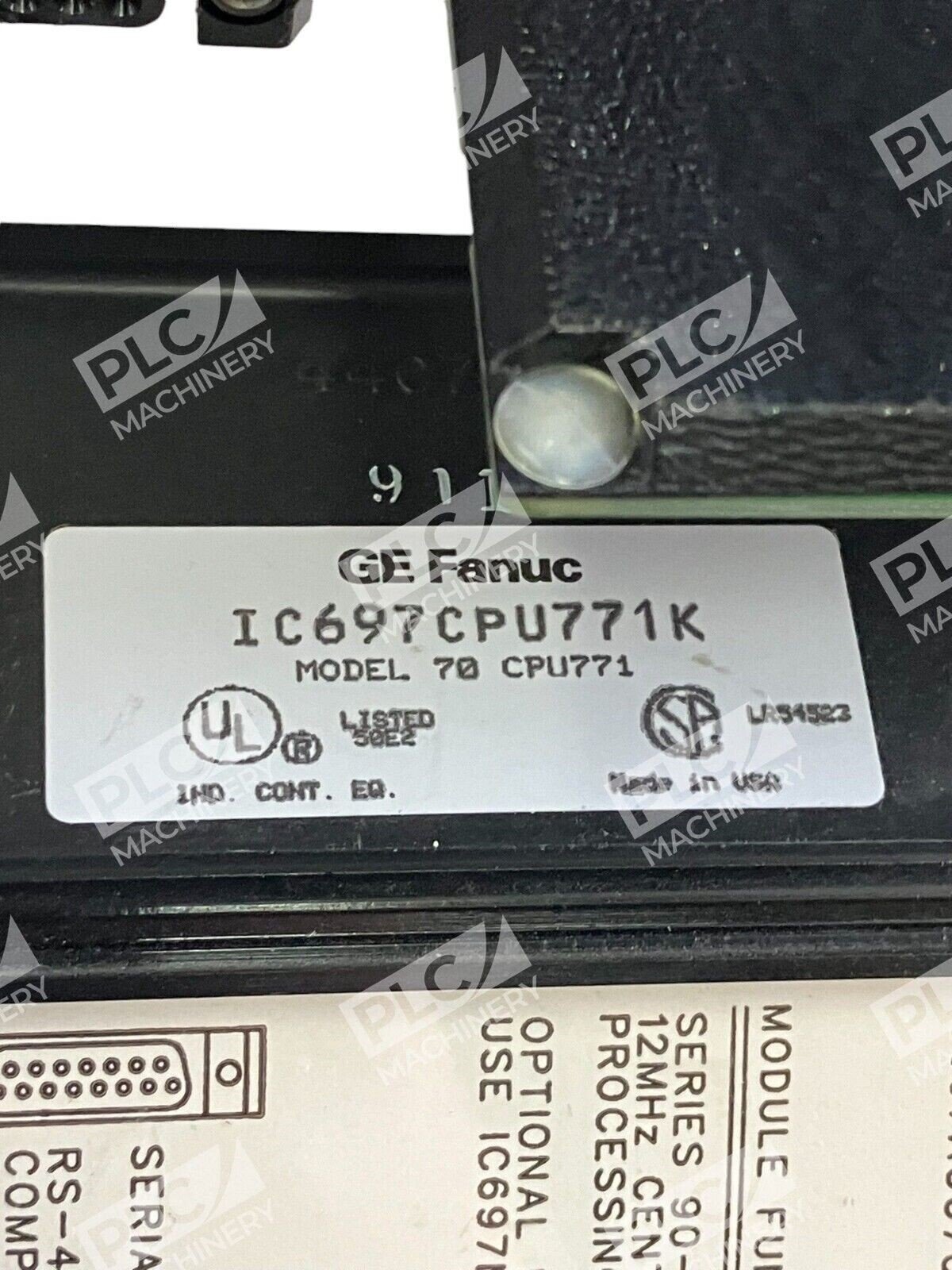

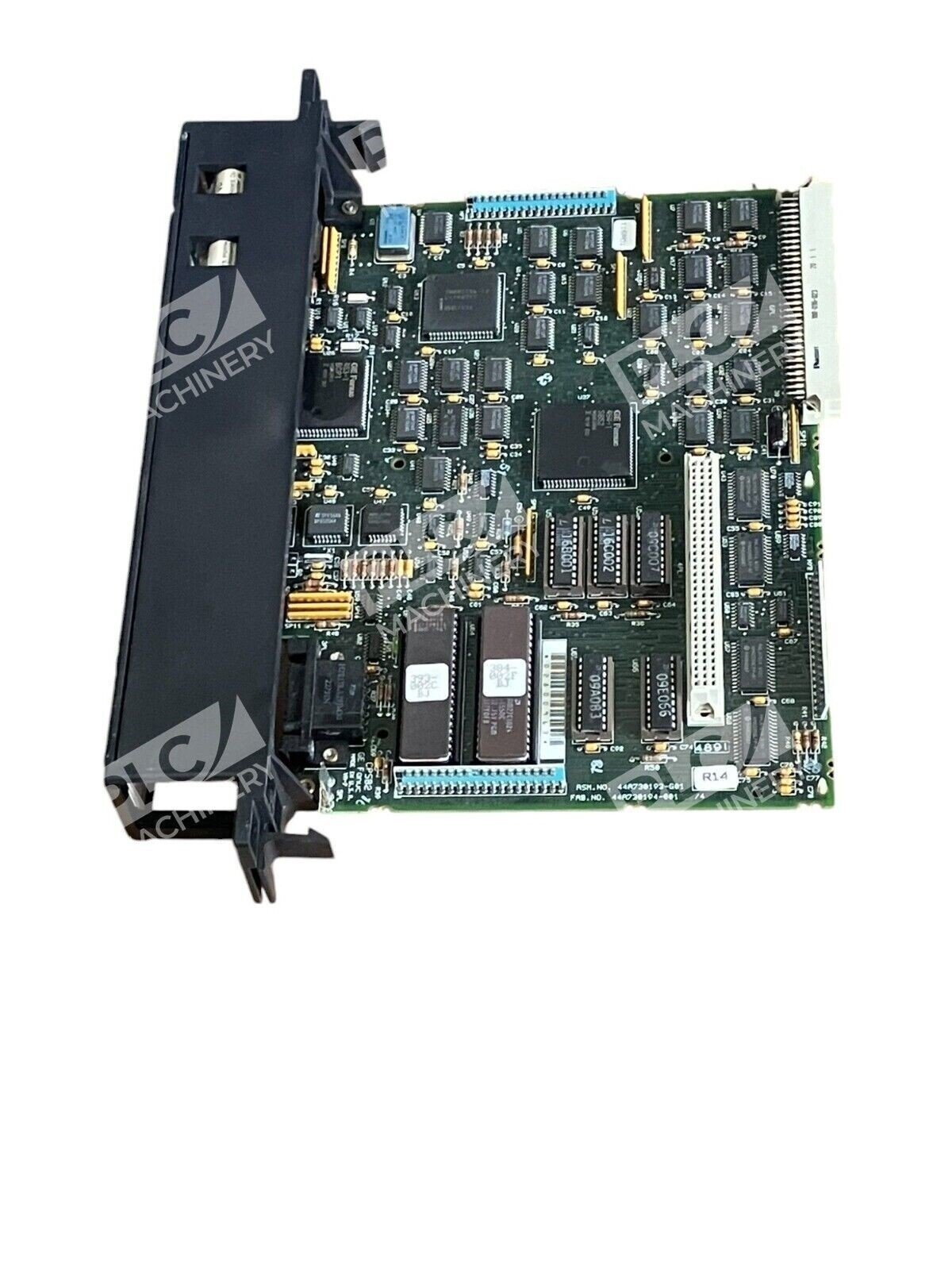

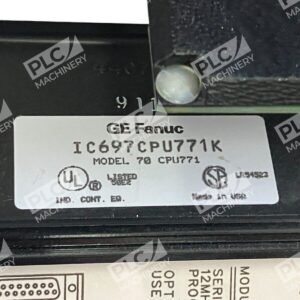

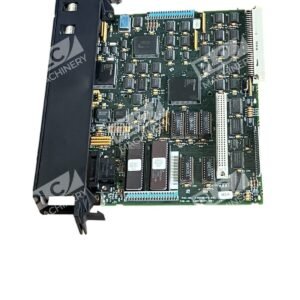

GE Fanuc IC697CPU771K Central Processing Unit (CPU) Module

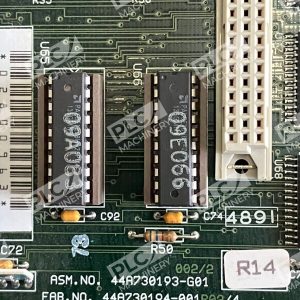

The GE Fanuc IC697CPU771K is a high-performance CPU module designed for the Series 90-70 Programmable Logic Controllers (PLCs). It serves as the central processing unit, executing user-defined programs and managing I/O operations to control industrial automation processes.
Key Features
- Processor: Equipped with an 80C186 microprocessor operating at 12 MHz, delivering efficient processing capabilities.

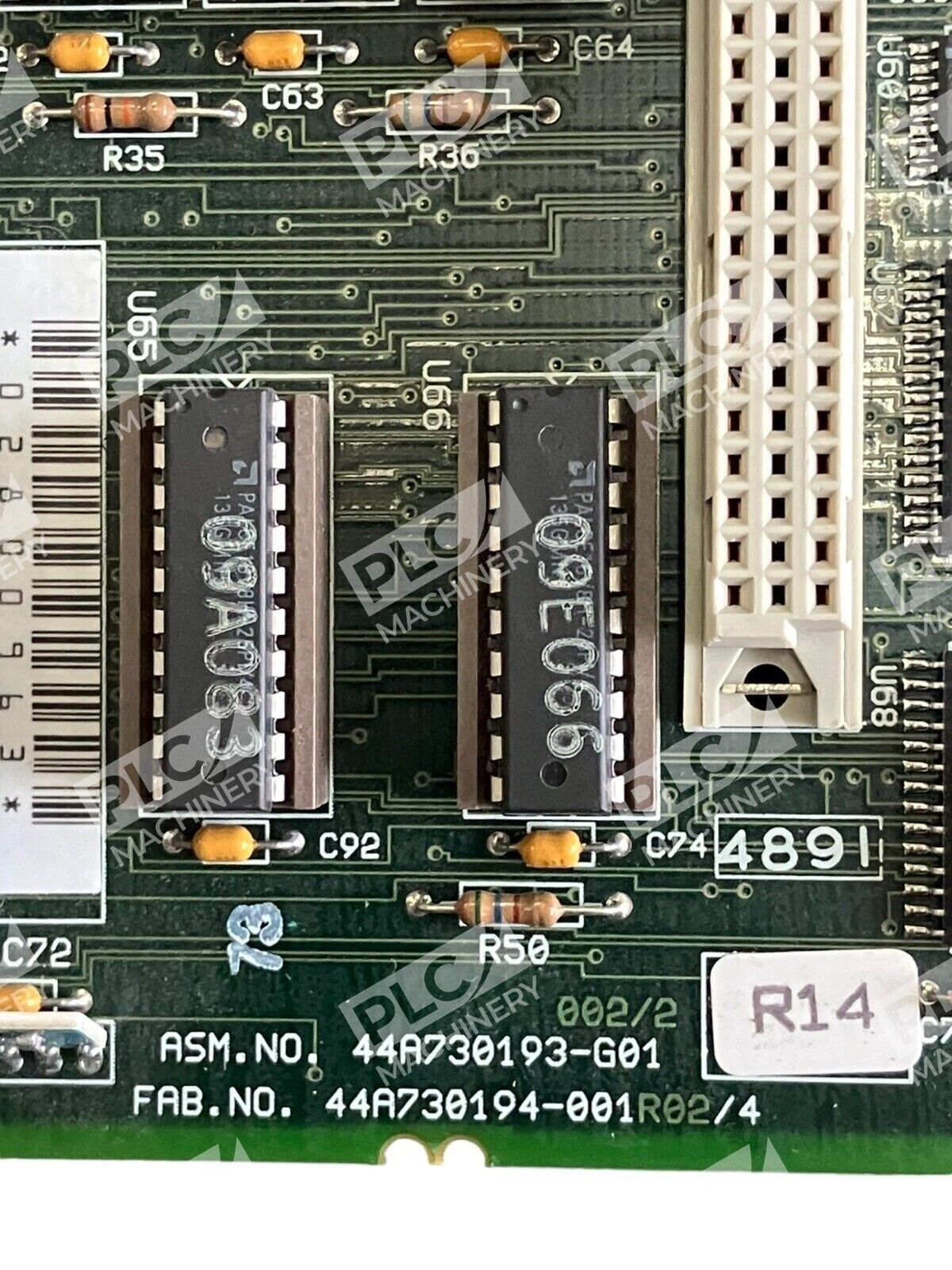

- Memory: Supports up to 512 KB of CMOS RAM, expandable via an optional memory board, ensuring ample space for complex programs and data storage.
- I/O Capacity: Capable of handling up to 2,000 discrete I/O points and 8,000 analog I/O points, accommodating diverse industrial applications.

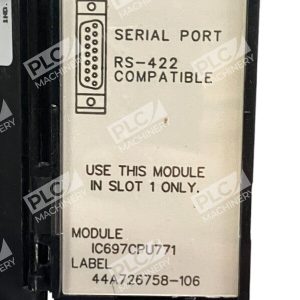

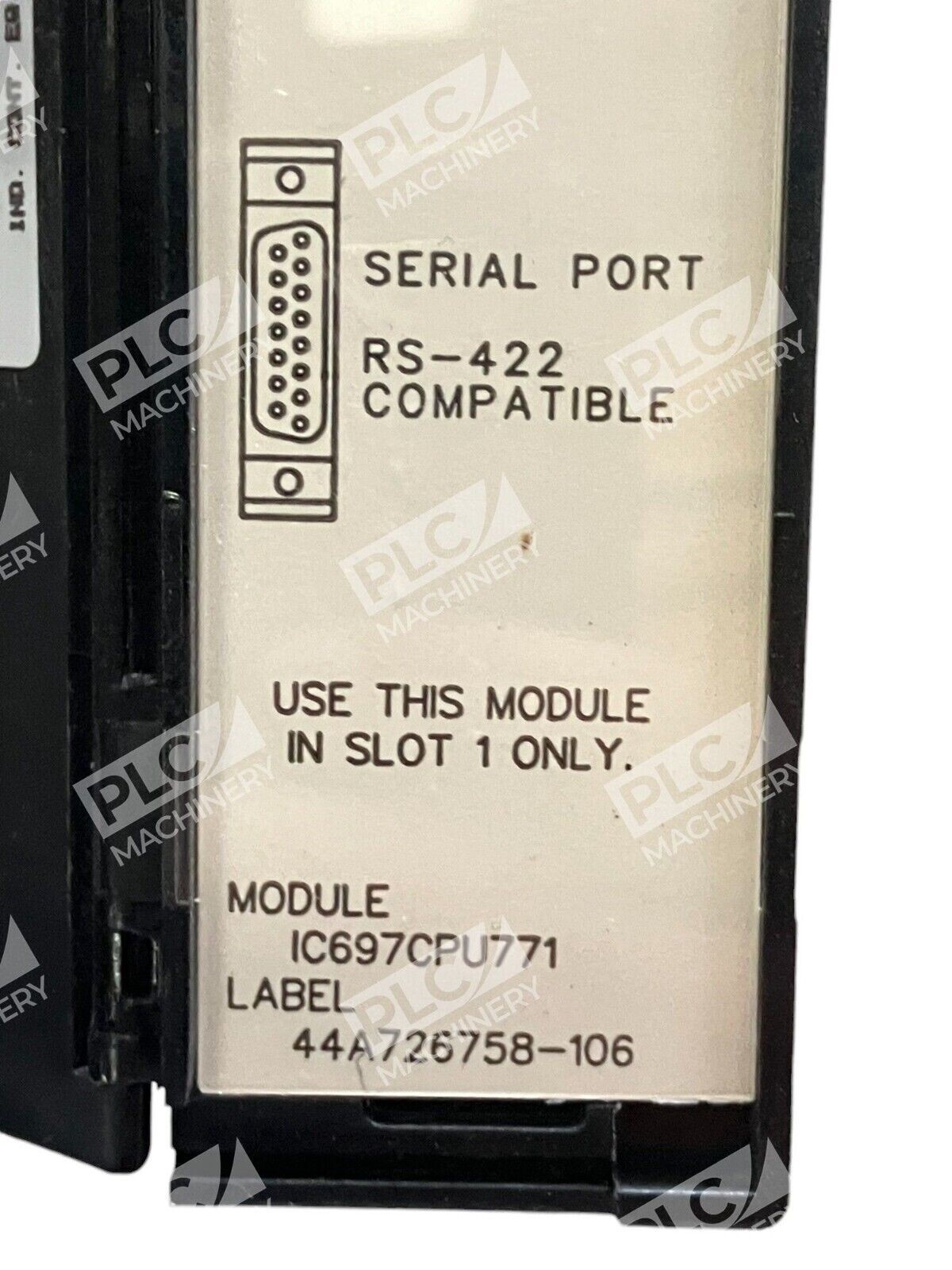

- Communication: Features an RS-485 compatible serial port for seamless integration with various devices and networks.
- Programming Compatibility: Compatible with Logicmaster 90-70, VersaPro, and Proficy Machine Edition software, offering flexibility in programming environments.
- Security: Incorporates password-controlled access to safeguard program integrity and prevent unauthorized modifications.

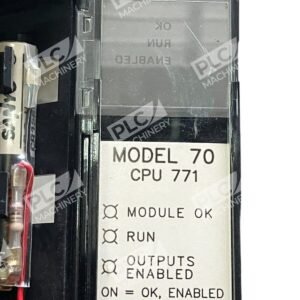

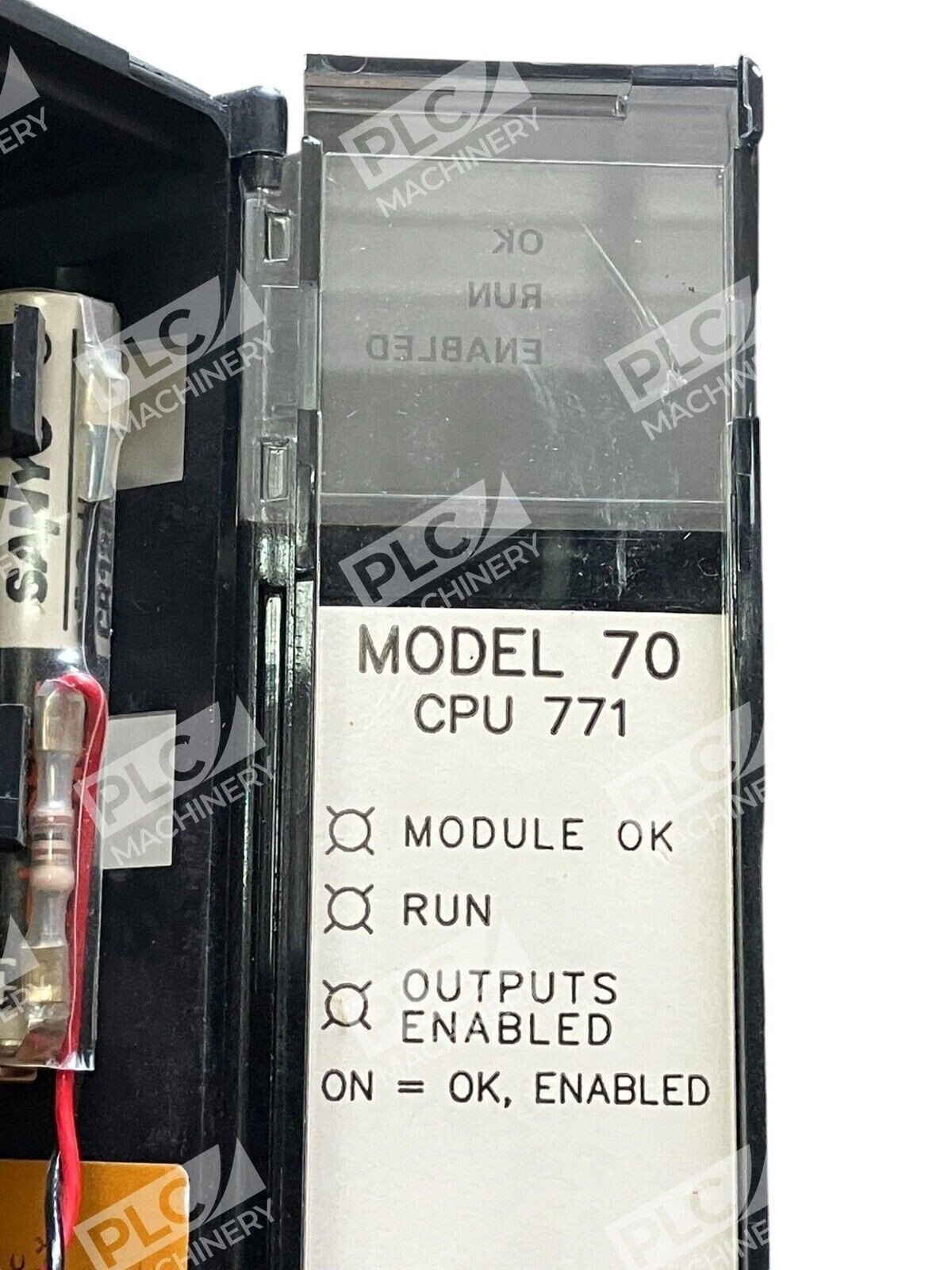

- Status Indicators: Includes LED indicators for Module OK, Run, and Outputs Enabled, providing clear visual status updates.
Technical Specifications
- Processor Speed: 12 MHz
- Boolean Execution Speed: 0.4 microseconds per instruction
- Discrete I/O: Up to 2,000 points
- Analog I/O: Up to 8,000 points
- Memory Expansion: Supports additional 512 KB CMOS RAM
- Serial Port: RS-485 compatible
- Programming Software: Logicmaster 90-70, VersaPro, Proficy Machine Edition
- Power Requirements: 1.1 Amps at 5V DC
- Dimensions: 263 × 58 × 28 mm
- Weight: 4.3 kg
Applications
The IC697CPU771K is ideal for a wide range of industrial automation applications, including:
- Manufacturing process control
- Material handling systems
- Building automation
- Robotics
- Energy management systems
Its robust design and extensive I/O support make it suitable for complex control tasks in various industrial settings.
Installation and Compatibility
The IC697CPU771K is designed for easy installation in the Series 90-70 PLC rack system. It is compatible with all IC697 I/O modules, LAN interface modules, coprocessor modules, bus controllers, and communication modules, ensuring seamless integration into existing systems.
For optimal performance and longevity, it is recommended to follow the manufacturer’s guidelines for installation, programming, and maintenance.
