Fanuc A03B-0819-C011 I/O Module

Fanuc A03B-0819-C011 I/O Interface Module

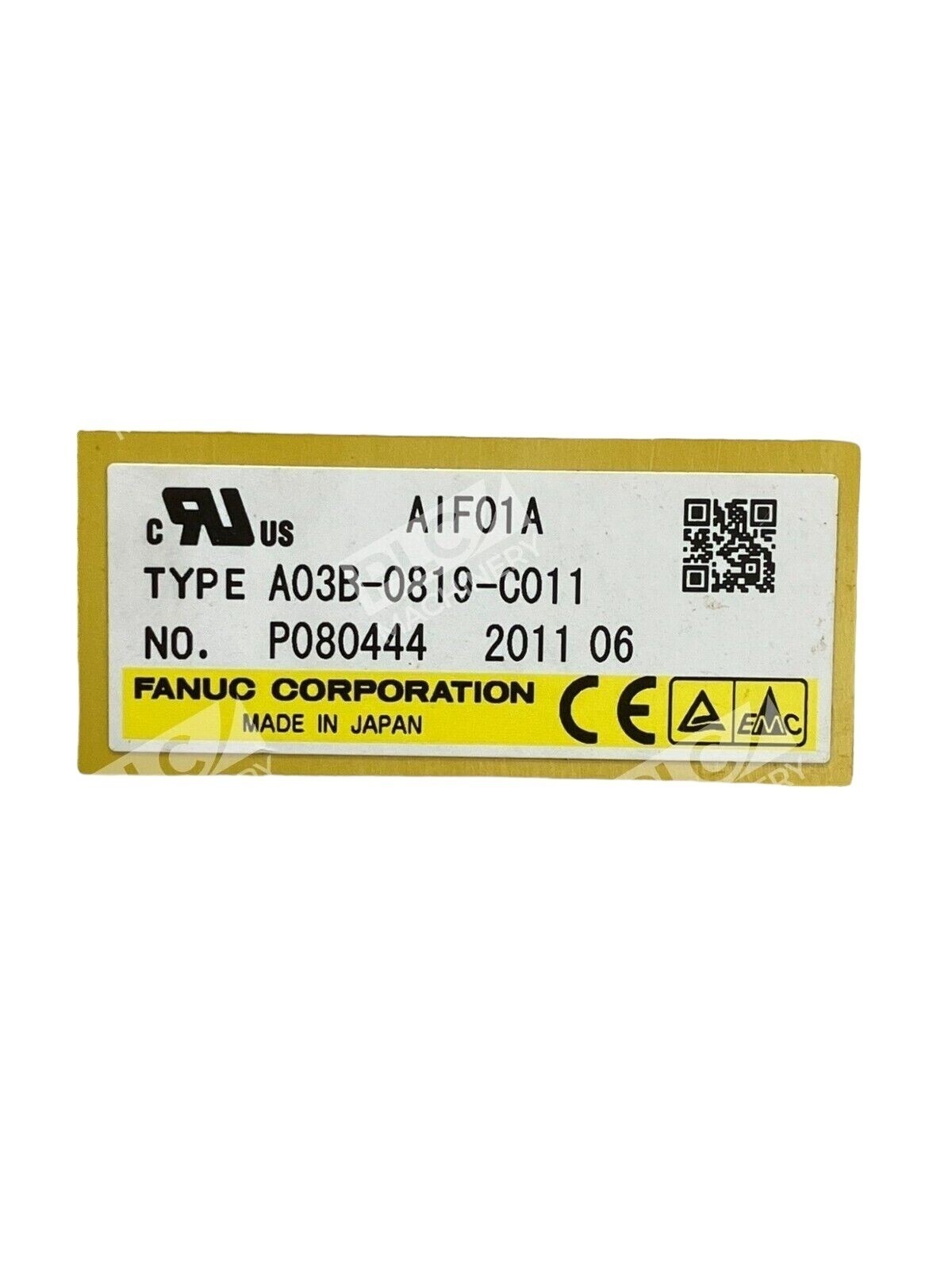

The Fanuc A03B-0819-C011, also known as the AIF01A Interface Module, is a high-performance I/O interface module designed to enhance the communication capabilities of industrial automation systems. This module plays a crucial role in facilitating efficient data exchange between CNC controllers and various input/output devices, ensuring seamless operation within manufacturing environments.

Key Features

• Model Number: A03B-0819-C011
• Type: I/O Interface Module
• Voltage Rating: 24 VDC
• Current Rating: 2 Amps Maximum
• Compatibility: Designed for integration with Fanuc Series 16i, 18i, and 21i CNC controls

Functionality

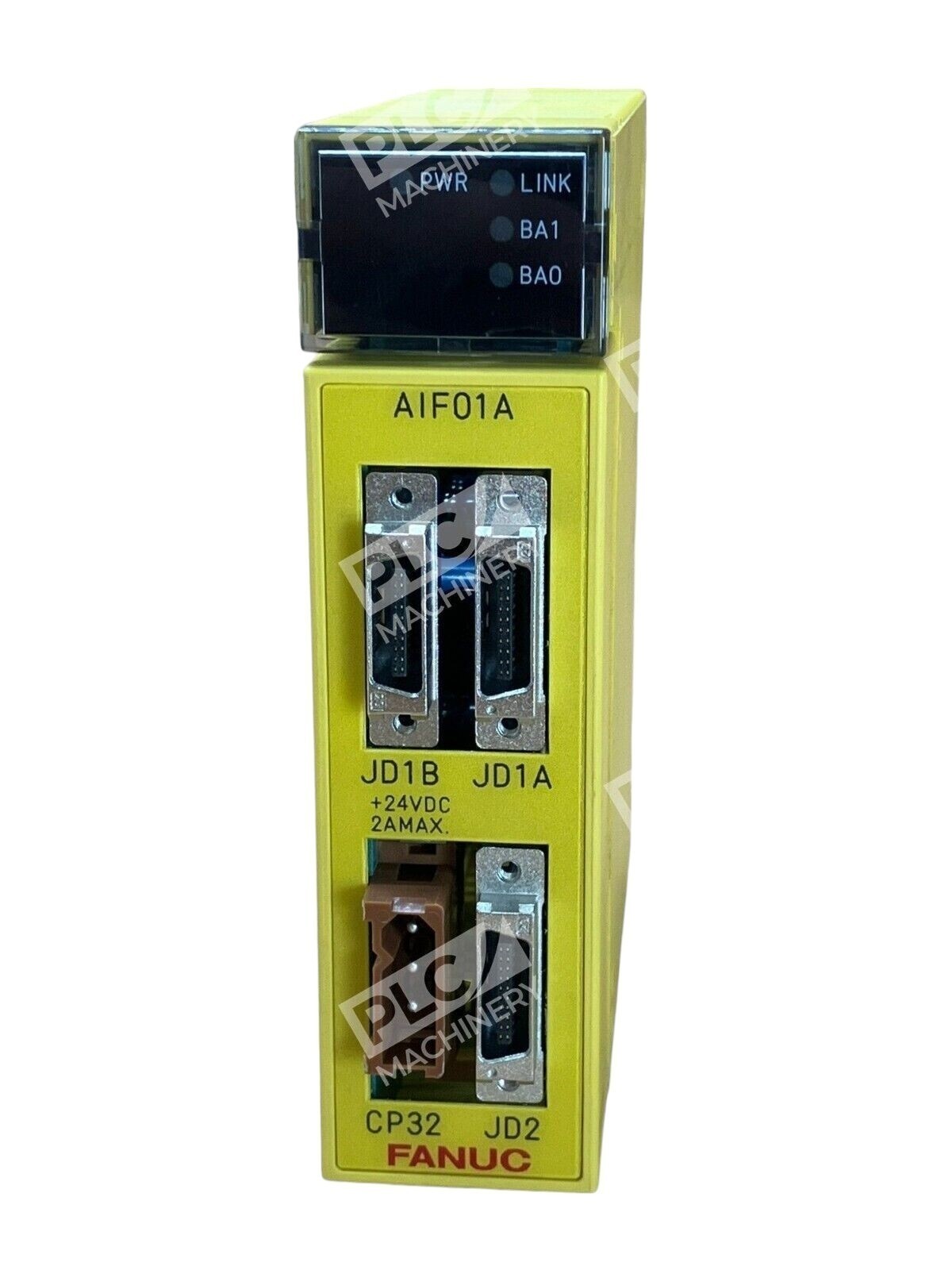

The A03B-0819-C011 module serves as a critical component in the I/O Link system, typically positioned at the beginning of the I/O link chain. It features multiple connectors:

• JD1B Connector: Connects directly to the Fanuc CNC control unit.
• JD1A Connector: Provides a link to additional interface modules, allowing for system expansion.
• JD2 Connector: Facilitates connections to I/O units within the chain, enabling comprehensive control over various machine functions.

This configuration allows for the connection of up to 16 groups of slave units to a single I/O Link, significantly expanding the system’s input and output capabilities.

Applications

The Fanuc A03B-0819-C011 I/O Interface Module is ideal for a wide range of industrial applications, including:

• CNC Machining Centers: Enhances control over machining operations by providing reliable communication between the CNC controller and machine components.
• Robotics: Facilitates precise control and coordination of robotic movements and functions.
• Manufacturing Automation: Supports complex automation processes by ensuring efficient data exchange between various system components.

Durability and Reliability

Constructed with industrial-grade materials, the A03B-0819-C011 module is built to withstand the demanding conditions of manufacturing environments. Its robust design ensures long-term reliability and consistent performance, minimizing downtime and maintenance requirements.

Installation and Integration

The module’s compact design allows for easy installation within existing control cabinets or panels. Its compatibility with Fanuc’s Series 16i, 18i, and 21i CNC controls ensures seamless integration into existing systems, providing an immediate enhancement to the system’s I/O capabilities.

In summary, the Fanuc A03B-0819-C011 I/O Interface Module is a vital component for industrial automation systems, offering expanded I/O capacity, reliable performance, and seamless integration with Fanuc CNC controls. Its robust design and versatile functionality make it an excellent choice for enhancing the efficiency and effectiveness of manufacturing operations.
