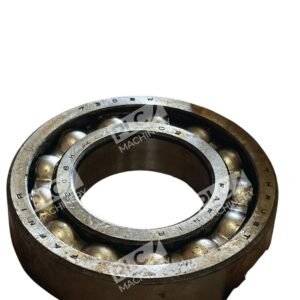

Fafnir 7208W Bearing

The Fafnir 7208W Bearing is a high-quality angular contact ball bearing engineered for applications requiring combined radial and axial loads.

Key Features

• Design: Single-row angular contact ball bearing with a 40° contact angle, optimized for high thrust capacity in one direction.
• Dimensions: Bore diameter of 40 mm (1.5748 inches), outer diameter of 80 mm (3.1496 inches), and width of 18 mm (0.7087 inches).
• Material: Constructed from durable steel with a pressed brass cage for enhanced performance and longevity.
• Load Capacity: Dynamic load rating of 8,150 lbf and static load rating of 5,200 lbf, ensuring reliable operation under substantial loads.
• Speed Ratings: Maximum operating speeds of 5,010 RPM with grease lubrication and 6,680 RPM with oil lubrication.
• Temperature Range: Operational within a temperature range of -50°C to 120°C, suitable for various industrial environments.

Applications

The Fafnir 7208W Bearing is ideal for use in industries such as general industrial, agricultural, chemical, and utilities, where reliable performance under combined loads is essential.

Additional Information

• Precision Class: ABEC-1, ensuring standard precision suitable for most applications.
• Enclosure: Open design, facilitating easy lubrication and maintenance.
• Compliance: Manufactured to meet industry standards for quality and performance.

For detailed specifications and availability, please refer to the manufacturer’s documentation or contact an authorized distributor.
