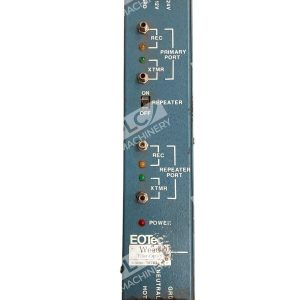

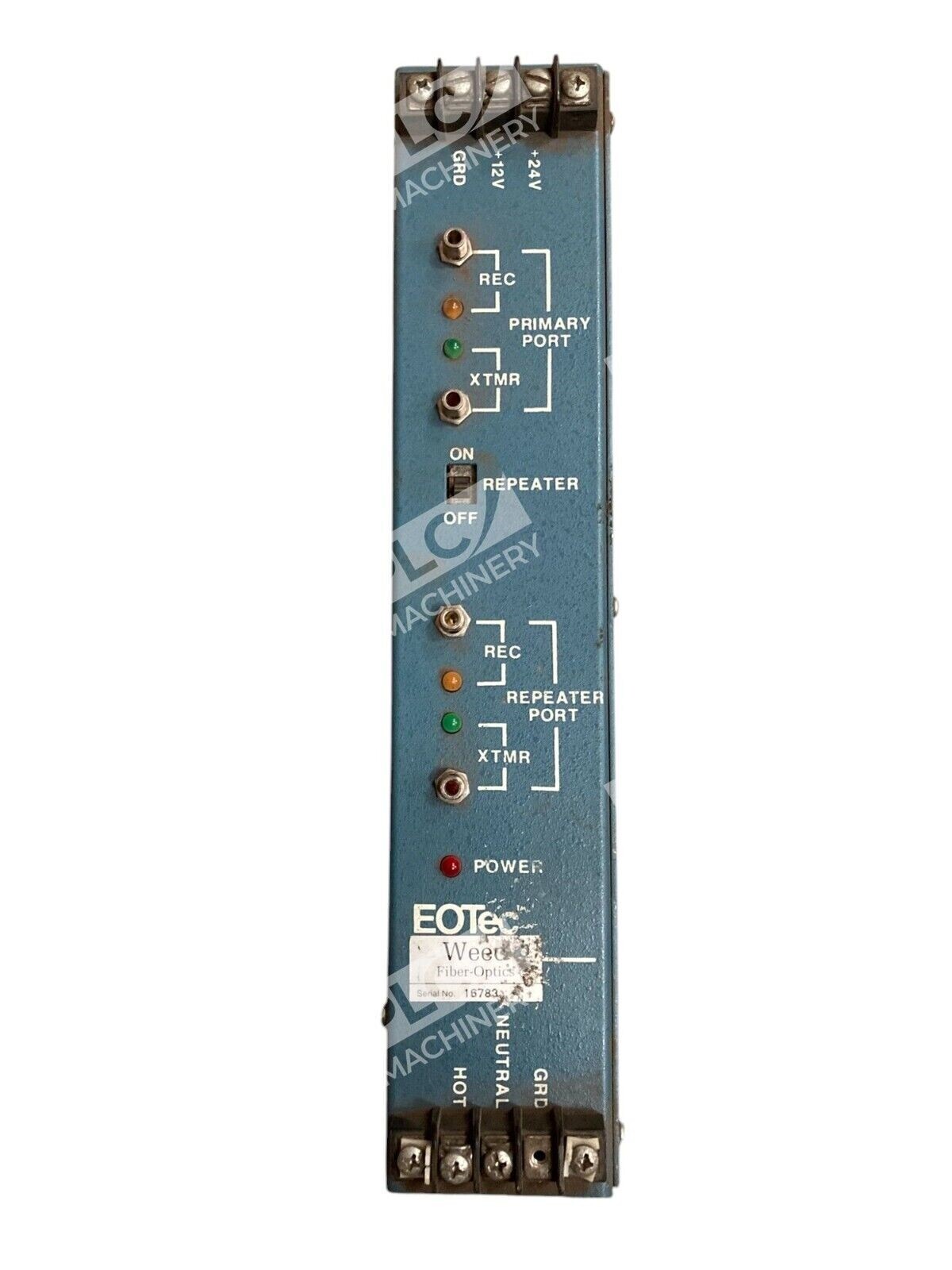

EOTec Fiber Optic Modules by Weed Instrument
The EOTec Fiber Optic Modules, developed by Weed Instrument, are engineered to facilitate reliable and efficient transmission of various signals over fiber optic networks. These modules are integral components of the EOTec 2000 series, designed to meet the demands of industrial environments where signal integrity and system flexibility are paramount.
Key Features
- Modular Design: The EOTec modules offer a scalable architecture, allowing users to configure systems with up to ten contact closure signals transmitted over a single fiber optic link. This modularity ensures adaptability to diverse application requirements.
- Fail-Safe Operation: Designed with fail-safe mechanisms, these modules provide enhanced reliability, ensuring continuous operation even in critical safety shut-down applications.
- Electrical Isolation: By utilizing fiber optic technology, the modules achieve complete electrical isolation, effectively mitigating issues related to ground loops and electrical interference.
- EMI and RFI Immunity: The fiber optic transmission method inherently resists electromagnetic interference (EMI) and radio-frequency interference (RFI), ensuring signal integrity in electrically noisy environments.
- Cost-Effective Installation: The design promotes low-maintenance and cost-effective installations, reducing long-term operational expenses.
- Redundant Power Supplies: For applications requiring high availability, the modules are available with dual redundant, hot-swappable power supplies, enhancing system reliability.
- DIN-Rail Mounting: The modules are designed for easy installation on standard 35 mm DIN-Rails, facilitating integration into existing control panels and systems.
Applications
The EOTec Fiber Optic Modules are suitable for a wide range of industrial applications, including:
- Long-Distance Signal Transmission: Capable of transmitting signals over distances up to 16 miles, these modules are ideal for remote monitoring and control.
- Hazardous Area Communication: The fiber optic design allows for safe signal transmission through hazardous areas, reducing the risk associated with electrical signals in such environments.
- Safety Shut-Down Systems: The fail-safe operation and reliability make these modules well-suited for critical safety shut-down applications.
- Lightning-Prone Areas: The inherent immunity to lightning-induced surges makes these modules ideal for installations in regions susceptible to lightning strikes.
Ordering Information
The EOTec Fiber Optic Modules are available in various configurations to meet specific application needs. Below is a selection of available models:
| Part Number | Description |
|---|---|
| CC-TM85 | 2-Channel, 850 nm, Multi-mode, Transmitter |
| CC-TIM13 | 2-Channel, 1300 nm, Multi-mode, Transmitter |
| CC-TS13 | 2-Channel, 1300 nm, Single-mode, Transmitter |
| CC-RM85 | 2-Channel, 850 nm, Multi-mode, Receiver |
| CC-RX13 | 2-Channel, 1300 nm, Multi-mode or Single-mode, Receiver |
| CC-I | 2-Channel, 850 nm, Input Module |
| CC-O | 2-Channel, Output Module |
For detailed specifications and assistance in selecting the appropriate module for your application, please contact our sales team.
Contact Information
For inquiries regarding lead times, product availability, technical support, or general questions, please reach out to us:
Industrial Communication Products Ltd
The Angel Business Centre
1 Luton Road
Toddington, Bedfordshire, LU5 6DE
Email: sales@industrialcomms.com
Phone: +44 (0) 203 086 9569 Extn 10
Our team is dedicated to providing you with the information and support needed to integrate EOTec Fiber Optic Modules into your systems effectively.
