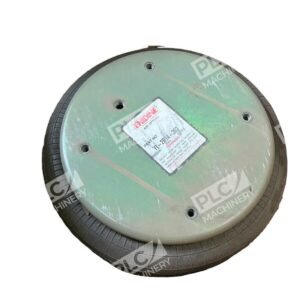

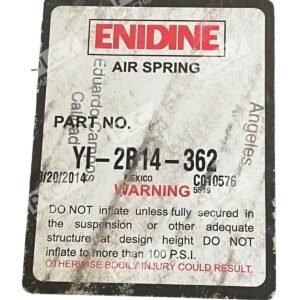

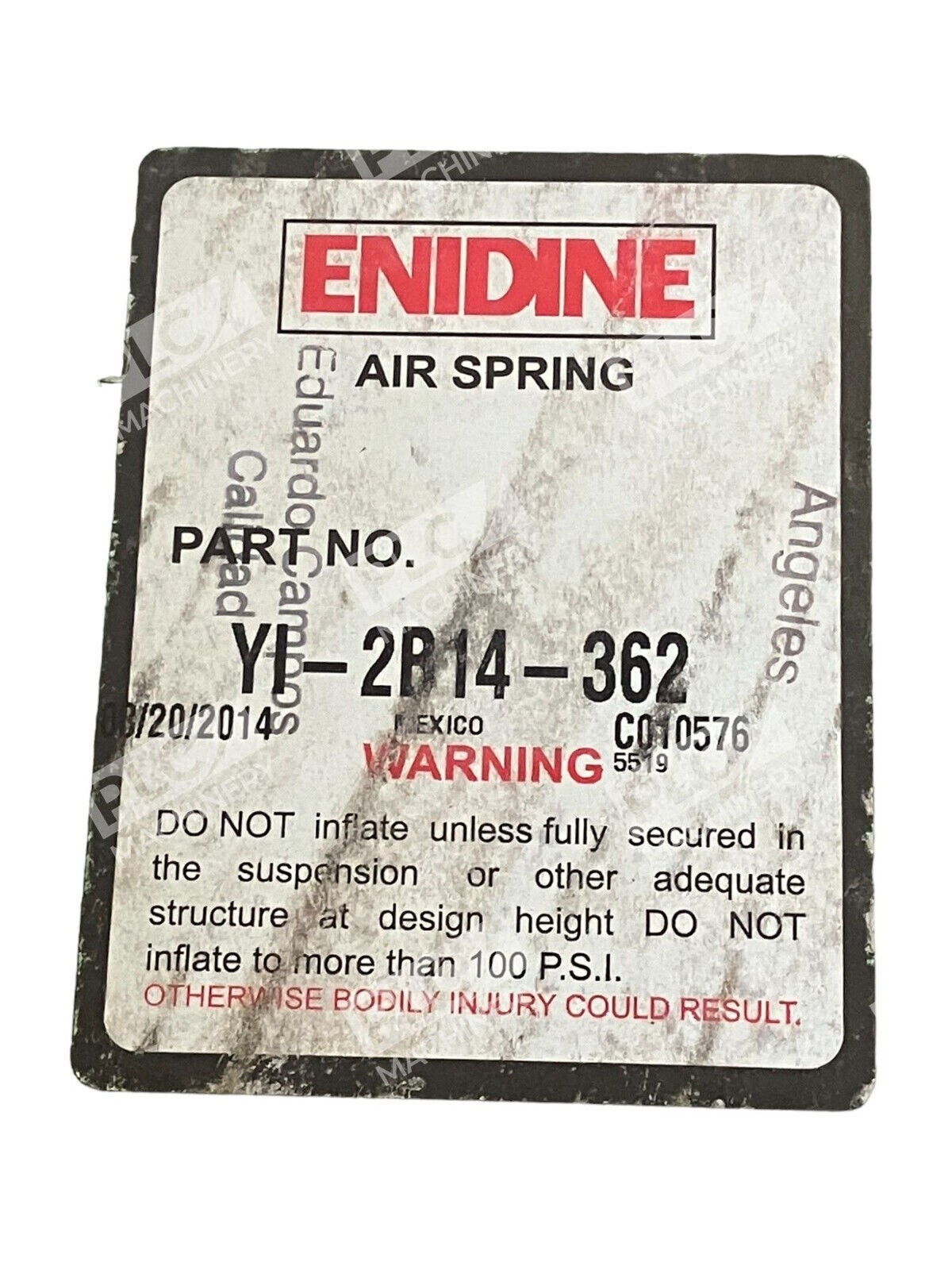

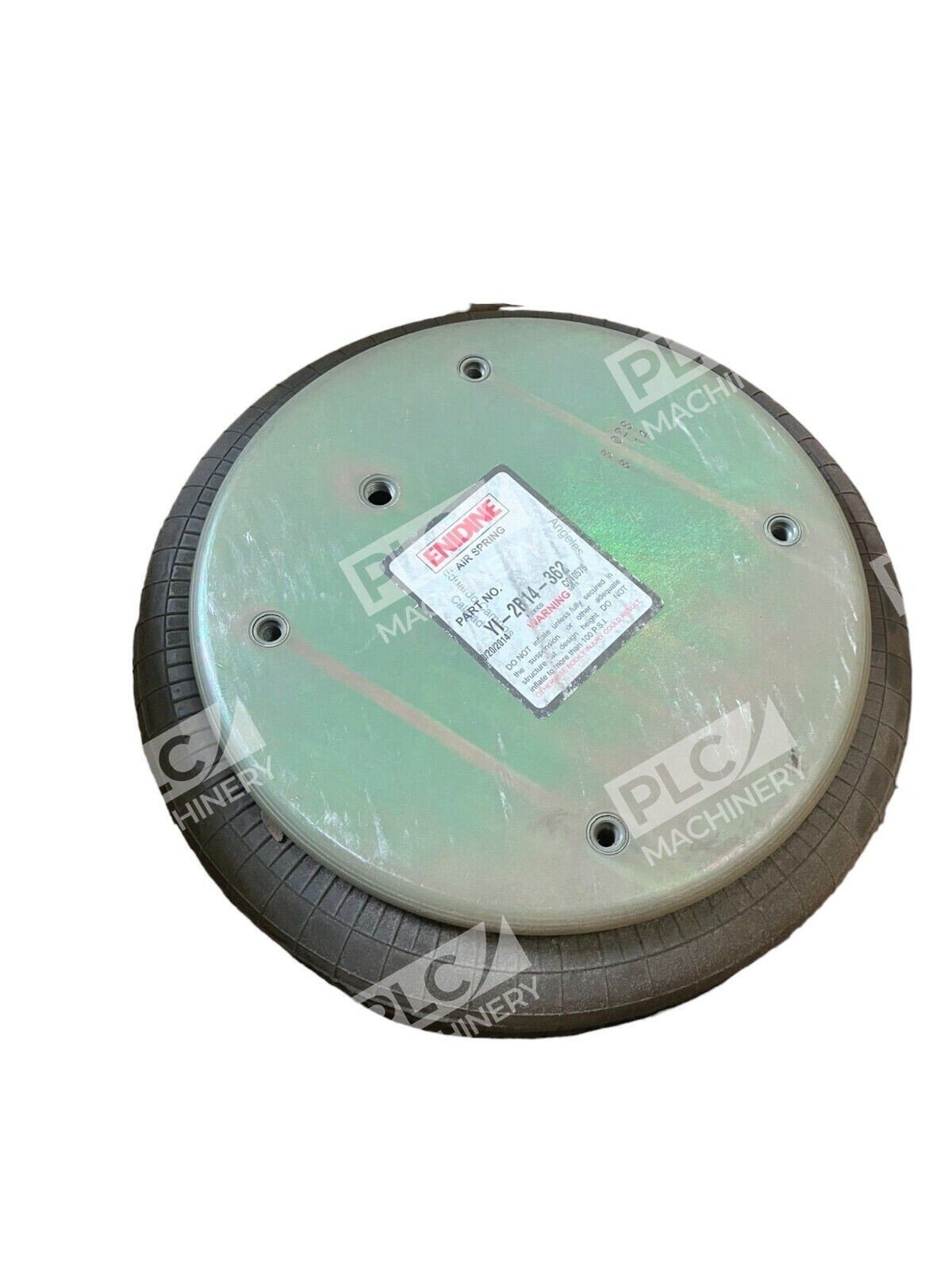

Enidine YI-2B14-362 Double Bellows Imperial Air Spring

Enidine YI-2B14-362 Double Bellows Imperial Air Spring

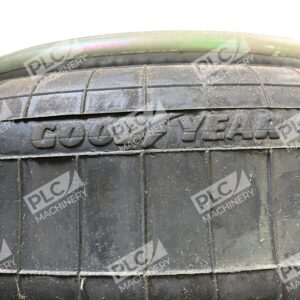

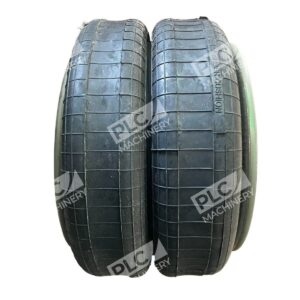

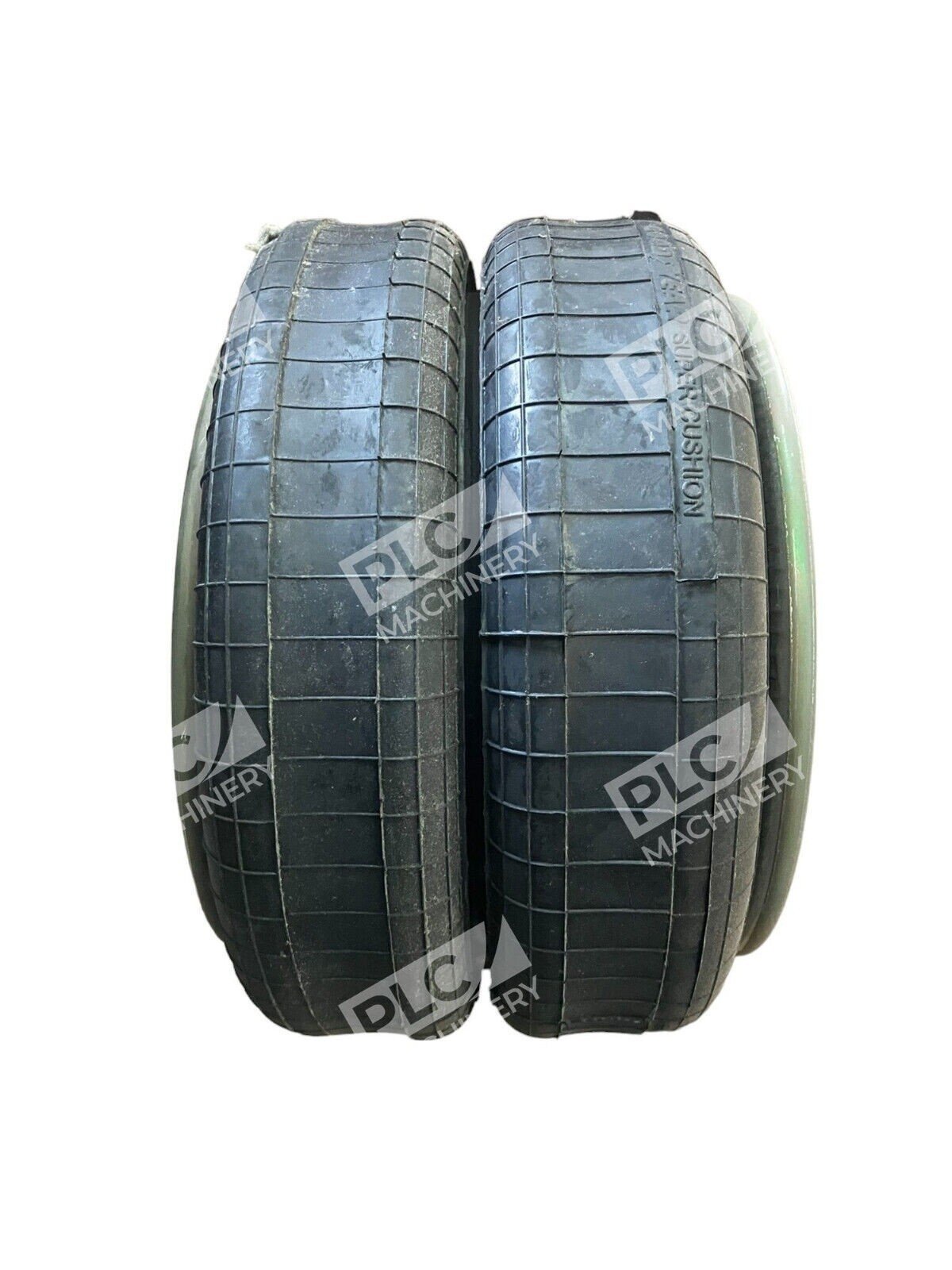

The Enidine YI-2B14-362 is a double convolute bellows-type air spring designed for a wide range of actuation and vibration isolation applications. Engineered for durability and precision, this air spring offers superior performance in various industrial settings.

Key Features

• Durable Construction: Fabric-reinforced neoprene or natural rubber flex members ensure longevity and resilience under demanding conditions.
• Corrosion Protection: End retainers are treated to resist corrosion, enhancing the air spring’s lifespan.
• Versatile Functionality: Capable of providing both linear and angular motion when used as an actuator, and effective vibration isolation when used as an isolator.
• Flexible Media Compatibility: Operates efficiently with various actuation media, including air, water, nitrogen, or antifreeze.

Specifications

• Maximum Diameter: 15.1 inches
• Stroke Length: 7.8 inches
• Compressed Height: 3.5 inches
• Port Size: 3/4 inch NPT
• Maximum Pressure: 100 psi
• Temperature Range: -40°F to 150°F
• End Plate Diameter: 11.3 inches
• Blind Tap Spacing: 6.25 inches
• Weight: 18.5 lbs

Performance Metrics

• Force at 2-inch Stroke (80 psi): 12,950 lbf
• Force at 4-inch Stroke (80 psi): 11,250 lbf
• Force at 6-inch Stroke (80 psi): 8,400 lbf
• Force at Maximum Stroke (80 psi): 7,900 lbf

The Enidine YI-2B14-362 air spring is an ideal solution for applications requiring reliable actuation and effective vibration isolation, offering a favorable stroke-to-compressed-height ratio compared to traditional air cylinders.
