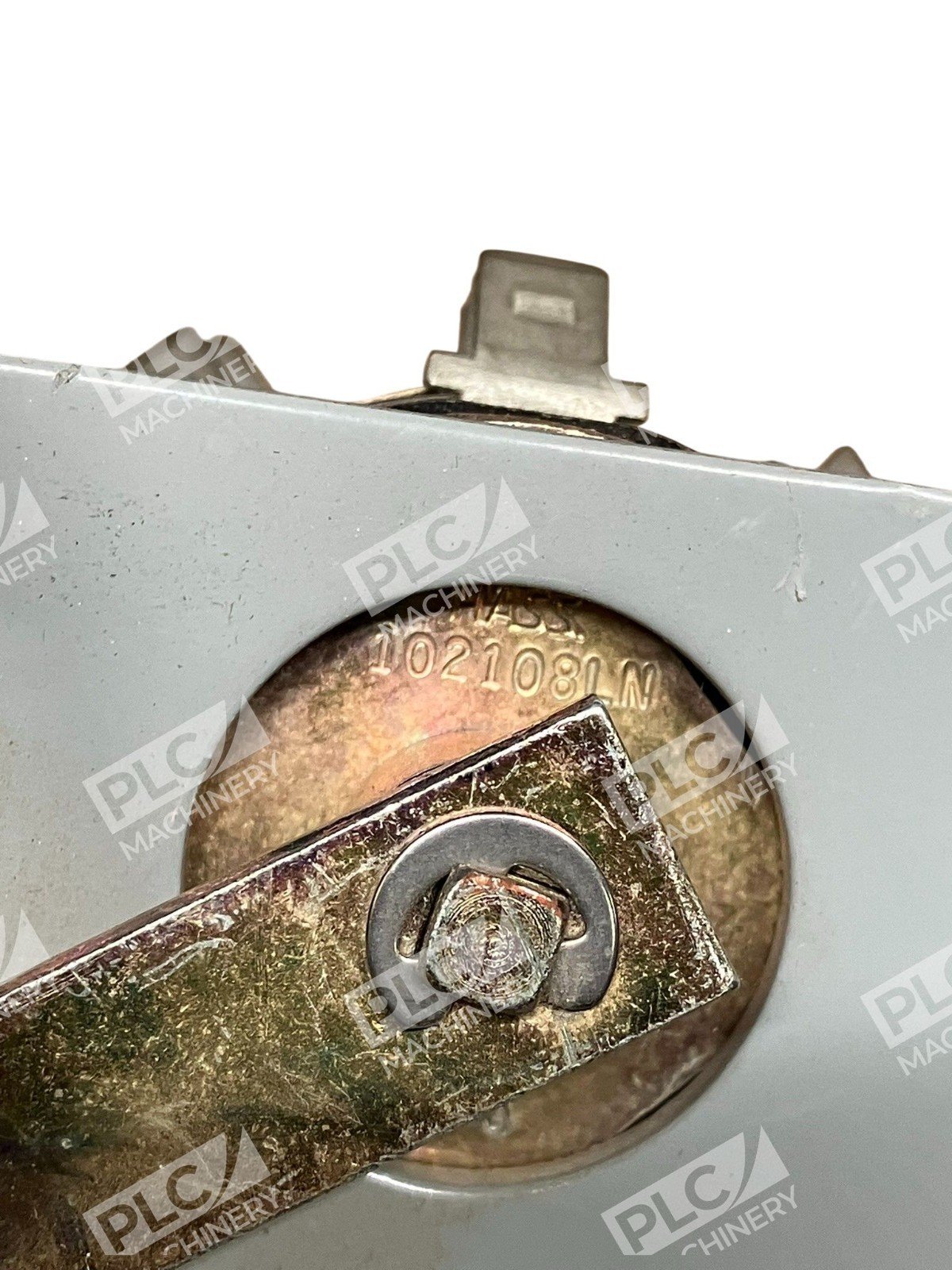

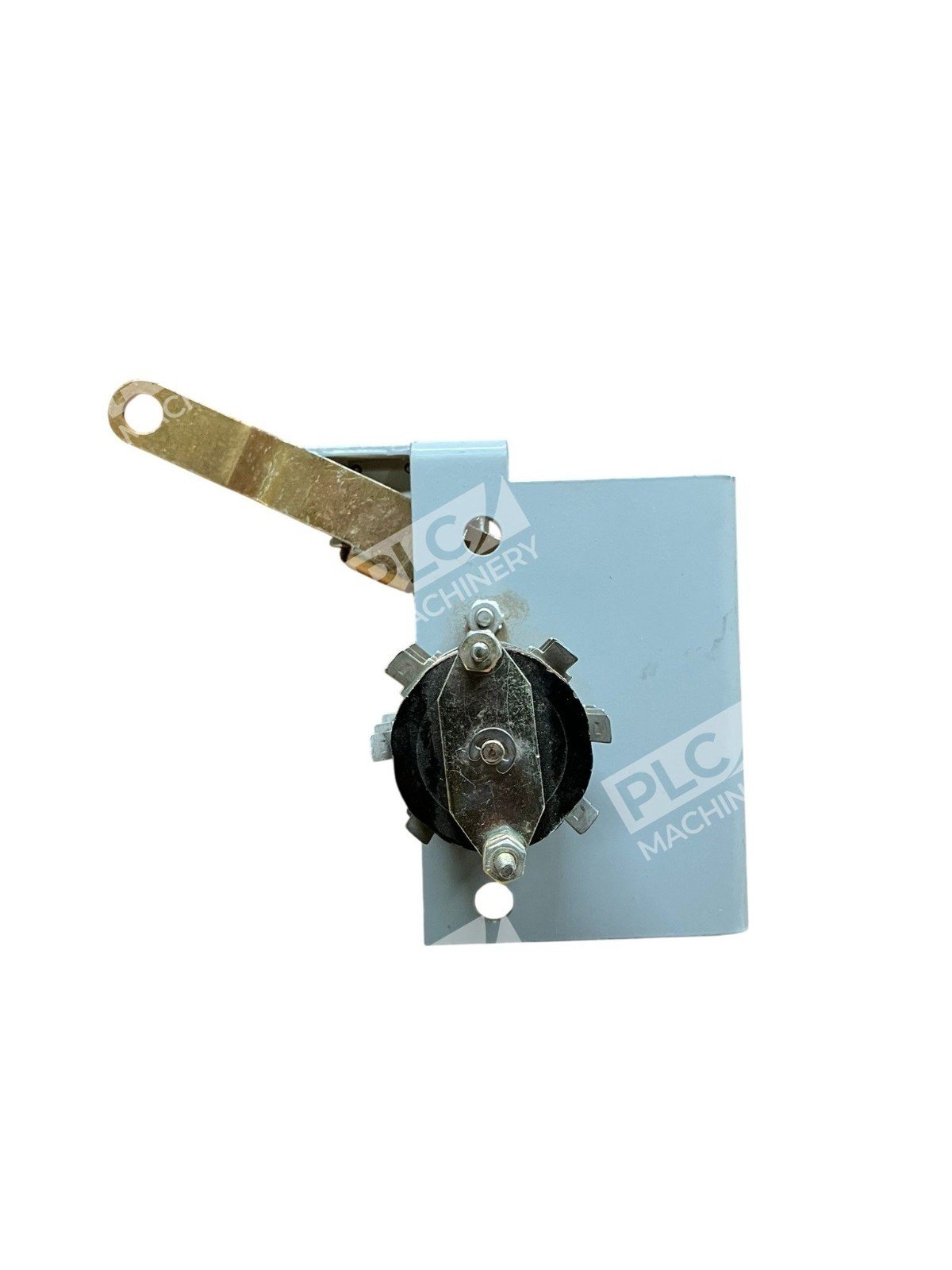

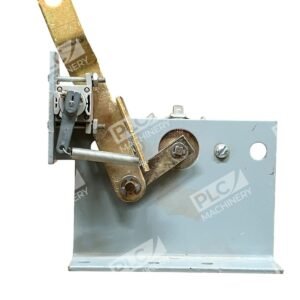

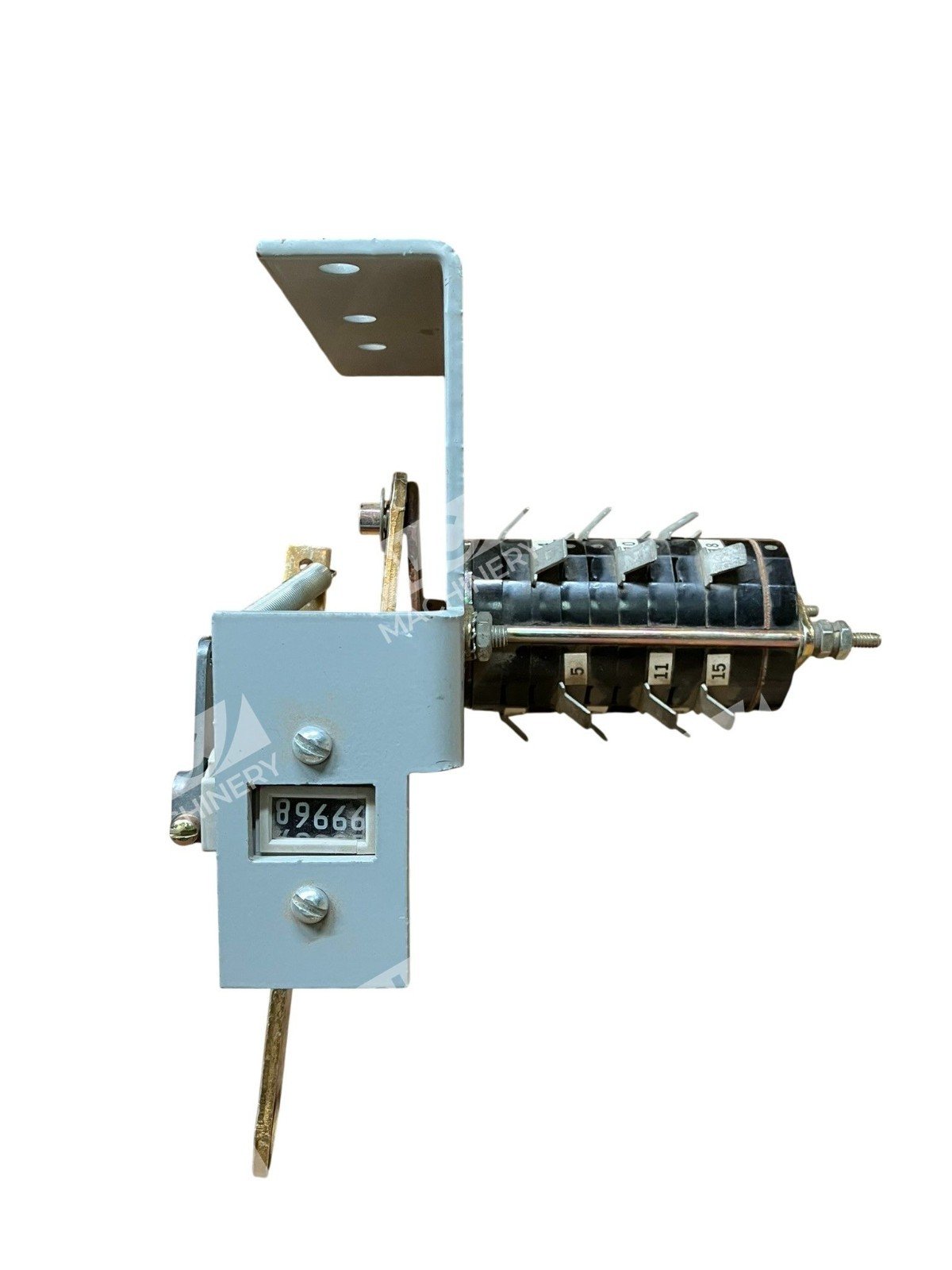

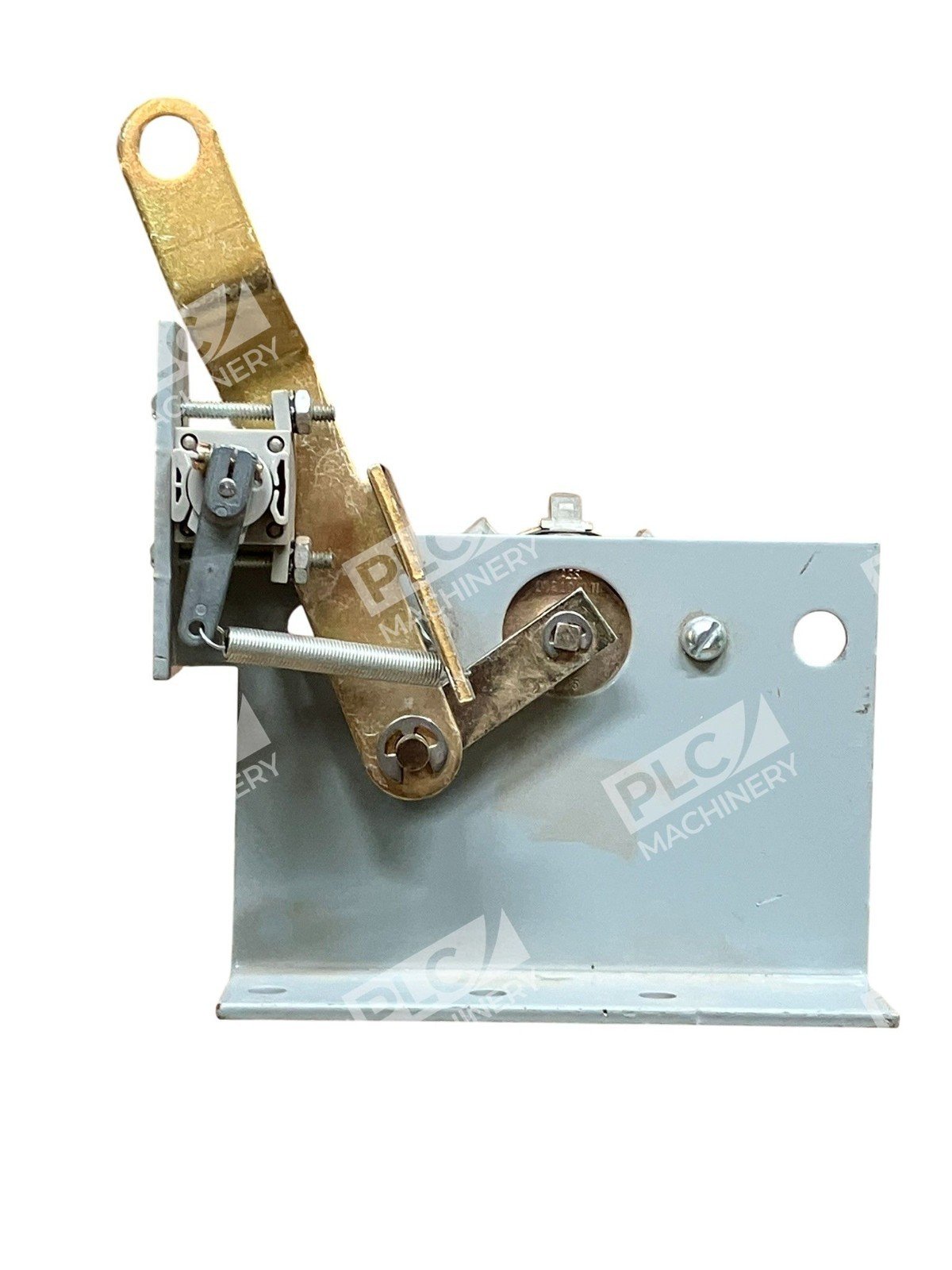

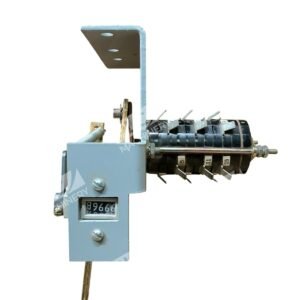

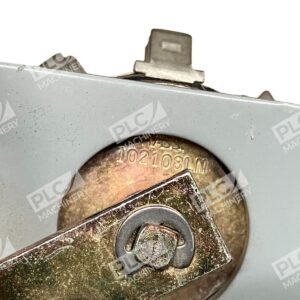

The Electroswitch Rotary Switch 102108LN is a robust and versatile component designed for precise control in various industrial applications. As part of Electroswitch’s Series 102, this rotary switch is engineered to manage multiple power circuits efficiently through a single handle operation.
Key Features
- Heavy-Duty Construction: Built to withstand demanding environments, ensuring long-term reliability.
- Multi-Position Control: Capable of handling multiple positions, allowing for flexible circuit management.
- Quick Make and Break Action: Designed for rapid contact transfer, enhancing operational efficiency.
- Enclosed Contact Mechanism: All contact operations occur within fully enclosed decks, providing protection against external contaminants.
- Versatile Configurations: Available in various designs to meet specific application requirements.
Technical Specifications
- Continuous Current Rating: 20A at 600V.
- Interrupting Current Ratings:
- 120VAC: 50A.
- 240VAC: 25A.
- 600VAC: 5A.
- 125VDC: 8A.
- 250VDC: 2A.
- Switch Sections: 2 to 10.
- Switch Poles: 2 to 10.
- Switch Positions: 2 to 12.
- Detent Angles: 30°, 45°, 60°, 90°.
Optional Features
- Spring Return Mechanism: Allows the switch to return to a default position after operation.
- Locking Features: Includes options such as Pull-To-Lock, Key-Interlock, Pull-To-Turn, and Pull-To-Disable for enhanced security.
The Electroswitch Rotary Switch 102108LN is an ideal choice for applications requiring reliable and precise control, offering a combination of durability, flexibility, and advanced features to meet the needs of complex electrical systems.
