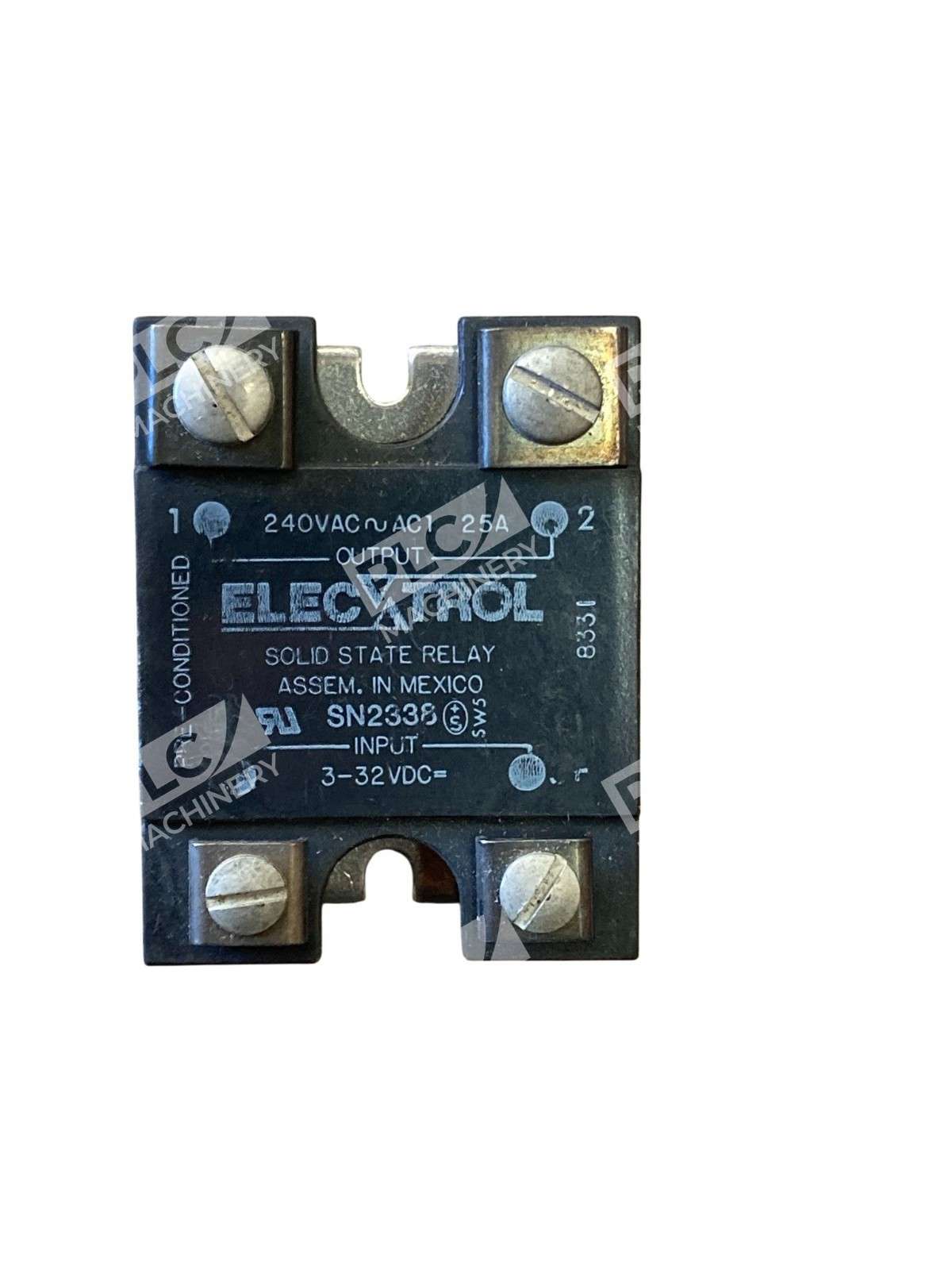

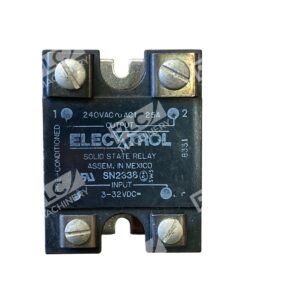

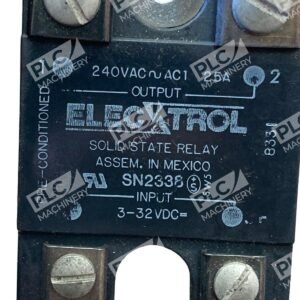

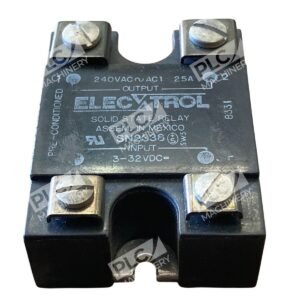

Electrol SN2338 Solid State Relay SSR 2.5A 240VAC 3–32VDC

Electrol SN2338 Solid State Relay SSR 2.5A 240VAC 3–32VDC

The Electrol SN2338 is a solid state relay (SSR) designed for efficient and reliable switching of AC loads. With a load current capacity of 2.5A at 240VAC, it is suitable for various industrial and commercial applications requiring precise control.

Key Features

• Input Control Voltage: Operates within a 3–32VDC range, accommodating a wide array of control systems.
• Load Voltage: Capable of handling up to 240VAC, making it versatile for standard AC applications.
• Load Current: Supports a maximum load current of 2.5A, suitable for moderate power requirements.
• Zero-Crossing Switching: Ensures minimal electrical noise and reduces wear on connected components by switching at the zero-voltage point of the AC cycle.
• Optical Isolation: Provides high dielectric strength, enhancing safety and protecting control circuits from high-voltage transients.
• Compact Design: Facilitates easy integration into existing systems without requiring significant space.

Applications

The Electrol SN2338 SSR is ideal for:

• Industrial automation systems
• HVAC equipment
• Lighting control
• Motor control
• Heating elements

Its solid-state design offers advantages over traditional electromechanical relays, including faster switching times, longer operational life, and silent operation.

Installation and Safety

For optimal performance and safety:

• Ensure proper heat dissipation to maintain the relay within its operating temperature range.
• Verify that the input control voltage and load specifications align with the relay’s ratings.
• Follow standard electrical safety protocols during installation and operation.

The Electrol SN2338 solid state relay combines reliability, efficiency, and ease of use, making it a valuable component in various electrical control applications.
