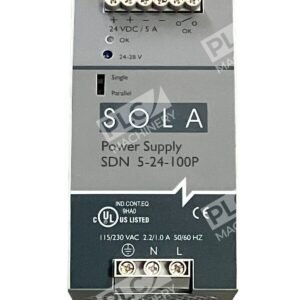

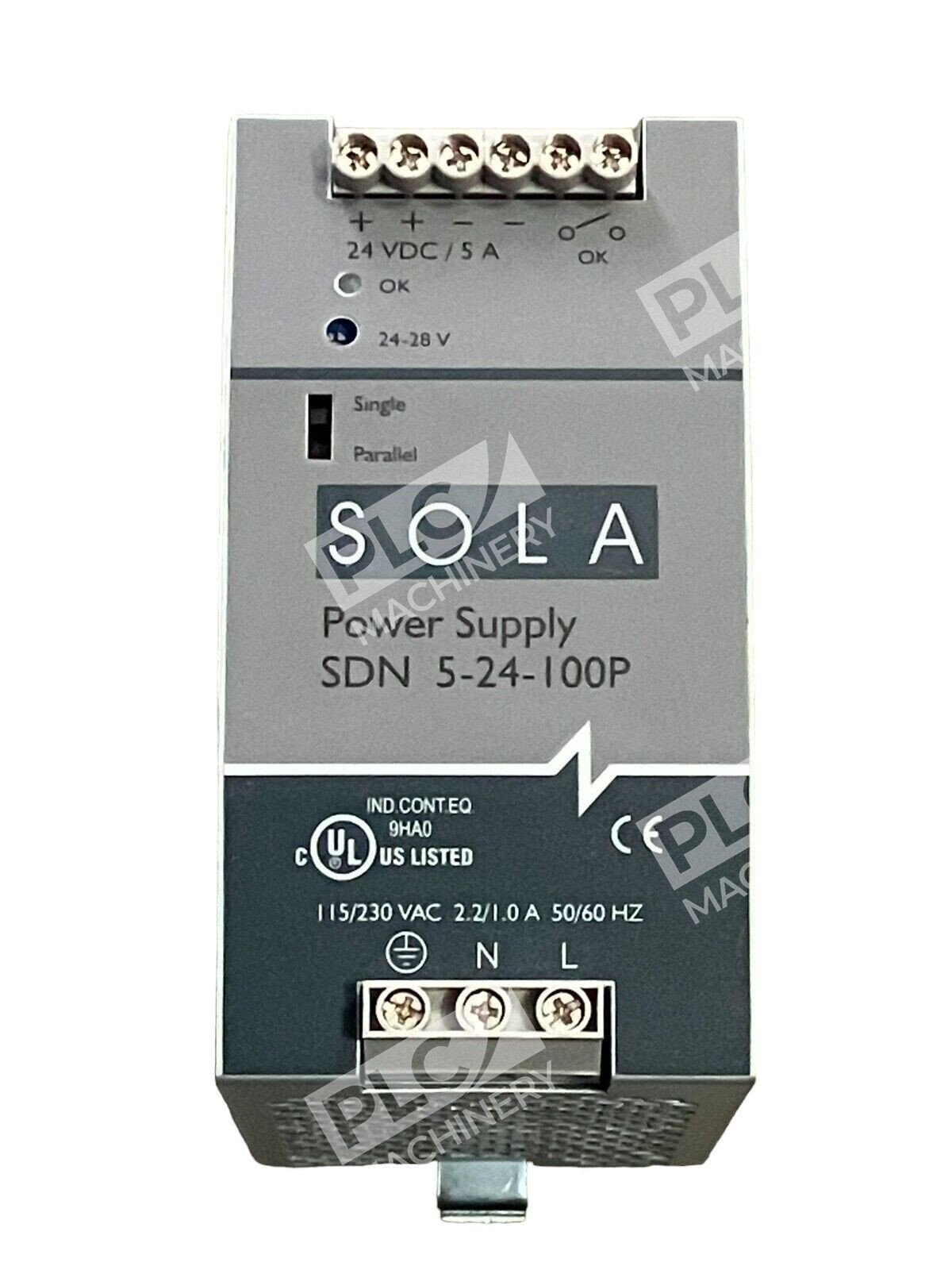

EGS Emerson SDN 5-24-100P Sola Hevi-Duty Power Supply

EGS Emerson SDN 5-24-100P Sola Hevi-Duty Power Supply

The EGS Emerson SDN 5-24-100P Sola Hevi-Duty Power Supply is a robust and efficient solution designed to meet the demanding requirements of industrial applications. This DIN rail-mounted power supply delivers a stable 24 VDC output at 5A, providing a total power output of 120W.

Key Features

• Wide Input Voltage Range: Supports 85-264 VAC and 90-375 VDC inputs, accommodating various power sources.
• High Efficiency: Achieves an efficiency rate of over 87.5%, minimizing energy loss and reducing operational costs.
• Power Factor Correction: Complies with EN61000-3-2 standards, ensuring reduced harmonic distortion and improved power quality.
• Adjustable Output Voltage: Allows fine-tuning of the output voltage between 22.5 VDC and 28.5 VDC to meet specific application needs.
• Parallel Operation Capability: Enables multiple units to work together for increased power output or redundancy.
• Comprehensive Protection: Features indefinite short circuit, overvoltage, and overtemperature protection to safeguard connected equipment.
• Wide Operating Temperature Range: Operates reliably between -10°C and +60°C without derating, suitable for various industrial environments.
• Compact Design: Its narrow width conserves valuable space on the DIN rail, making it ideal for installations where space is limited.

Technical Specifications

• Input Voltage: 85-264 VAC at 50/60 Hz; 90-375 VDC
• Output Voltage: 24 VDC (adjustable between 22.5 VDC and 28.5 VDC)
• Output Current: 5A
• Power Output: 120W
• Efficiency: >87.5%
• Operating Temperature: -10°C to +60°C

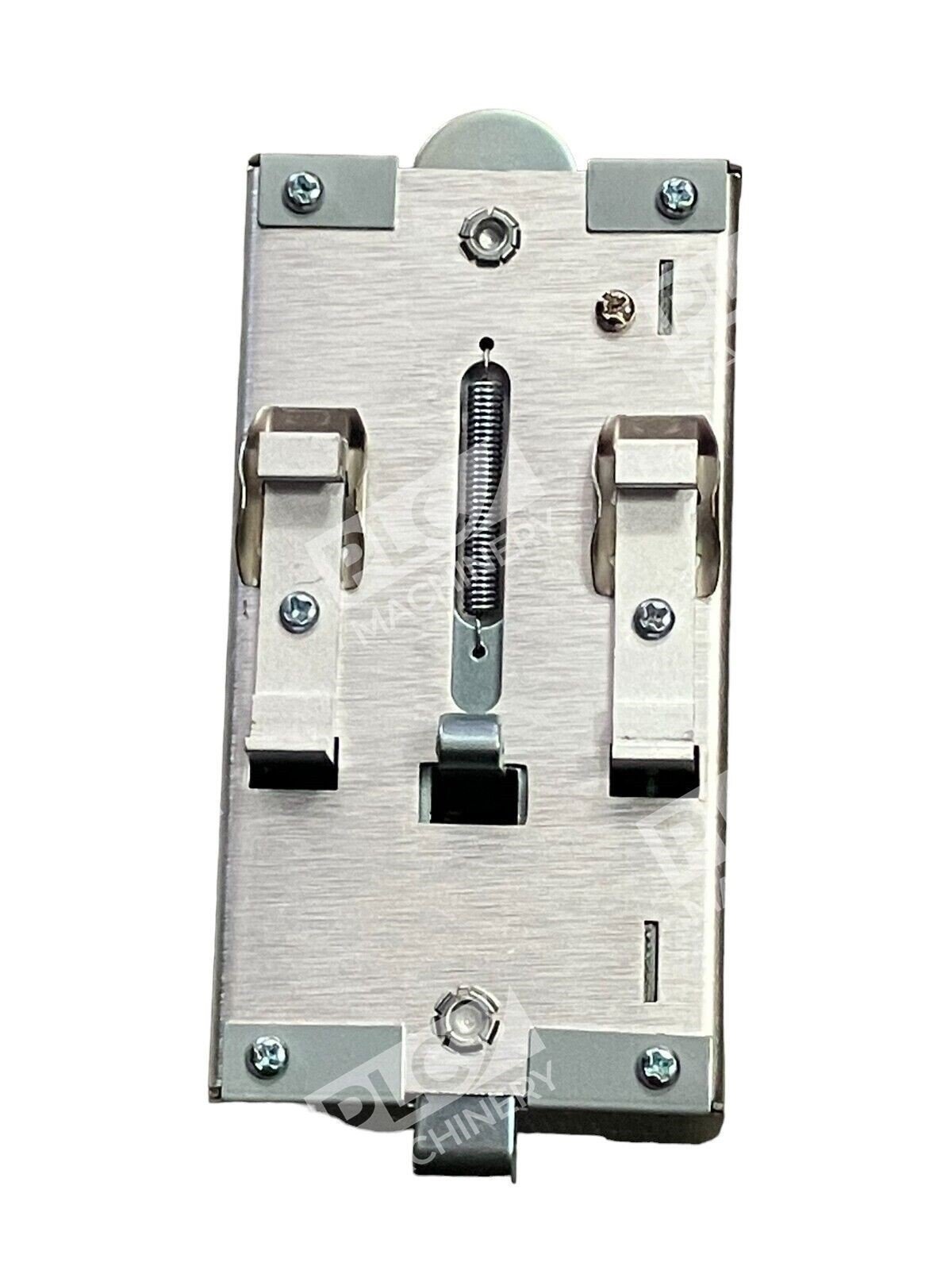

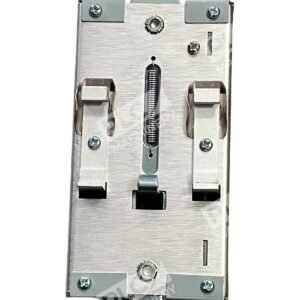

• Mounting Type: DIN Rail
• Enclosure Rating: IP20
• Certifications: cULus, CE, RoHS

The EGS Emerson SDN 5-24-100P Sola Hevi-Duty Power Supply is engineered for reliability and performance, making it an excellent choice for industrial machine control, process automation, material handling, and packaging equipment applications.
