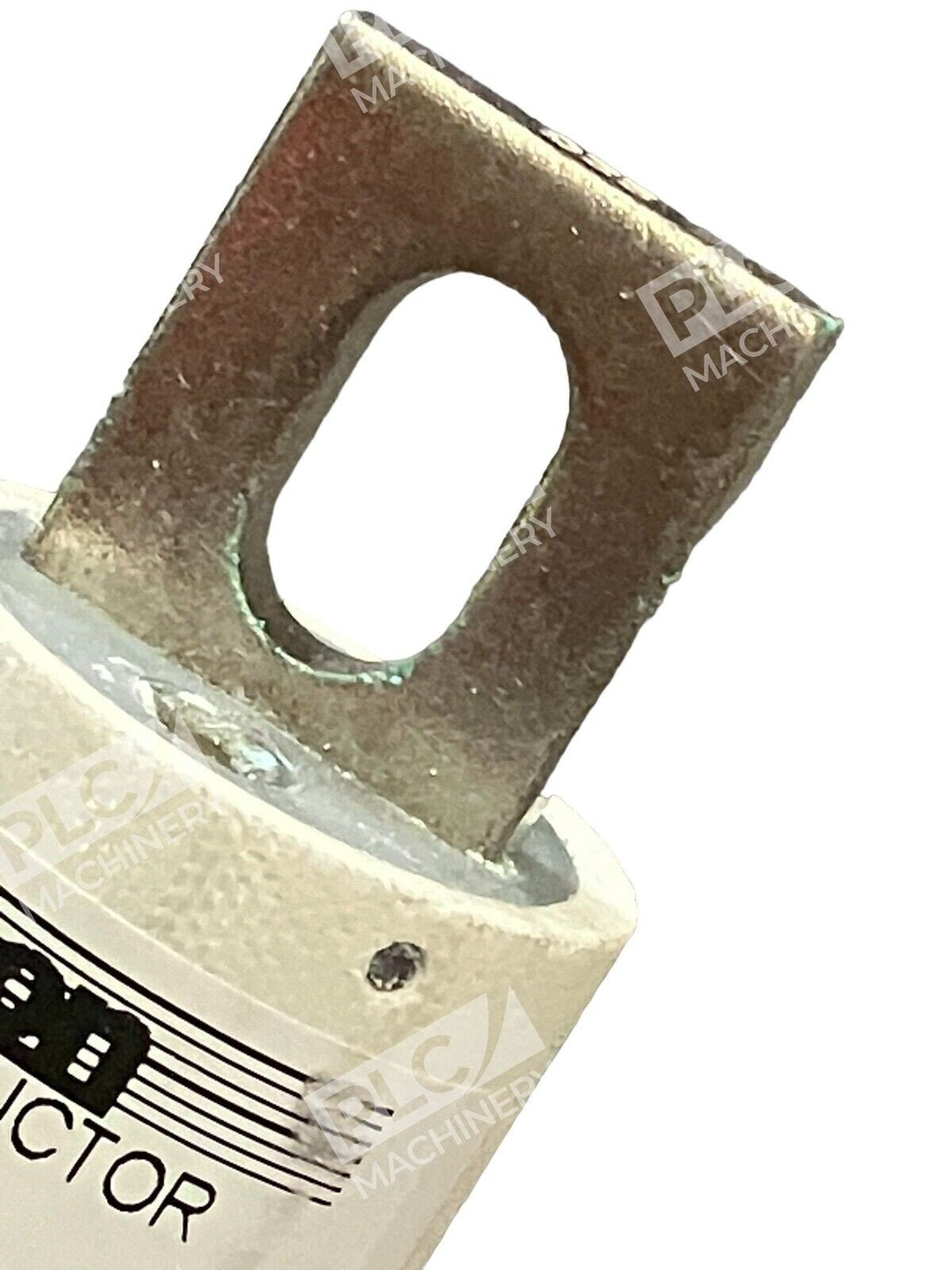

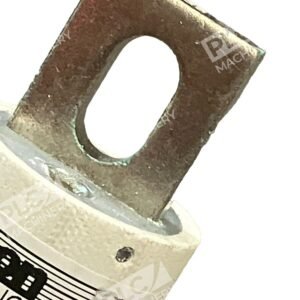

Edison E50S 225 Semiconductor Fuse

The Edison E50S 225 Semiconductor Fuse is a high-speed, current-limiting fuse designed to protect sensitive semiconductor devices such as silicon-controlled rectifiers (SCRs), diodes, thyristors, and transistors. It is particularly suitable for applications in variable speed drives, power rectifiers, uninterruptible power supplies (UPS), and other electronic equipment where rapid response to overcurrent conditions is essential.

**Key Features:**

– **Current Rating:** 225 Amperes
– **Voltage Rating:** 500 Volts AC/DC
– **Interrupting Rating:** 200,000 Amperes AC, 100,000 Amperes DC
– **Fuse Class:** Form 101
– **Body Type:** Cylindrical
– **Mounting Type:** Bolt
– **Terminal Type:** Blade
– **Dimensions:** 1.5 inches in diameter, 4.34 inches in length

**Performance Characteristics:**

The E50S 225 fuse offers extremely fast-acting protection with low I²t and peak let-through currents, meeting the stringent requirements of semiconductor devices. Its high interrupting capacity ensures reliable performance under fault conditions, effectively safeguarding equipment from damage due to overcurrents.

**Applications:**

This fuse is ideal for protecting dynamic solid-state equipment, including:

– Motor drives
– Inverters
– UPS systems
– Other electronic devices requiring rapid overcurrent protection

By incorporating the Edison E50S 225 Semiconductor Fuse into your system, you ensure enhanced protection for critical components, leading to improved reliability and longevity of your equipment.
