Eaton xEffect 15A Circuit Breaker FAZ-C15/3

Eaton xEffect 15A Circuit Breaker FAZ-C15/3

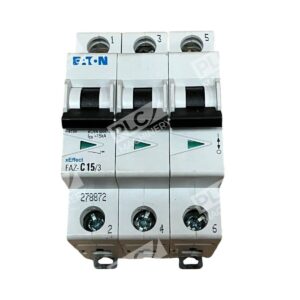

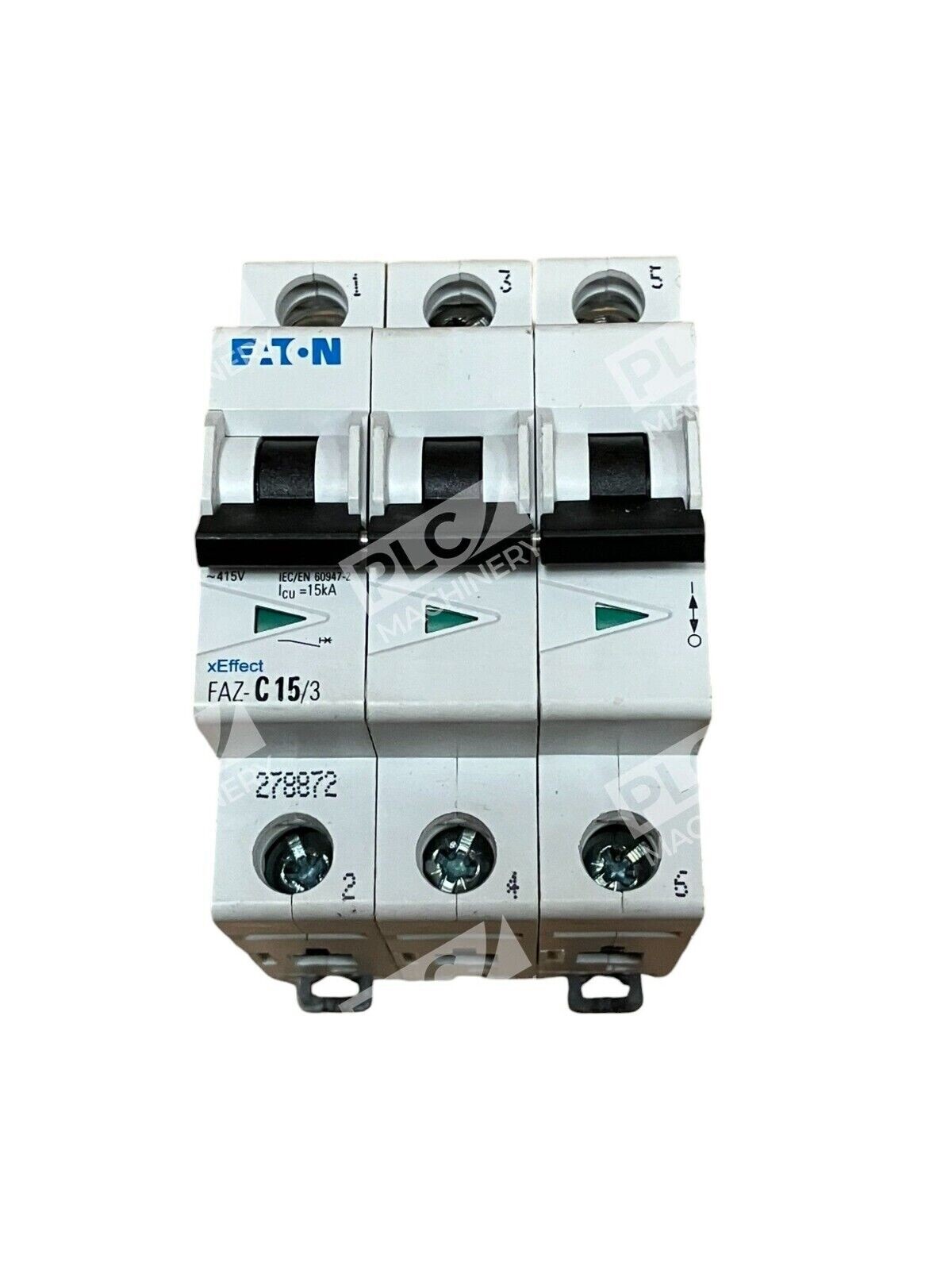

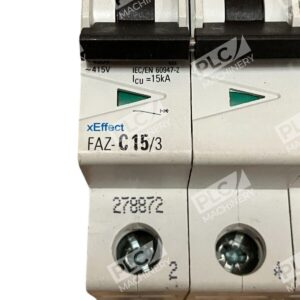

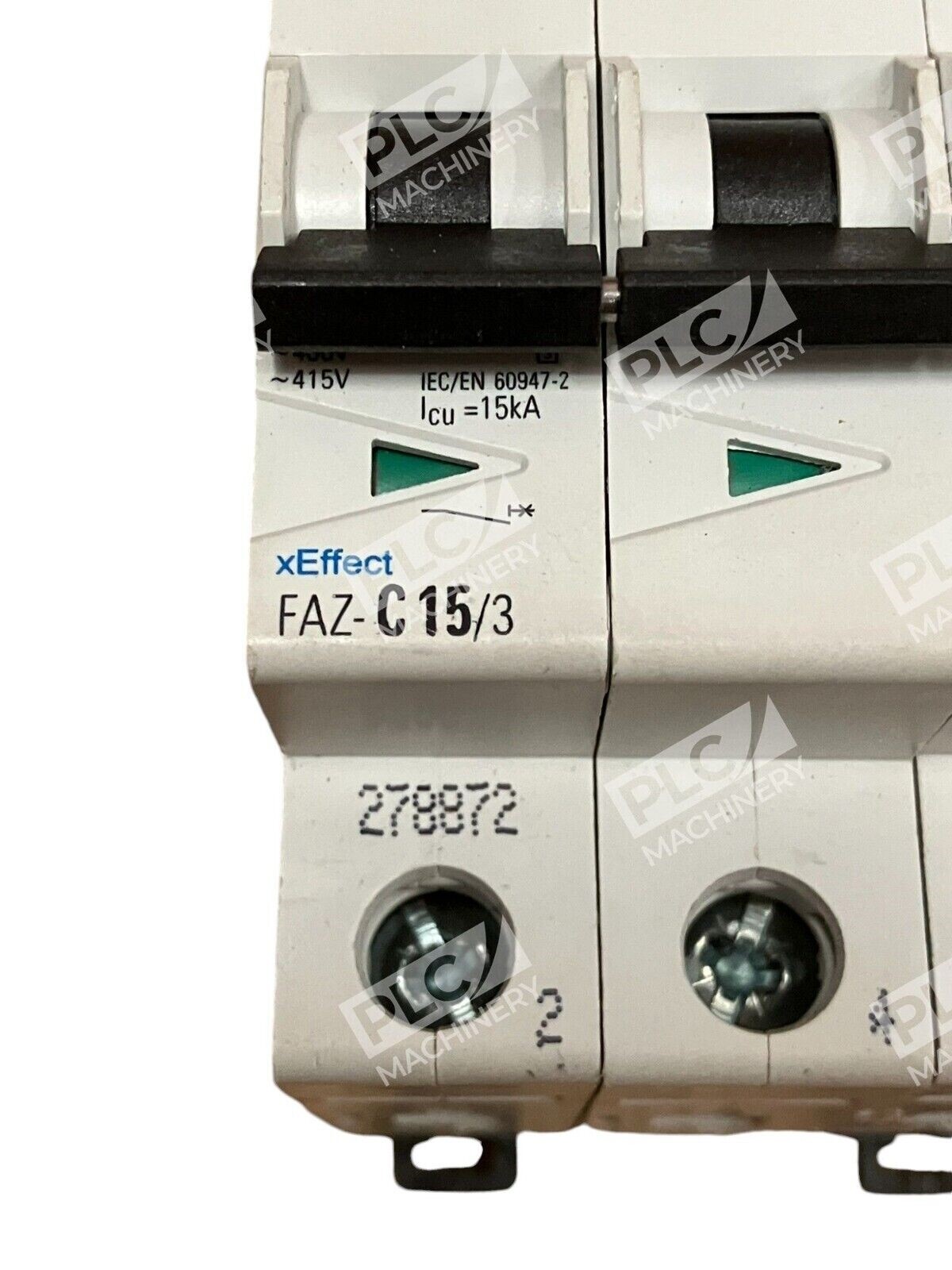

The Eaton xEffect FAZ-C15/3 is a high-performance, three-pole miniature circuit breaker (MCB) designed to provide reliable protection for electrical circuits in industrial and commercial applications. With a 15-ampere current rating and a C-curve tripping characteristic, it effectively safeguards against overloads and short circuits, making it suitable for circuits with moderate inrush currents.

Key Features

• Amperage Rating: 15 A
• Voltage Rating: 277/480 V AC
• Interrupting Capacity: 15 kAIC
• Number of Poles: Three
• Tripping Characteristic: C Curve (5-10 times the rated current)
• Frequency Rating: 50-60 Hz
• Terminal Type: Ring-tongue
• Mounting: DIN rail

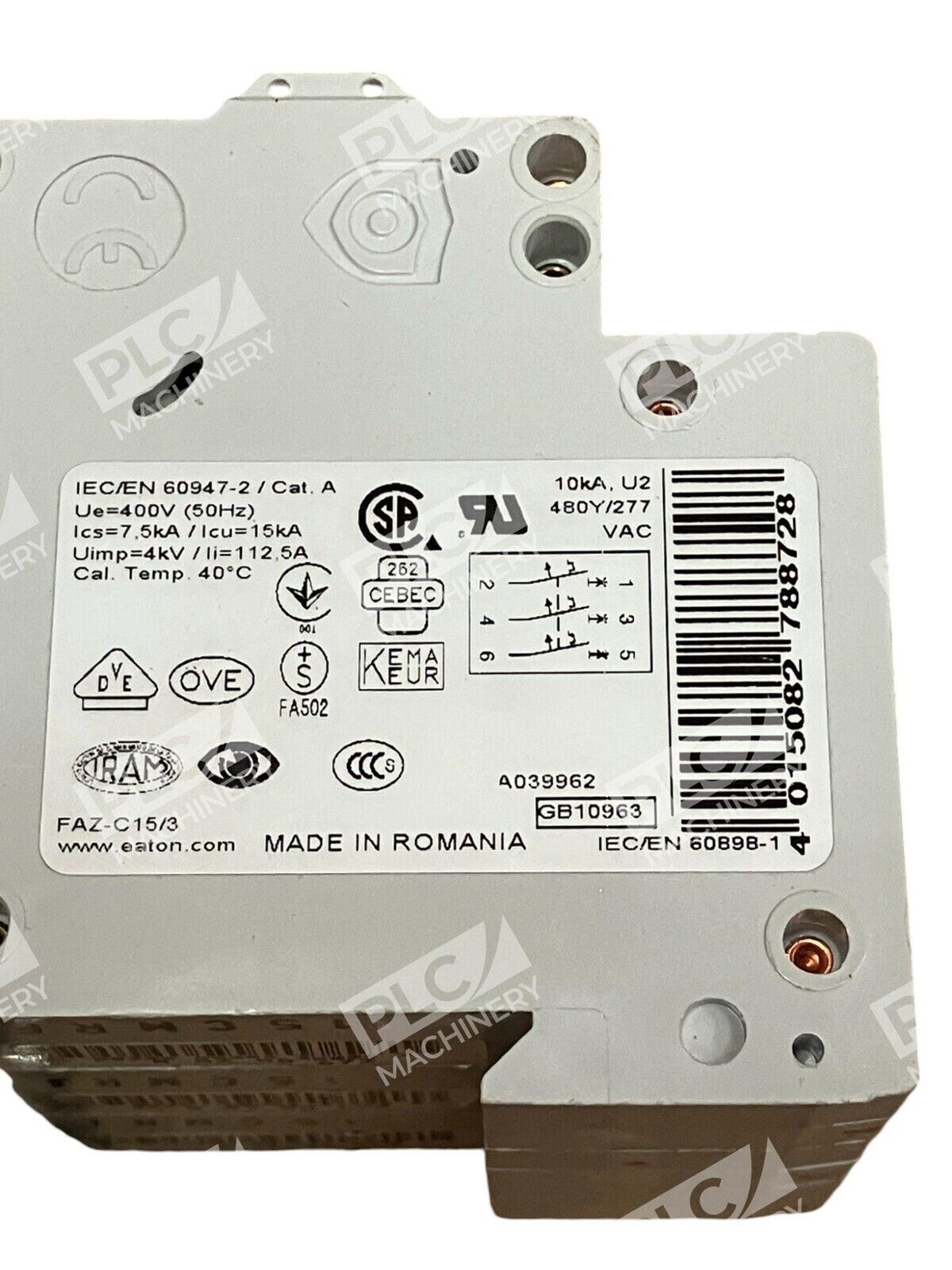

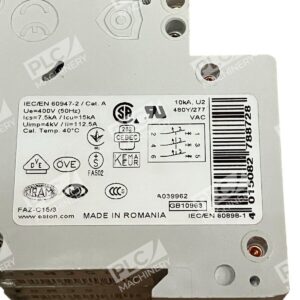

• Certifications: UL 1077, IEC 60947-2, CSA Std. C22.2 No.235

Applications

The FAZ-C15/3 is ideal for protecting circuits where medium levels of inrush current are expected, such as small transformers and pilot devices. Its robust design ensures consistent performance in demanding environments.

Physical Specifications

• Dimensions: 2.07 in (L) x 4.25 in (H) x 2.25 in (W)
• Weight: 0.75 lb
• Degree of Protection: IP20
• Operating Temperature Range: -25°C to 75°C

Engineered for durability and ease of installation, the Eaton xEffect FAZ-C15/3 circuit breaker is a reliable choice for safeguarding electrical systems against potential faults and ensuring operational safety.
