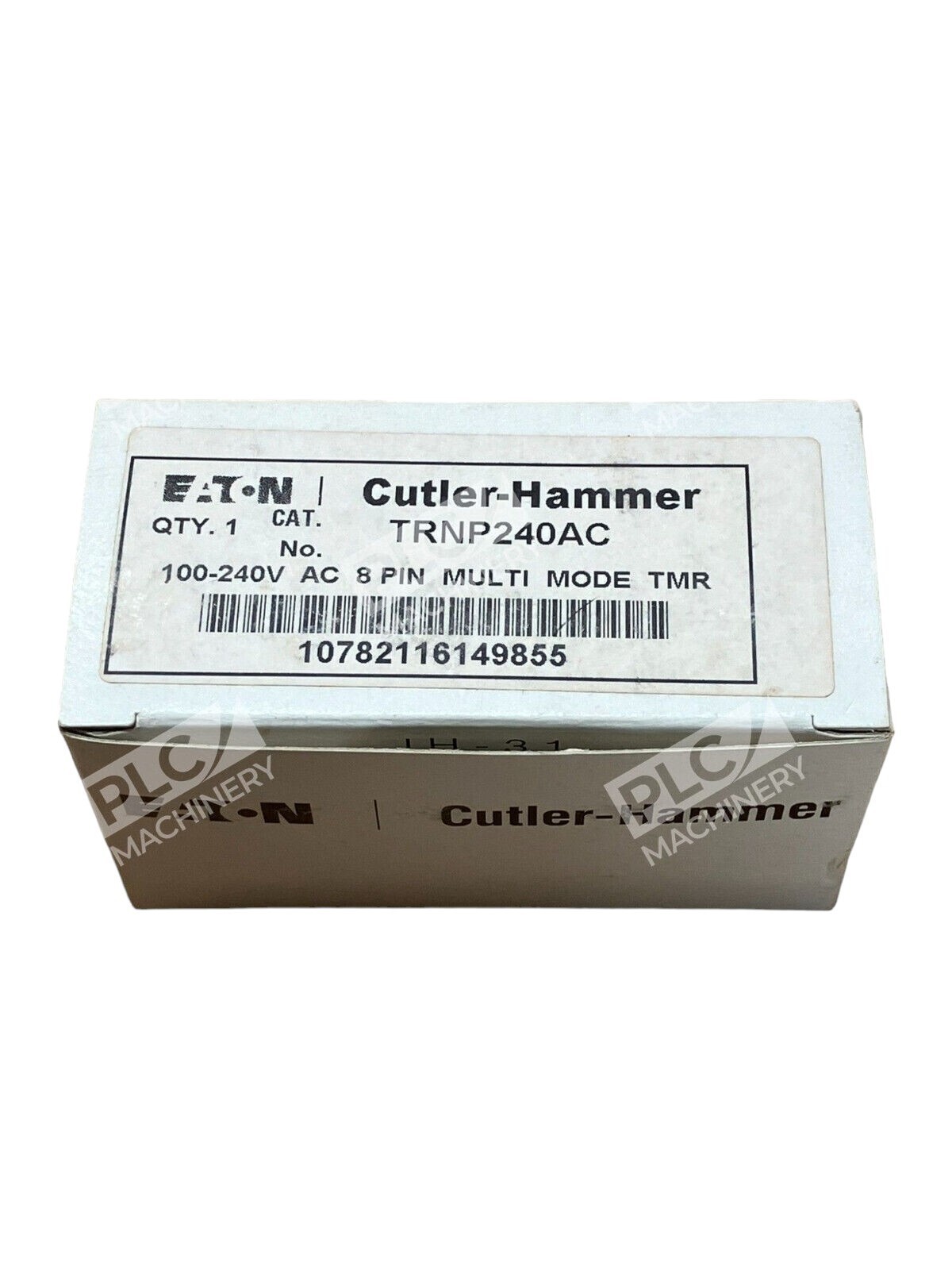

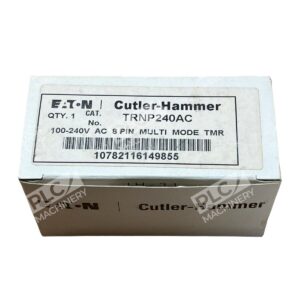

Eaton Cutler Hammer TRNP240AC 100-240V AC 8 Pin Multi Mode Timer

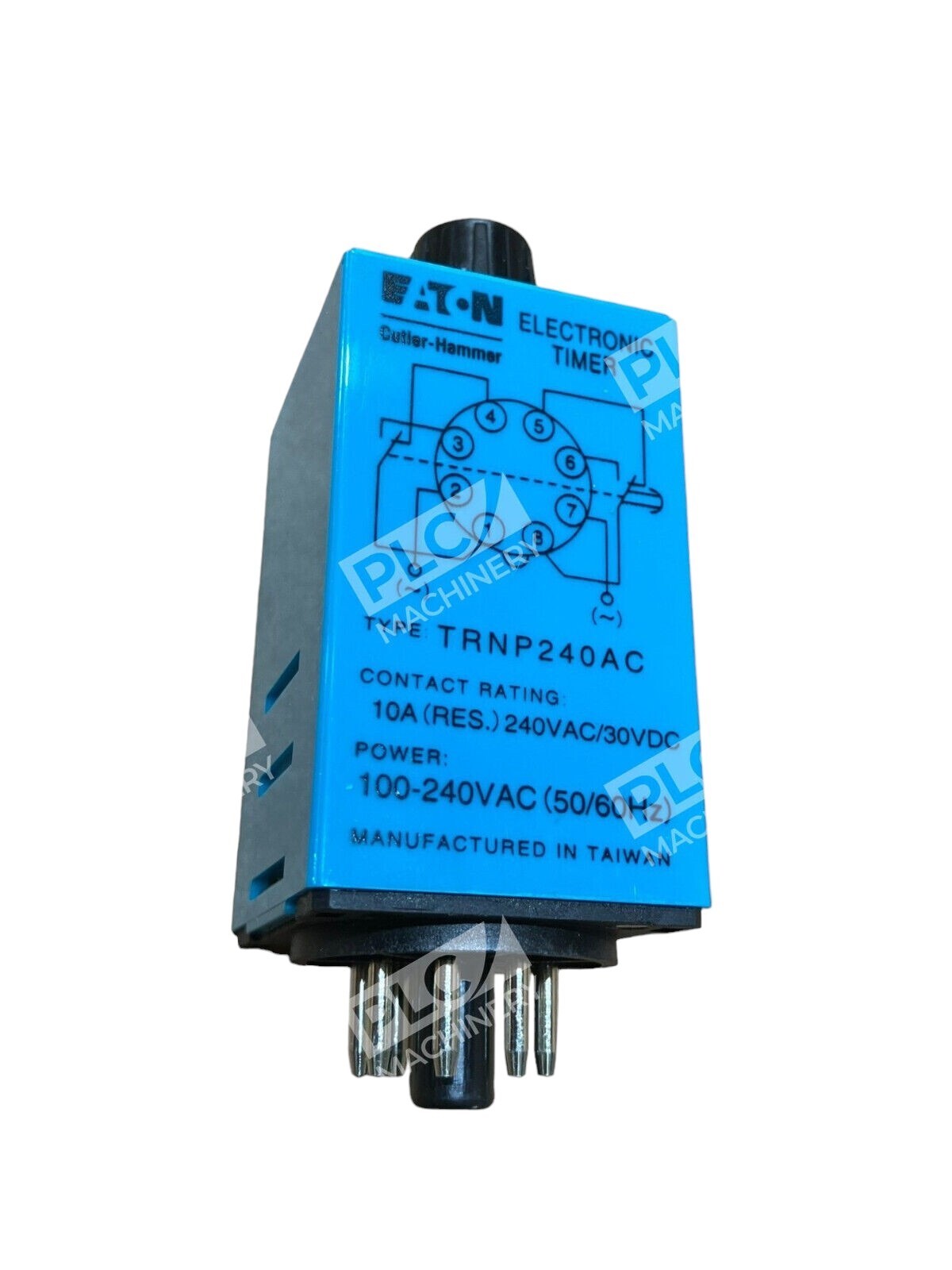

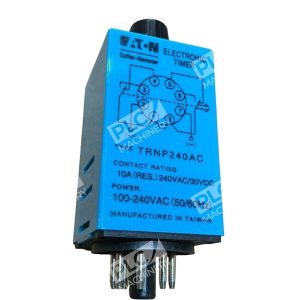

Eaton Cutler Hammer TRNP240AC 100-240V AC 8-Pin Multi-Mode Timer

The Eaton Cutler Hammer TRNP240AC is a versatile and reliable timing relay designed to meet a wide range of industrial automation and control requirements. Its robust construction and flexible functionality make it an ideal choice for various applications.

Key Features

• Wide Voltage Range: Operates efficiently within a 100-240V AC coil voltage range, accommodating diverse power systems.
• Multiple Timing Functions: Offers 10 selectable timing functions, including power triggered, on delay, flasher-pause or on first, and single shot leading edge voltage controlled, providing adaptability for different operational needs.
• Extensive Time Settings: Features 20 time ranges, allowing precise time delays from 0.1 seconds to 600 hours, suitable for both short-term and long-term applications.
• High Accuracy: Ensures consistent performance with a repeat accuracy of ±0.2%, minimizing timing errors in critical processes.

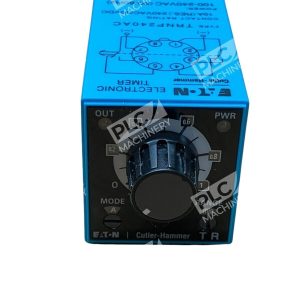

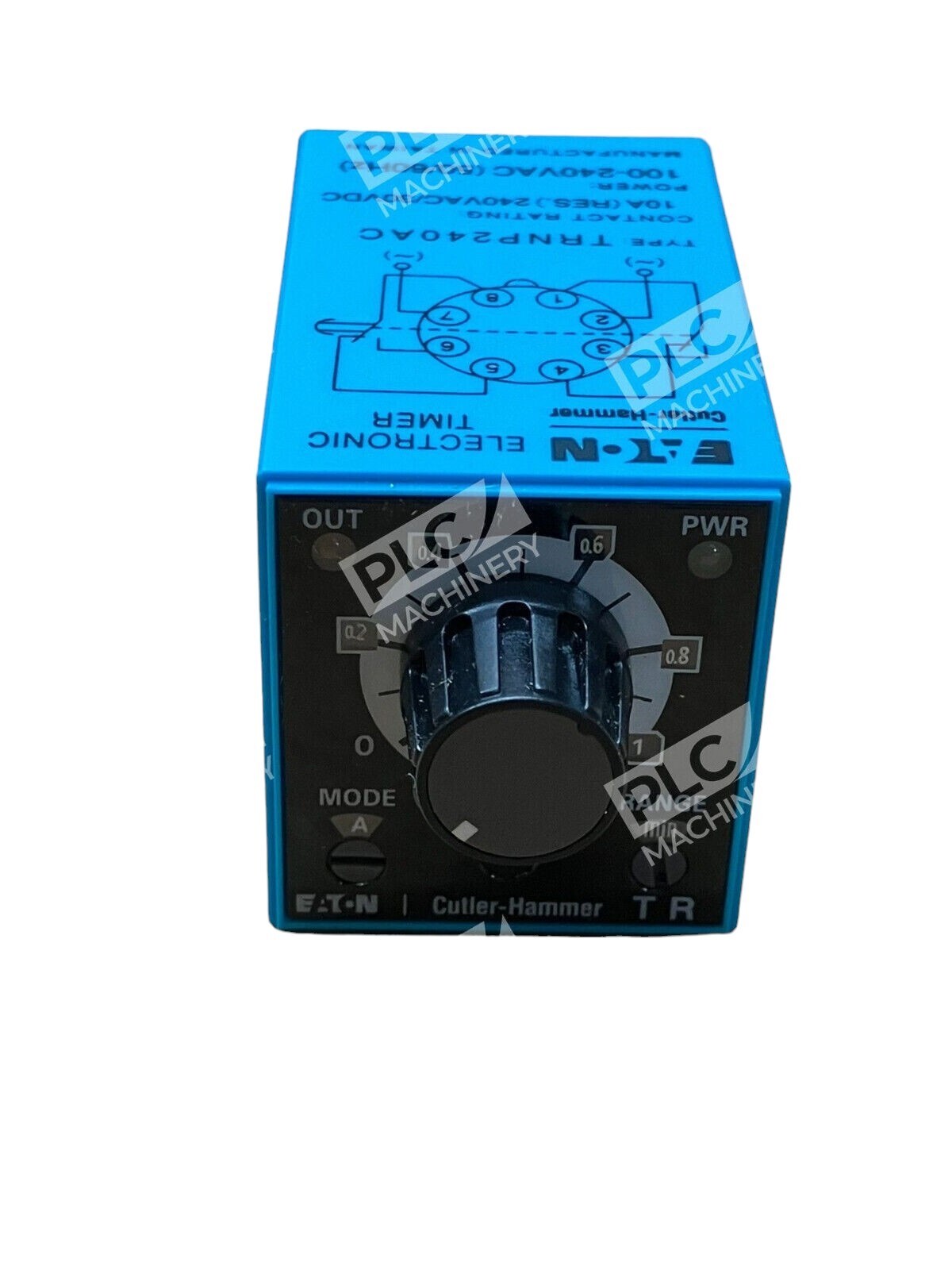

• Dual LED Indicators: Equipped with a green LED to indicate power status and an orange LED to signal output status, facilitating easy monitoring.
• Standardized Termination: Utilizes an 8-pin octal base for straightforward installation and compatibility with standard sockets.

Specifications

• Contact Configuration: DPDT (Double Pole Double Throw) with 2 Form C contacts.
• Contact Rating: Supports up to 10A at 240V AC or 30V DC, accommodating substantial load requirements.
• Frequency Rating: Compatible with both 50 Hz and 60 Hz systems.
• Mounting Type: Designed for plug-in installation, ensuring ease of setup and maintenance.
• Dimensions: Measures 3.07 inches in length, 1.42 inches in width, and 1.58 inches in height, offering a compact form factor for space-constrained environments.
• Certifications: Complies with CE Marked, TUV, CSA Certified, and cULus Listed standards, ensuring adherence to international safety and performance regulations.

The Eaton Cutler Hammer TRNP240AC 8-Pin Multi-Mode Timer is engineered to deliver precise timing control and dependable operation, making it a valuable component in automation and logic control systems.
