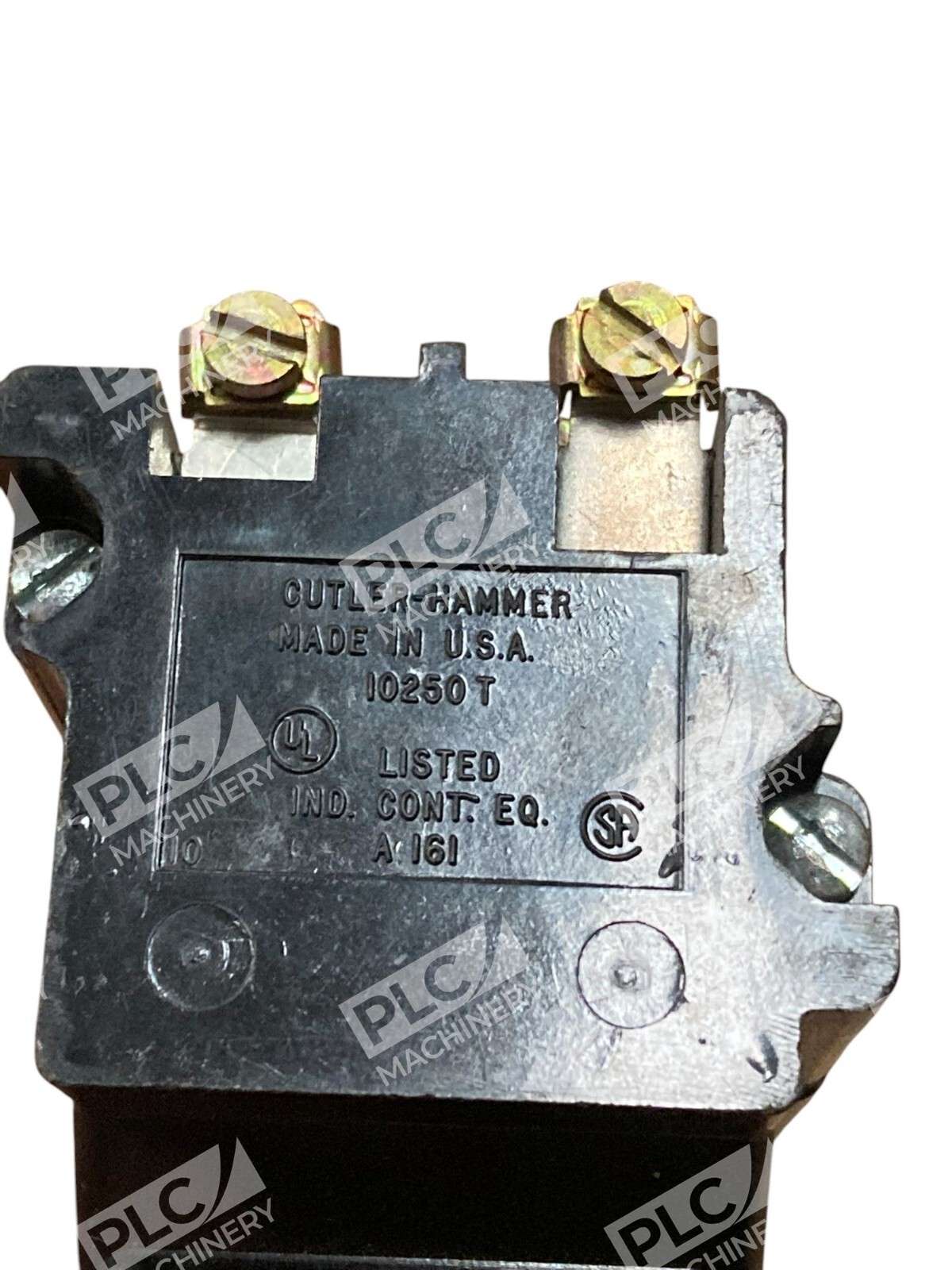

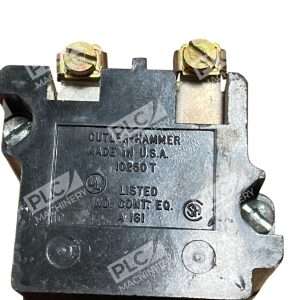

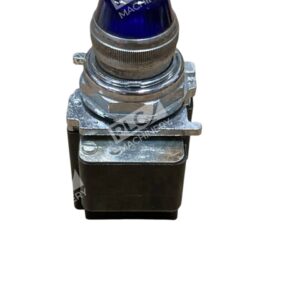

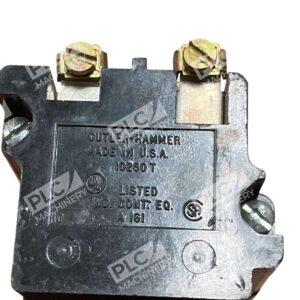

Eaton Cutler-Hammer 10250T181LLG06 Indicating Light

Eaton Cutler-Hammer 10250T181LLG06 Indicating Light

The Eaton Cutler-Hammer 10250T181LLG06 is a heavy-duty, watertight, and oiltight indicating light designed for industrial applications requiring reliable visual status indication. This device is part of Eaton’s 10250T Series, known for its robust construction and dependable performance.

Key Features

• Voltage Rating: 120 VAC
• Light Source: Energy-efficient LED
• Lens Color: Blue
• Lens Material: Durable glass
• Mounting Size: 30.5 mm
• Bezel Material: Chrome-plated metal
• Enclosure Ratings: NEMA 3, 3R, 4, 4X, 12, 13; IP65
• Certifications: UL Listed, CE Marked, CSA Certified

Design and Construction

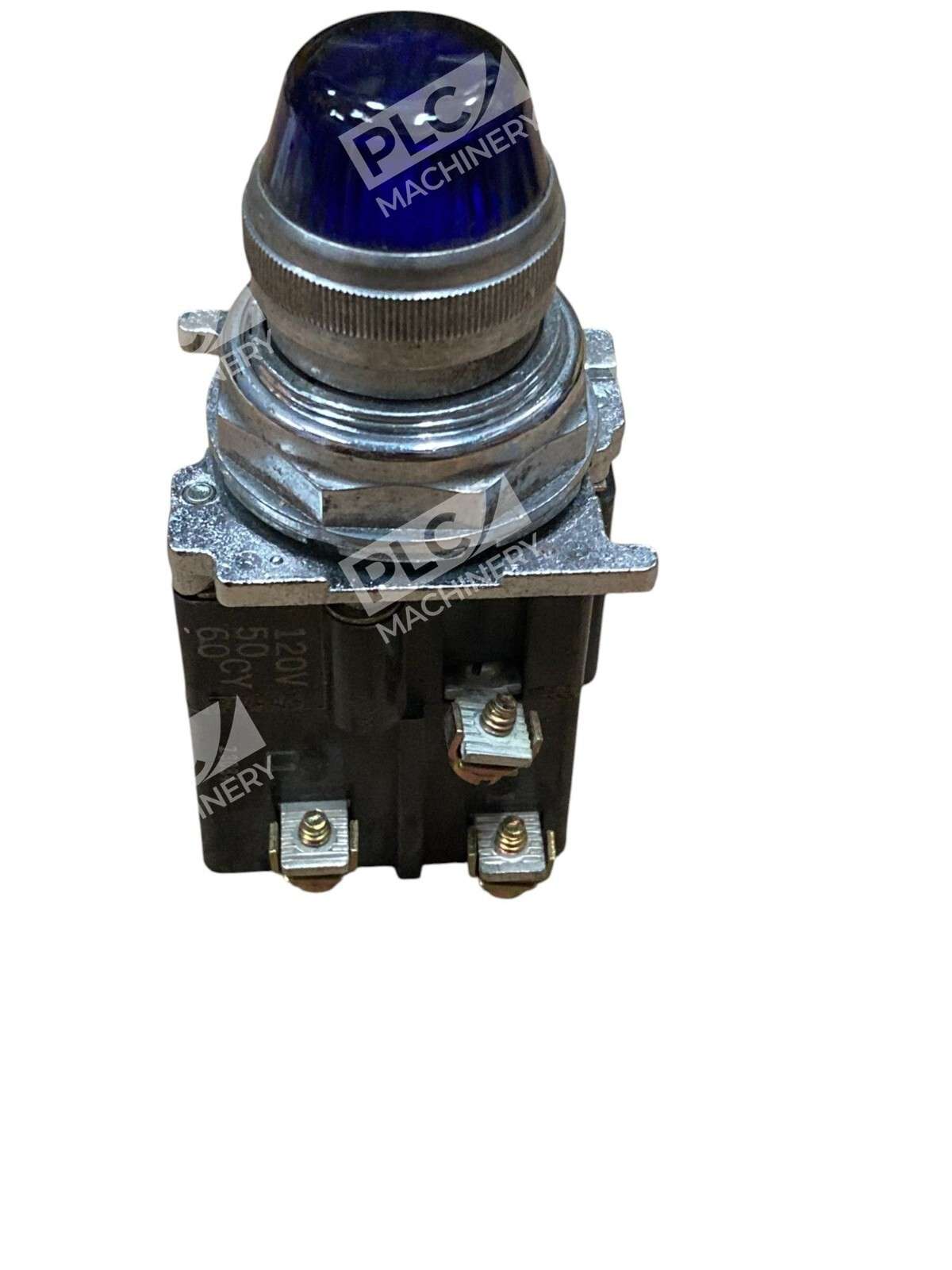

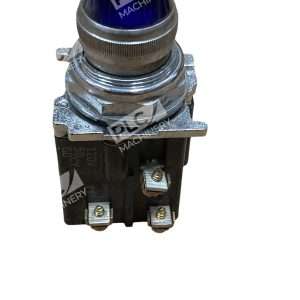

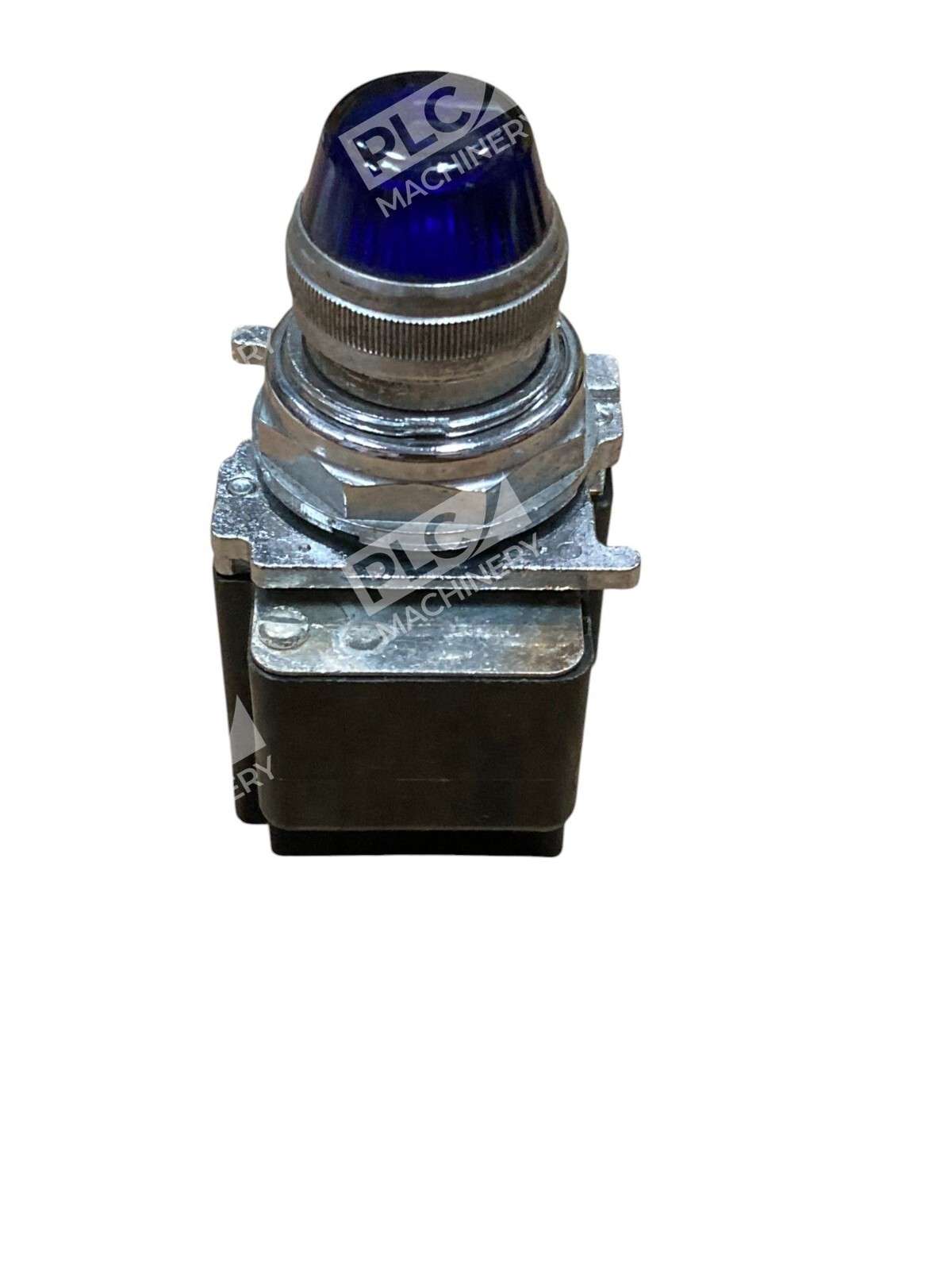

The 10250T181LLG06 features a zinc die-cast construction with a polished chrome bezel, ensuring durability and resistance to harsh industrial environments. Its watertight and oiltight design makes it suitable for applications where exposure to moisture and oils is common.

Performance and Reliability

Equipped with a blue LED light source, this indicating light offers high visibility and long operational life. The glass lens enhances durability, providing clear and consistent illumination. The device’s design includes grounding nibs to improve the ground connection when securely tightened, enhancing safety and reliability.

Applications

This indicating light is ideal for use in various industrial settings, including electrical assemblies, control panels, and machinery, where clear visual indication of equipment status is essential.

Installation

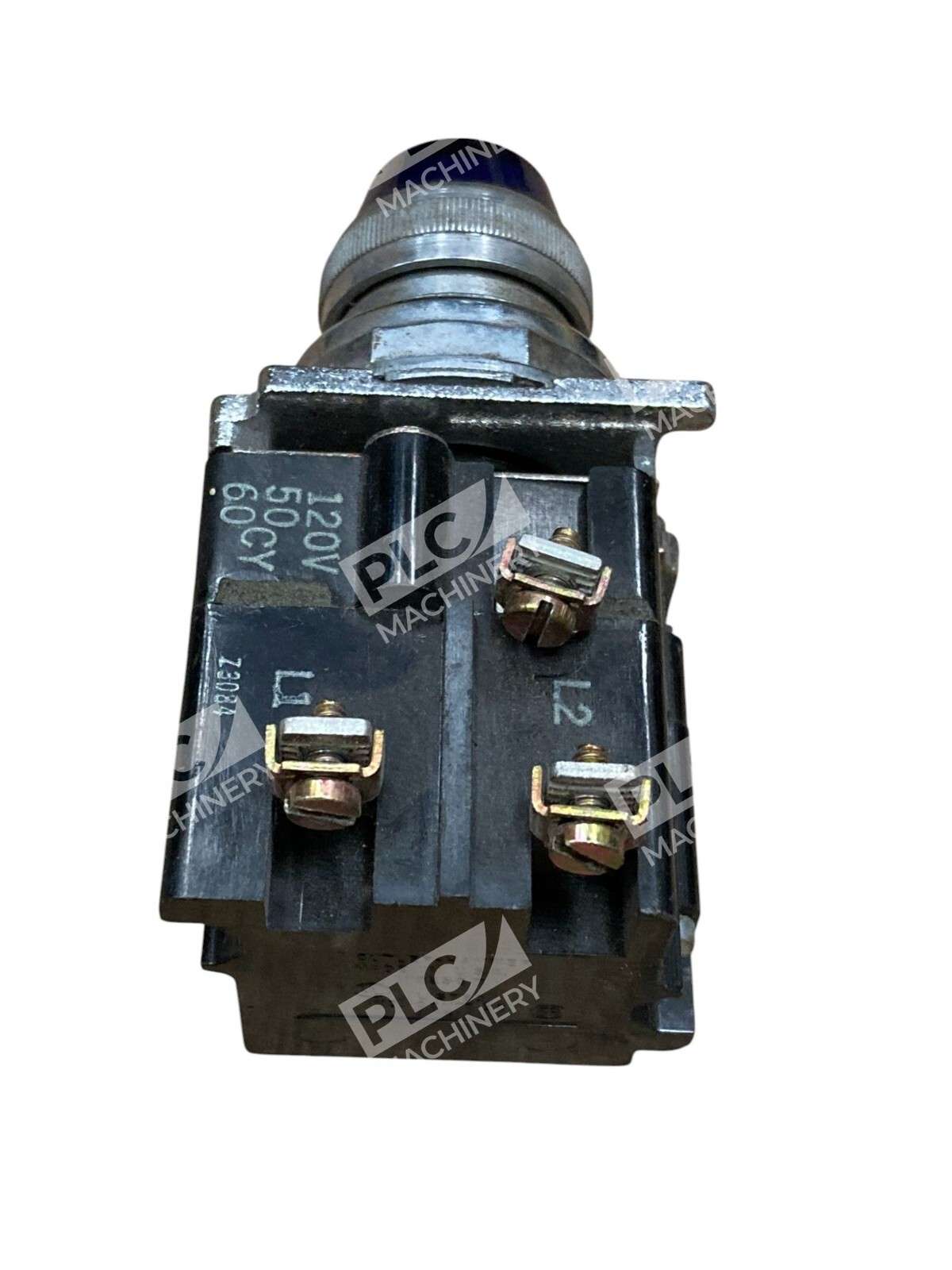

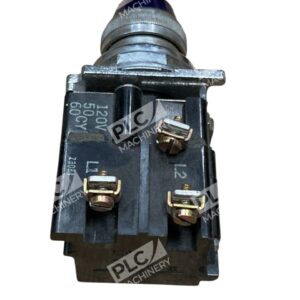

Designed for easy installation, the 10250T181LLG06 fits standard 30.5 mm mounting holes and utilizes screw terminals for secure wiring connections. Its robust design ensures reliable performance in demanding environments.

For more detailed specifications and installation instructions, please refer to the product’s datasheet.
