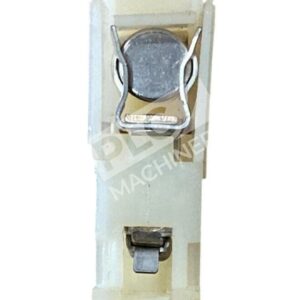

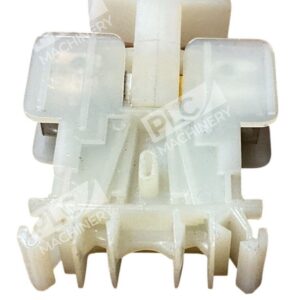

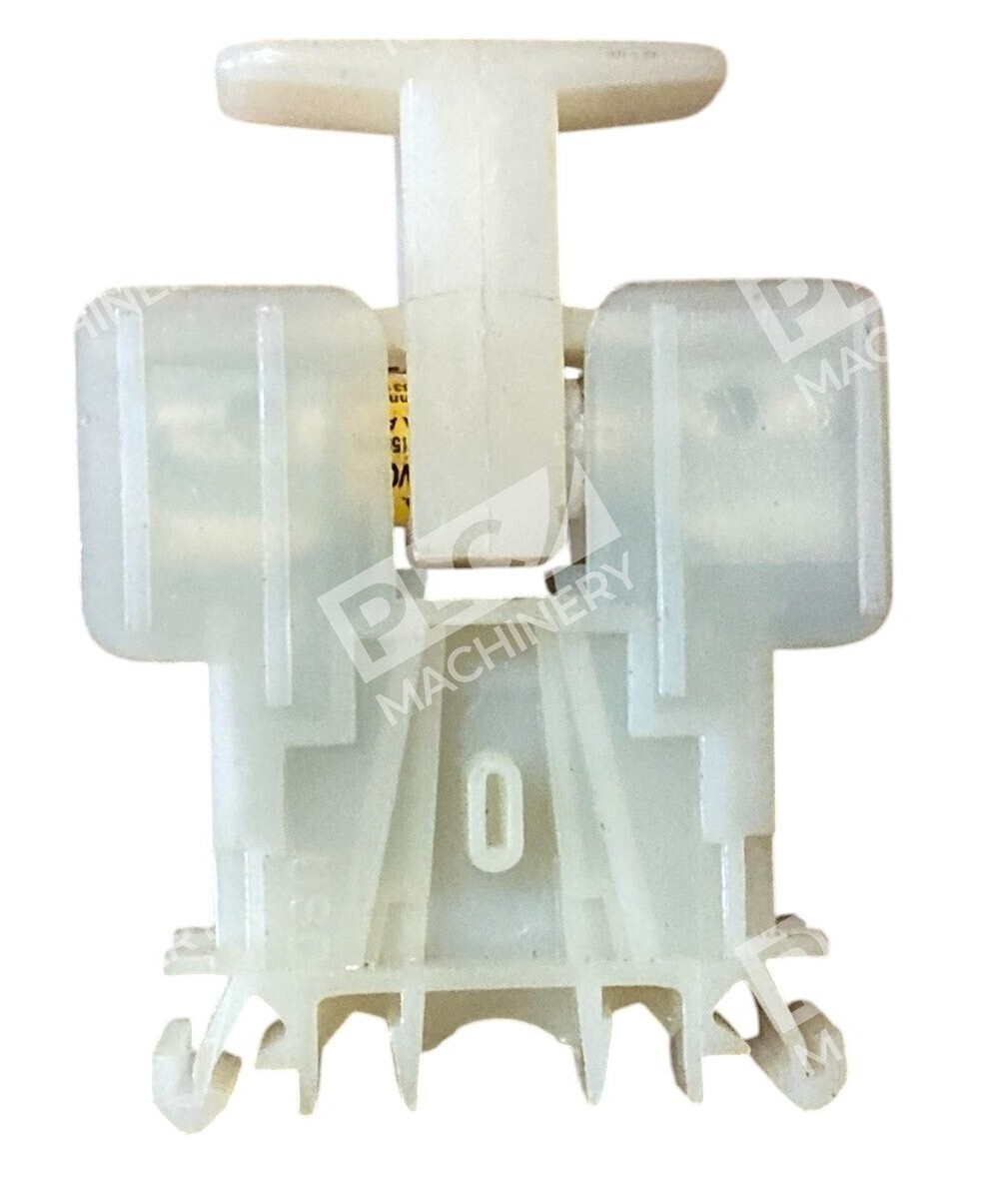

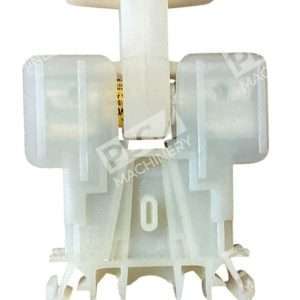

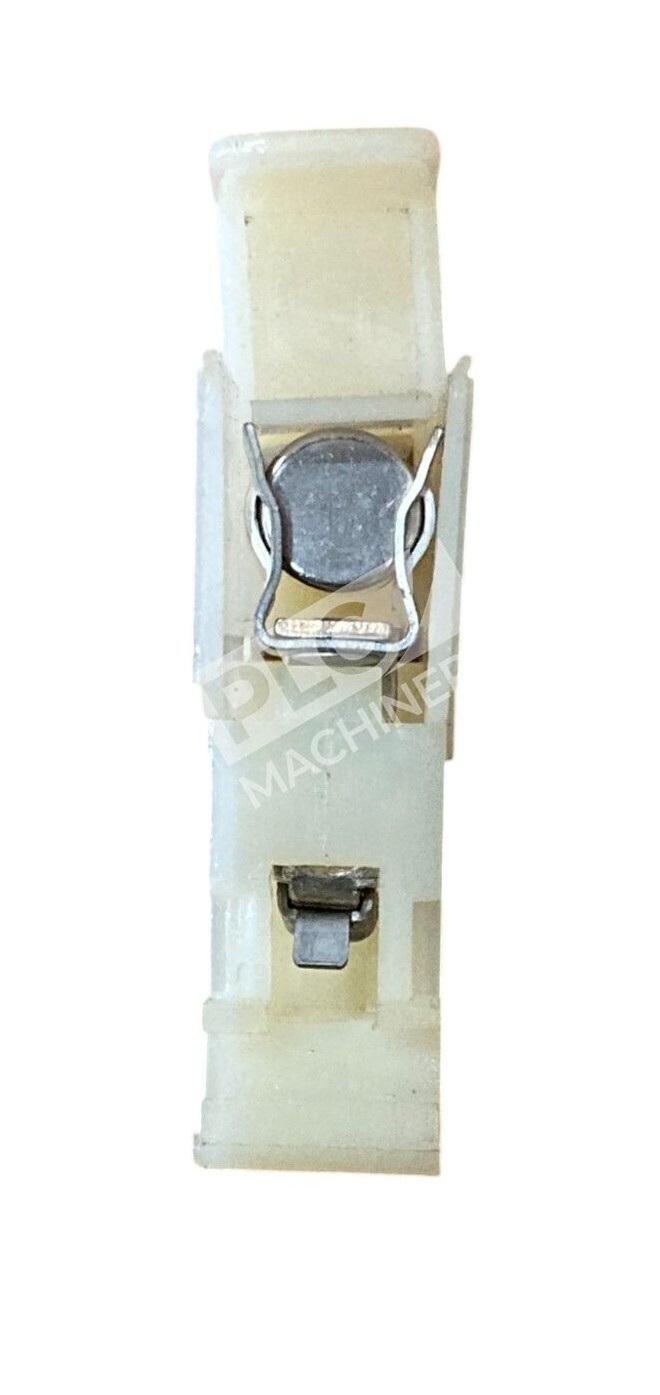

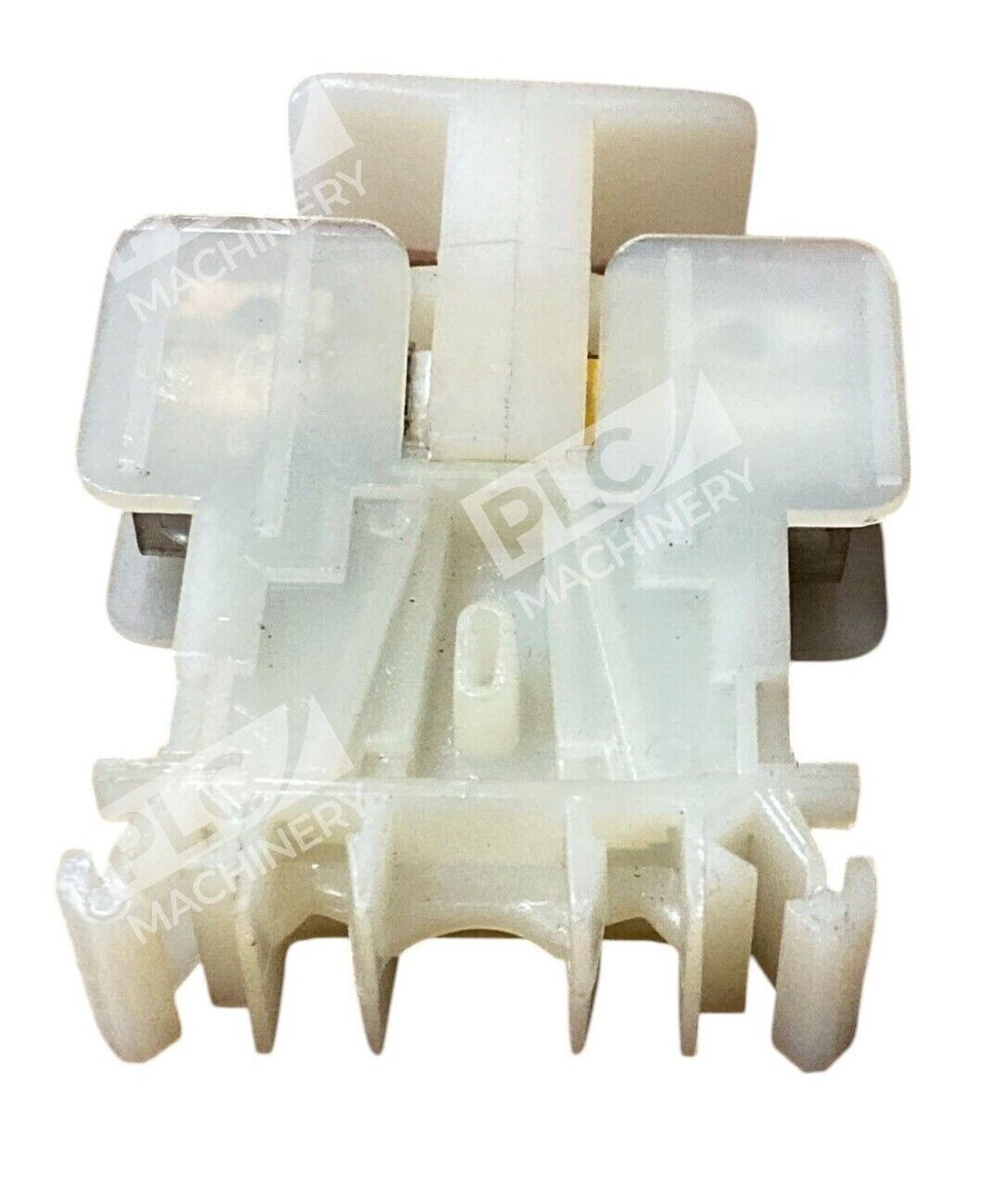

Eaton Bussman Fuse Holder Terminal Block NDNLFD1-WH

Eaton Bussmann Fuse Holder Terminal Block NDNLFD1-WH

The Eaton Bussmann NDNLFD1-WH is a rail-mounted fuse holder terminal block designed to provide reliable circuit protection in various electrical applications. This single-pole terminal block is engineered for easy integration into DIN rail systems, offering both functionality and safety.

Key Features

• Fuse Compatibility: Accommodates 1/4″ x 1-1/4″ fuses, such as Bussmann AGC or MDL series, ensuring versatility in fuse selection.
• Voltage and Current Ratings: Rated for up to 600V and 15A, suitable for a wide range of electrical systems.
• Wire Range: Supports copper wires ranging from AWG #8 to #22, providing flexibility in wiring configurations.
• Mounting Options: Designed for 35mm DIN rail or C-rail mounting, facilitating straightforward installation.
• Visual Indication: Features a visual indicator for open fuse conditions, enhancing safety and maintenance efficiency.
• Operating Temperature: Capable of operating in environments up to 105°C, ensuring durability under various conditions.
• Torque Rating: Terminals are rated for a maximum torque of 18 lb-in, ensuring secure connections.

Optional Accessories

• Fuse Pullers: Optional PF1 fuse pullers are available for safe and easy fuse removal.
• Lighted Indicators: Optional lighted neon or incandescent indicators (LPF1 series) are available in various voltage ratings (24V, 120V, 220V, 440V) to provide clear visual status of fuse conditions.

The NDNLFD1-WH fuse holder terminal block is an ideal solution for applications requiring dependable fuse protection with the convenience of DIN rail mounting and optional visual indicators, ensuring both safety and operational efficiency.
