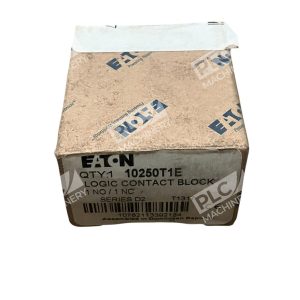

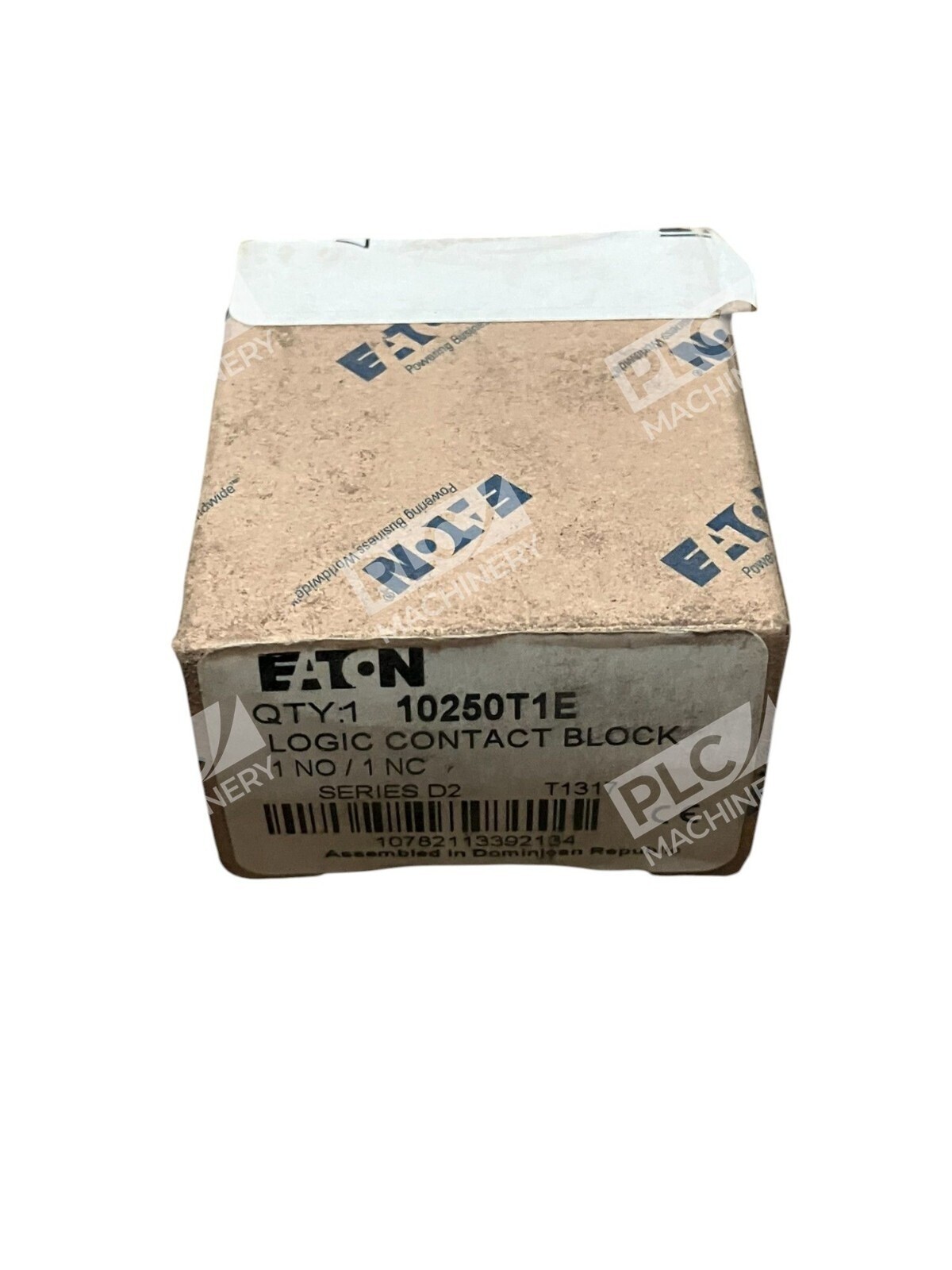

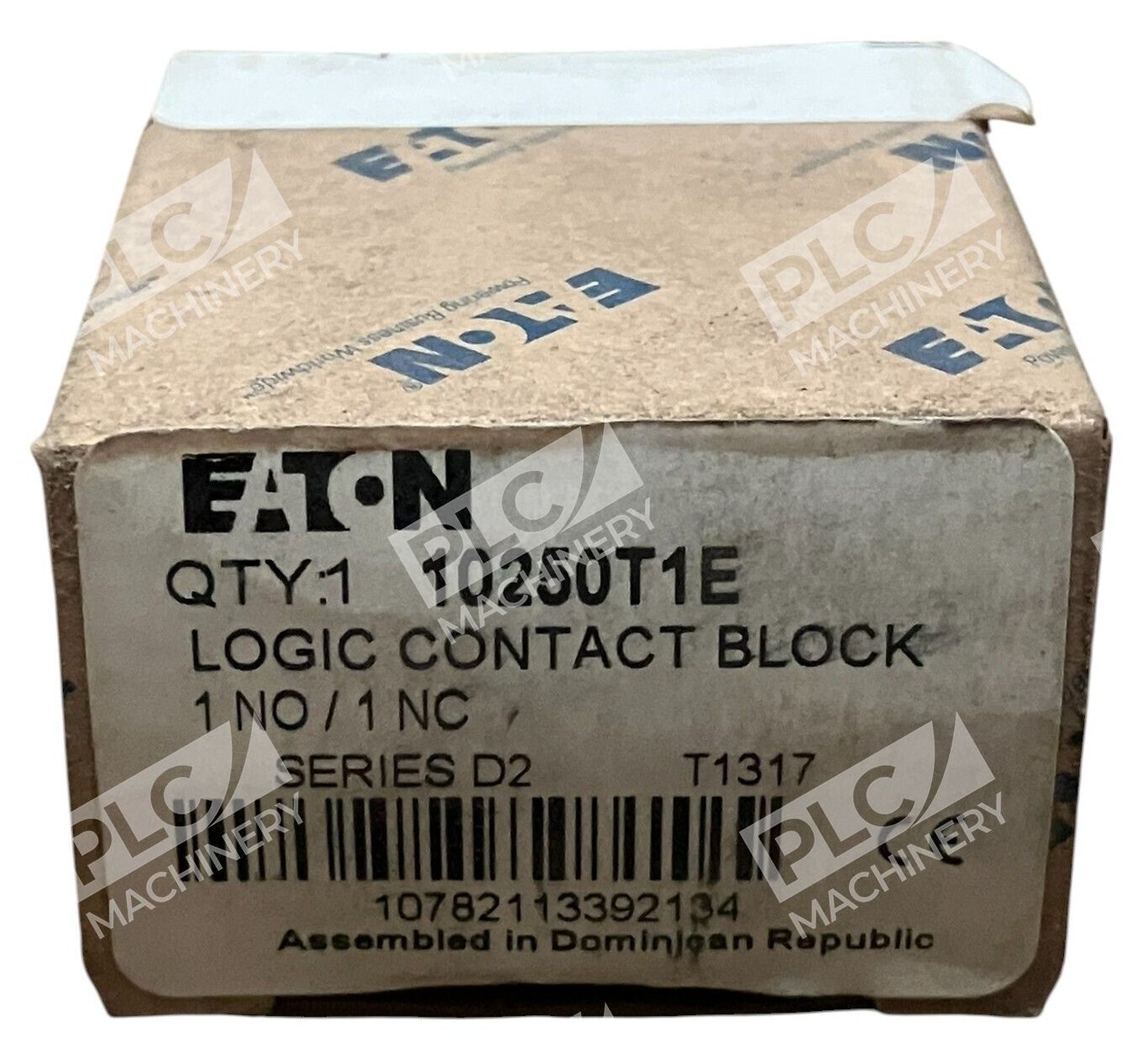

Eaton 1NO/NC Logic Contact Block 10250T1E /D2

Eaton 1NO/NC Logic Contact Block 10250T1E /D2

The Eaton 10250T1E is a heavy-duty logic level contact block designed for 30.5 mm pushbutton operators. It features a 1 Normally Open (NO) and 1 Normally Closed (NC) contact configuration, making it suitable for various industrial automation and logic control applications.

Key Features

• Contact Configuration: 1NO-1NC
• Contact Material: Palladium
• Contact Rating: 0.5 A at 120 VAC/VDC
• Action: Momentary
• Terminal Type: Pressure
• Housing Material: Thermoplastic
• Mounting: Supports stacking up to 6 blocks (12 circuits)
• Enclosure Rating: IP65
• NEMA Rating: NEMA 3/3R/4/4X/12/13
• Dimensions: 2.3 x 1.9 x 1.3 inches

Durability and Reliability

Constructed with a die-cast zinc housing, the 10250T1E ensures robust performance in demanding environments. The palladium contacts provide enhanced reliability, especially in low-voltage and low-current applications, by reducing the risk of oxidation and ensuring consistent conductivity.

Environmental Resistance

With an IP65 enclosure rating and compliance with multiple NEMA standards, this contact block offers excellent protection against dust, water, and other environmental factors, making it suitable for use in harsh industrial settings.

Compatibility

The 10250T1E is designed for seamless integration with Eaton’s 10250T series pushbutton operators, providing flexibility and ease of assembly in control panel designs.

For detailed specifications and installation guidelines, refer to the product datasheet and installation manual.
