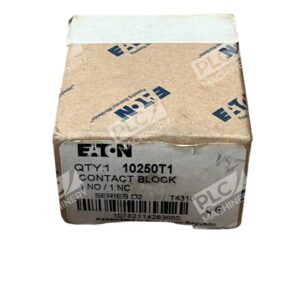

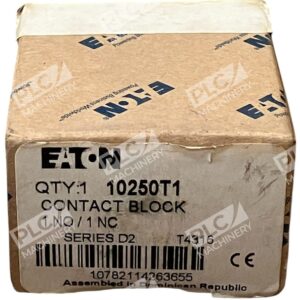

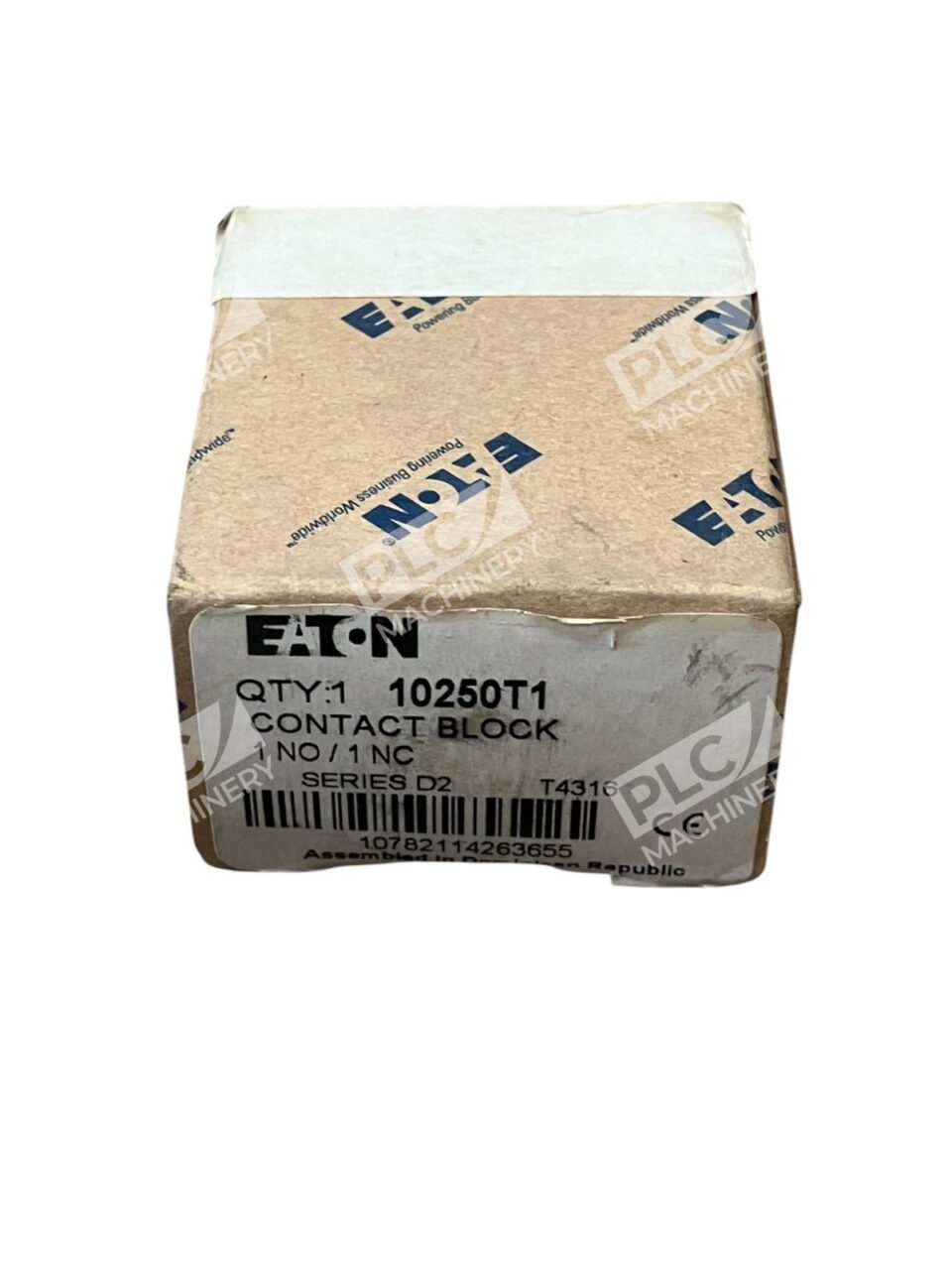

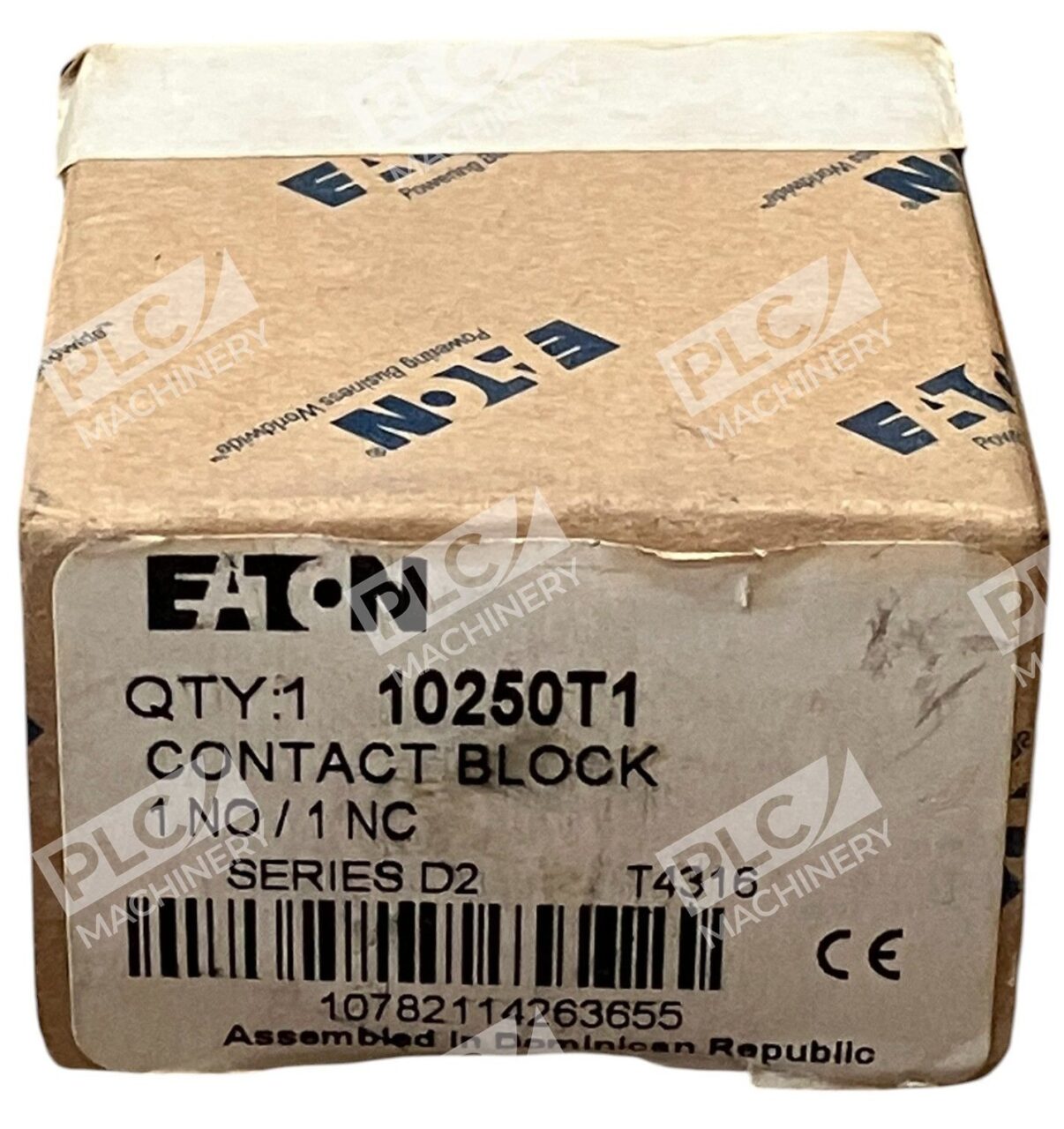

Eaton 1NO/1NC Contact Block 10250T1 /D2

Eaton 1NO/1NC Contact Block 10250T1 /D2

The Eaton 10250T1 /D2 is a heavy-duty 30.5 mm pushbutton contact block designed for industrial applications requiring reliable and durable control components. This contact block features a 1 Normally Open (NO) and 1 Normally Closed (NC) contact configuration, providing versatile control options for various electrical circuits.

Key Features

• Contact Configuration: 1 NO and 1 NC contacts, allowing for flexible control schemes.
• Construction: Heavy-duty zinc die-cast housing ensures durability and resistance to harsh industrial environments.
• Terminals: Pressure-type terminals facilitate secure and efficient wiring connections.
• Stacking Capability: Supports stacking up to 6 blocks, accommodating up to 12 circuits for complex control systems.
• Certifications: UL Listed, CSA Certified, and CE Marked, ensuring compliance with international safety standards.

Specifications

• Size: 30.5 mm
• Contact Rating: 10 A at 600 VAC; 2.5 A at 250 VDC
• Material: Thermoplastic
• Color: Gray
• Mounting: Suitable for 6-stack mounting configurations

The Eaton 10250T1 /D2 contact block is engineered to enhance the reliability of control systems, even under challenging conditions such as dry circuits and fine dust environments. Its robust design and compliance with multiple safety standards make it a dependable choice for industrial control applications.
