Dodge ABB 123814 1-1/2″ R0221/4090 Bearing P2B-SC-108

Dodge ABB 123814 1-1/2″ R0221/4090 Bearing P2B-SC-108

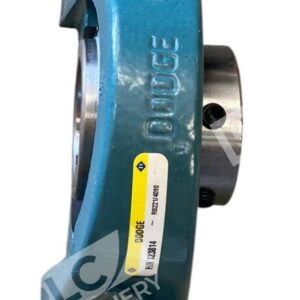

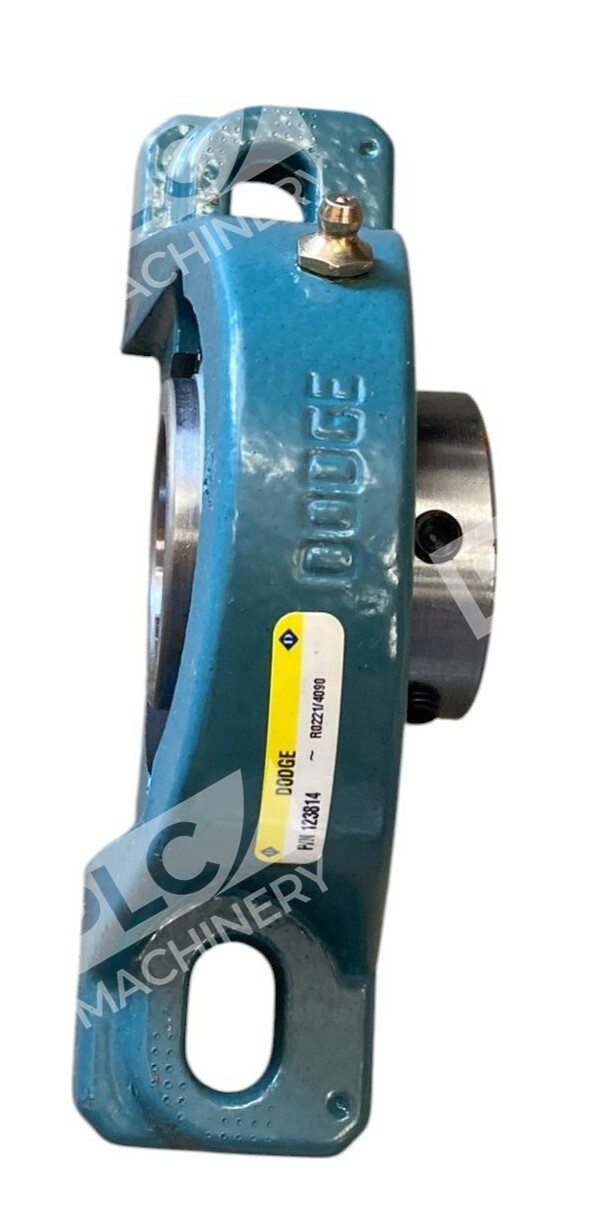

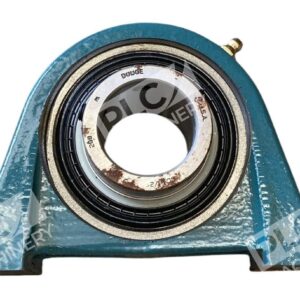

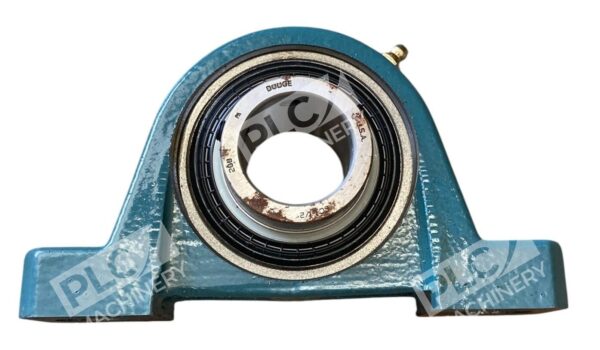

The Dodge ABB 123814 P2B-SC-108 is a robust pillow block ball bearing unit designed for reliable performance in various industrial applications. This normal-duty, non-expansion bearing features a 1-1/2 inch bore diameter, making it suitable for supporting rotating shafts in machinery.

Key Features

• Housing Material: Constructed from durable cast iron, providing strength and longevity.
• Locking Mechanism: Equipped with a set screw locking device to secure the bearing onto the shaft effectively.
• Seal Type: Features a single lip seal to protect against contaminants and retain lubrication.
• Mounting Configuration: Designed with a two-bolt base for straightforward installation and stability.
• Load Capacity: Supports dynamic loads up to 7,332 lbs and static loads up to 4,475 lbs, accommodating demanding operational conditions.
• Temperature Range: Operates efficiently within a temperature range of 225°F to 400°F, suitable for high-temperature environments.

Dimensions

• Bore Diameter: 1-1/2 inches
• Overall Length: 7.25 inches
• Overall Width: 1.94 inches
• Overall Height: 4.19 inches
• Base to Bore Centerline: 2.13 inches
• Bolt Center-to-Center Length: Adjustable between 5.18 to 5.88 inches

This bearing unit is engineered for applications requiring dependable shaft support and alignment, such as conveyors, fans, and other rotating equipment. Its sturdy construction and design ensure optimal performance and extended service life in industrial settings.
