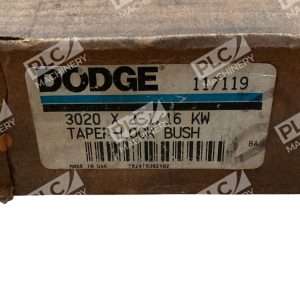

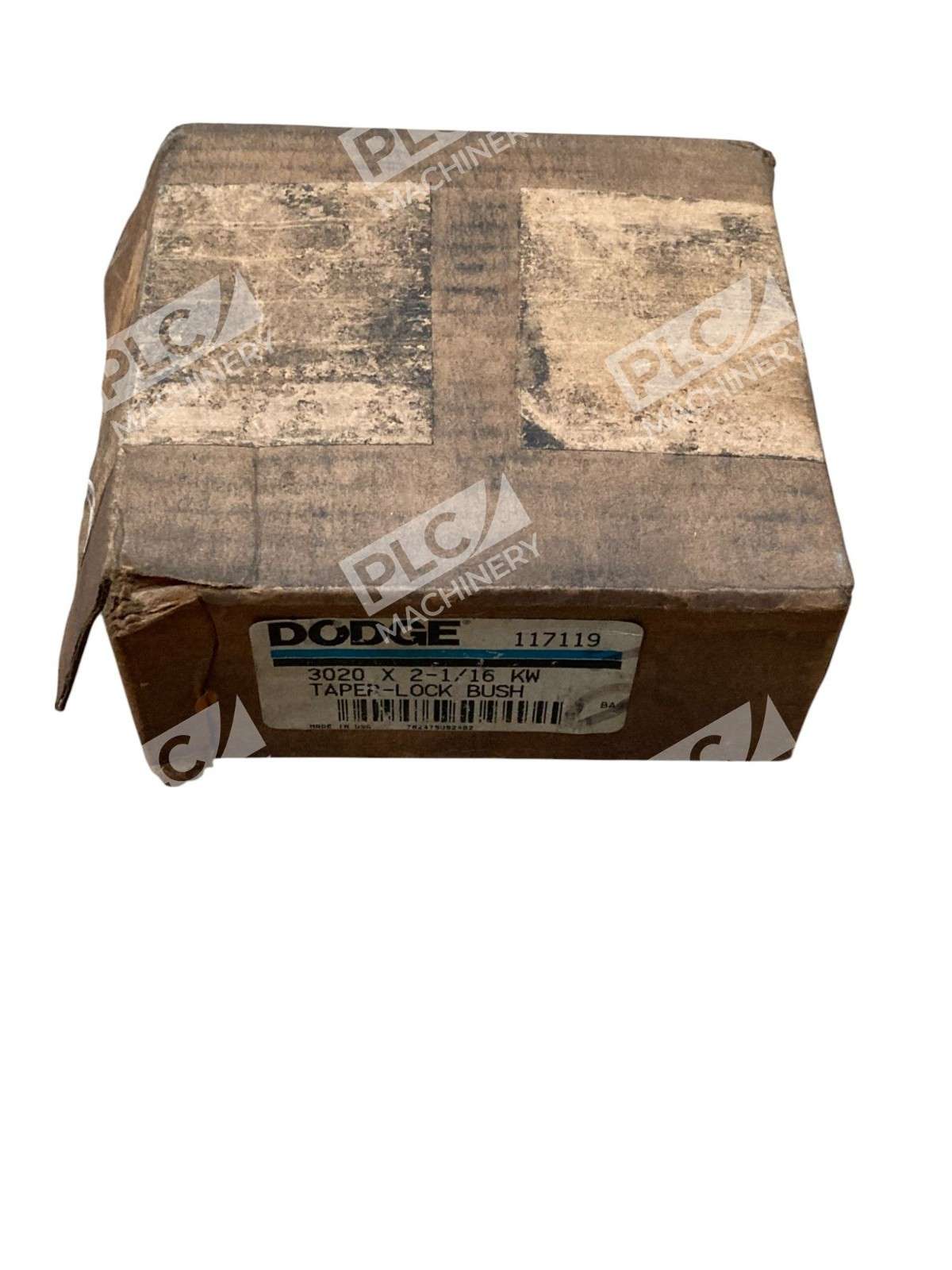

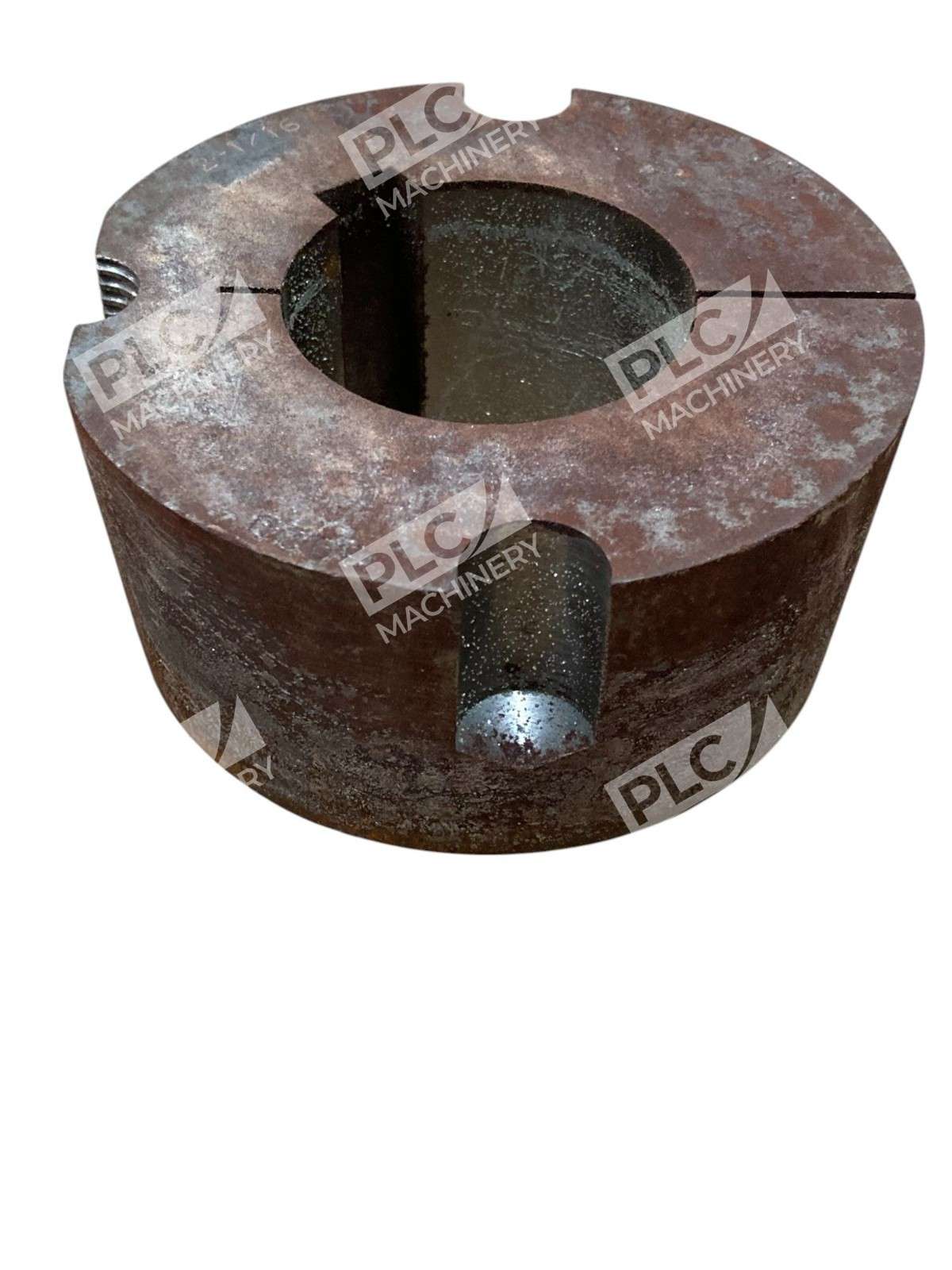

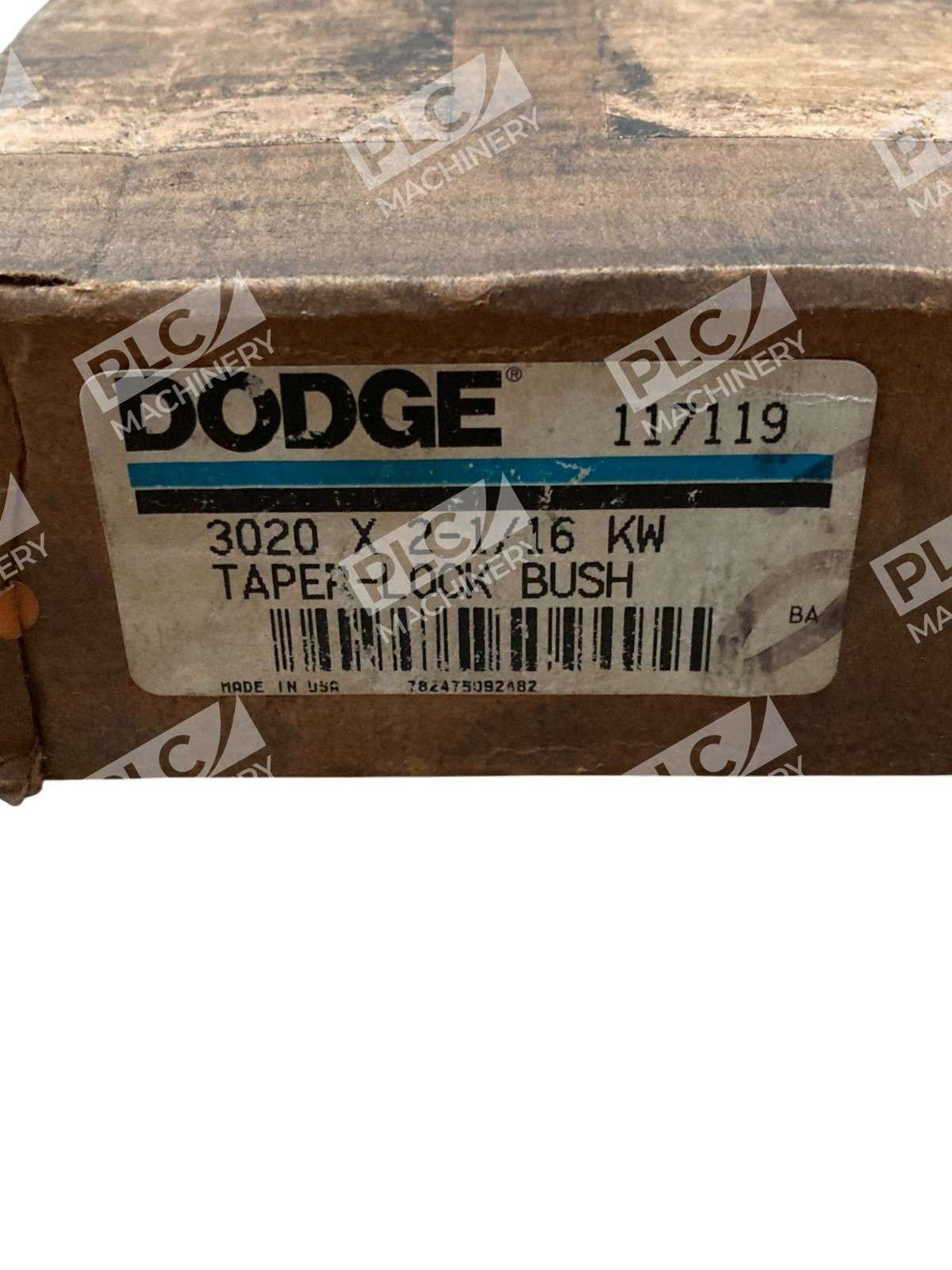

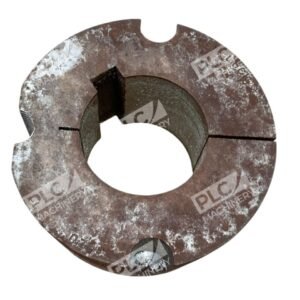

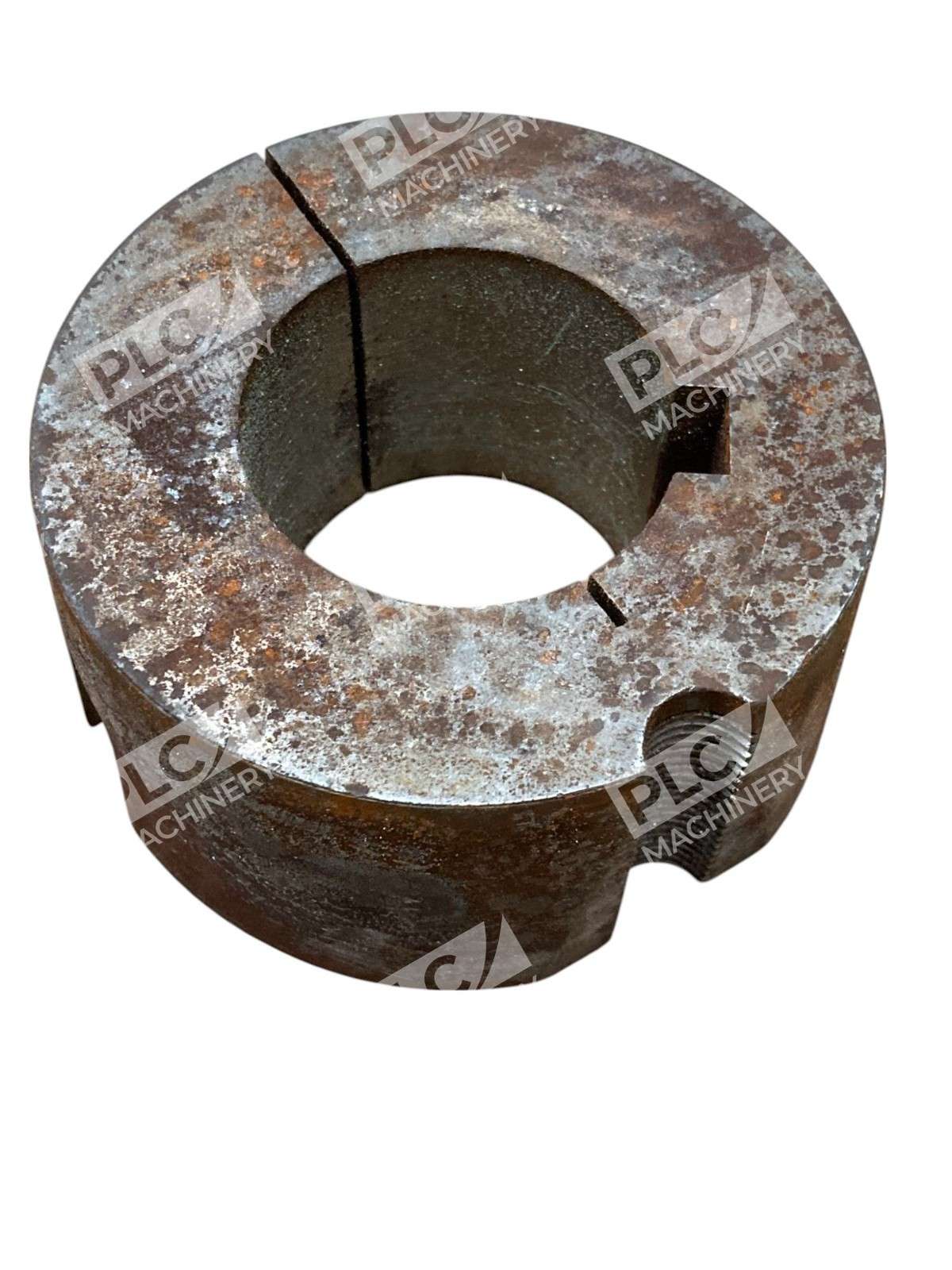

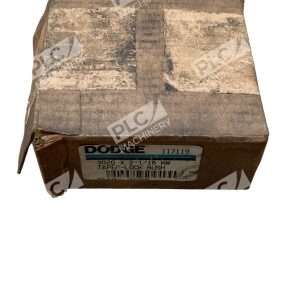

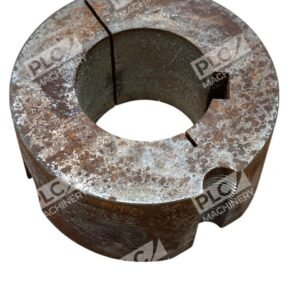

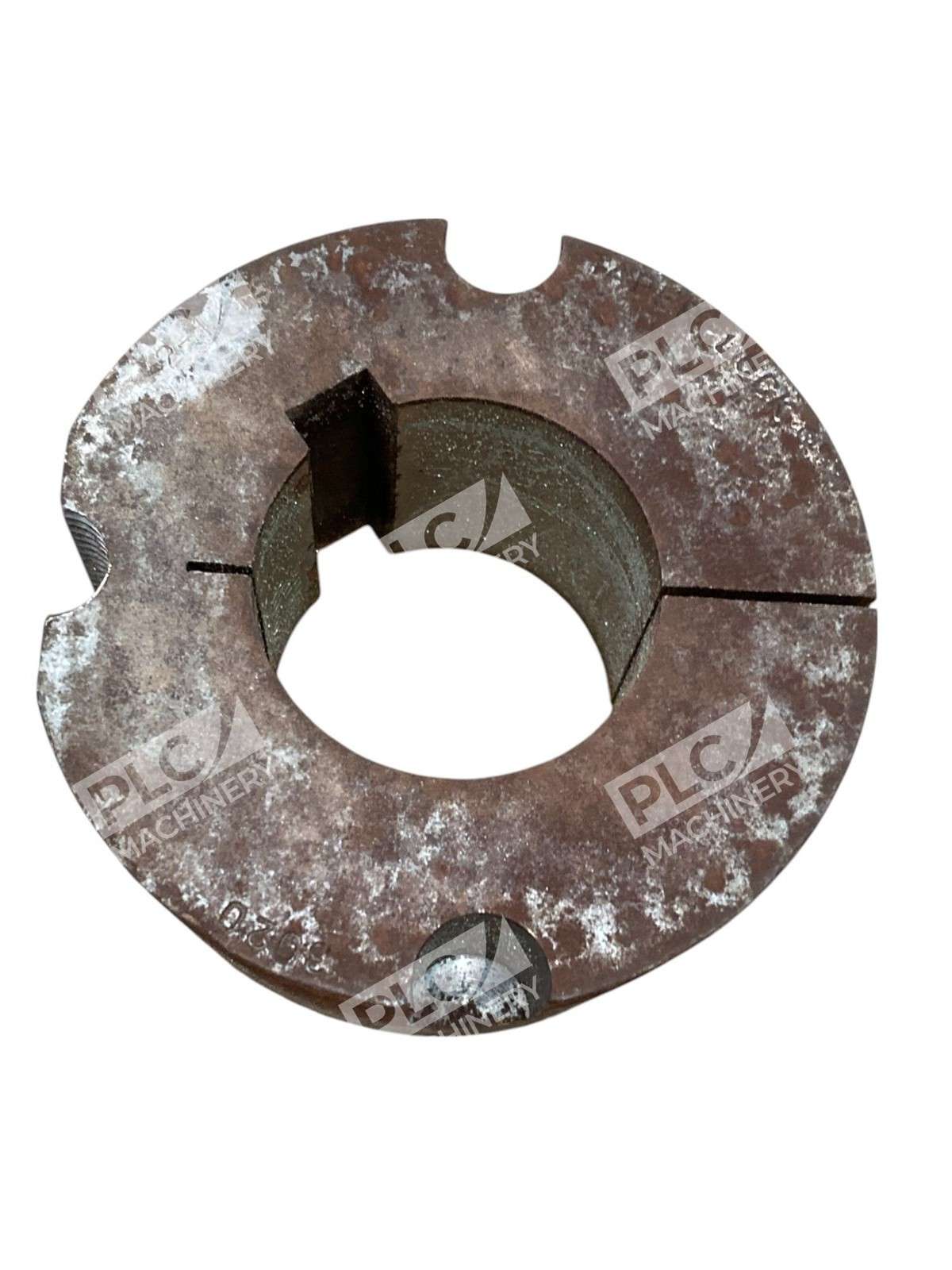

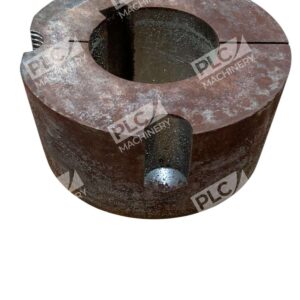

The Dodge 3020 X 2-1/16 KW Taper-Lock Bushing is a robust and reliable component designed to facilitate secure and efficient shaft-to-hub connections in various industrial applications.
Key Features
- Clean, Compact Design: Ensures a streamlined installation without protruding parts, contributing to a safer and more efficient workspace.
- Proven Industry Standard: With over 40 years of reliable performance, this bushing has become a trusted choice in the industry.
- Easy Installation and Removal: The design allows for straightforward mounting and dismounting, reducing downtime during maintenance.
- Secure Grip: The 8° taper provides a tight grip, ensuring the bushing holds firmly and runs true without wobble.
Specifications
- Bushing Size: 3020
- Bore Diameter: 2-1/16 inches (2.0625 inches)
- Keyway Size: 1/2 x 1/4 inches
- Outside Diameter: 4-1/4 inches
- Length Through Bore: 2 inches
- Material: Sintered Steel
- Torque Capacity: 24,000 in-lbs
- Screw Torque: 800 in-lbs
- Number of Bolt Holes: 2
- Screw Thread Size: 5/8 inches
- Screw Length: 1-1/4 inches
- Weight: Approximately 5 lbs
Applications
This Taper-Lock Bushing is ideal for use in power transmission applications, including pulleys, sprockets, and sheaves, where a secure and precise shaft attachment is critical.
Installation and Maintenance
The Dodge 3020 X 2-1/16 KW Bushing is designed for ease of installation and removal. Its flush mounting ensures no protruding parts, enhancing safety and operational efficiency.
By integrating this bushing into your machinery, you can achieve a reliable and durable connection that supports optimal performance and longevity.
