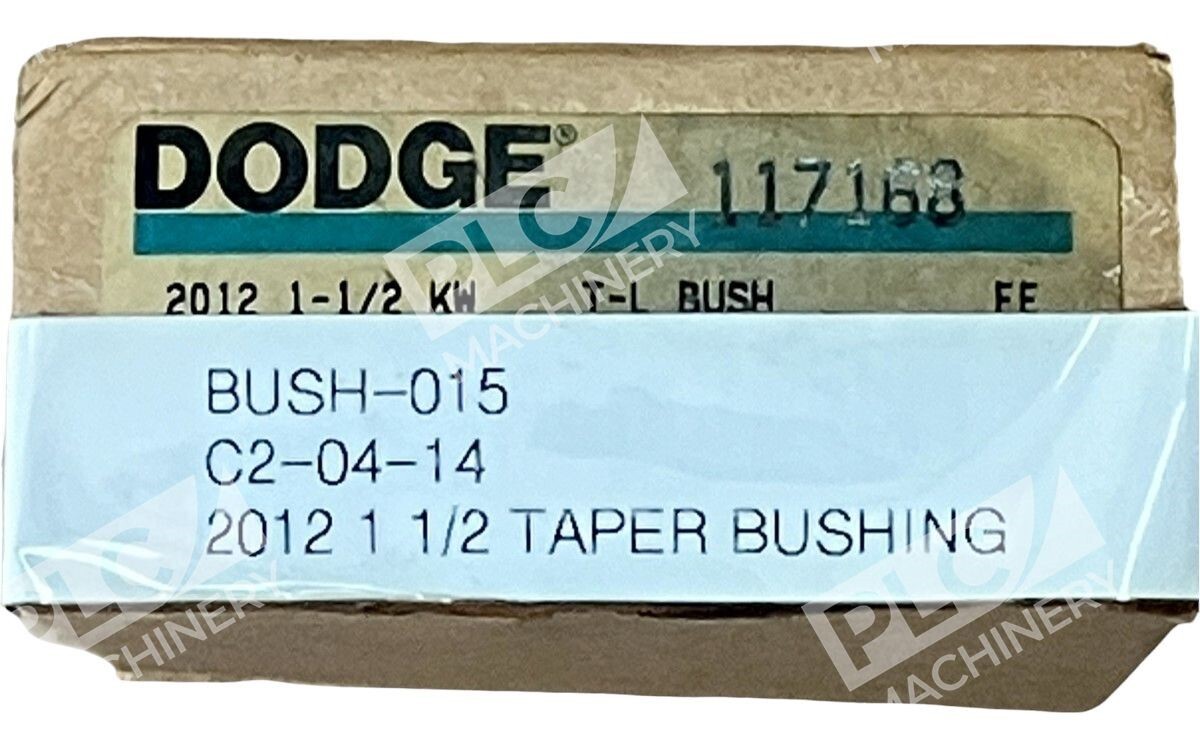

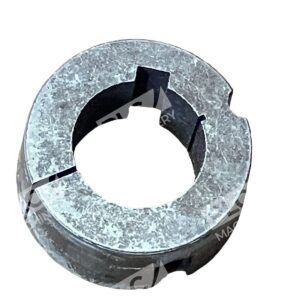

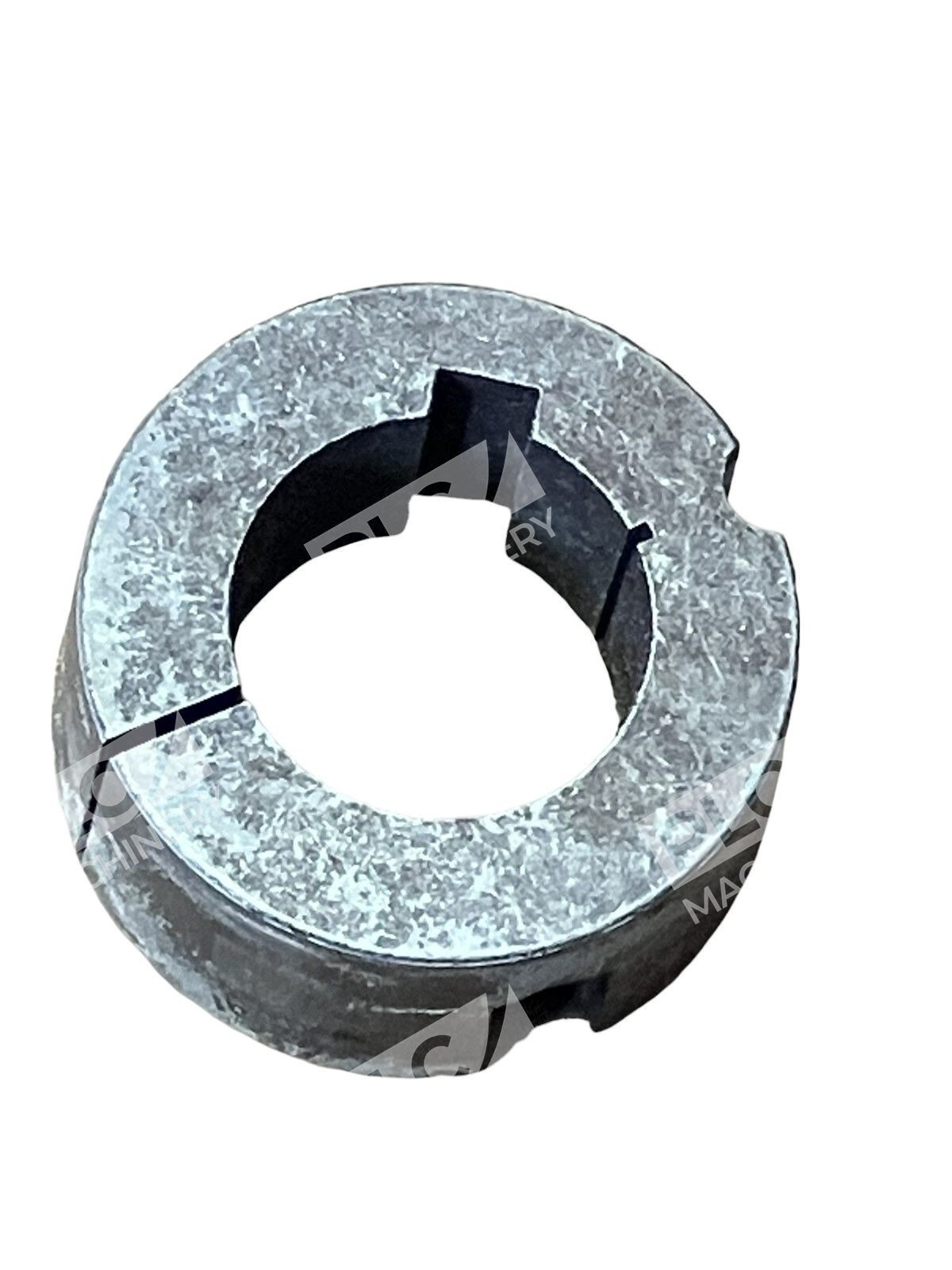

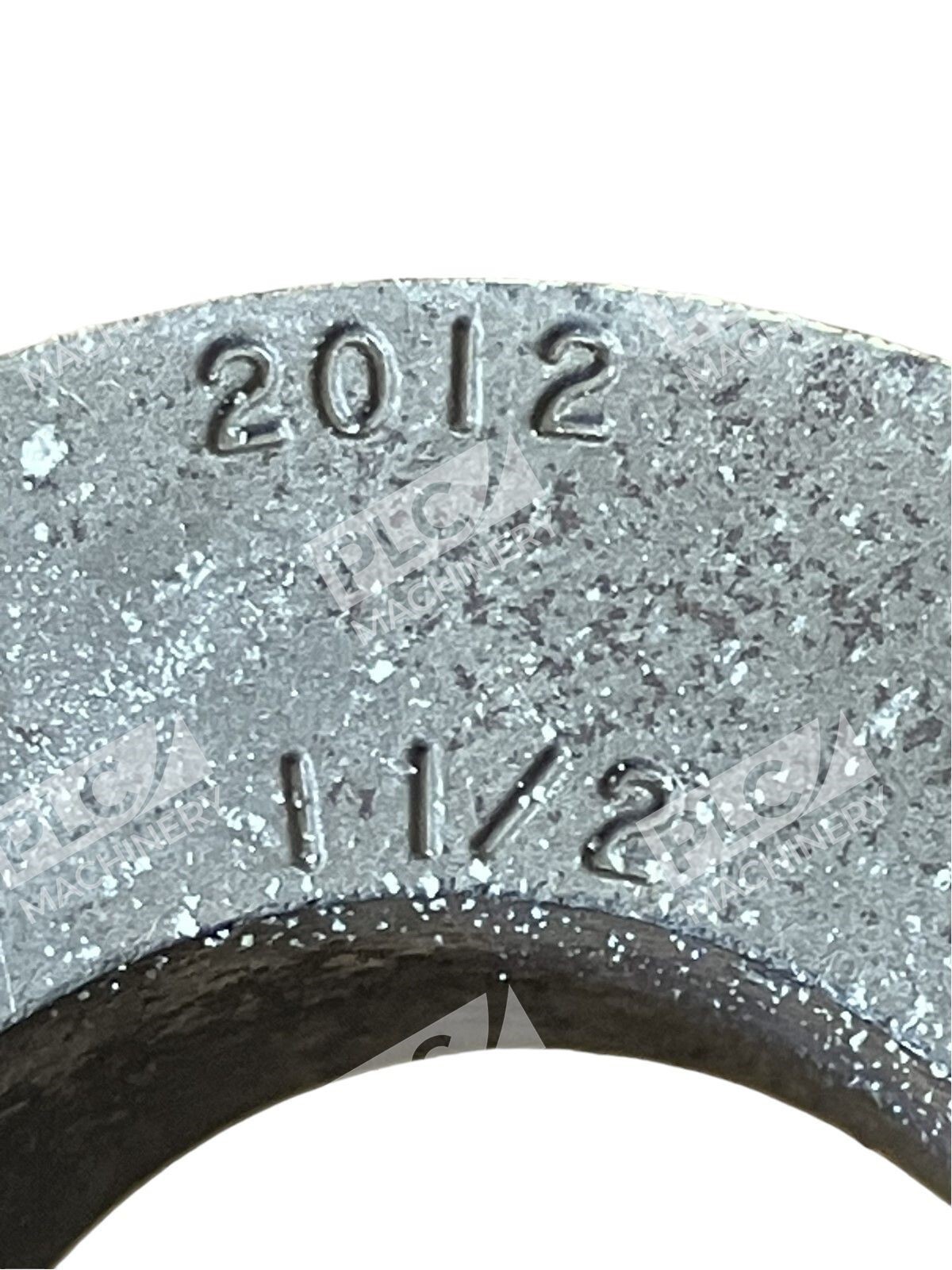

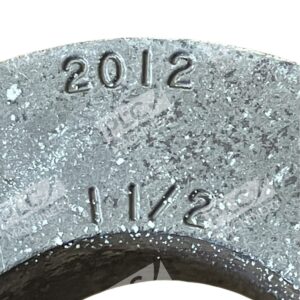

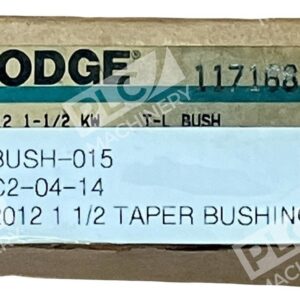

Dodge 2012 1-1/2 KW Taper-Lock Bushing

Dodge 2012 1-1/2 KW Taper-Lock Bushing

The Dodge 2012 1-1/2 KW Taper-Lock Bushing is engineered for secure and efficient shaft attachment in various mechanical applications. Its flangeless design ensures a clean and compact installation, eliminating protruding parts and reducing the risk of wobble.

Key Features

• Easy Installation and Removal: Designed for straightforward on and off operations, facilitating quick maintenance and adjustments.
• Secure Fit: The 8-degree taper provides a tight grip, ensuring the bushing holds firmly and runs true without wobble.
• Flush Mounting: The absence of protruding parts allows for a streamlined and space-efficient setup.

Specifications

• Bore Diameter: 1-1/2 inches
• Outside Diameter: 2-3/4 inches
• Length Through Bore: 1-1/4 inches
• Keyway Size: 3/8 x 3/16 inches
• Material: Sintered Steel
• Torque Rating: 7,150 in-lb
• Number of Bolt Holes: 2
• Screw Size: 7/16 x 7/8 inches

This bushing is part of the 2012 series and is suitable for applications requiring a reliable and compact shaft attachment solution.
