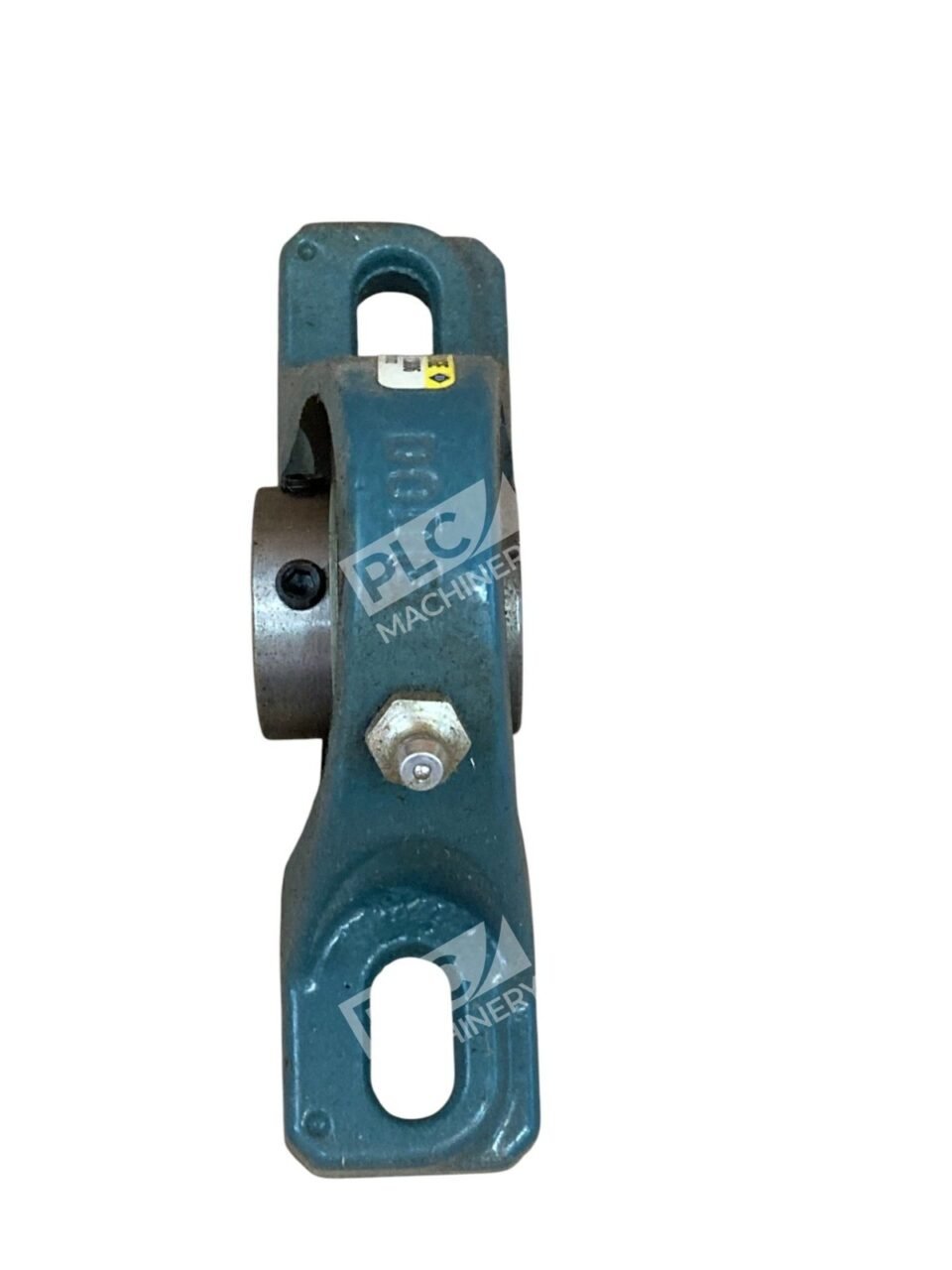

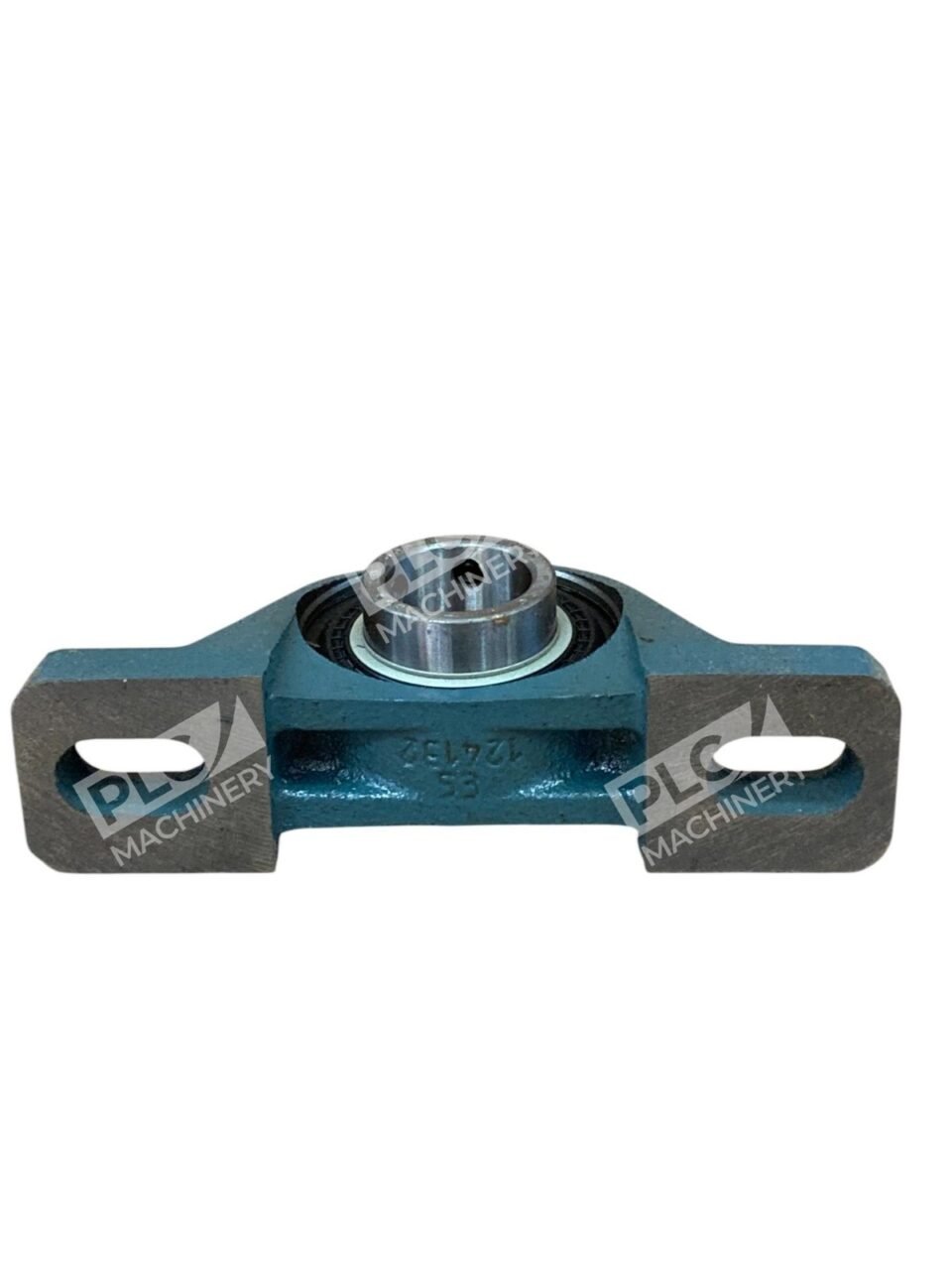

Dodge 123806 1″ Pillow Block Bearing P2B-SC-100

The Dodge 123806 P2B-SC-100 is a robust 1-inch pillow block bearing designed for reliable performance in various industrial applications.

Key Features

• Bore Diameter: 1 inch (25.4 mm)
• Housing Material: Durable cast iron
• Mounting Type: Two-bolt base for secure installation
• Locking Mechanism: Set screw for firm shaft attachment
• Seal Type: Single-lip contact seal to protect against contaminants
• Expansion Capability: Non-expansion (fixed) design
• Relubrication: Equipped with a grease fitting for easy maintenance

Specifications

• Base to Center Height: 1.44 inches (36.5 mm)
• Bolt Center-to-Center Length: Adjustable from 3.69 to 4.5 inches (93.7 to 114.3 mm)
• Overall Dimensions:
  • Length: 5.5 inches (139.7 mm)
  • Width: 1.34 inches (34 mm)
  • Height: 2.77 inches (70.4 mm)
• Load Capacity:
  • Dynamic: 3,146 lbs (1,427 kg)
  • Static: 1,769 lbs (802 kg)
• Maximum Speed: 7,500 RPM
• Temperature Range: 225°F to 400°F (107°C to 204°C)

Applications

Ideal for use in conveyors, fans, blowers, and other rotating equipment, the Dodge P2B-SC-100 pillow block bearing offers a cost-effective and reliable solution for supporting rotating shafts in various industrial settings.
