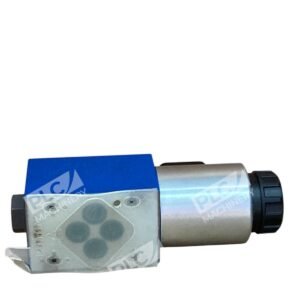

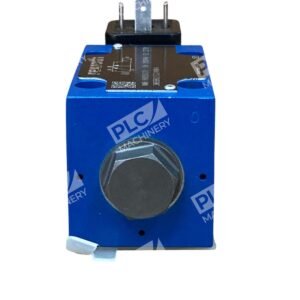

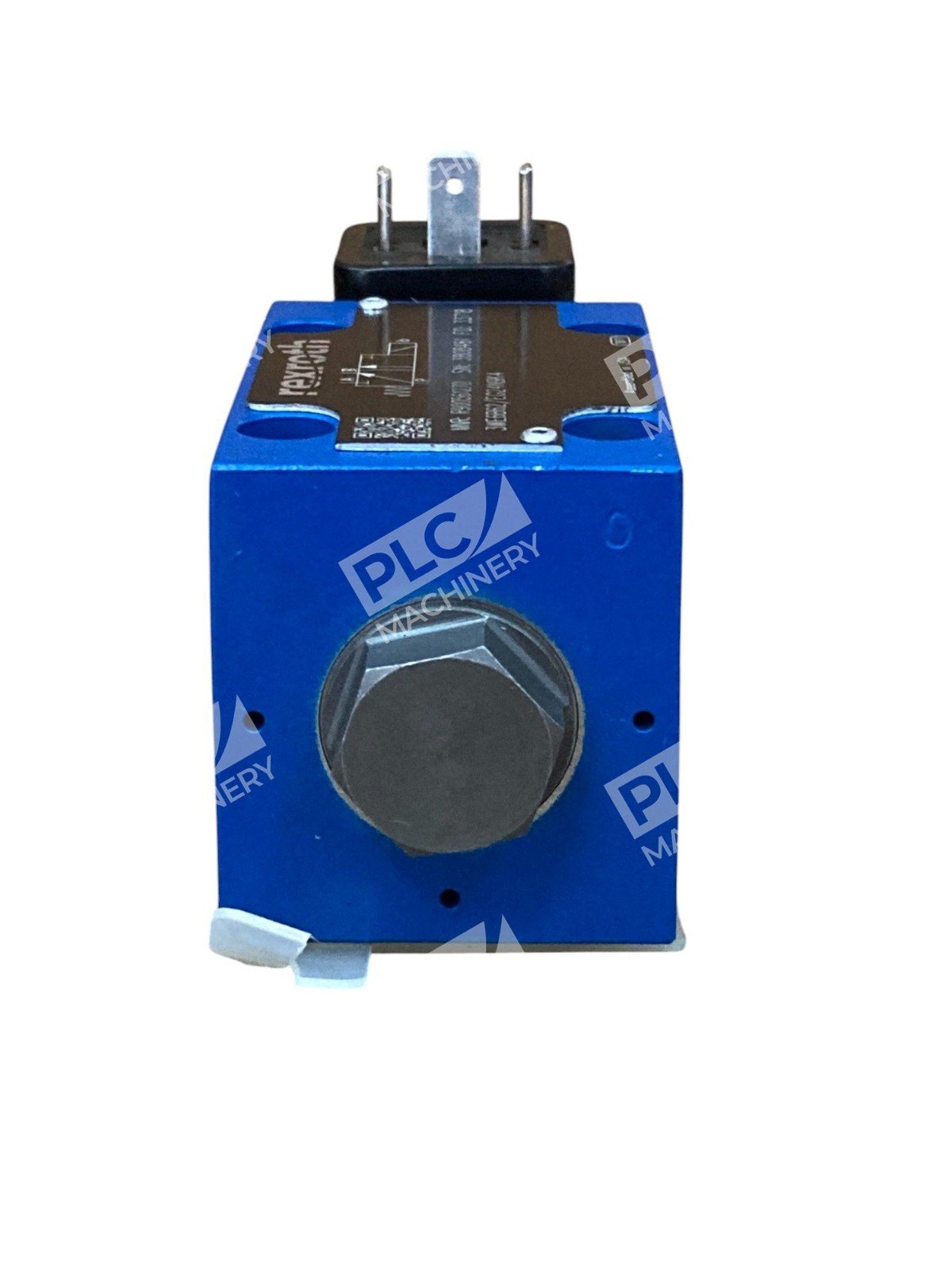

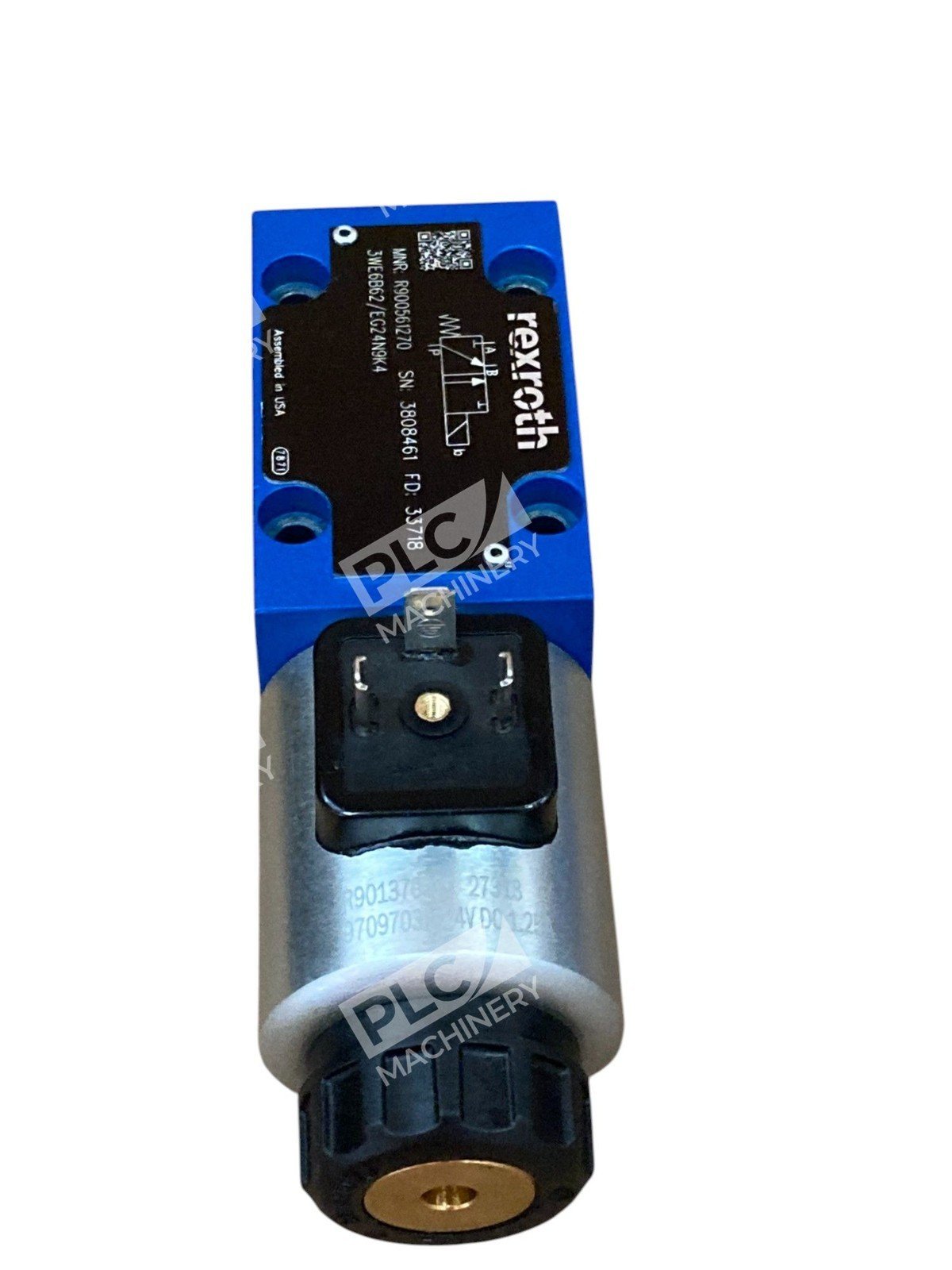

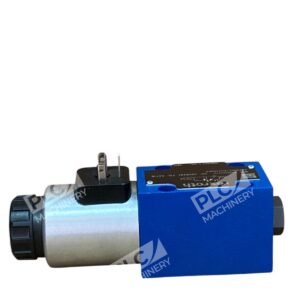

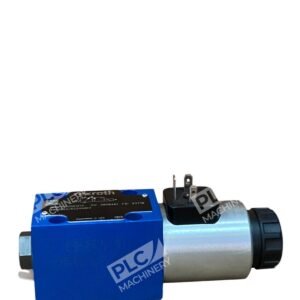

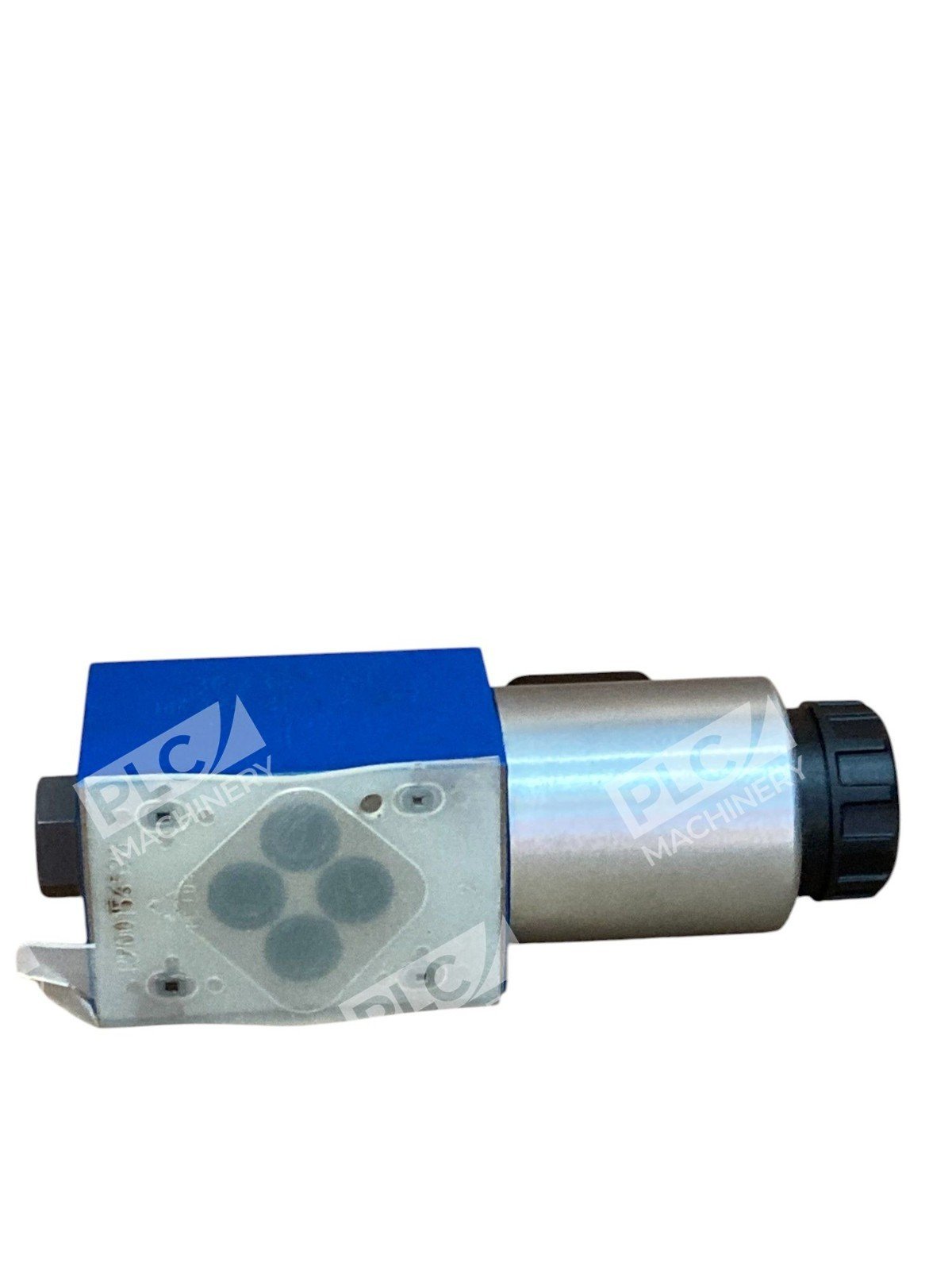

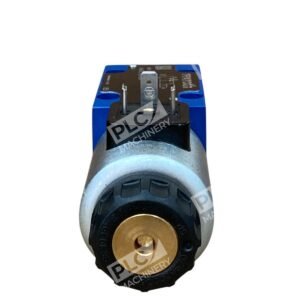

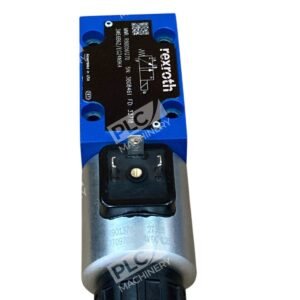

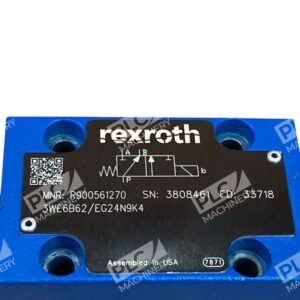

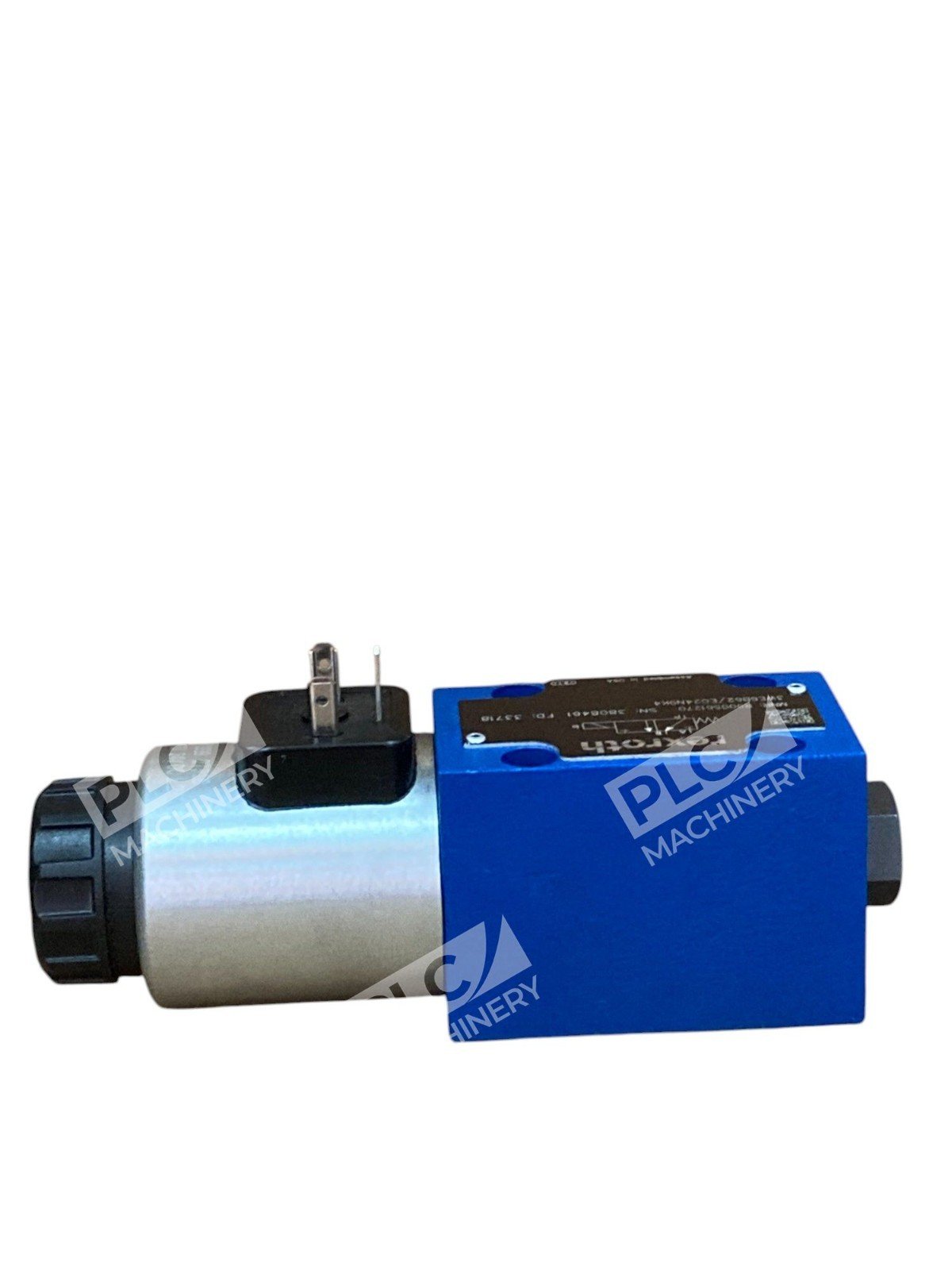

Rexroth R900561270 Directional Control Valve

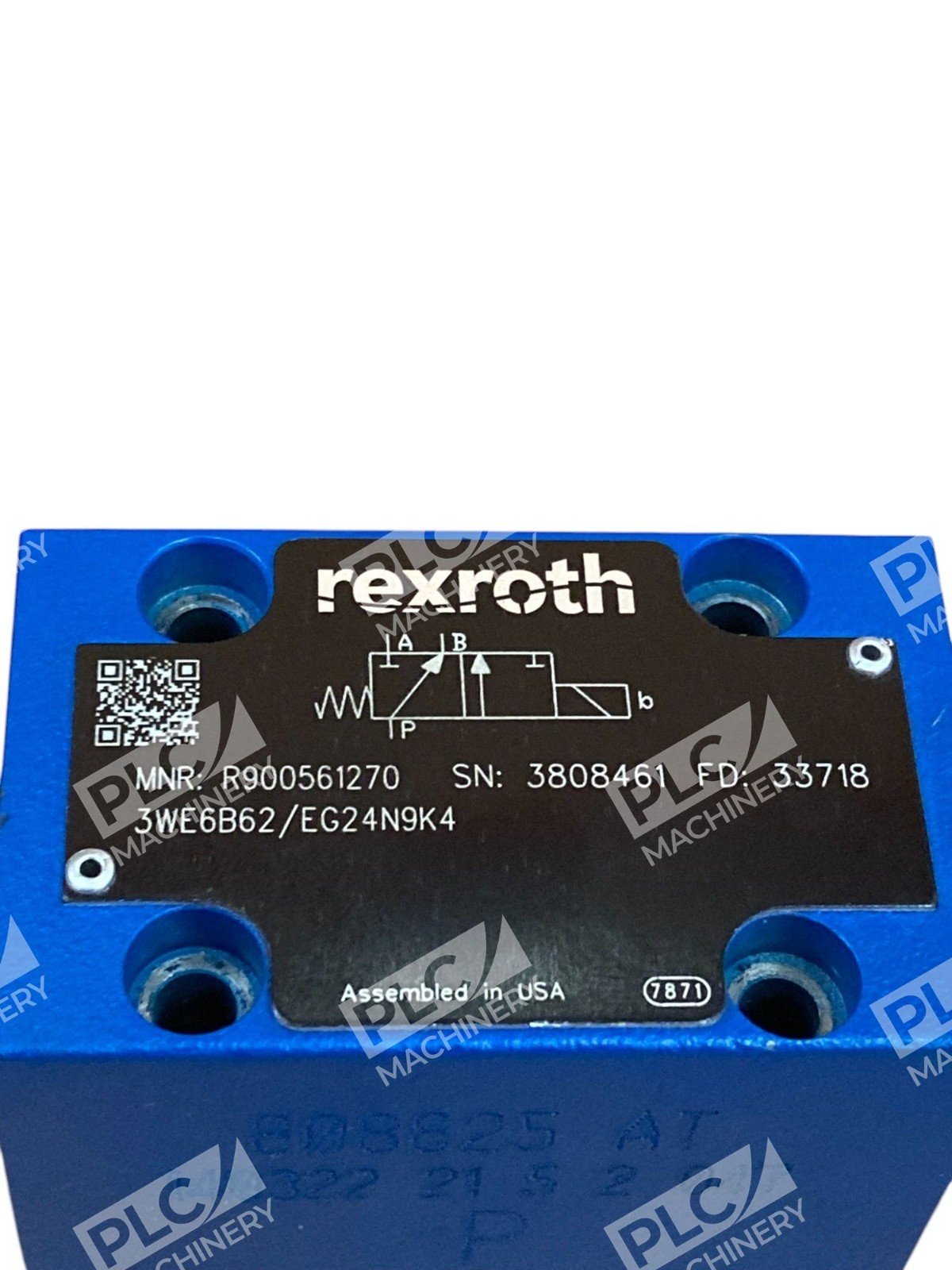

The Rexroth R900561270, also known as the 3WE6B6X/EG24N9K4, is a high-performance, direct-operated directional spool valve designed for precise control in hydraulic systems. Its robust construction and reliable operation make it suitable for various industrial applications.
Key Features
- Nominal Size: NG6 (CETOP 3)
- Actuation Type: Solenoid-actuated
- Spool Symbol: B
- Maximum Operating Pressure: 350 bar
- Maximum Flow Rate: 80 l/min
- Supply Voltage: 24 V DC
- Electrical Connector: 3-pole (2 + PE) according to EN 175301-803
- Hydraulic Fluids Compatibility: HL, HLP, HLPD, HVLP, HVLPD, HFC
- Sealing Material: NBR
- Weight: Approximately 1.46 kg
Design and Functionality

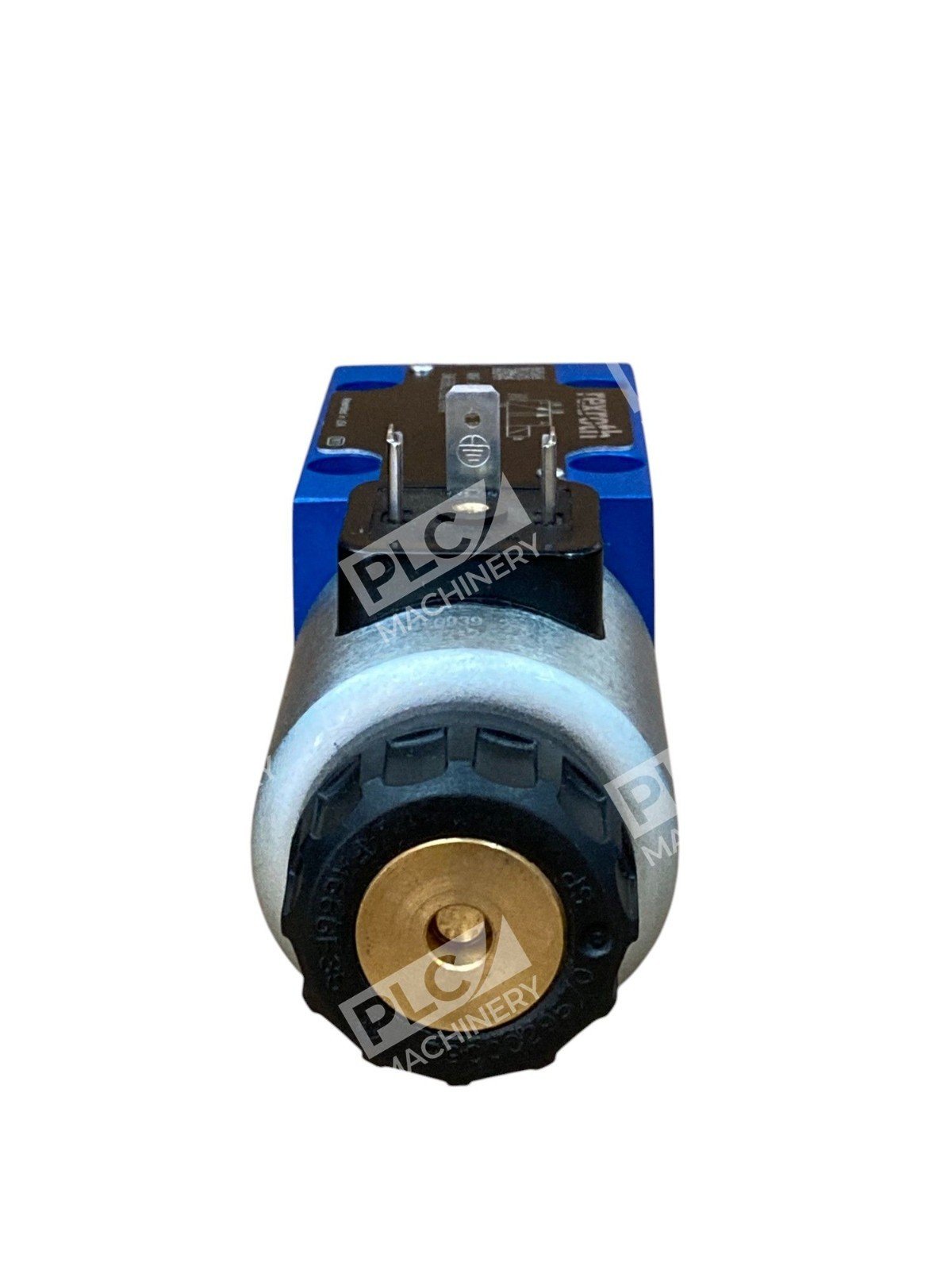

This valve features a direct-operated spool design, ensuring swift and accurate switching of oil flow direction as per the hydraulic symbol. The high-power solenoid can be optionally rotated by 90 degrees, offering flexibility in installation. Additionally, the valve includes a manual override option for enhanced operational control.
Applications
The Rexroth R900561270 is ideal for industrial hydraulic systems requiring reliable and precise directional control. Its compatibility with various hydraulic fluids and robust design make it suitable for demanding environments.
Technical Specifications
- Connection Diagram: ISO 4401-03-02-0-05
- Number of Ports: 3
- Number of Switching Positions: 2
- Type of Connection: Subplate mounting
- Operating Temperature Range: -30°C to 80°C
For detailed technical information, please refer to the official datasheet.
