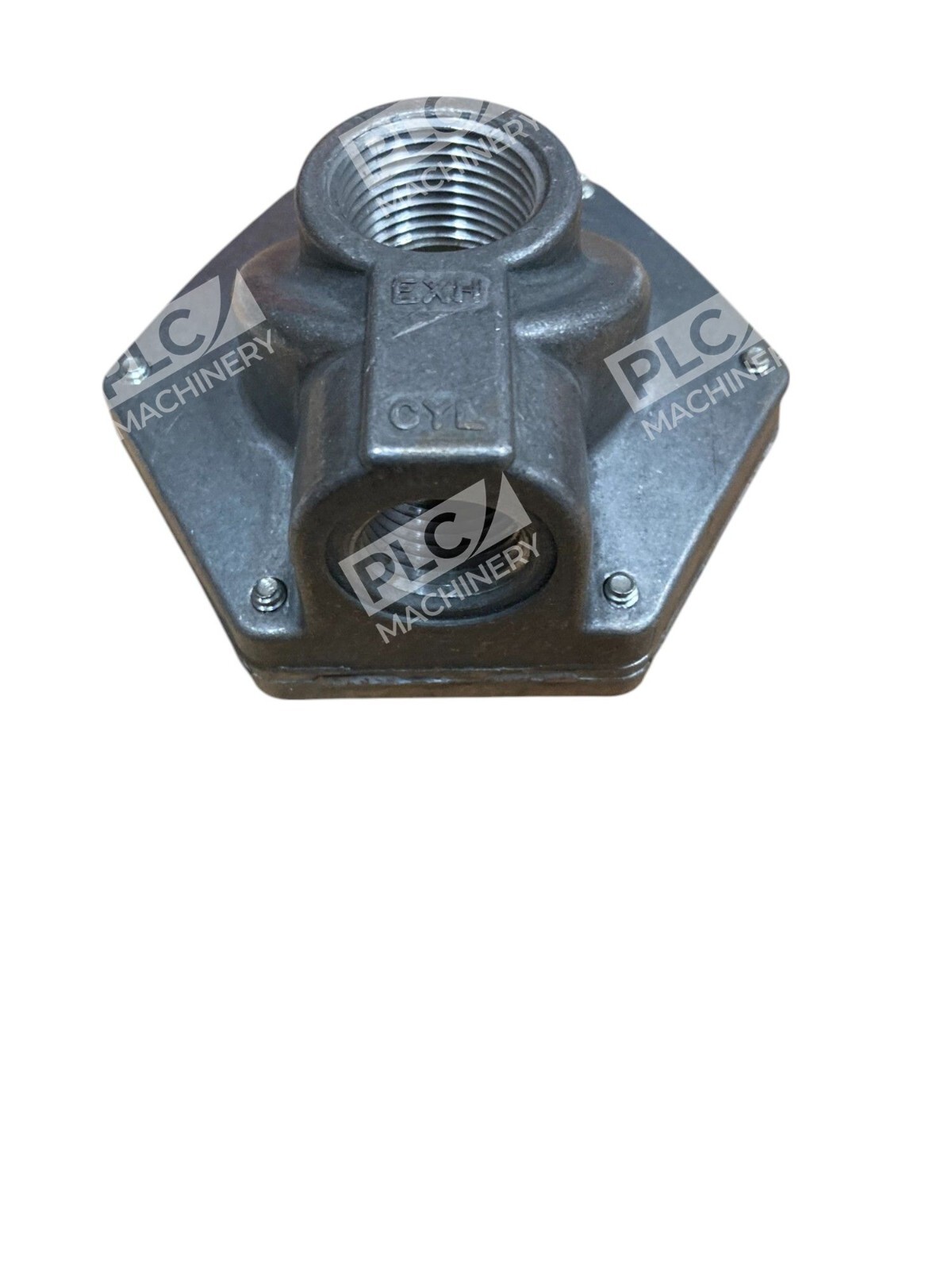

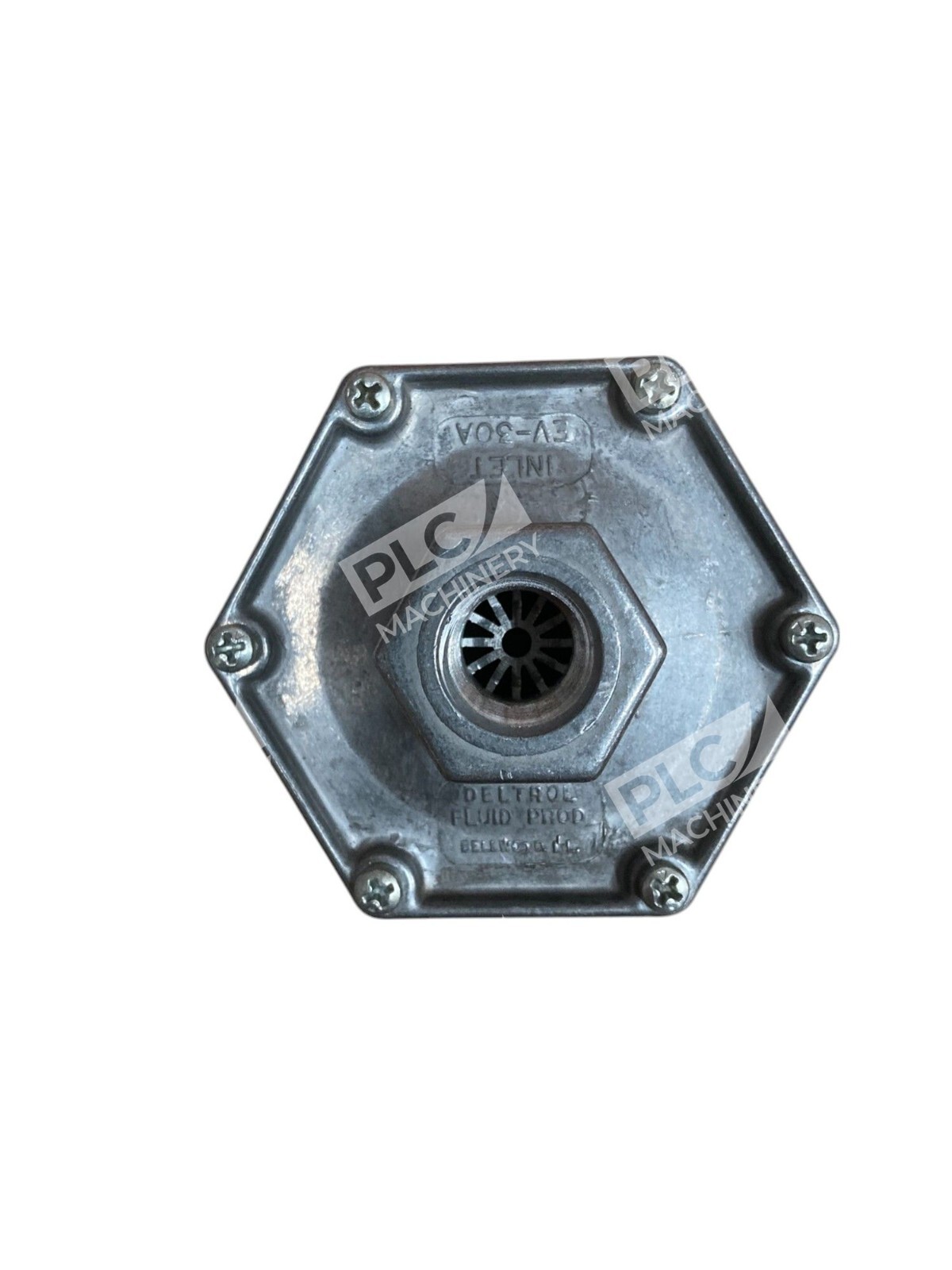

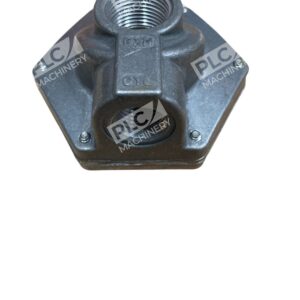

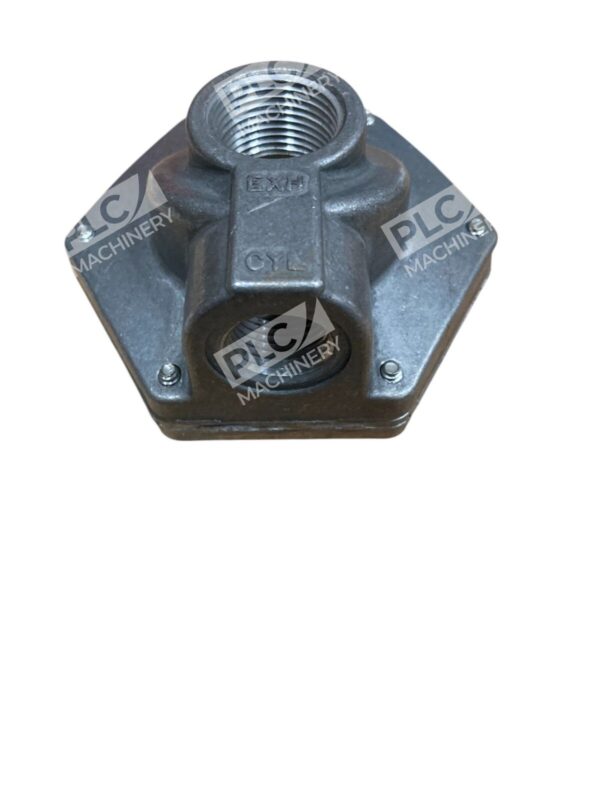

Deltrol Quick Exhaust Valve EV-30A

Deltrol Quick Exhaust Valve EV-30A

The Deltrol Quick Exhaust Valve EV-30A is engineered to enhance the efficiency and speed of pneumatic systems by rapidly expelling exhaust air directly at the cylinder. This design minimizes the need for larger selector valves, allowing for the use of more compact air system components, leading to cost savings and improved operational performance.

Key Features and Benefits

• Instantaneous Air Exhaust: Facilitates the immediate release of exhaust air, enabling the use of smaller valves and piping.
• Enhanced System Efficiency: Accelerates cylinder operation, contributing to smoother and faster performance.
• Cost-Effective Solution: Reduces the necessity for larger, more expensive components, optimizing overall system design.

Specifications

• Maximum Operating Pressure: 125 psi (8.6 bar)
• Flow Coefficient (Cv): 5.45

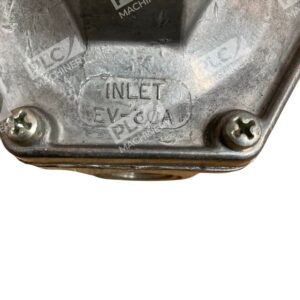

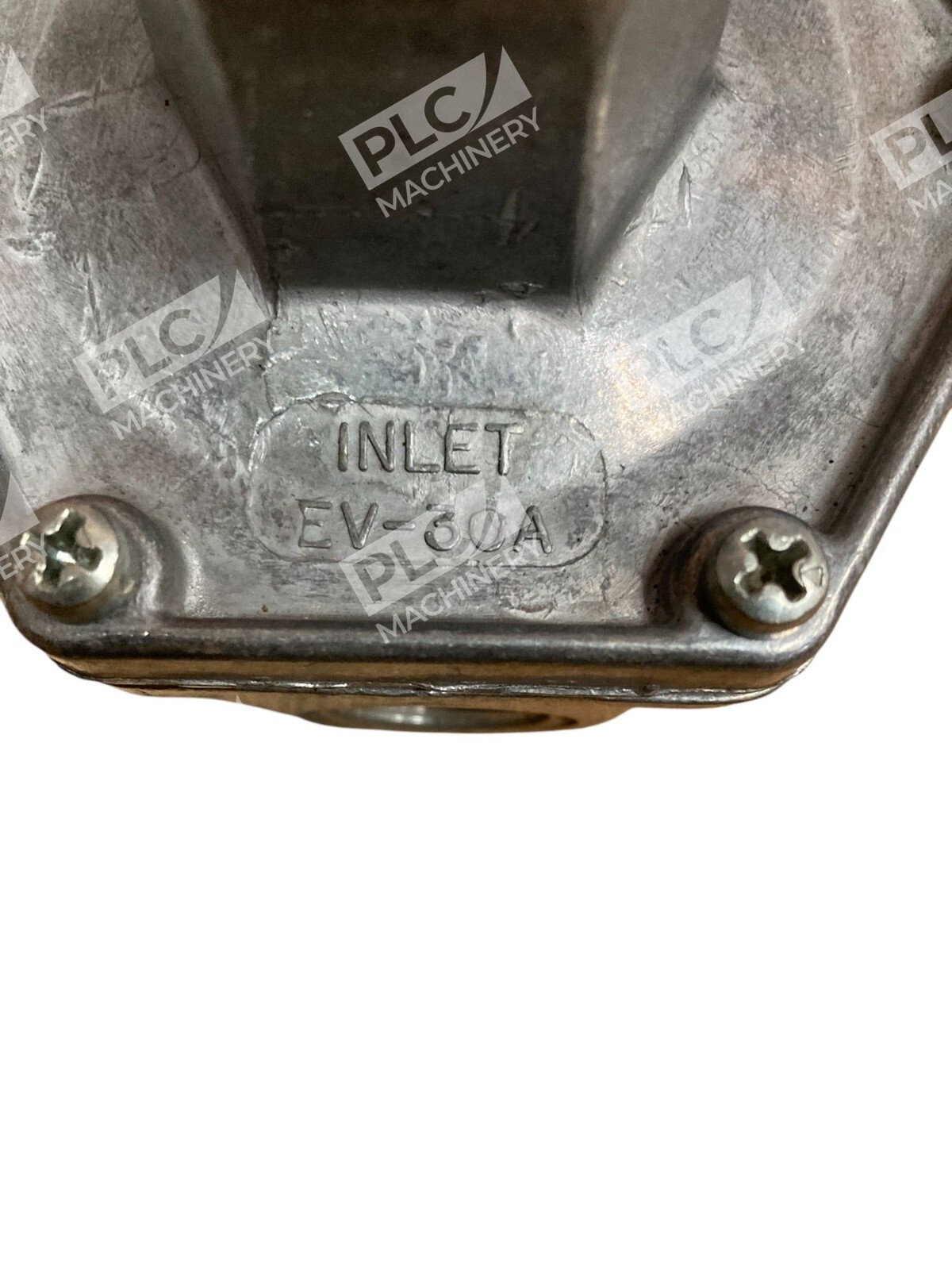

• Port Sizes: Inlet – 1/2″ NPTF; Cylinder – 1/2″ NPTF; Exhaust – 3/4″ NPTF

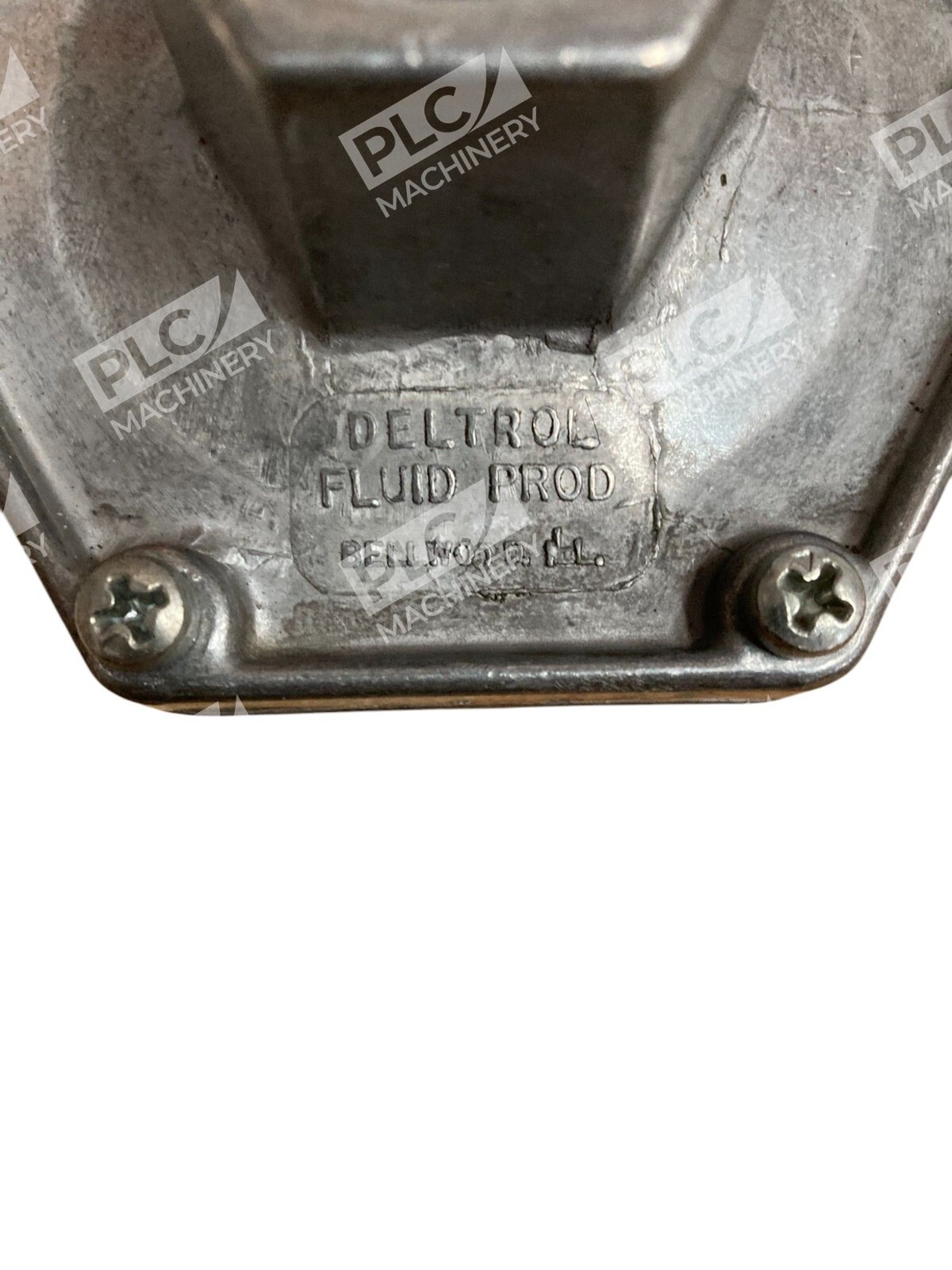

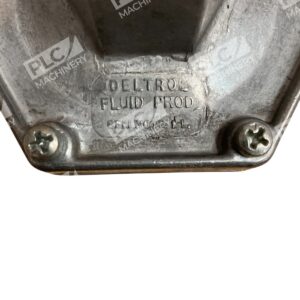

• Material: Die-cast aluminum body and bonnet
• Operating Temperature Range: 0°F to +250°F (-18°C to +120°C) with standard Buna-N seals; 0°F to +400°F (-18°C to +204°C) with optional Viton seals

Design and Construction

The EV-30A features smooth, oversized internal passages that ensure unrestricted airflow and prevent clogging from contaminants. Its exclusive diaphragm design guarantees immediate and complete venting of exhaust air from cylinders, air presses, and other pneumatic equipment, enhancing overall system reliability and performance.

Applications

Ideal for various pneumatic applications, the Deltrol Quick Exhaust Valve EV-30A is suitable for use in air cylinders, presses, and other air-operated machinery where rapid exhaust is essential for optimal operation.
