Dell D305A002L MK9GY 305W Power Supply H305P-00

Dell D305A002L MK9GY 305W Power Supply H305P-00

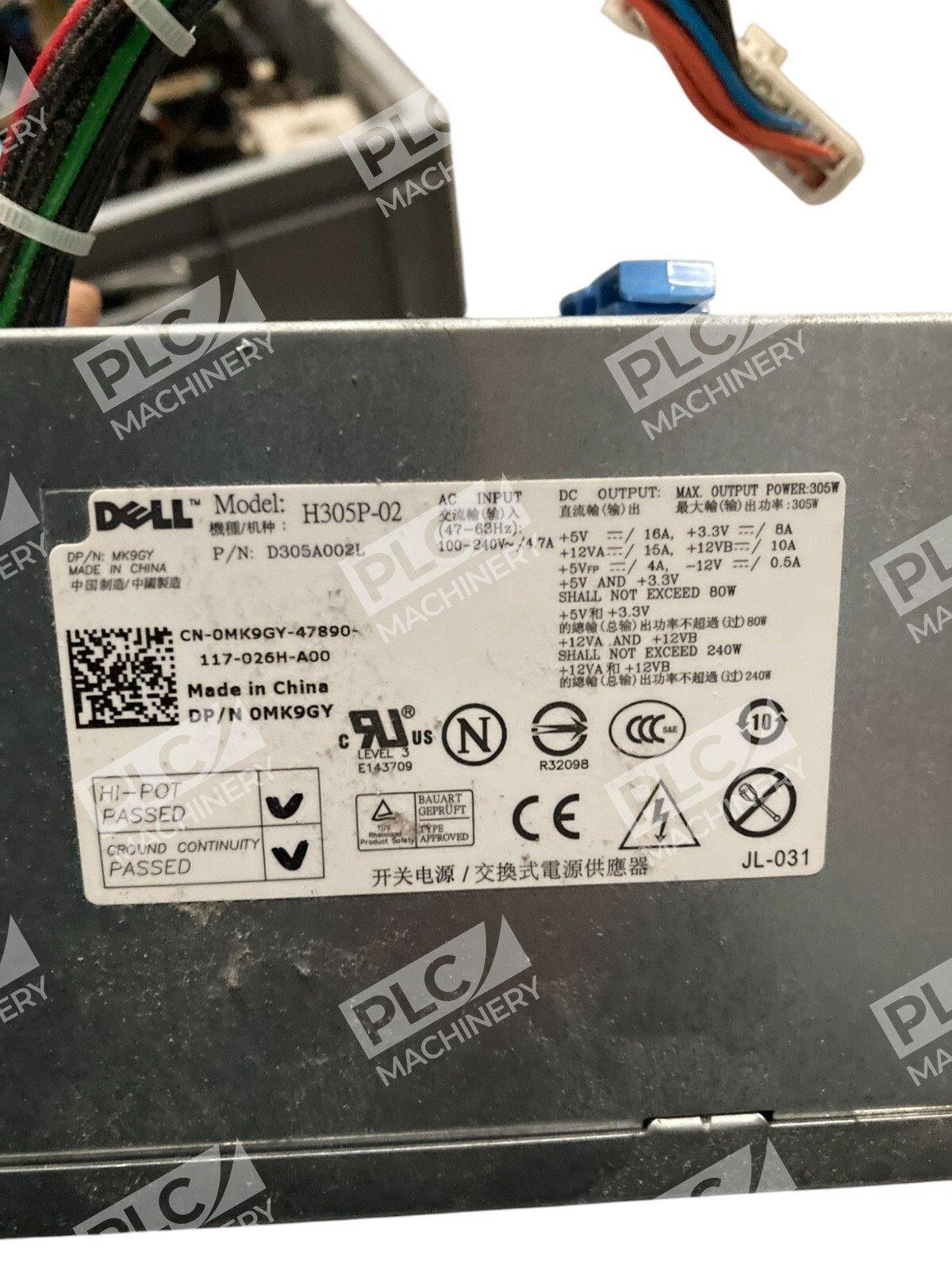

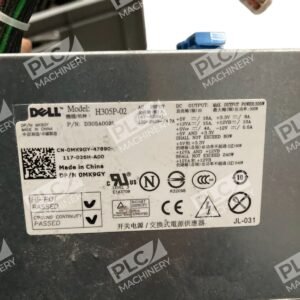

The Dell D305A002L MK9GY 305W Power Supply, model H305P-00, is a reliable and efficient power source designed for various Dell desktop systems. With a maximum output of 305 watts, it ensures stable and consistent performance for your computing needs.

Key Features

• Output Power: 305W
• AC Input:
  • 100-120V~ / 9.0A 50/60Hz
  • 200-240V~ / 4.5A
• DC Output:
  • +5V: 22.0A
  • -12V: 1.0A
  • +12VA: 18.0A
  • +3.3V: 17.0A
  • +12VB: 18.0A
  • +5VFP: 4.0A
• Dimensions: 150mm x 98mm x 140mm

Connector Details

• 1 x 24-Pin ATX Connector (P1)
• 1 x 4-Pin ATX +12V Power Connector (P2)
• 4 x SATA Connectors
• 1 x Floppy Drive (FDD) Connector (P7)

Compatible Dell Models

This power supply is compatible with a range of Dell systems, including but not limited to:

• Dell Dimension E310
• Dell Dimension E510
• Dell Dimension E520
• Dell Dimension E521
• Dell OptiPlex 320 Mini Tower (MT)
• Dell OptiPlex 330 Mini Tower (MT)
• Dell OptiPlex 580 Mini Tower (MT)
• Dell OptiPlex 740 Mini Tower (MT)
• Dell OptiPlex 745 Mini Tower (MT)
• Dell OptiPlex 755 Mini Tower (MT)
• Dell OptiPlex 760 Mini Tower (MT)
• Dell OptiPlex 780 Mini Tower (MT)
• Dell OptiPlex 960 Mini Tower (MT)

Ensure compatibility with your specific Dell model before installation to guarantee optimal performance.
