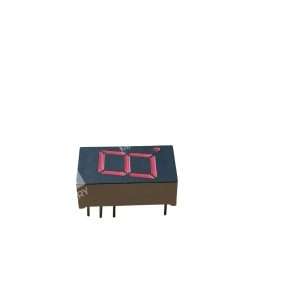

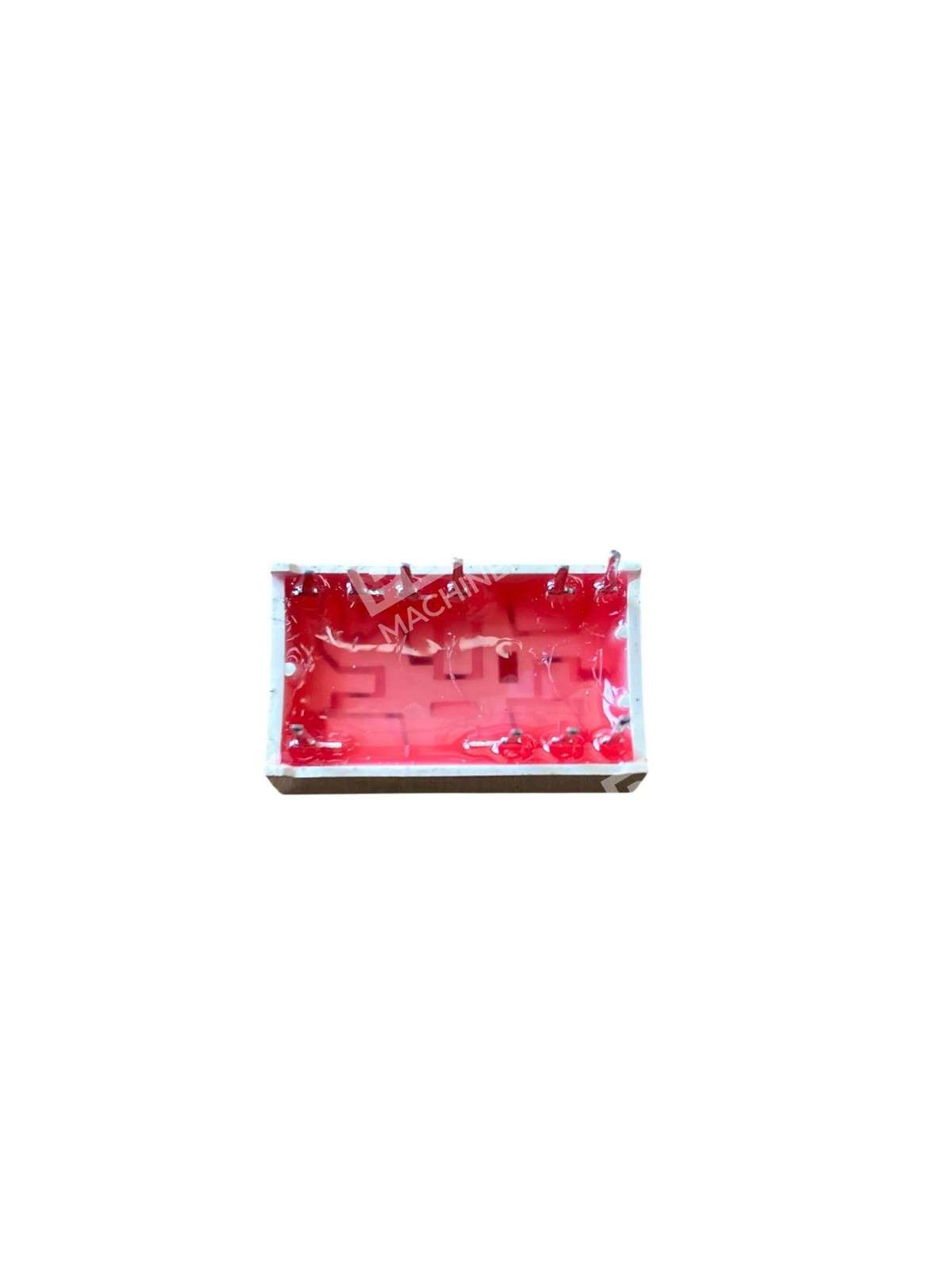

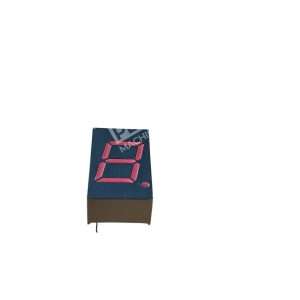

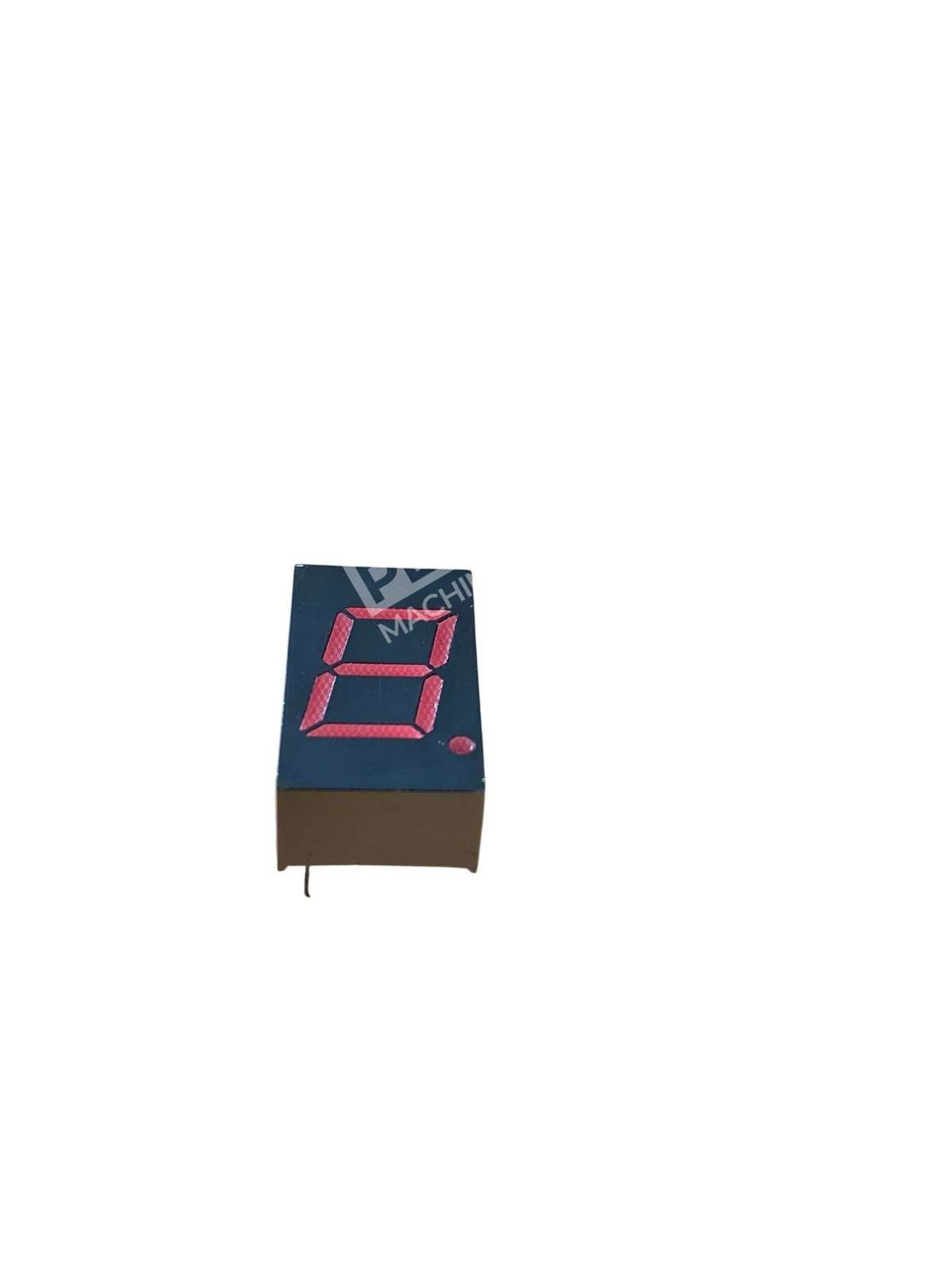

Dan-Mar LN514RA Red 7-Segment LED Display
The Dan-Mar LN514RA is a single-digit, 7-segment LED display designed for clear and efficient numeric readouts in various electronic applications. Featuring a vibrant red illumination, this component ensures high visibility and readability.
Key Features
- Digit Size: 0.43 inches (11.00mm)
- Display Type: 7-segment
- Color: Red
- Common Pin Configuration: Common Anode
- Forward Voltage (Typical): 2.2V
- Test Current: 20mA
- Millicandela Rating: 0.45mcd
- Peak Wavelength: 700nm
- Power Dissipation (Maximum): 60mW
- Package Type: 14-DIP
- Dimensions: 0.748″ H x 0.433″ W x 0.256″ D (19.00mm x 11.00mm x 6.50mm)
Applications
The LN514RA is ideal for use in:
- Industrial control systems
- Instrumentation panels
- Consumer electronics
- Digital clocks and timers
- Process control displays
Its compact size and efficient power consumption make it suitable for devices requiring clear numeric displays in limited spaces.
Technical Specifications
| Parameter | Value |
|---|---|
| Digit Size | 0.43″ (11.00mm) |
| Display Type | 7-Segment |
| Color | Red |
| Common Pin | Common Anode |
| Forward Voltage (Vf) (Typ) | 2.2V |
| Current – Test | 20mA |
| Millicandela Rating | 0.45mcd |
| Wavelength – Peak | 700nm |
| Power Dissipation (Max) | 60mW |
| Package / Case | 14-DIP |
| Size / Dimension | 0.748″ H x 0.433″ W x 0.256″ D (19.00mm x 11.00mm x 6.50mm) |
The Dan-Mar LN514RA combines reliability and performance, making it a valuable component for a wide range of electronic display applications.
