Cutler Hammer H2006B-3 Heater Pack Freedom Series Set of Three

Cutler Hammer H2006B-3 Heater Pack Freedom Series Set of Three

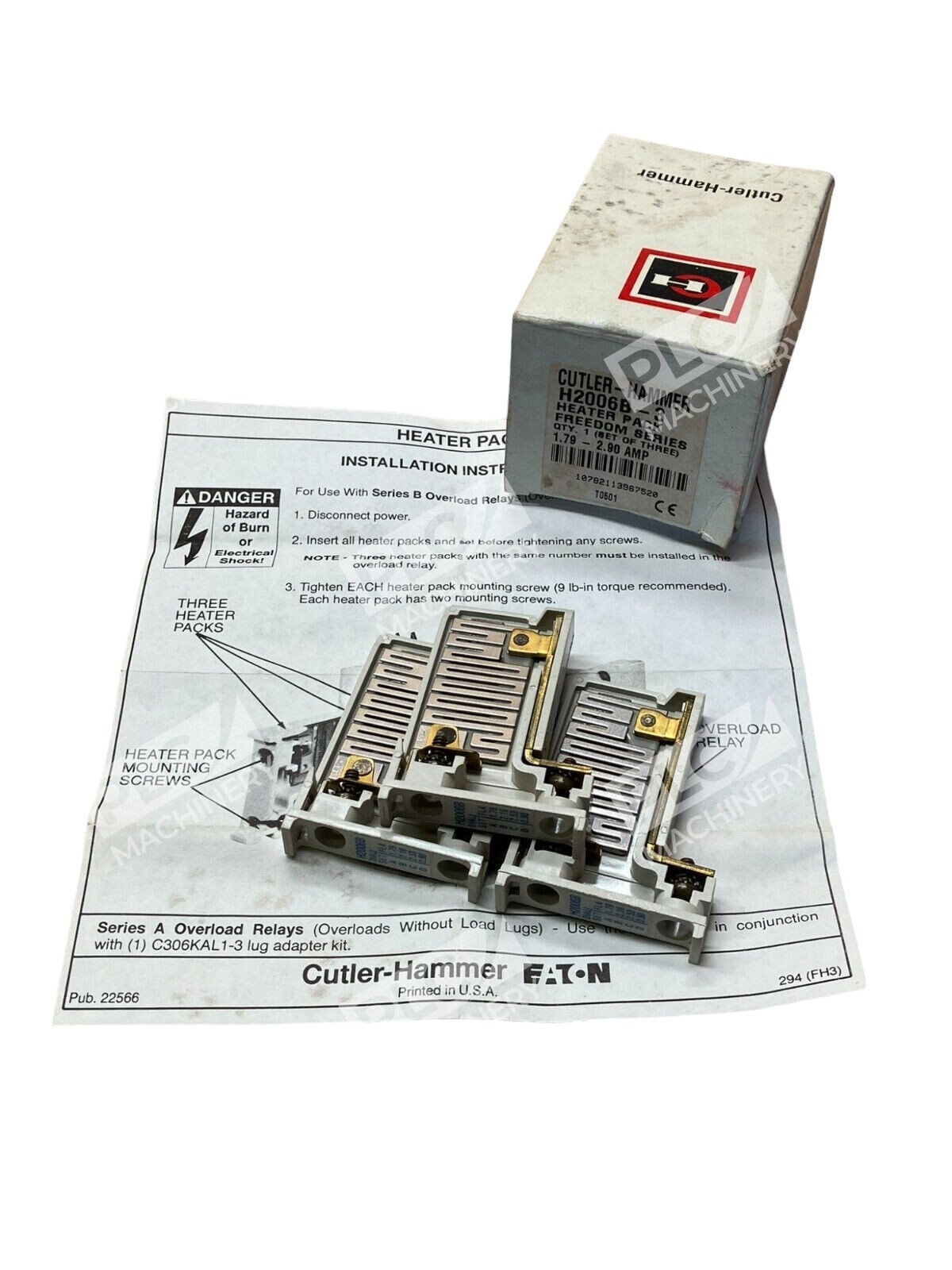

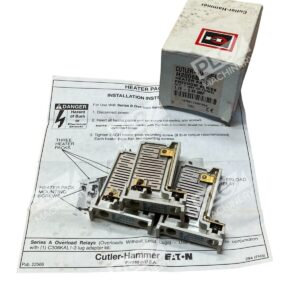

The Cutler Hammer H2006B-3 Heater Pack is a reliable solution for thermal overload protection in motor control systems. Designed for use with Eaton’s Freedom Series motor starters, this set includes three heater elements, ensuring comprehensive coverage for three-phase motors.

Key Features

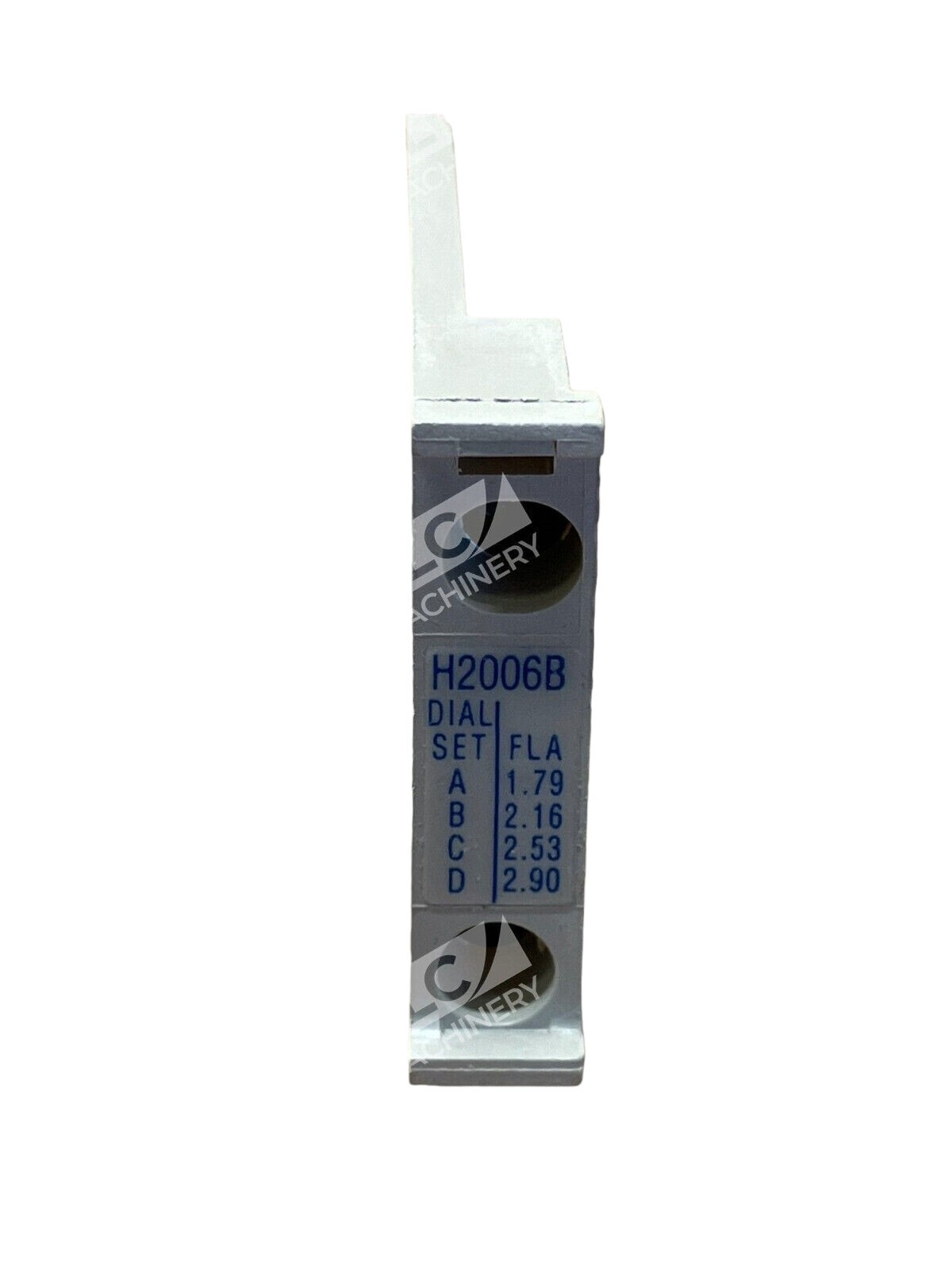

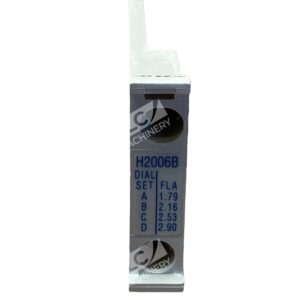

• Adjustable Full Load Current Range: Each heater element offers dial positions A, B, C, and D, corresponding to full load amperes of 1.79A, 2.16A, 2.53A, and 2.9A, respectively. ([eaton.com](https://www.eaton.com/us/en-us/skuPage.H2006B-3.html?utm_source=openai))
• Standard Trip, Class 20: Provides consistent and reliable protection with a standard trip time, suitable for a wide range of motor applications. ([eaton.com](https://www.eaton.com/us/en-us/skuPage.H2006B-3.html?utm_source=openai))
• Compatibility: Designed for use with Eaton’s Freedom Series motor starters, including NEMA sizes 00-0 (Series C), sizes 1-2, 5-8 (Series B), and IEC sizes A-F (Series C), G-K (Series B), P-X, and Z. ([eaton.com](https://www.eaton.com/us/en-us/skuPage.H2006B-3.html?utm_source=openai))
• Overload Relay Compatibility: Compatible with 32A and 75A overload relays, offering flexibility in various motor control setups. ([eaton.com](https://www.eaton.com/us/en-us/skuPage.H2006B-3.html?utm_source=openai))
• Compact Dimensions: Each heater element measures 1.7 inches in length, 1.8 inches in width, and 3.3 inches in height, with a weight of 0.2 lb, facilitating easy installation and integration into existing systems. ([eaton.com](https://www.eaton.com/us/en-us/skuPage.H2006B-3.html?utm_source=openai))

Applications

The H2006B-3 Heater Pack is ideal for protecting three-phase motors in various industrial applications, including HVAC systems, pumps, conveyors, and other machinery requiring reliable thermal overload protection.

Installation and Usage

Installation is straightforward, with the heater elements designed to be mounted directly onto compatible overload relays. The adjustable dial positions allow for precise calibration to match the motor’s full load amperes, ensuring optimal protection and performance.

By incorporating the Cutler Hammer H2006B-3 Heater Pack into your motor control systems, you can enhance the safety and longevity of your equipment, minimizing downtime and maintenance costs.
