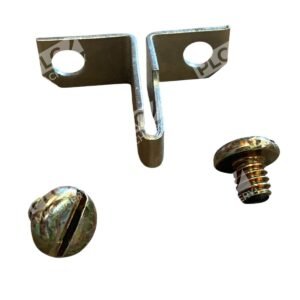

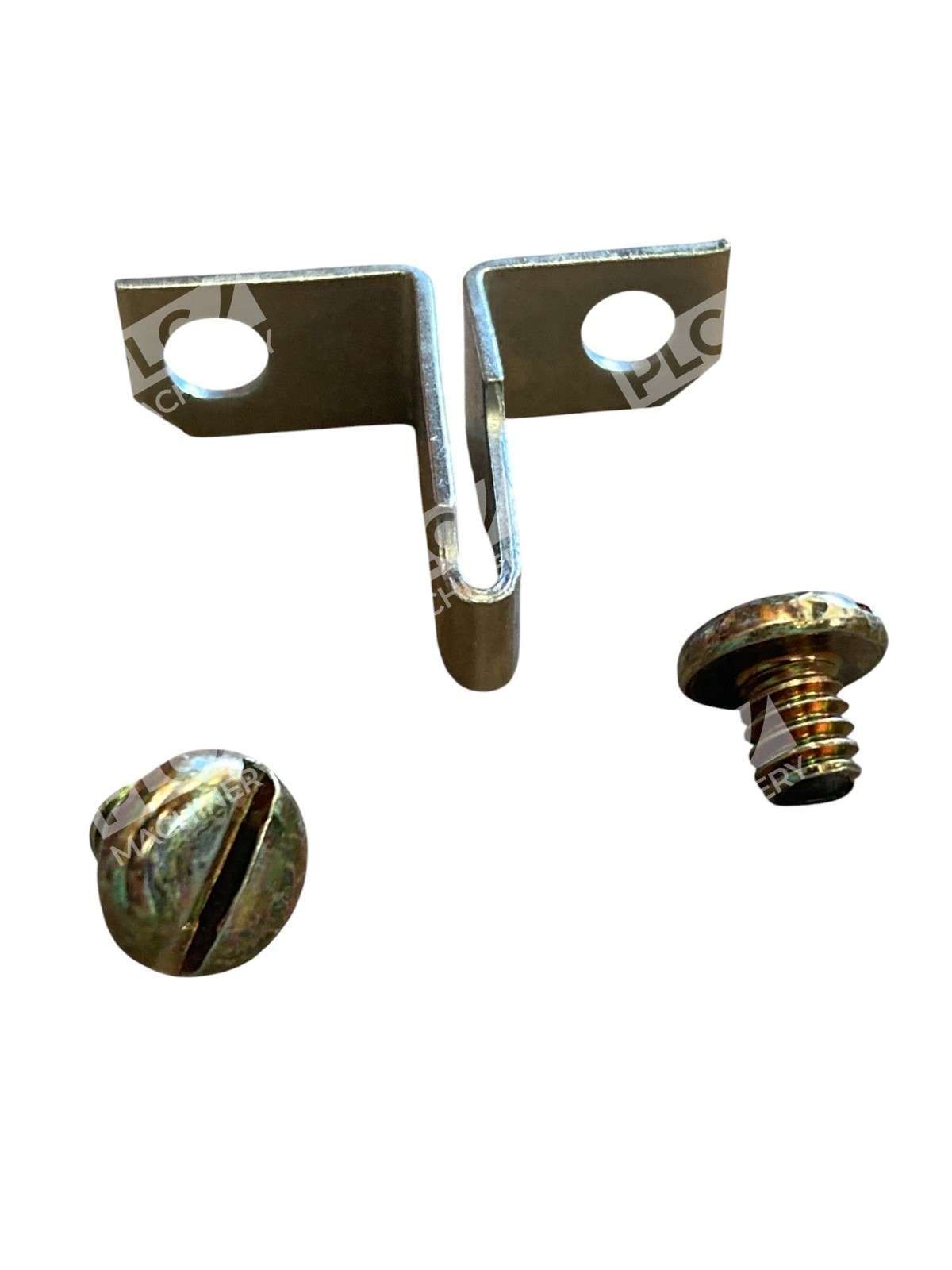

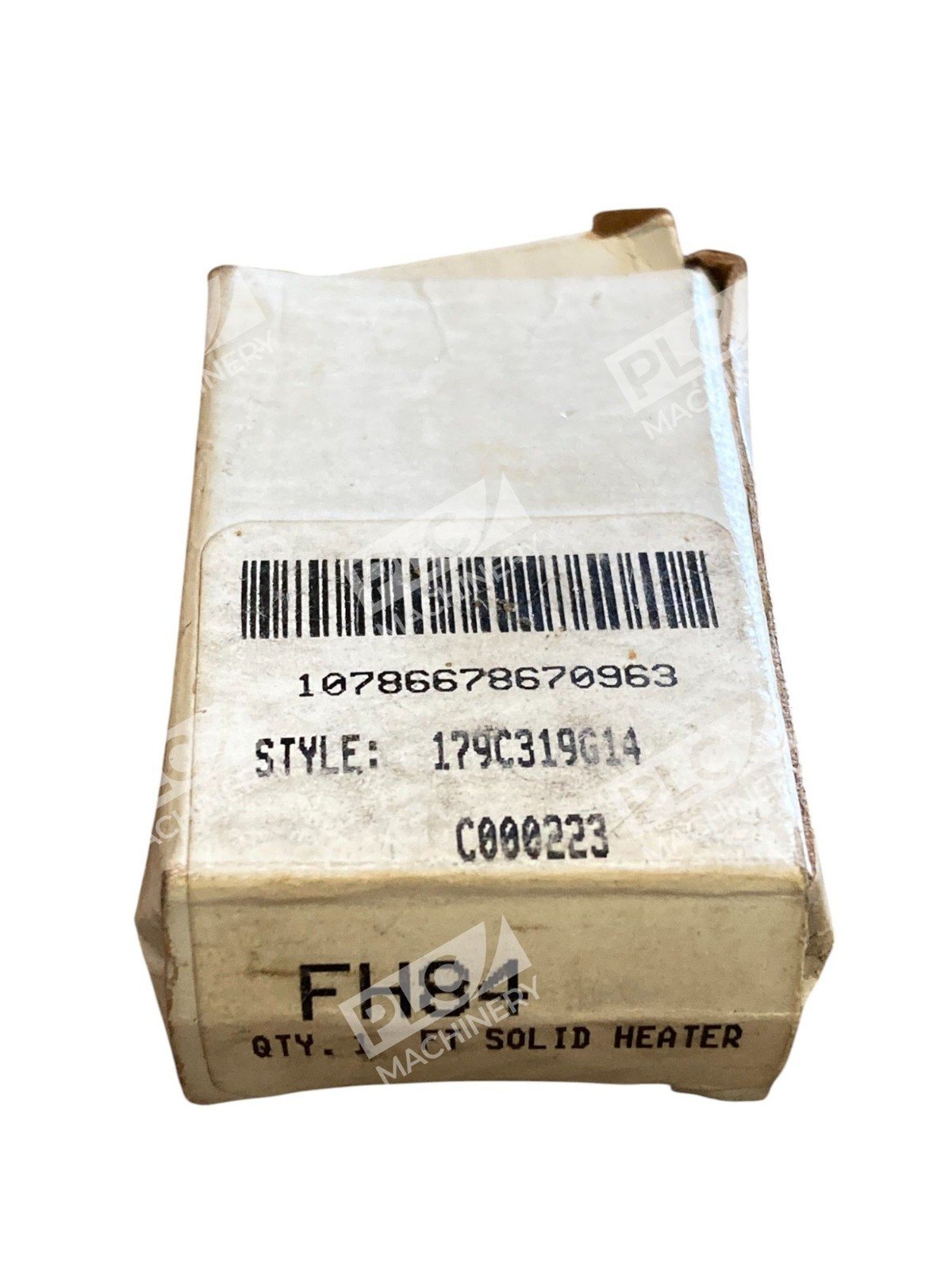

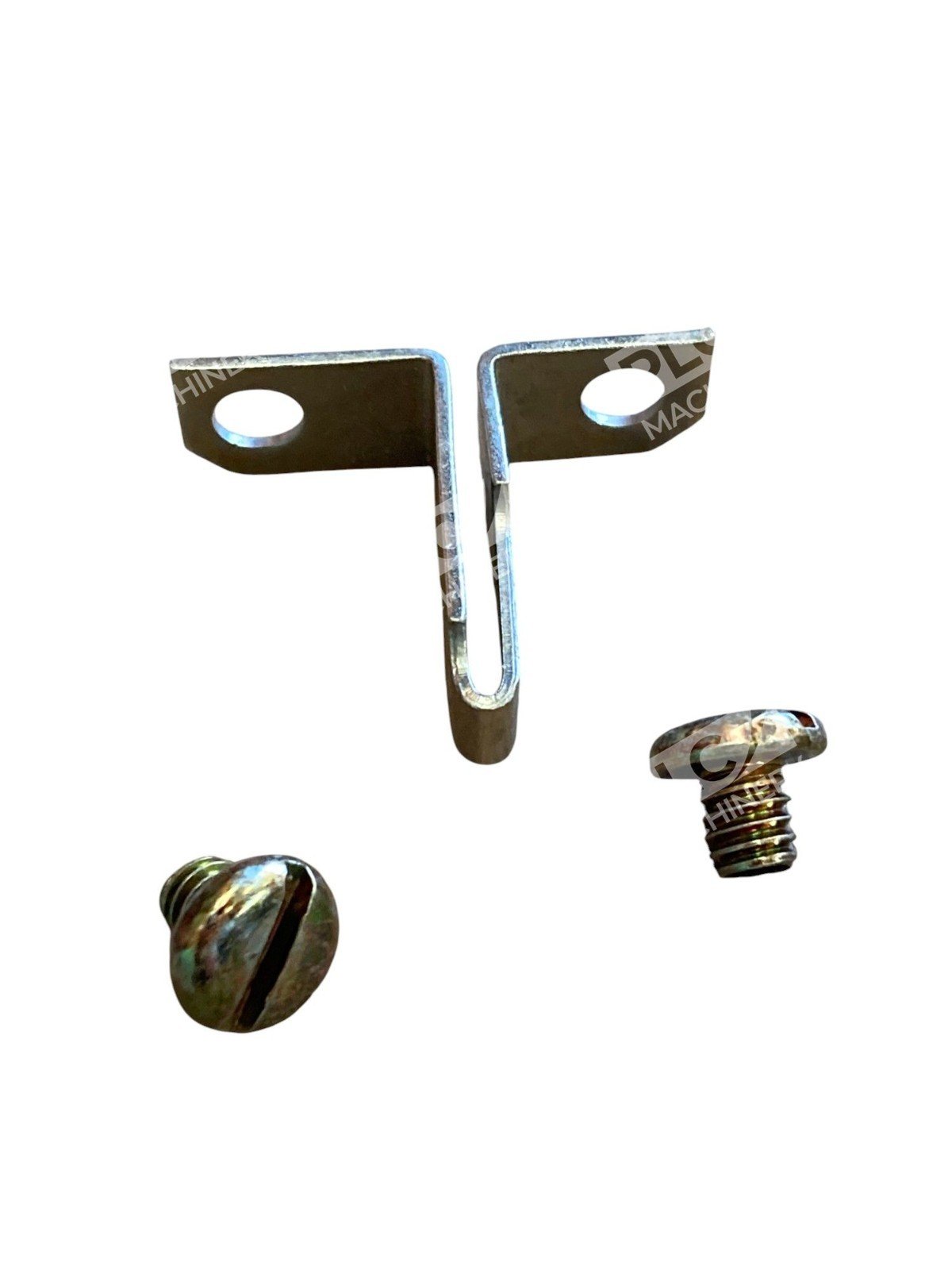

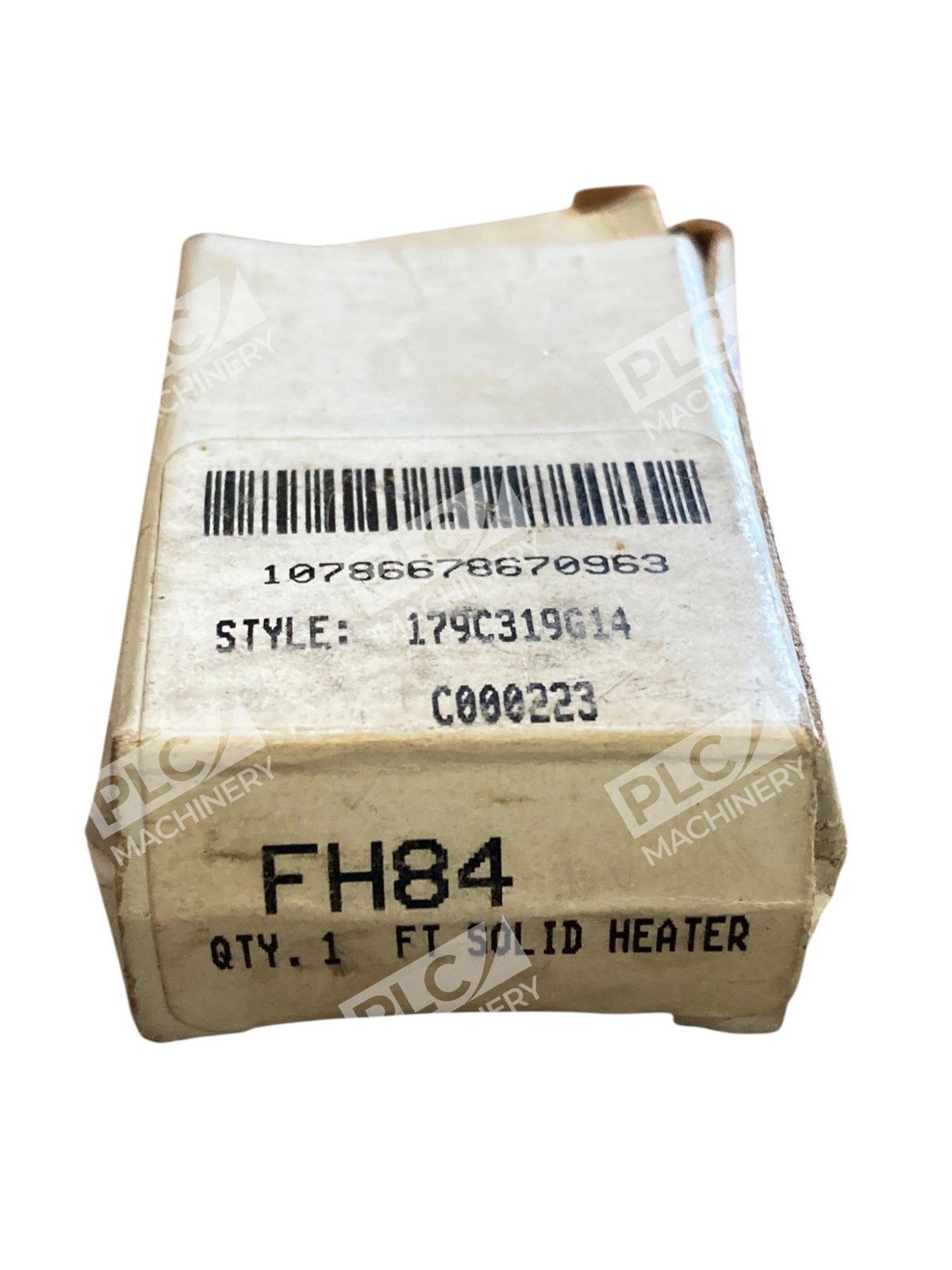

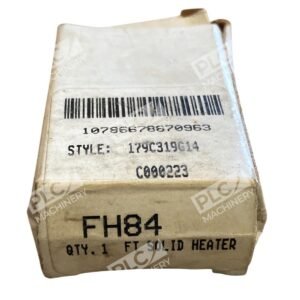

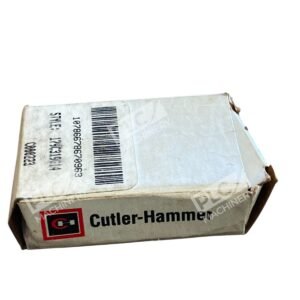

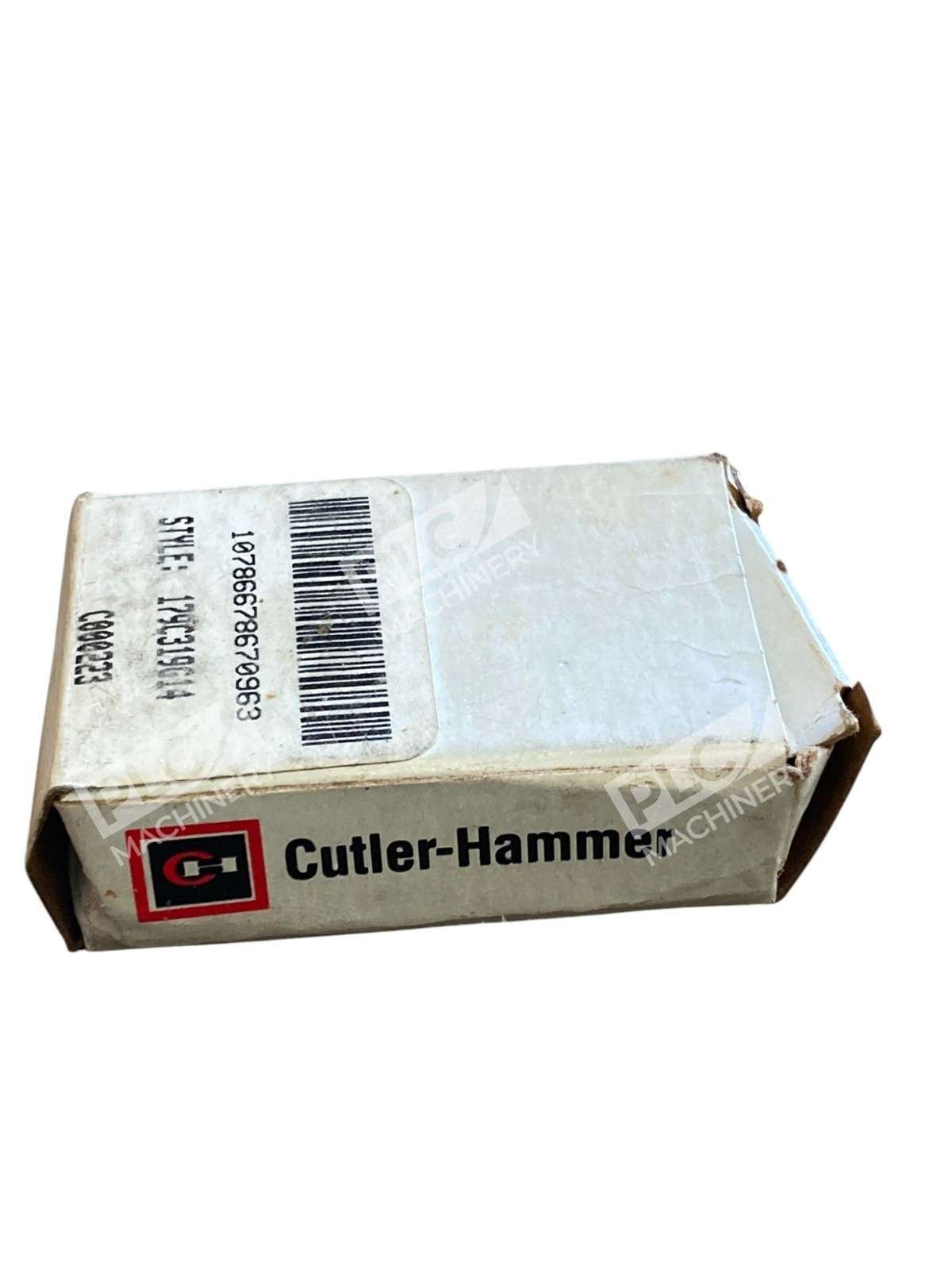

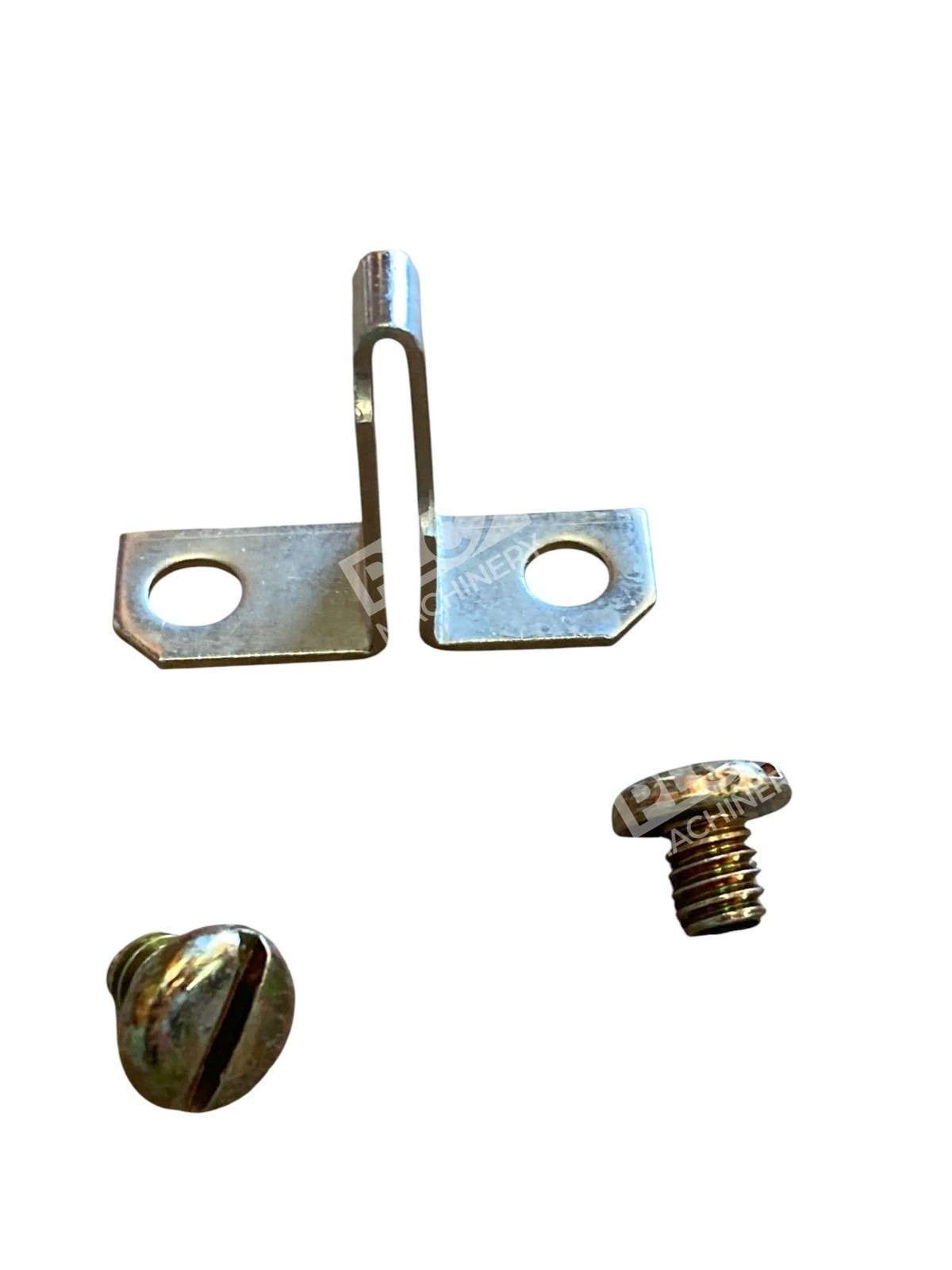

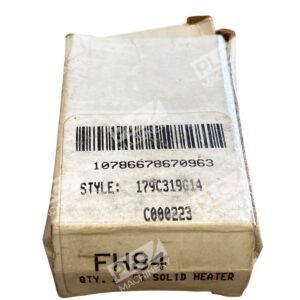

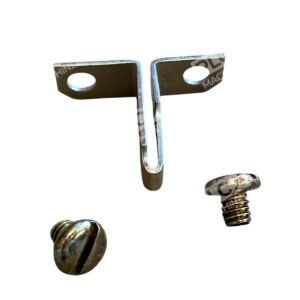

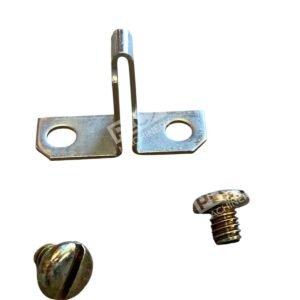

CUTLER HAMMER FH84 Overload Relay Solid Heater 179C319G14

The Cutler-Hammer FH84 Overload Relay Solid Heater, catalog number 179C319G14, is a thermal fast-trip heater element designed to provide reliable motor protection in industrial applications.

Key Features

• Thermal Fast-Trip Mechanism: Ensures rapid response to overcurrent conditions, safeguarding motors from potential damage.
• Full Load Current Range: Suitable for motors with a full load current (FLA) between 62 to 66 amperes.
• NEMA Size Compatibility: Compatible with NEMA Size 3 and 4 enclosed starters, offering versatility across various motor control setups.
• Overload Relay Compatibility: Designed for use with Type A and B overload relays, ensuring seamless integration into existing systems.
• Certifications: UL Listed and CSA Certified, meeting stringent safety and performance standards.

Specifications

• Trip Type: Thermal, Fast
• Motor FLA: 62 to 66 Amperes
• NEMA Size: 3, 4 (Enclosed)
• Approval: UL, CSA
• Used On: Type A and B Overload Relay

Installation and Usage

The FH84 heater element is engineered to protect motors with a 40°C rise and a service factor of 1.15. For optimal performance, ensure that the motor and controller are operating within the same ambient temperature. If the ambient temperature of the controller is lower or higher than the motor by 26°C, it is recommended to use one size smaller or larger coil, respectively. The ultimate tripping current of the heater coils is approximately 1.25 times the minimum current rating, providing an added layer of protection against overcurrent scenarios.

Incorporating the Cutler-Hammer FH84 Overload Relay Solid Heater into your motor control system enhances operational safety and reliability, ensuring prolonged equipment lifespan and reduced downtime.
