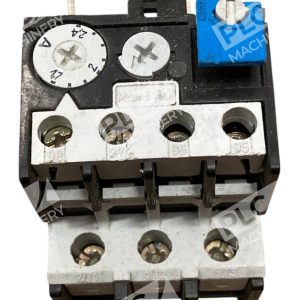

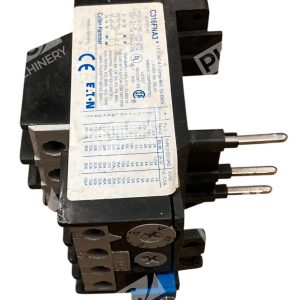

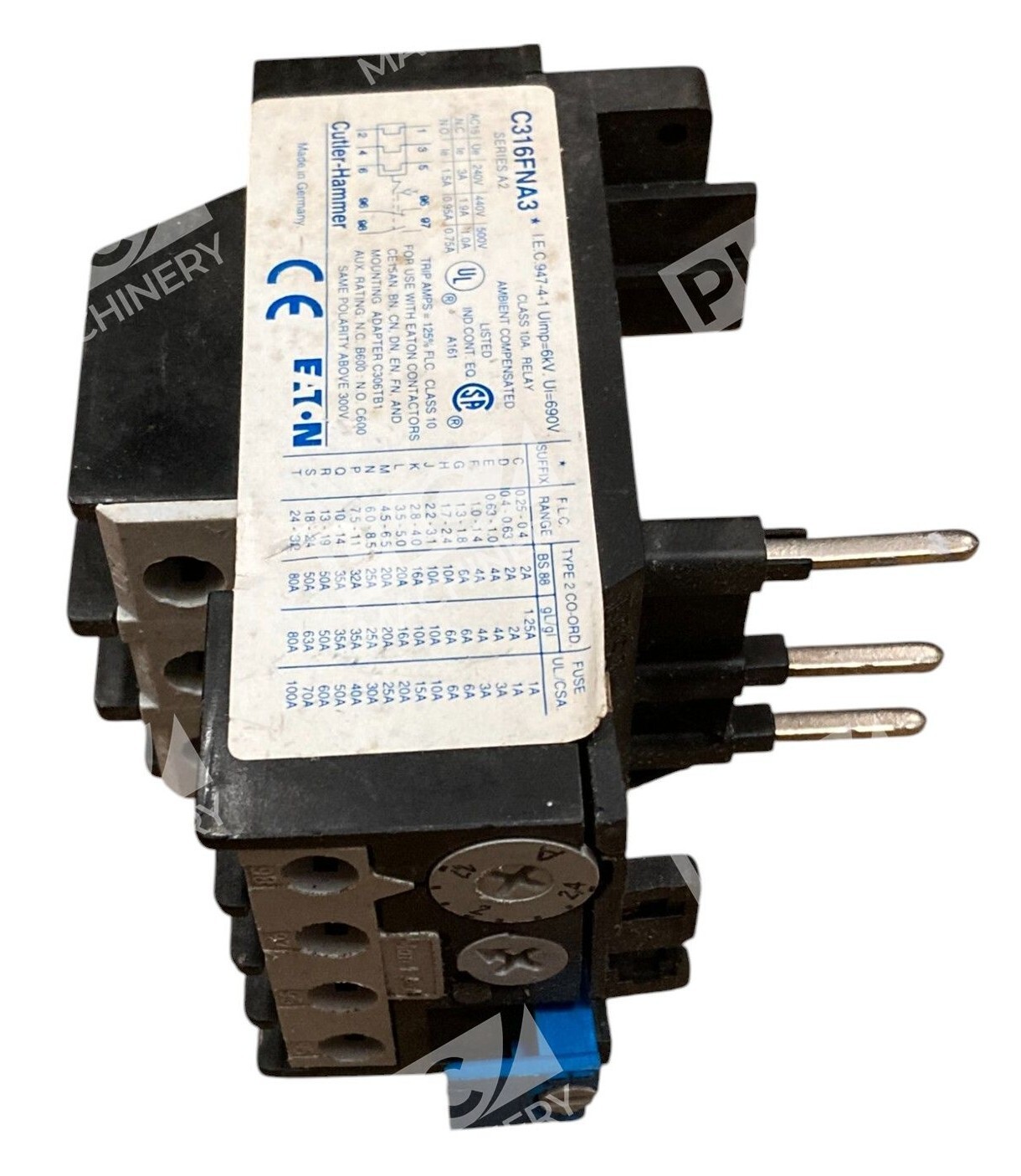

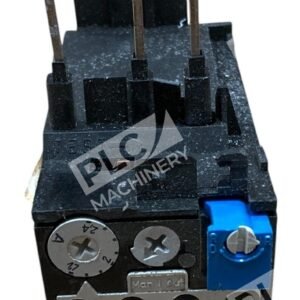

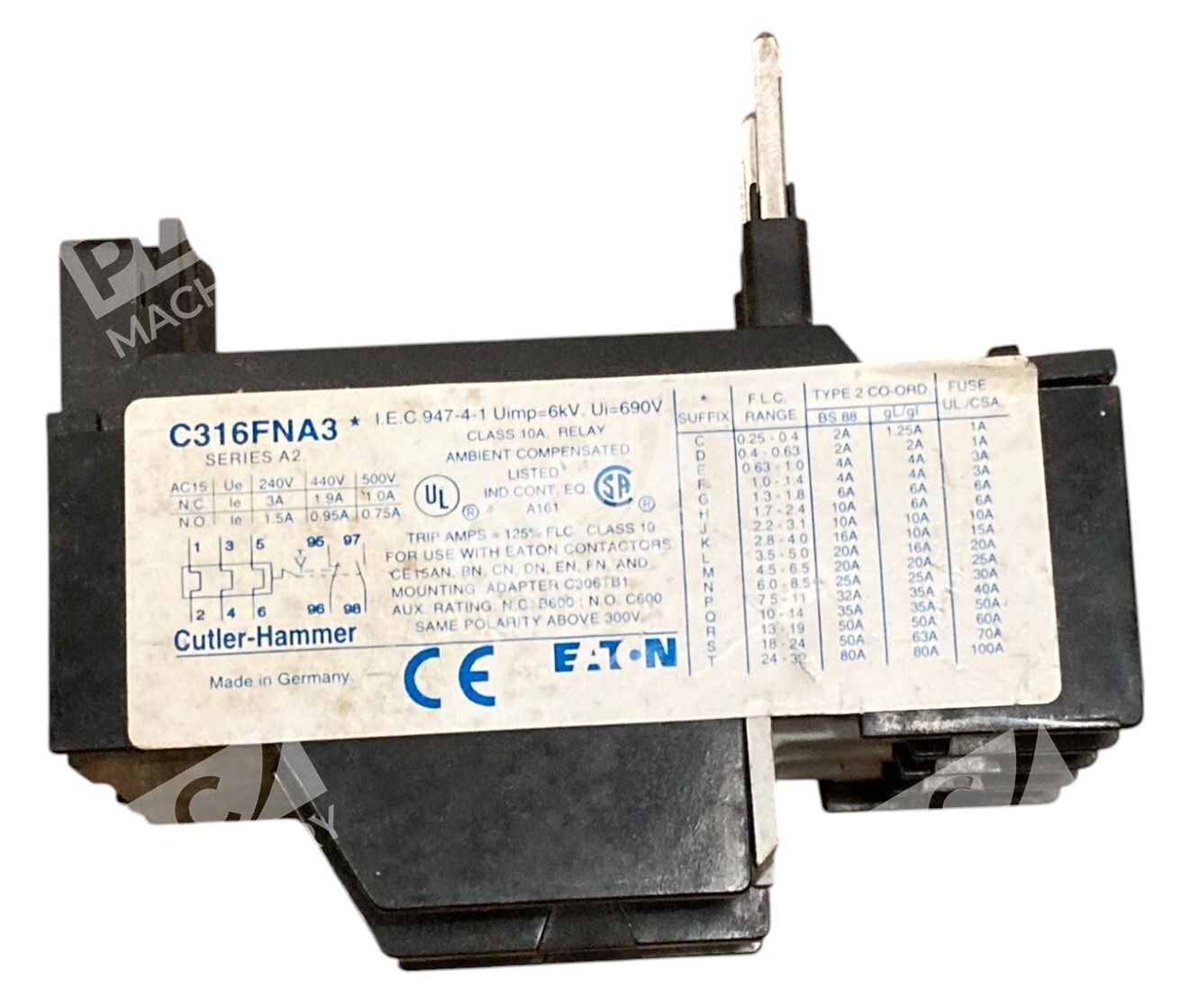

Cutler Hammer Eaton 1.7-2.4A Class 10A Relay 690V Overload Relay C316FNA3 /A2

Cutler Hammer Eaton 1.7-2.4A Class 10A 690V Overload Relay C316FNA3 /A2

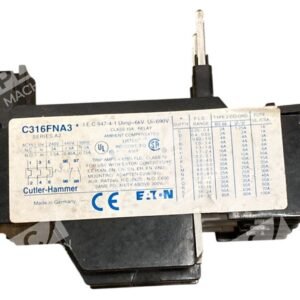

The Cutler Hammer Eaton C316FNA3 /A2 is a thermal overload relay designed to provide reliable protection for electrical circuits by preventing damage caused by overload conditions. This relay is engineered to work seamlessly with Eaton’s contactors, ensuring optimal performance in industrial applications.

Key Features

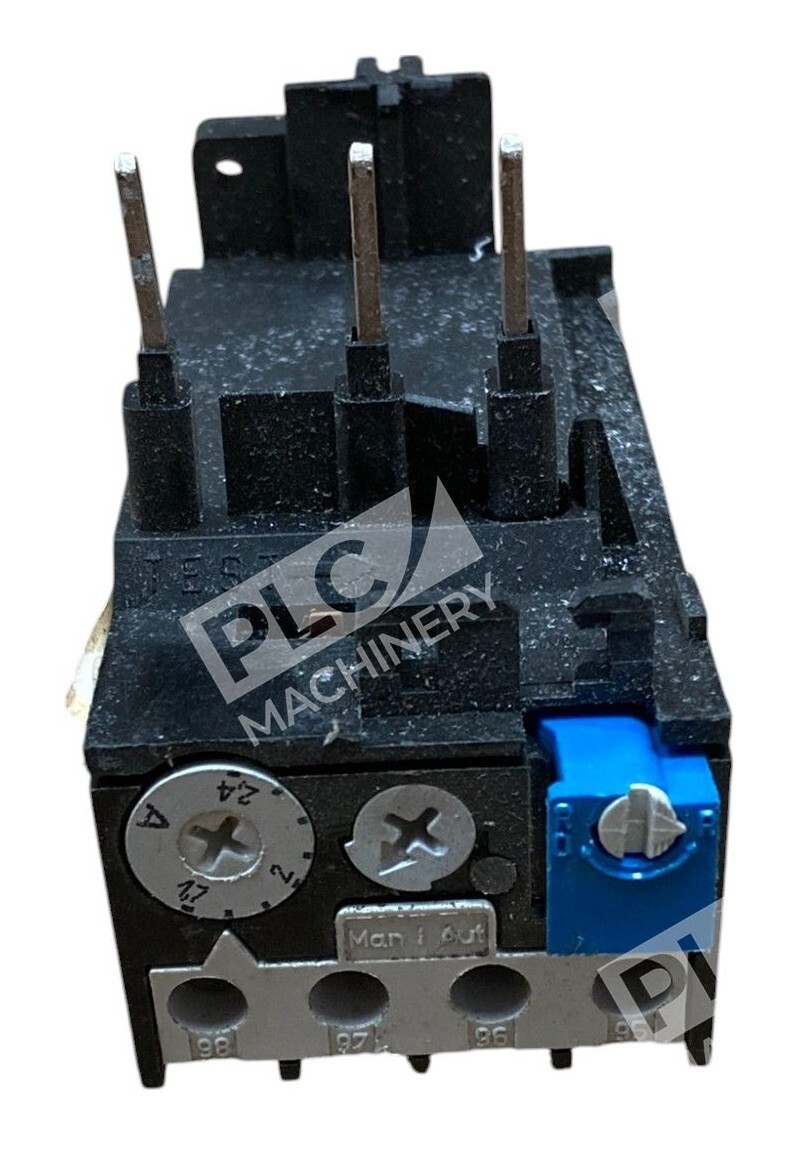

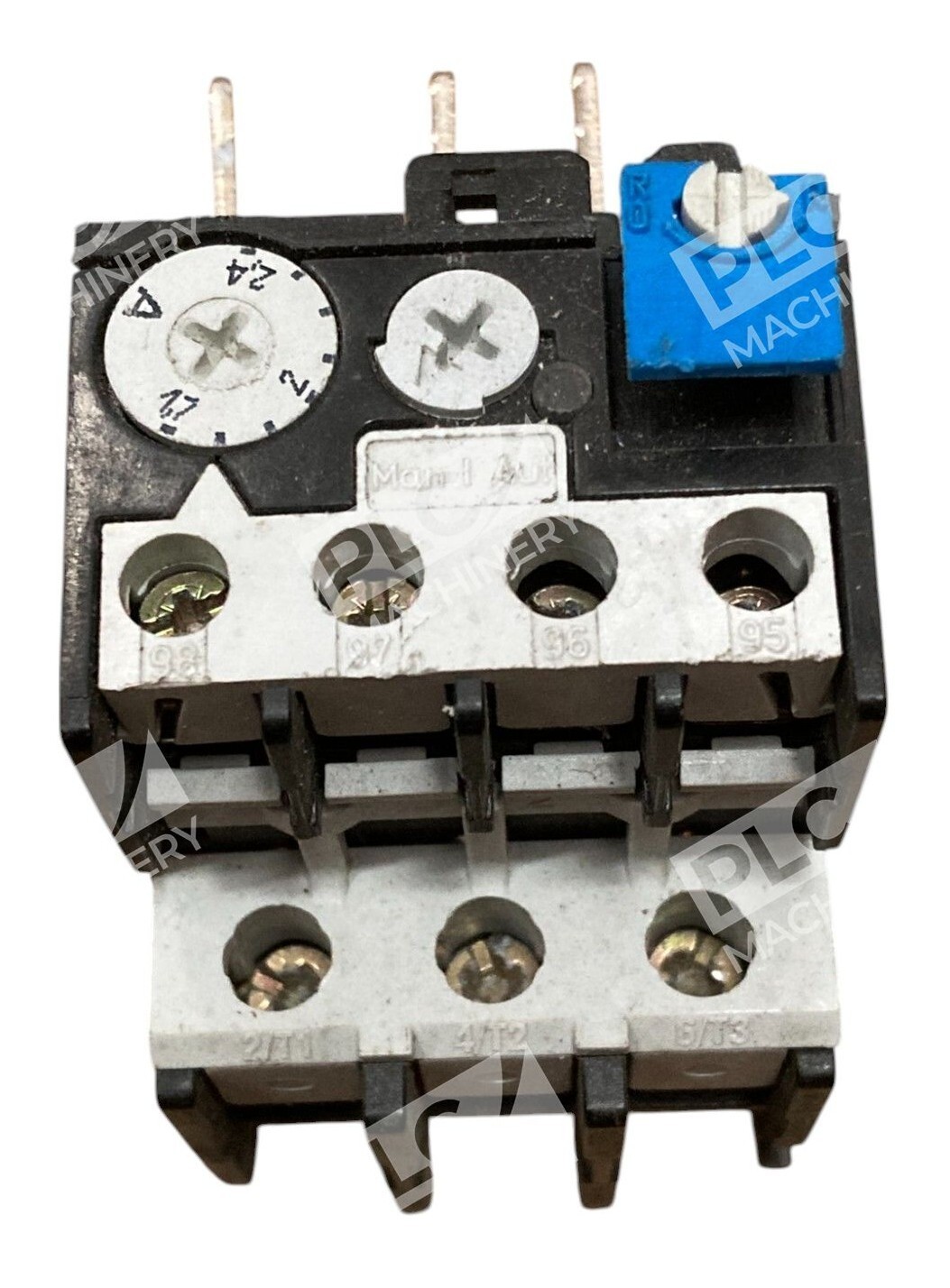

• Adjustable Current Range: The relay offers an adjustable full load current (FLC) setting between 1.7 to 2.4 amperes, allowing for precise calibration to match specific motor requirements.
• Voltage Rating: With a rated operational voltage of up to 690V, the C316FNA3 /A2 is suitable for high-voltage applications, providing versatility across various industrial settings.
• Class 10A Trip Characteristics: Designed with Class 10A trip characteristics, the relay ensures rapid response to overload conditions, typically tripping within 10 seconds at 600% of the motor’s full load current.
• Ambient Temperature Compensation: The relay is ambient temperature compensated, maintaining accurate protection levels despite fluctuations in surrounding temperatures.

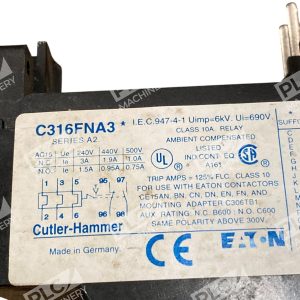

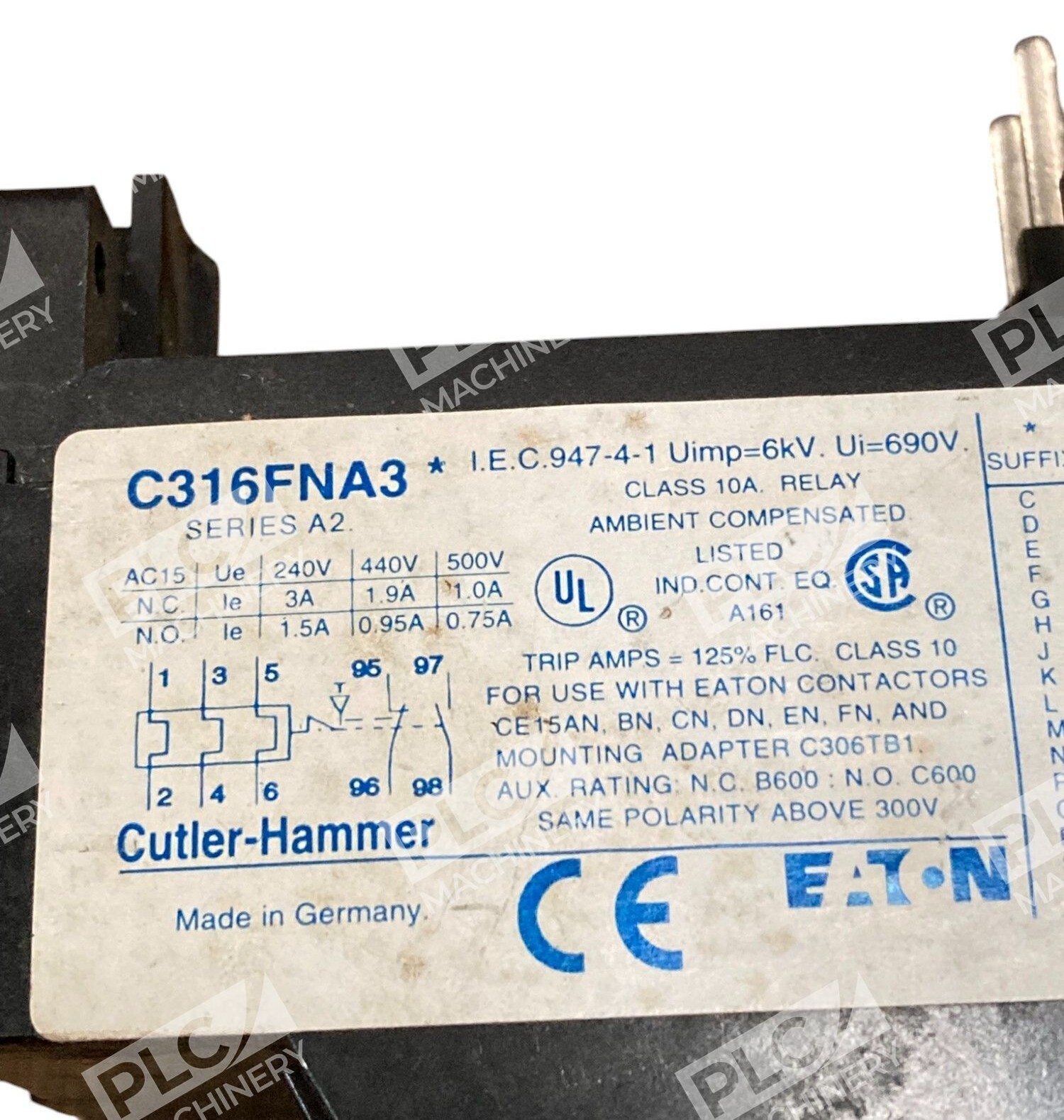

• Auxiliary Contacts: Equipped with one normally open (NO) and one normally closed (NC) auxiliary contact, rated at B600 for NC and C600 for NO, facilitating integration into control circuits.
• Compatibility: Specifically designed for use with Eaton’s CE15AN, BN, CN, DN, EN, FN contactors, and compatible with mounting adapter C306TB1, ensuring easy installation and compatibility.

Applications

The C316FNA3 /A2 overload relay is ideal for protecting motors and other electrical equipment in various industrial applications, including manufacturing plants, processing facilities, and other environments where reliable motor protection is essential.

Specifications

• Manufacturer: Eaton Cutler-Hammer
• Model Number: C316FNA3 /A2
• Current Range: 1.7 – 2.4 A
• Voltage Rating: 690V
• Trip Class: 10A
• Auxiliary Contacts: 1 NO (C600), 1 NC (B600)
• Compatibility: CE15AN, BN, CN, DN, EN, FN contactors; C306TB1 mounting adapter

This overload relay is a dependable solution for safeguarding electrical systems against overload conditions, ensuring the longevity and efficiency of your equipment.
