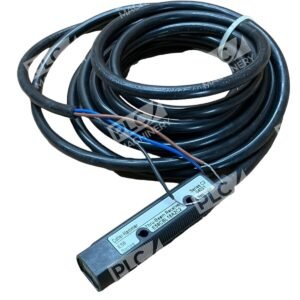

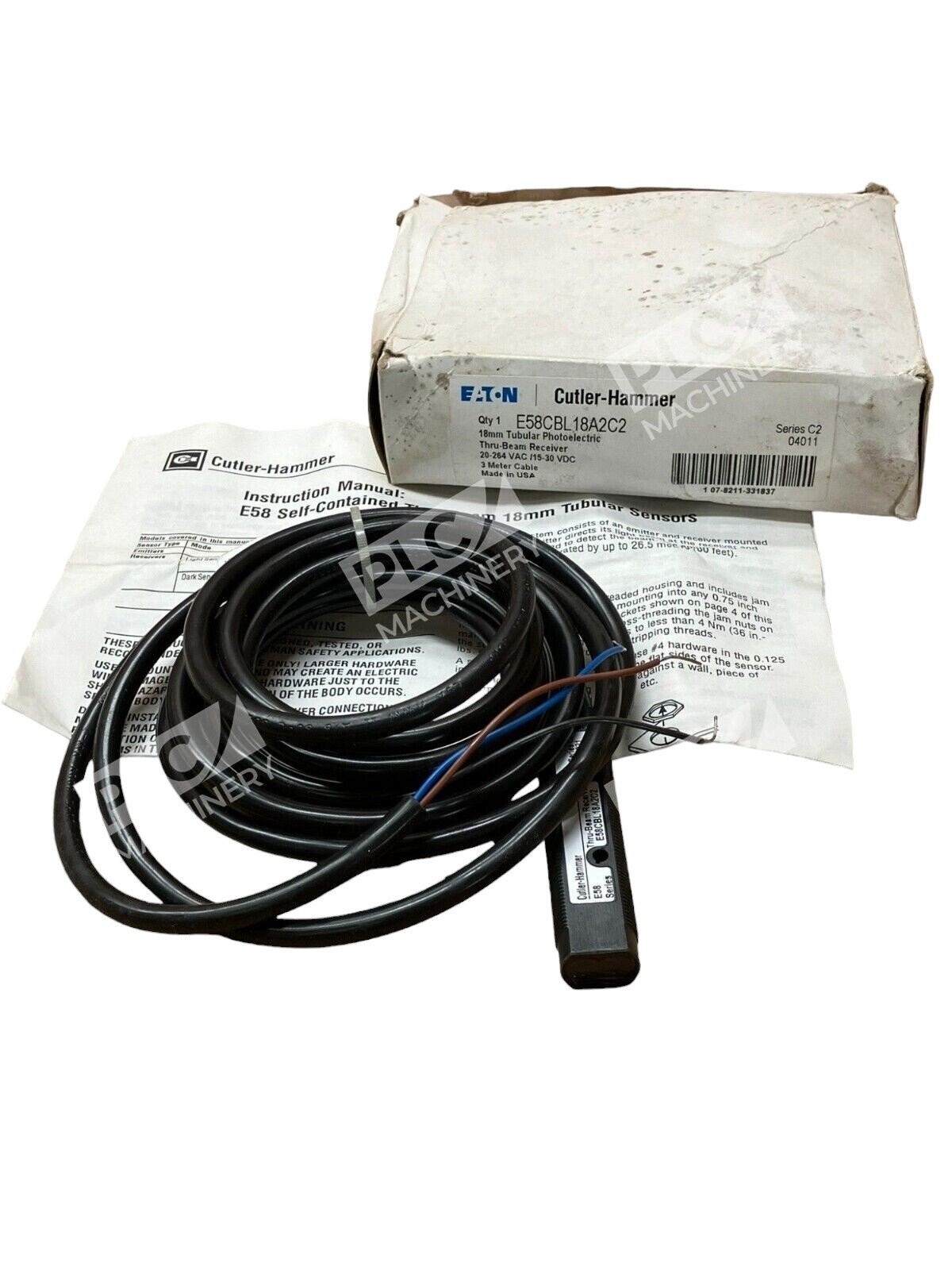

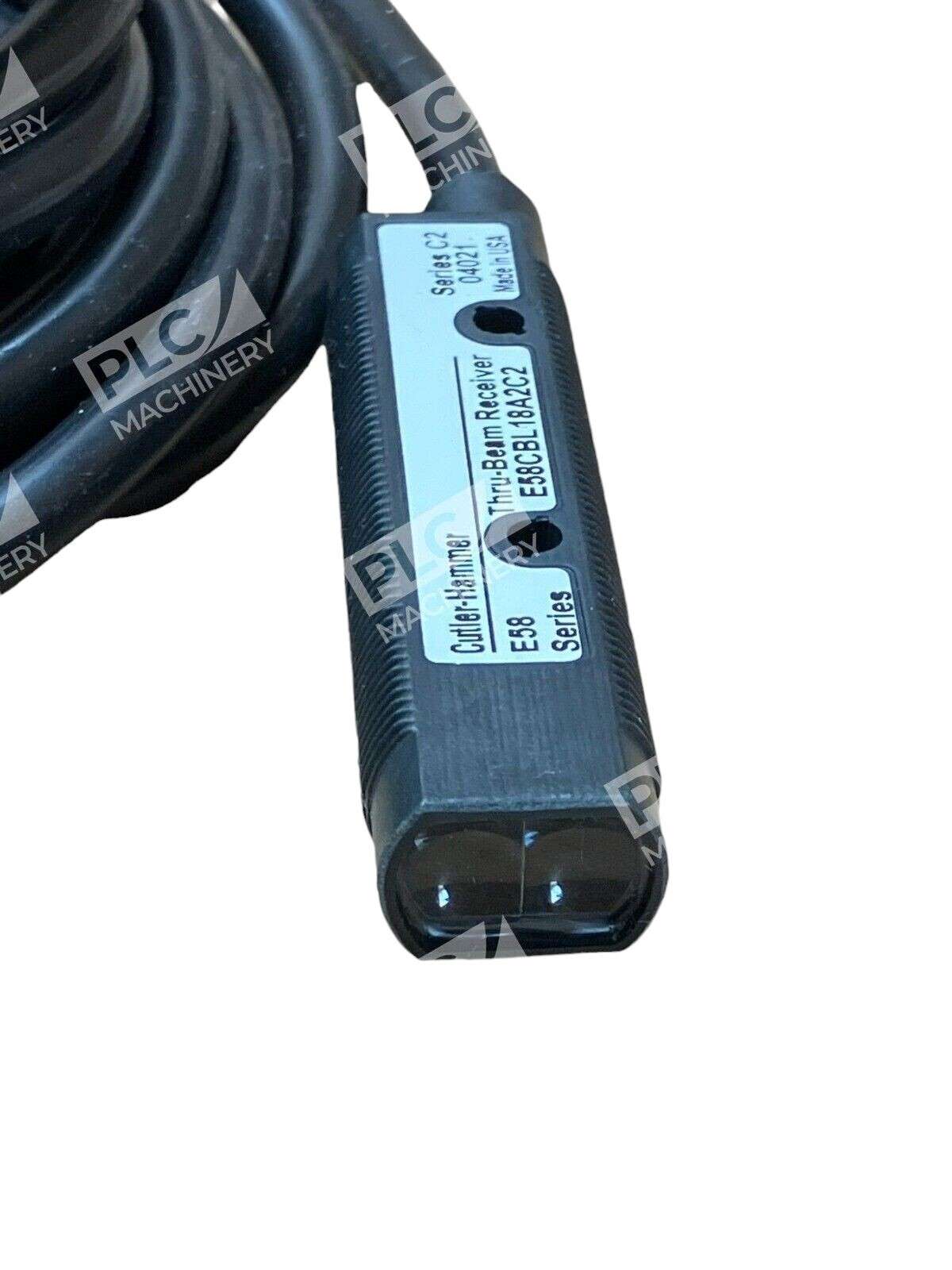

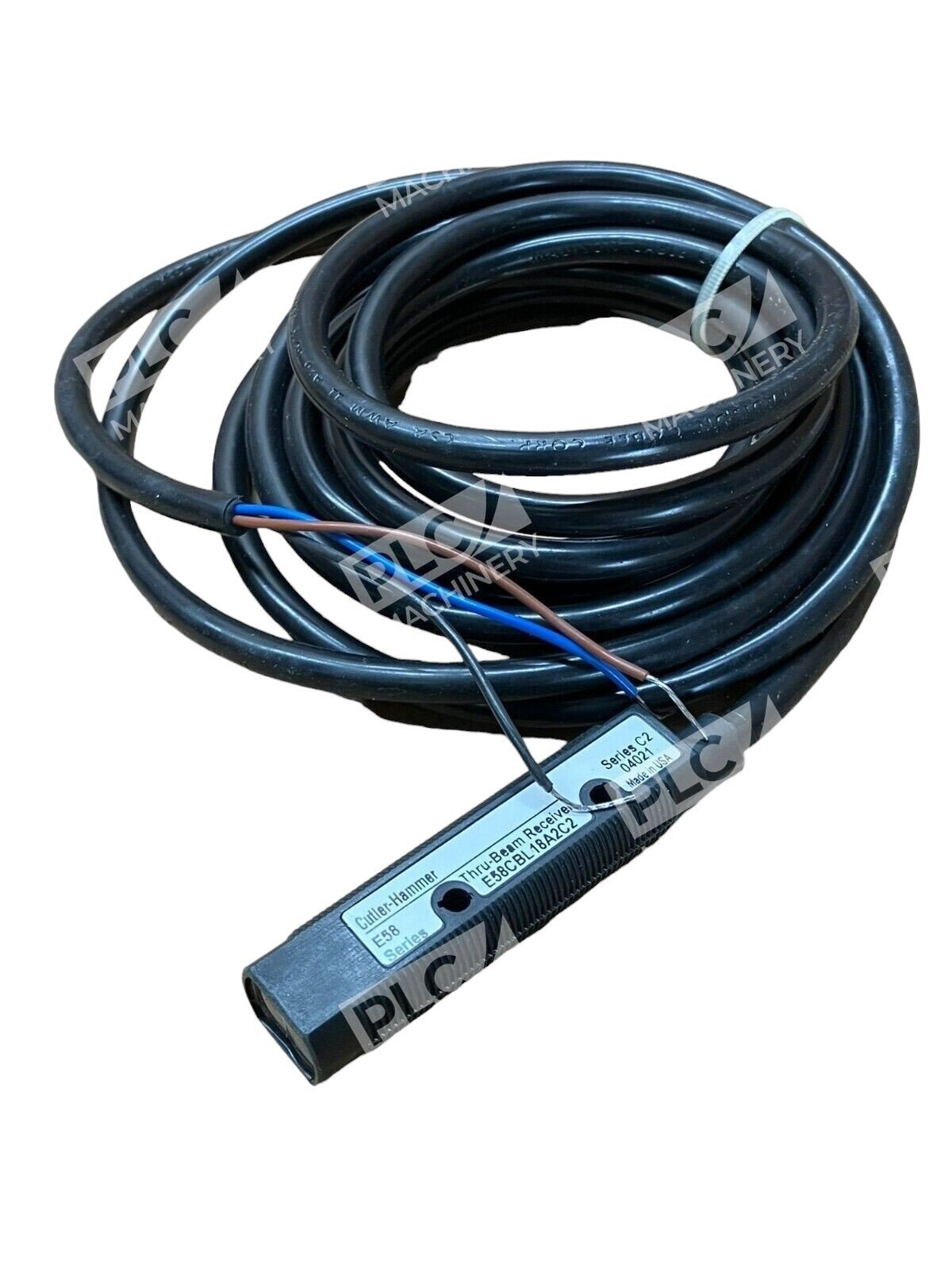

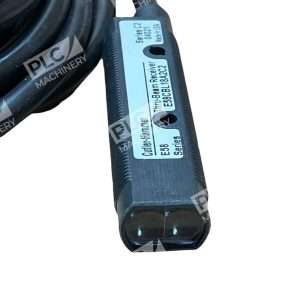

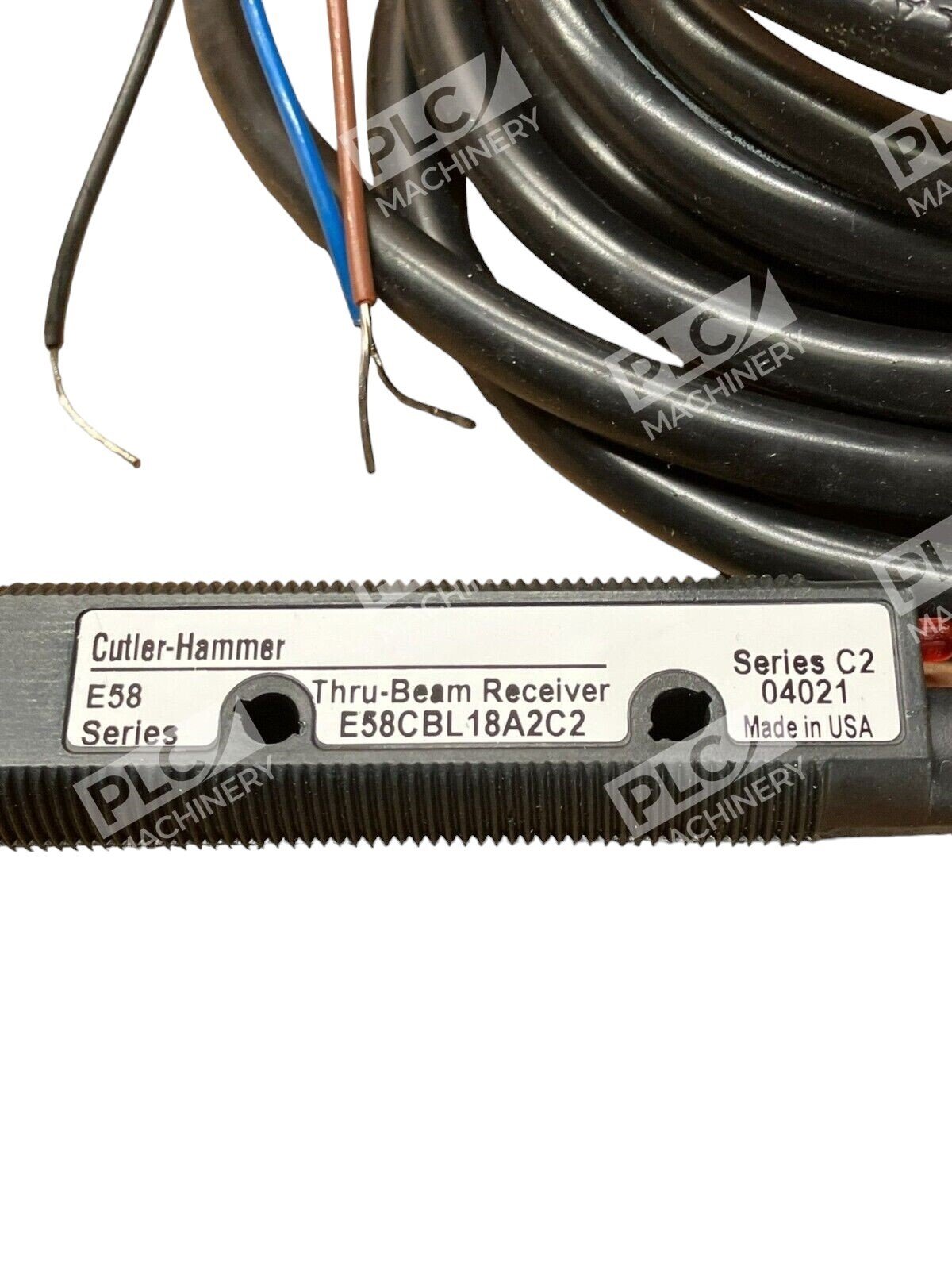

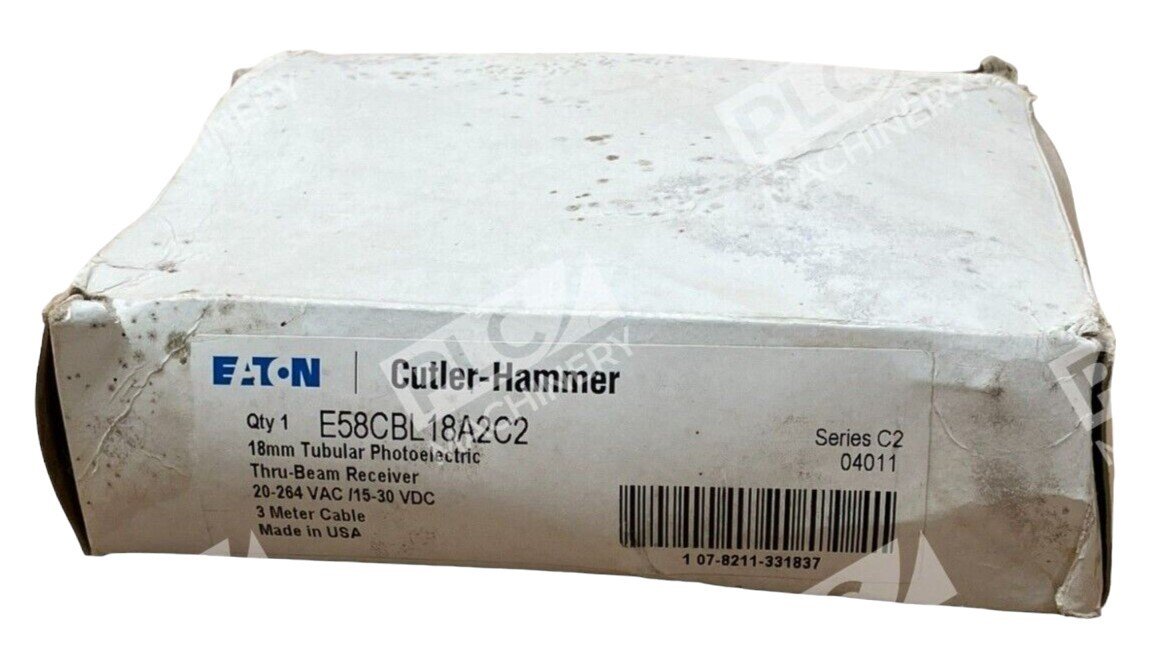

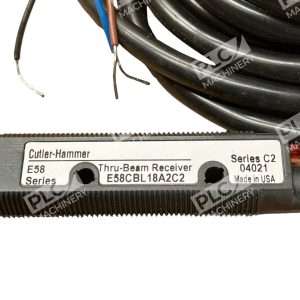

Cutler Hammer E58CBL18A2C2 18mm Tubular Photoelectric Thru-Beam Receiver

The Cutler-Hammer E58CBL18A2C2 is an 18mm tubular photoelectric thru-beam receiver designed for harsh-duty applications. This sensor is part of Eaton’s E58 Series, known for its durability and reliable performance in demanding environments.

Key Features

• Robust Construction: Encased in a solid polyurethane housing, the E58CBL18A2C2 offers high resistance to shock and vibration, ensuring longevity and consistent operation.
• Versatile Voltage Compatibility: Operates efficiently within a wide voltage range of 20 to 264 VAC and 15 to 30 VDC, accommodating various industrial power supplies.
• Extended Sensing Range: Capable of detecting objects up to 80 feet (24 meters) away, making it suitable for large-scale applications.
• Visible Red Sensing Beam: Utilizes a visible red light source, facilitating quick setup and precise alignment during installation.
• Rapid Response Time: Features a response time ranging from 1 to 10 milliseconds, allowing for swift detection and processing.
• Flexible Output Options: Equipped with AC L1 switch and DC NPN open collector outputs, providing adaptability for different control systems.
• Durable Enclosure: Meets NEMA 1/3/4/4X/6/12/13 and IP69K standards, offering superior protection against environmental factors such as dust, water, and corrosion.
• Wide Operating Temperature Range: Functions effectively in temperatures ranging from -40 to 158 degrees Fahrenheit (-40 to 70 degrees Celsius), suitable for extreme conditions.

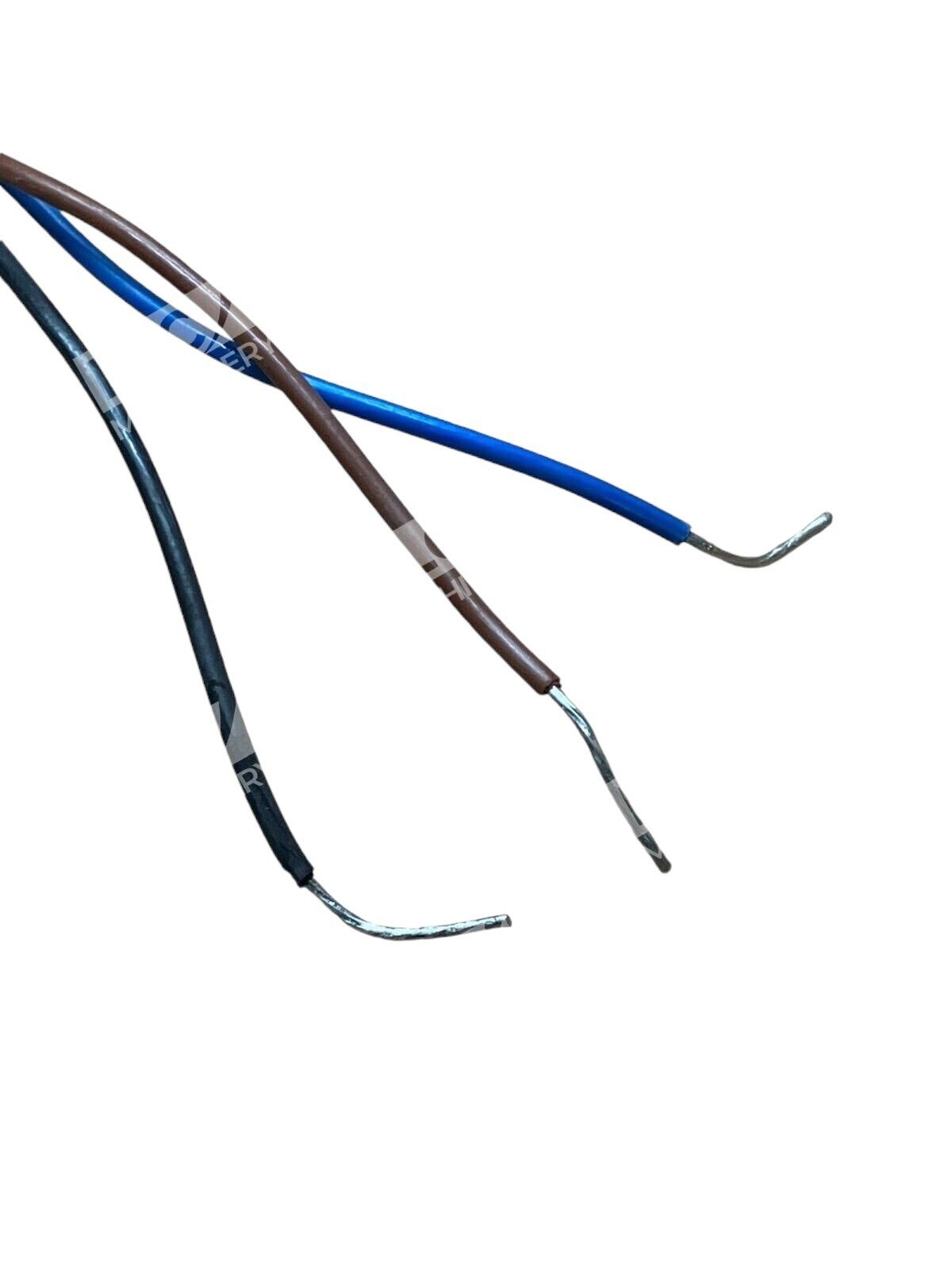

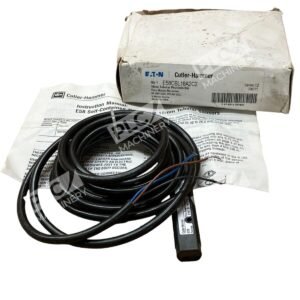

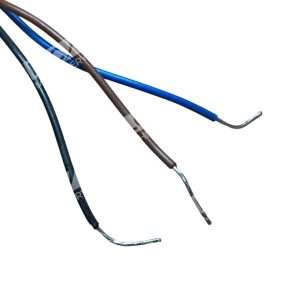

• Convenient Installation: Comes with a 3-meter (9.8 feet) cable, providing ample length for flexible mounting options.

Applications

The E58CBL18A2C2 is ideal for automation and logic control equipment, as well as on-road vehicles used in pickup and food delivery applications. Its robust design and versatile features make it suitable for various industrial and commercial settings.

Specifications

• Series: E58
• Shape: Tubular
• Sensing Method: Thru-Beam
• Sensing Range: 80 ft (24 m)
• Sensing Beam: Visible Red
• Response Time: 1 to 10 ms
• Output Type: AC L1 Switch/DC NPN Open Collector/Light Operate
• Voltage Rating: 20 to 264 VAC / 15 to 30 VDC
• Current Rating: 300 mA
• Frequency: 50/60 Hz
• Connection Type: Cable
• Enclosure Ratings: NEMA 1/3/4/4X/6/12/13, IP69K
• Operating Temperature: -40 to 158°F (-40 to 70°C)
• Size: 0.71 in Diameter x 0.47 in Length

The Cutler-Hammer E58CBL18A2C2 stands out as a reliable and durable solution for applications requiring precise and long-range object detection in challenging environments.
