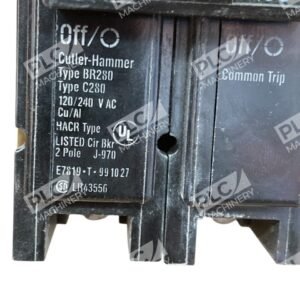

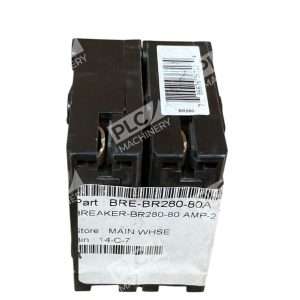

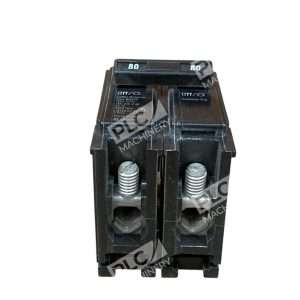

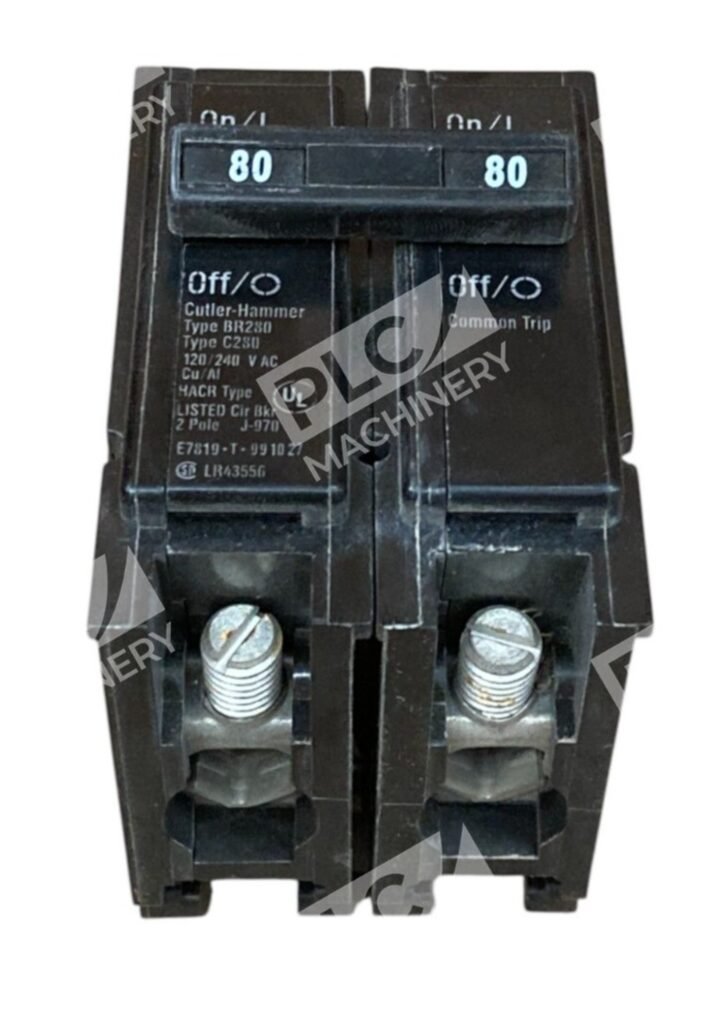

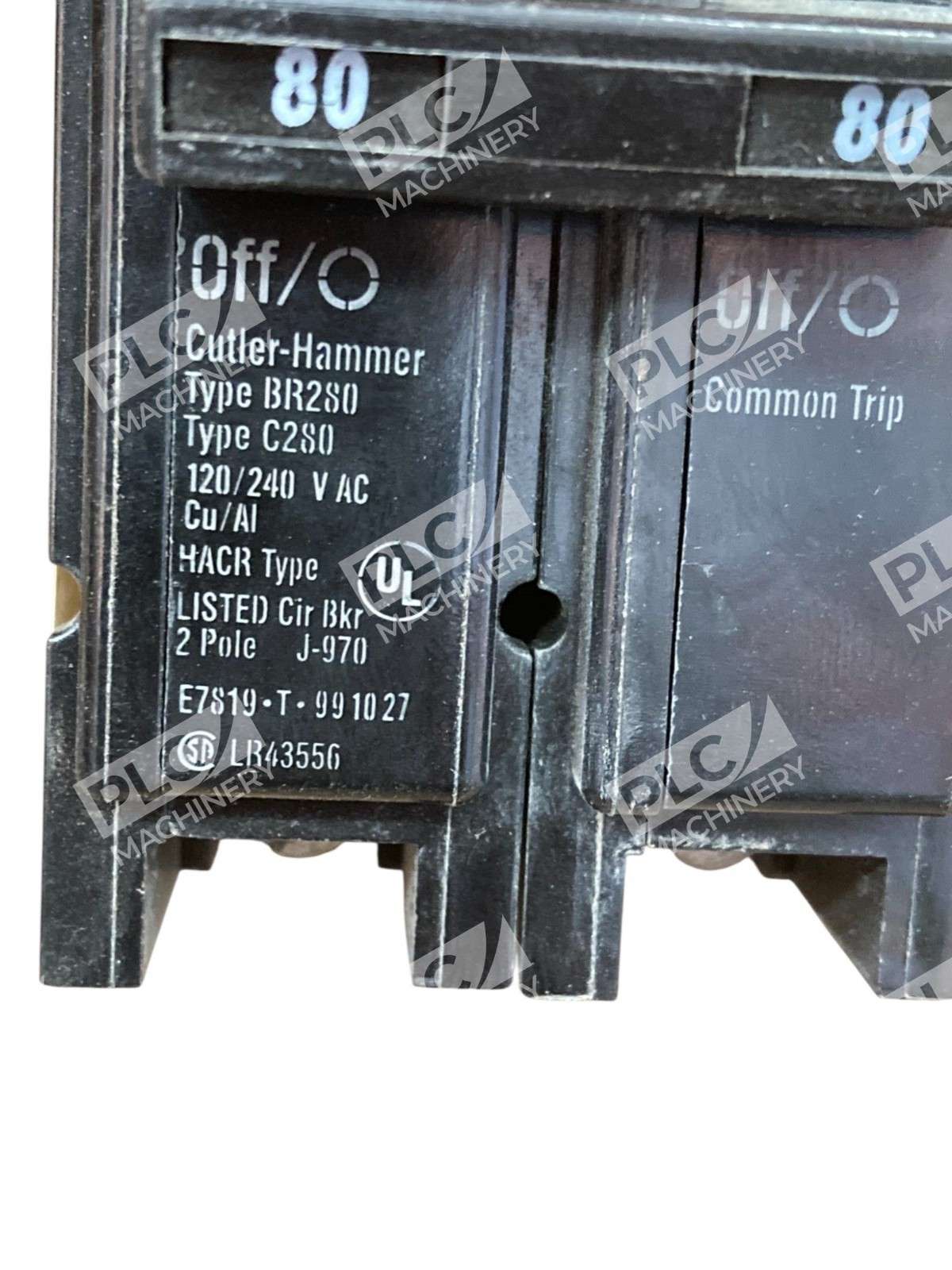

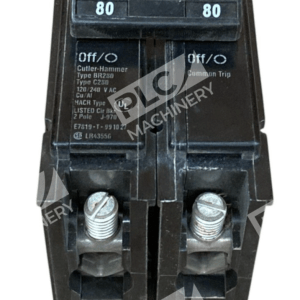

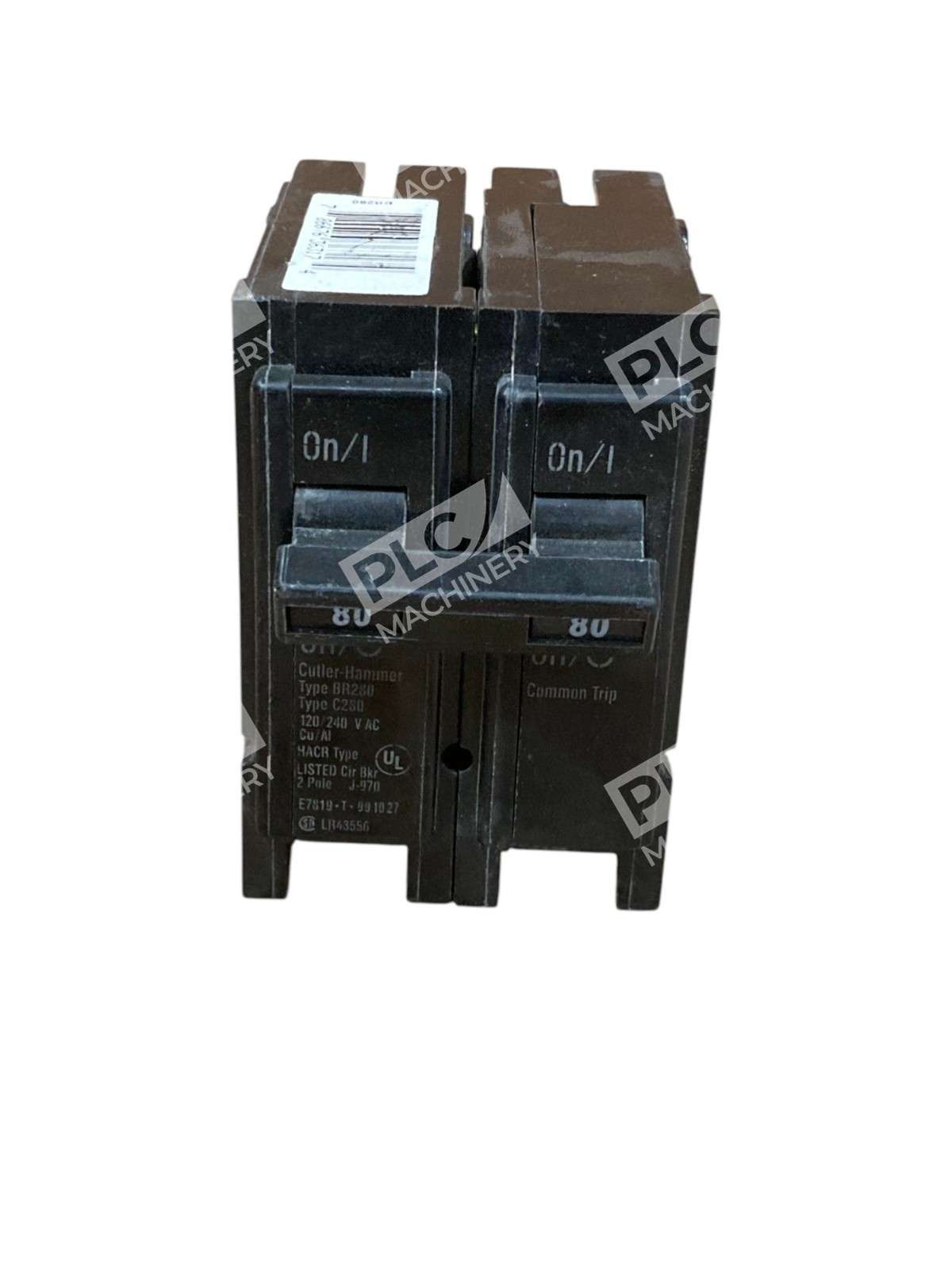

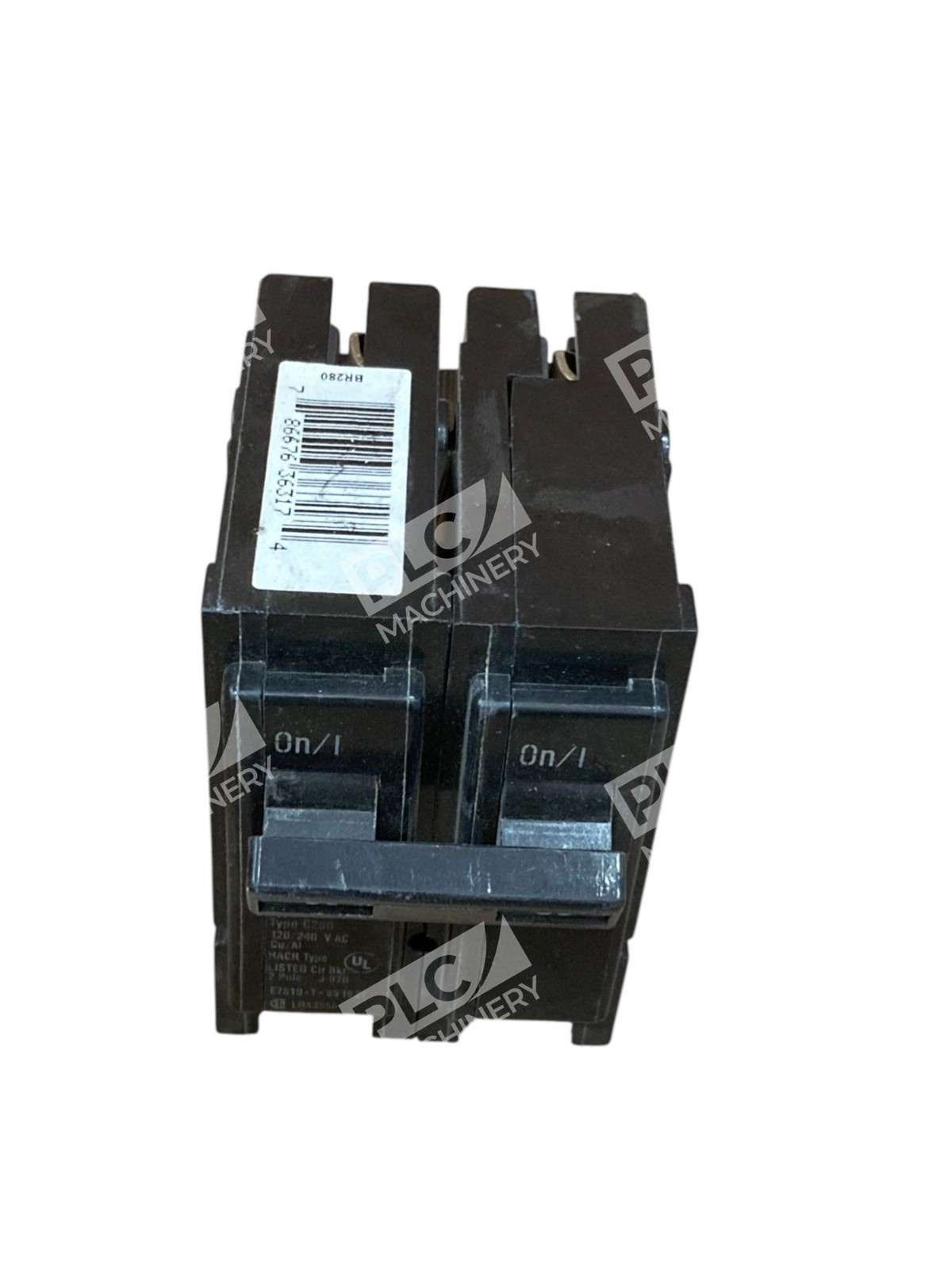

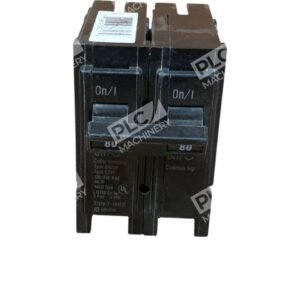

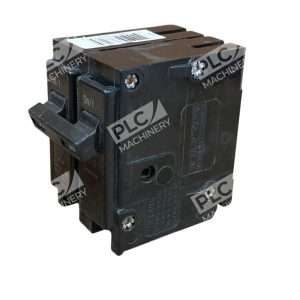

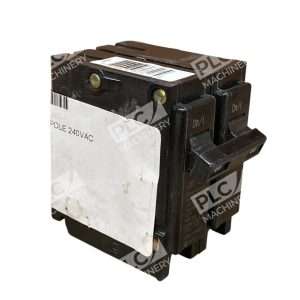

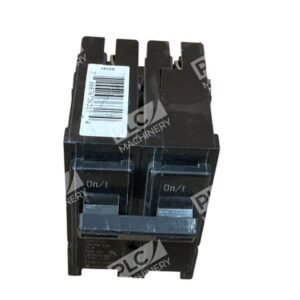

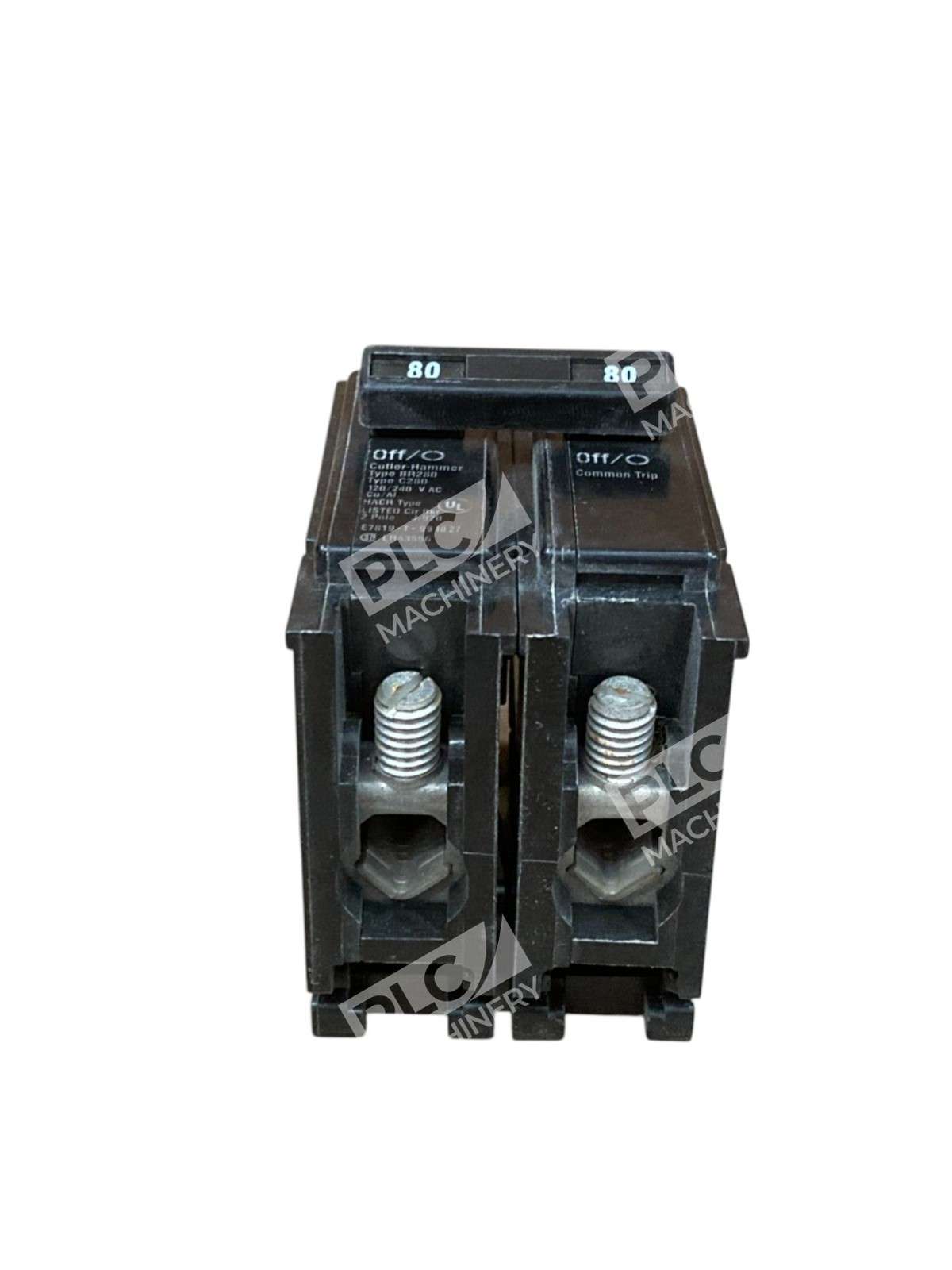

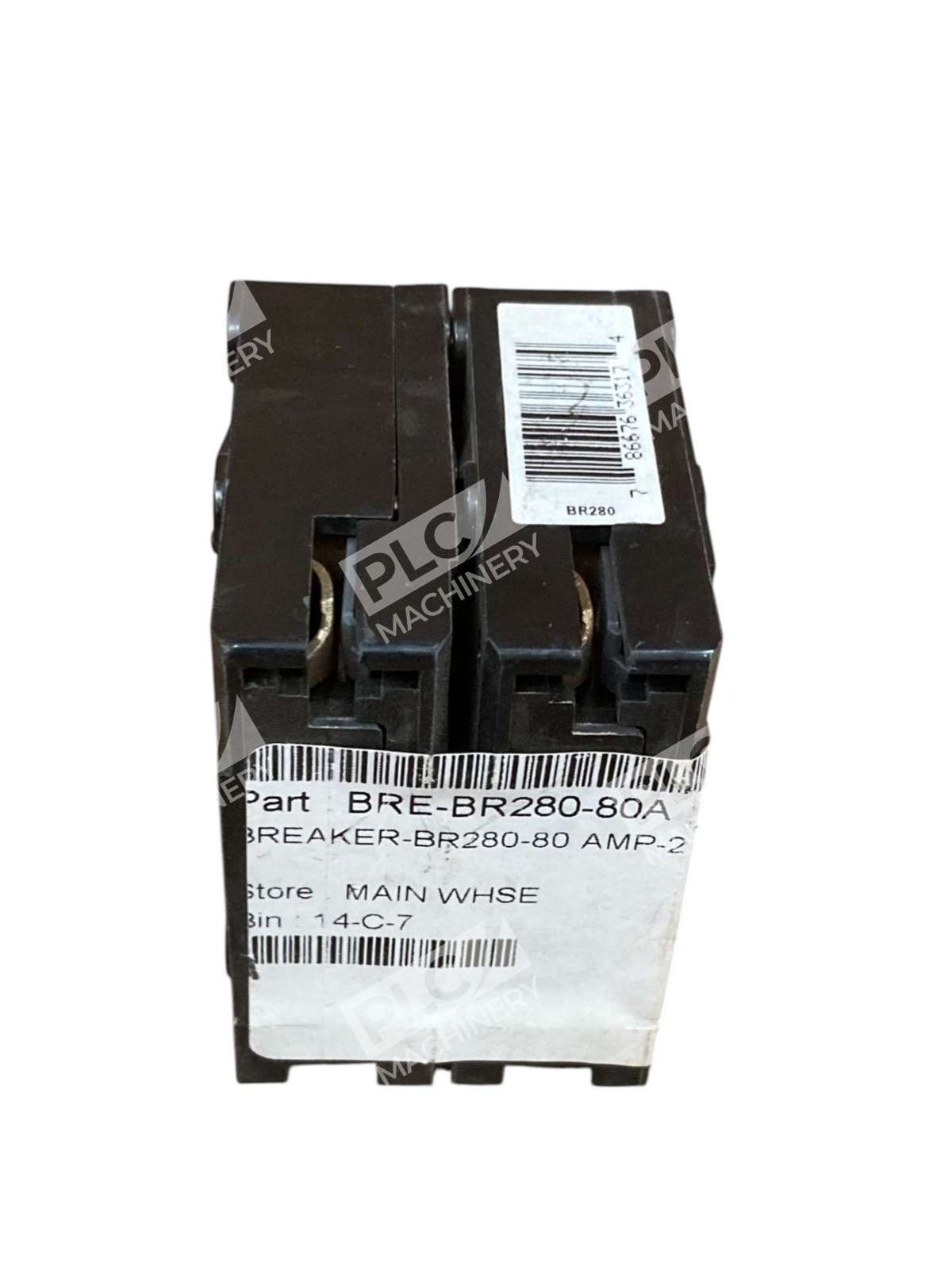

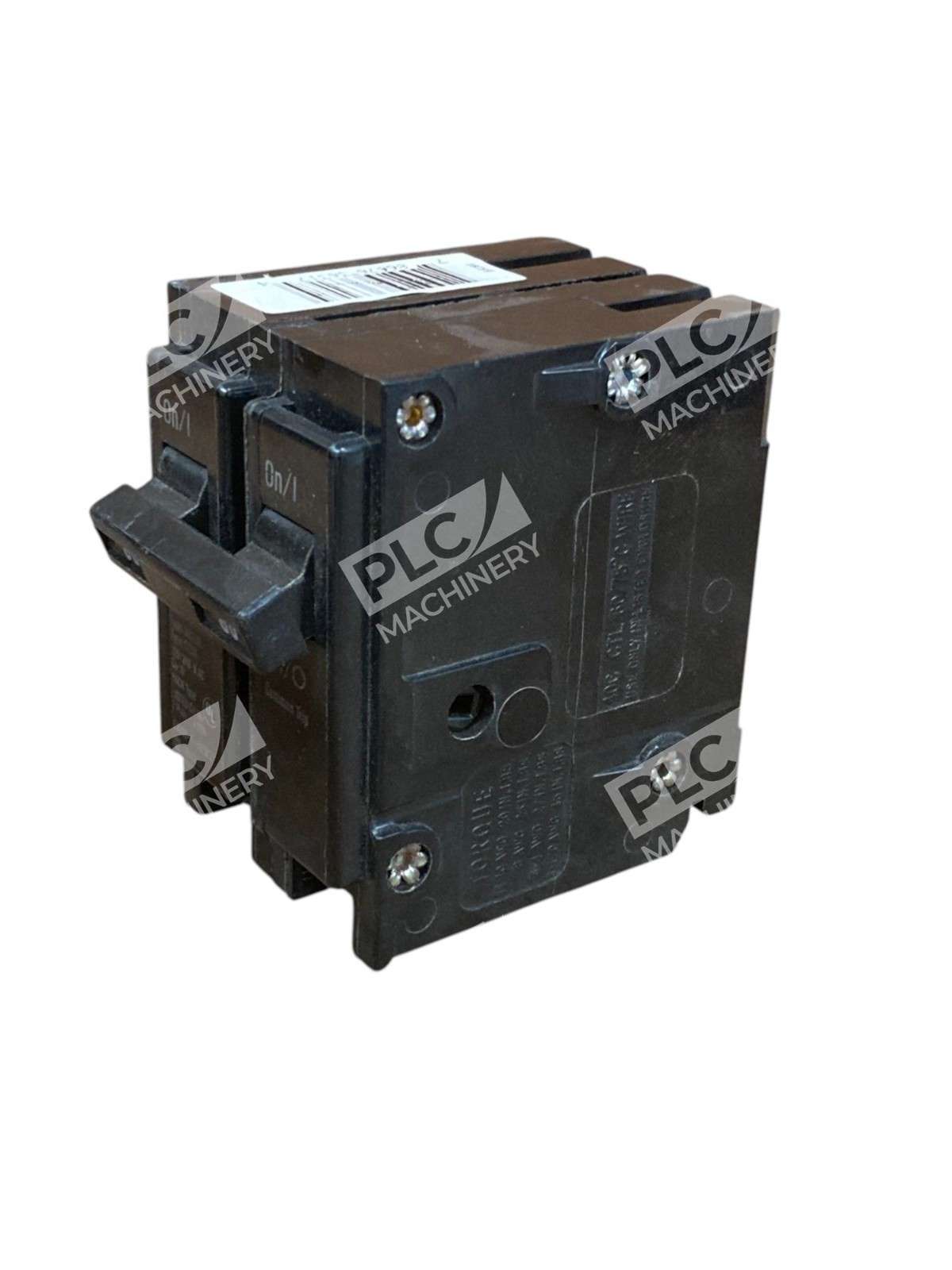

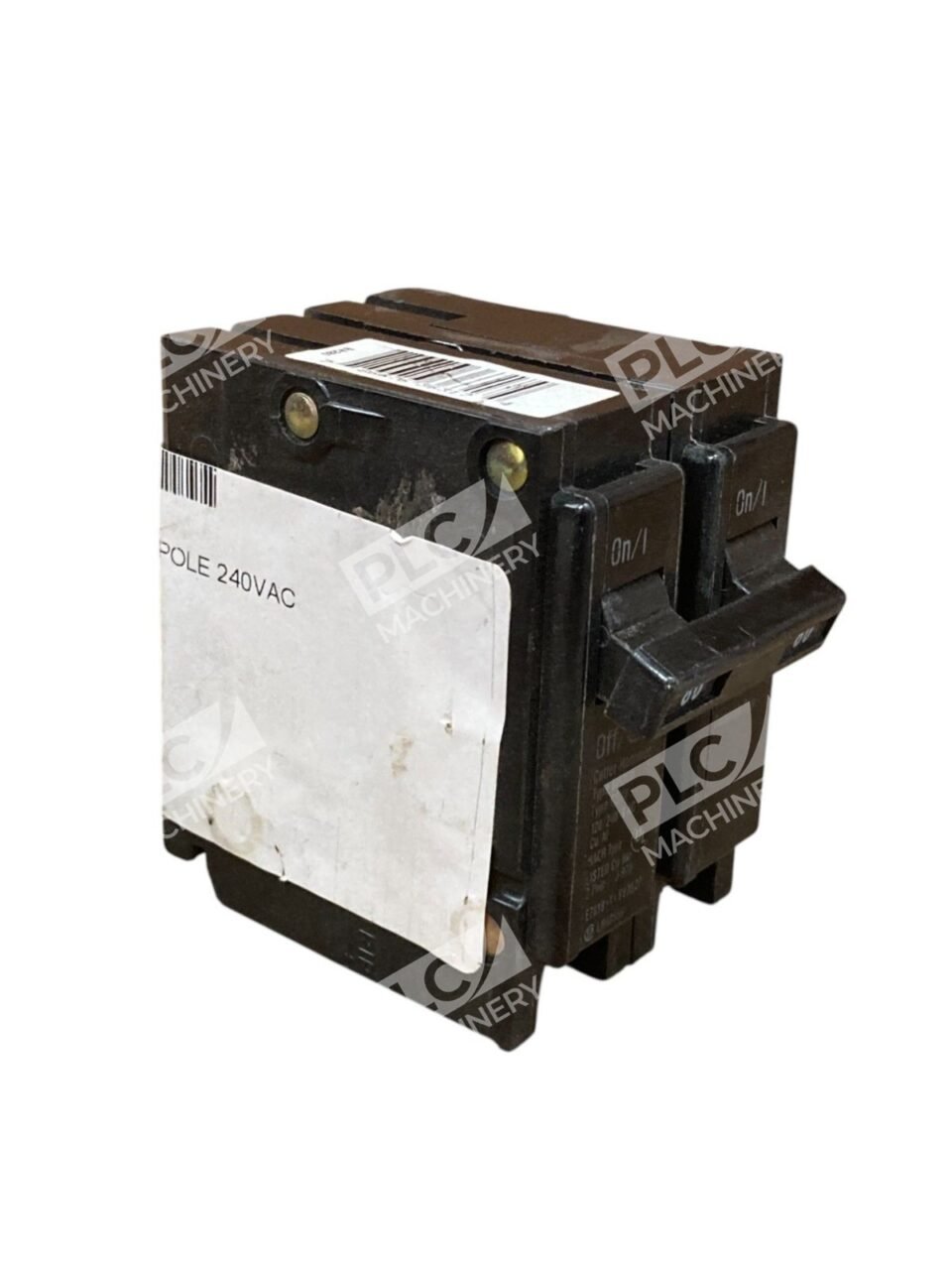

The Cutler-Hammer BR280 is a two-pole, 80-amp circuit breaker designed for residential and light commercial applications. As part of Eaton’s Type BR series, it offers reliable protection against overloads and short circuits.
Key Features
- Amperage Rating: 80 Amps
- Voltage Rating: 120/240 VAC
- Interrupting Capacity: 10 kAIC
- Number of Poles: 2
- Mounting Type: Plug-On
- Trip Type: Common Breaker Trip
- Wire Size Compatibility: #8 to 1/0 AWG Copper or Aluminum
Design and Compatibility
The BR280 features a compact design with dimensions of approximately 3 inches in length, 2 inches in width, and 2.5 inches in height, making it suitable for installations where space is limited. It is compatible with Type BR load centers, ensuring seamless integration into existing electrical systems. ([eaton.com](https://www.eaton.com/mx/en-us/skuPage.BR280.html?utm_source=openai))
Safety and Compliance
This circuit breaker is UL 489 listed and complies with Federal Specifications Classification W-C375, meeting stringent safety and performance standards. ([eaton.com](https://www.eaton.com/mx/en-us/skuPage.BR280.html?utm_source=openai))
Applications
Ideal for residential and light commercial settings, the BR280 provides dependable circuit protection, safeguarding electrical systems from potential hazards due to overloads or short circuits.
For installations requiring higher interrupting capacities, consider the BRH280 model, which offers a 22 kAIC rating. ([eaton.com](https://www.eaton.com/us/en-us/skuPage.BRH280.html?utm_source=openai))
