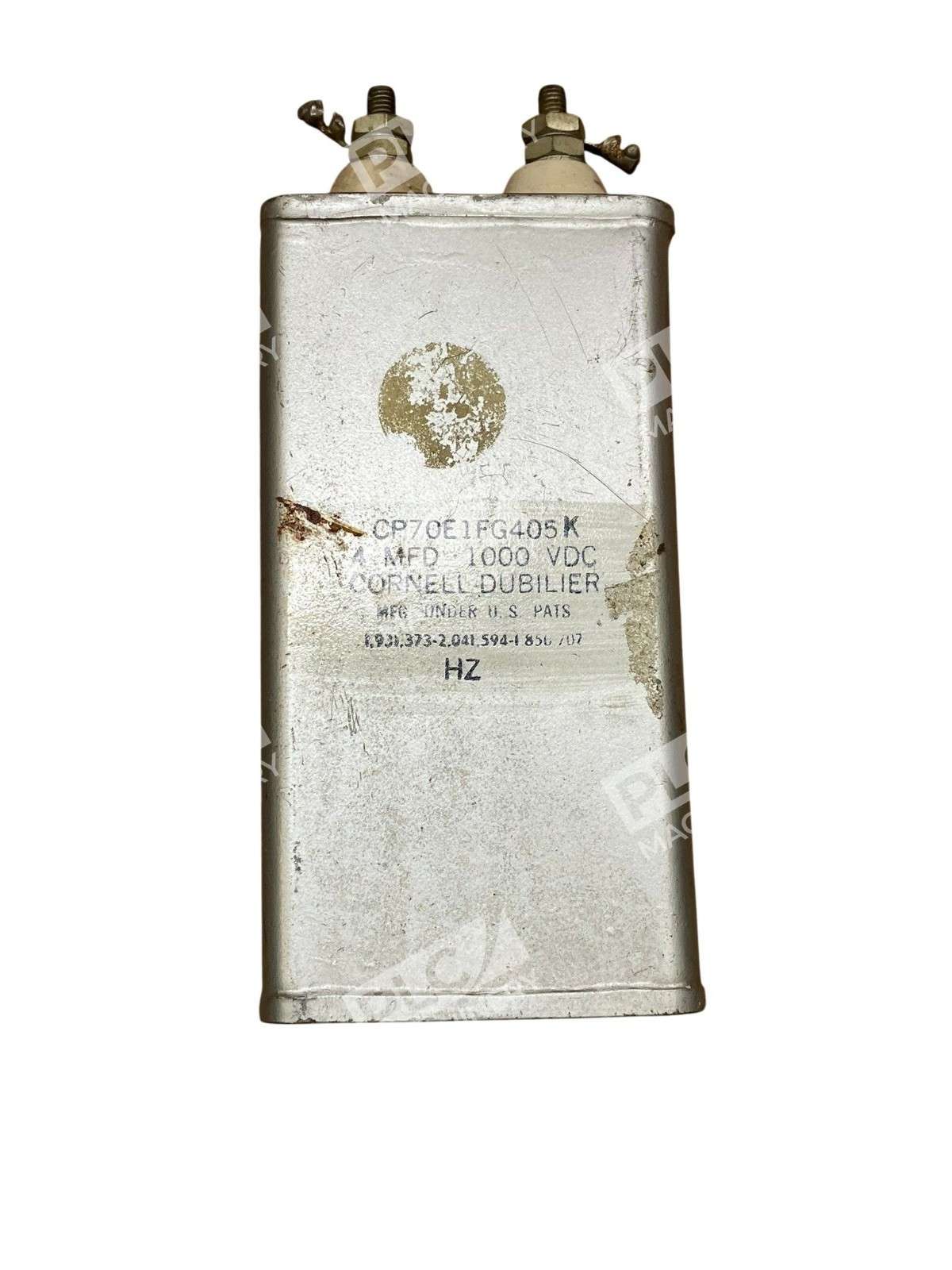

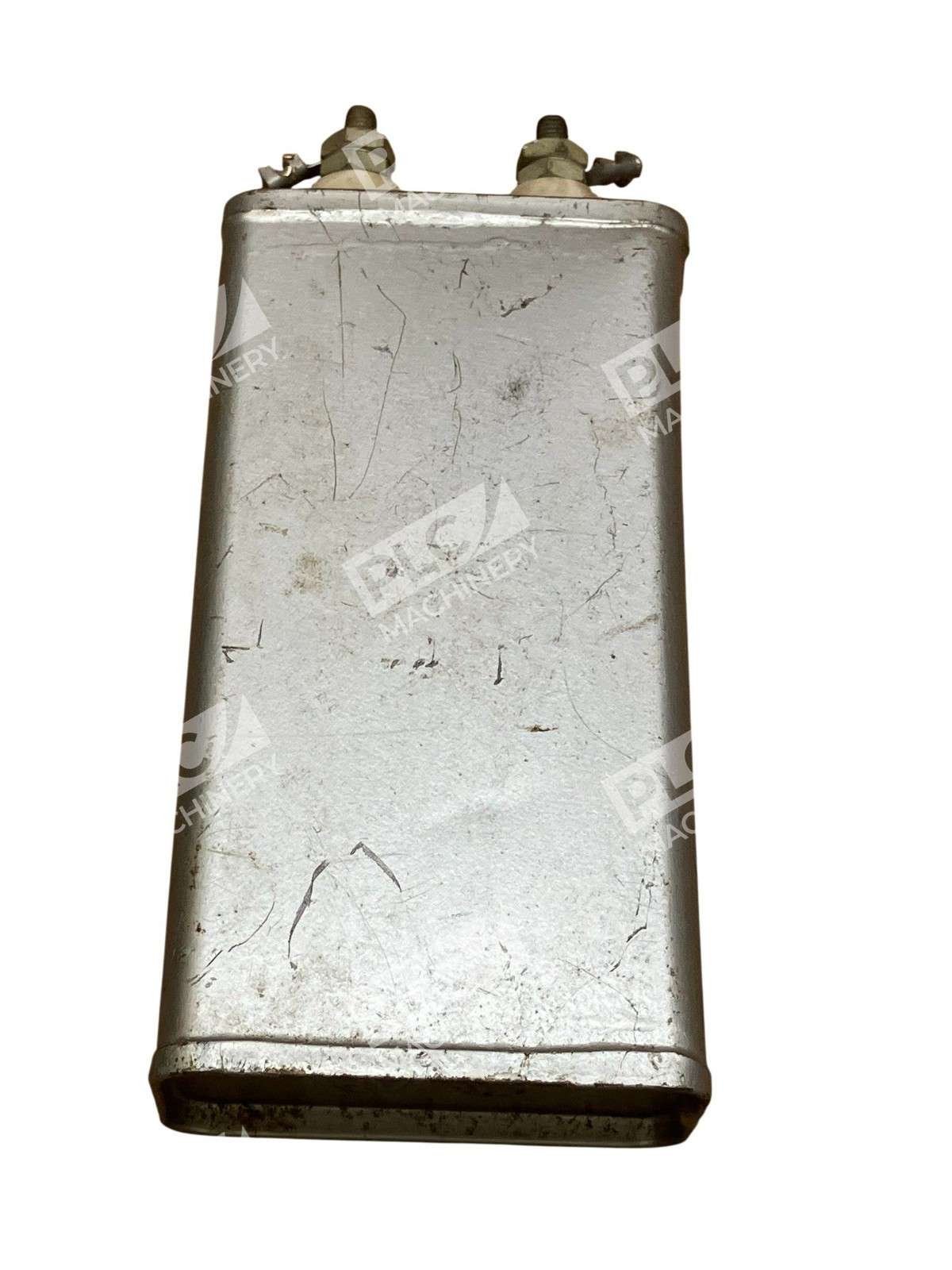

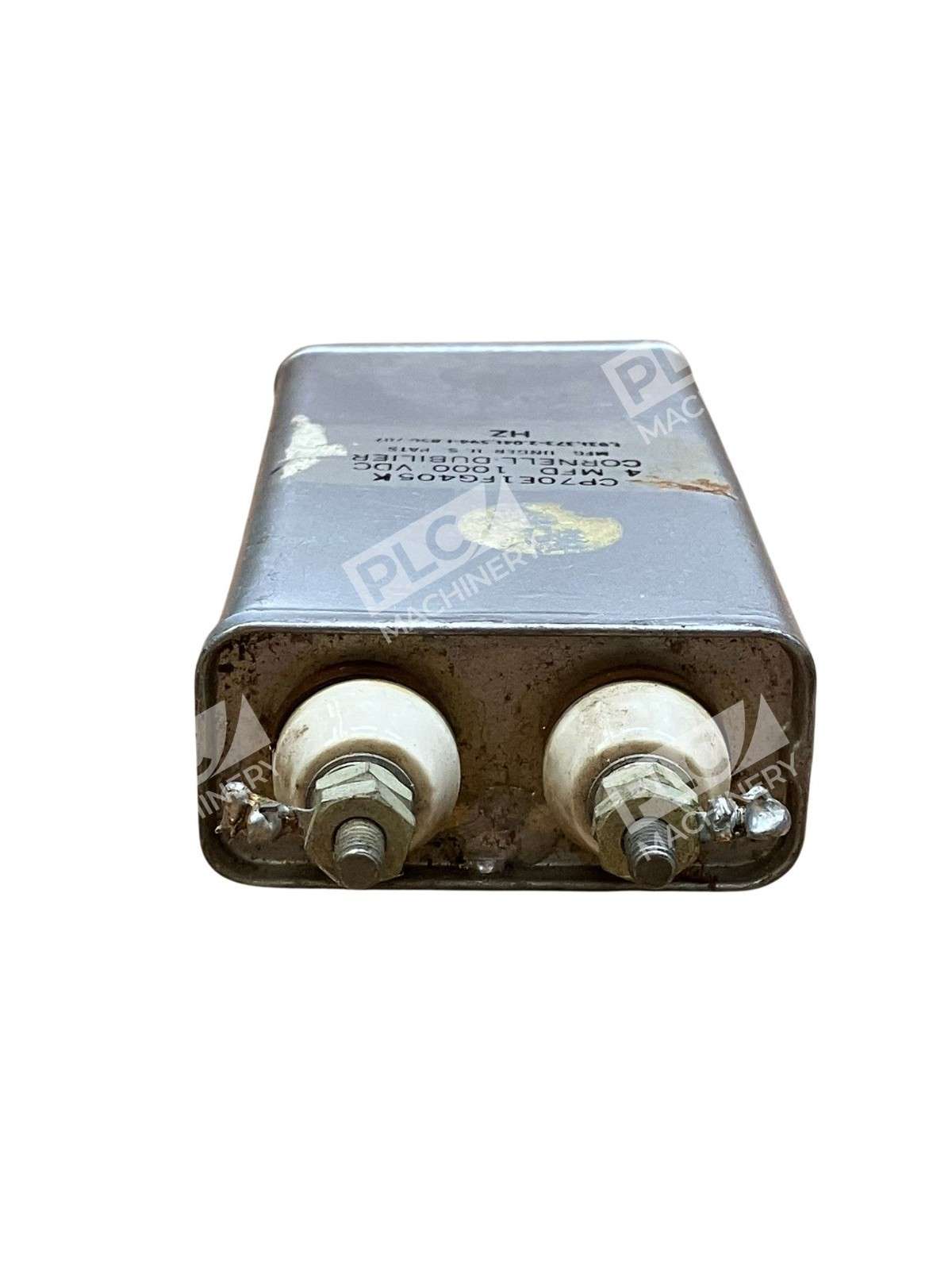

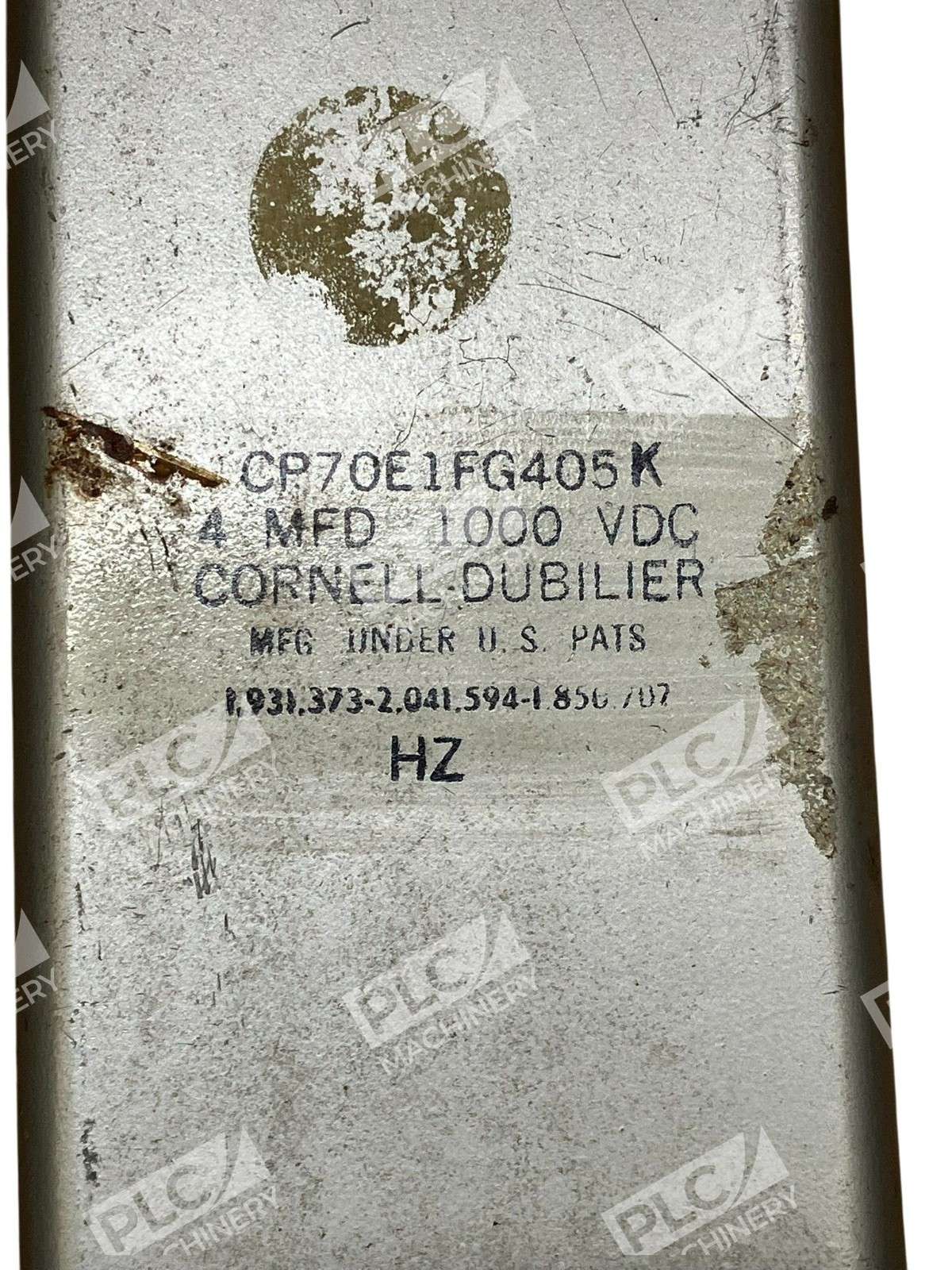

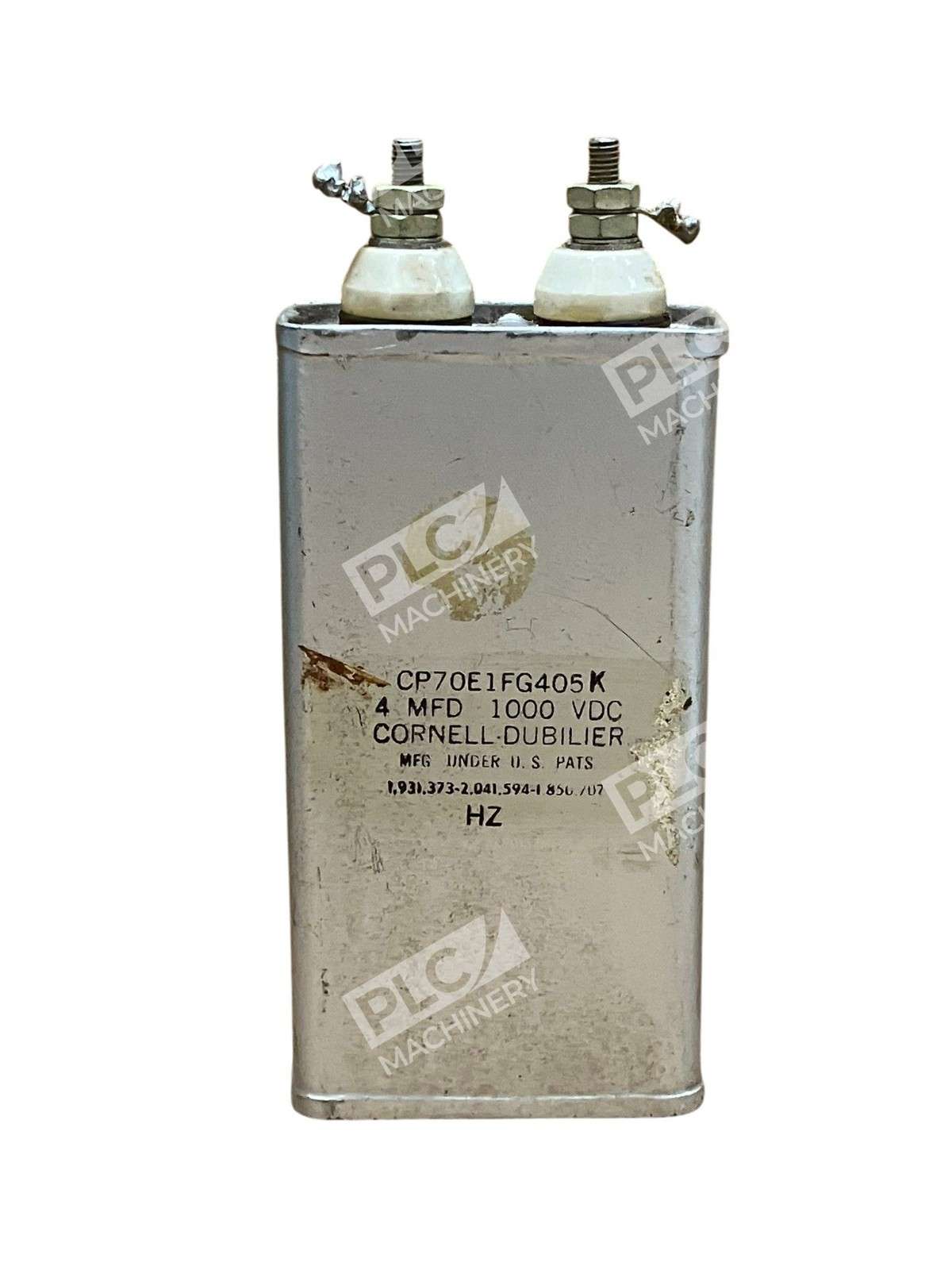

CDE CP70E1FG405K Paper-in-Oil Capacitor 4µF 1000VDC ±10% Hermetically Sealed The CDE CP70E1FG405K is a high-quality paper-in-oil capacitor designed for applications requiring reliable performance under high voltage conditions. With a capacitance of 4 microfarads (µF) and a voltage rating of 1000 volts DC (VDC), this capacitor is suitable for various electronic circuits and systems. Key Features Capacitance: 4 µF Voltage Rating: 1000 VDC Tolerance: ±10% Construction: Paper-in-oil dielectric Sealing: Hermetically sealed to prevent moisture ingress and ensure long-term reliability Terminals: Two porcelain pillar terminals with screw and nut for secure connections Mounting: Equipped with two footed mounting brackets, each featuring a 0.187-inch diameter hole spaced 3 inches center-to-center for stable installation Physical Dimensions The capacitor measures approximately 2.5 inches in length, 1.25 inches in width, and 4.75 inches in height, making it compact for its specifications and suitable for integration into various electronic assemblies. Applications This capacitor is ideal for use in high-voltage filtering, coupling, and bypass applications. Its robust construction and hermetic sealing make it suitable for environments where reliability and performance are critical. Additional Information The CP70E1FG405K is part of the CP70 series, known for its durability and consistent performance in demanding applications. The paper-in-oil dielectric provides excellent electrical characteristics, including low dissipation factor and high insulation resistance. For engineers and designers seeking a dependable high-voltage capacitor, the CDE CP70E1FG405K offers a combination of quality construction and reliable performance, ensuring optimal operation in various electronic circuits.
