Cornell Dubilier Decade Capacitor CDA5

Cornell Dubilier Decade Capacitor CDA5

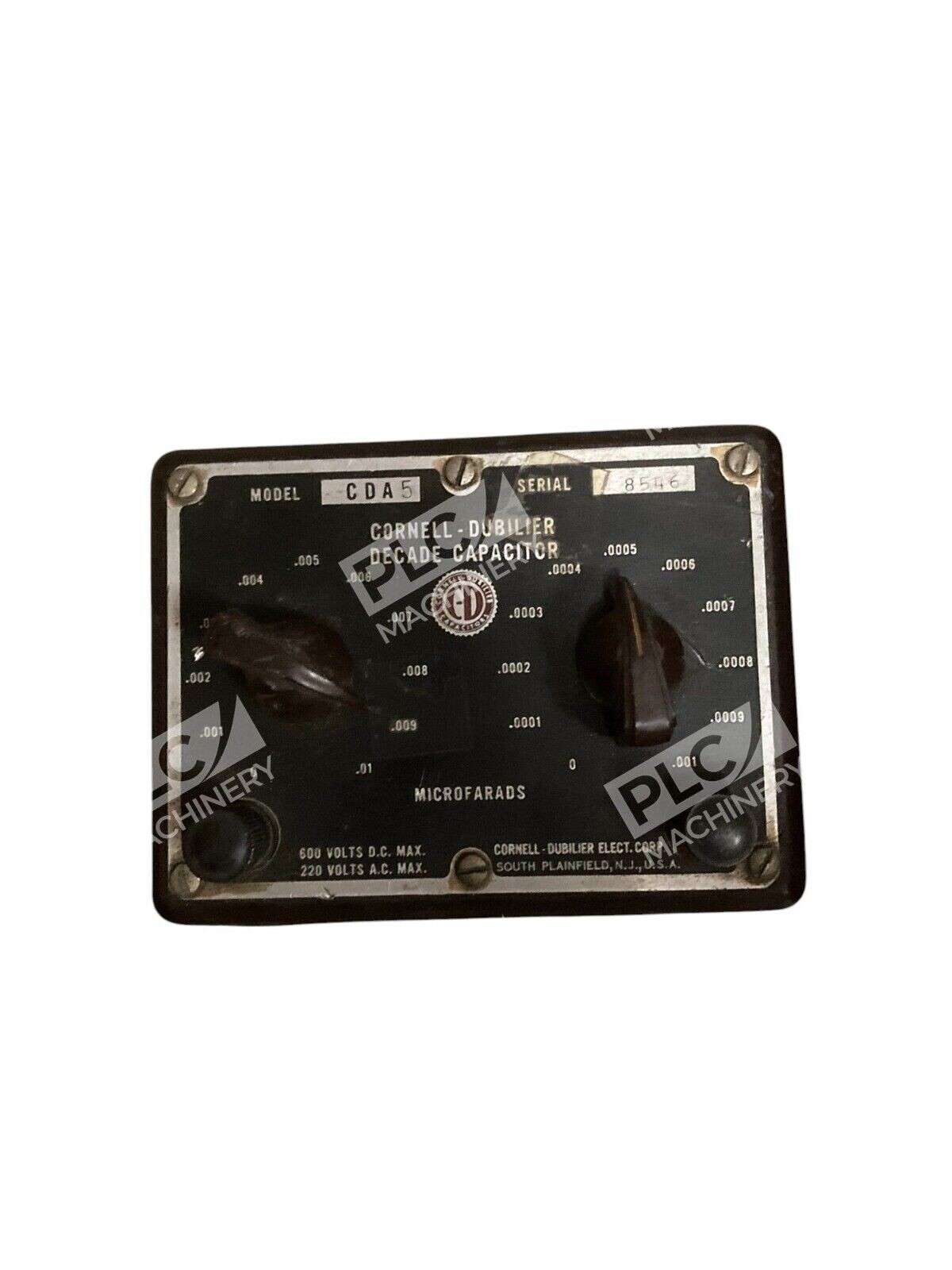

The Cornell Dubilier Decade Capacitor CDA5 is a precision instrument designed for applications requiring accurate capacitance selection. This device allows users to dial in specific capacitance values, making it an essential tool for calibration, testing, and circuit design.

Key Features

• Capacitance Range: 0 to 0.011 microfarads (µF) in 0.001 µF increments.
• Voltage Rating: 600 volts DC and 220 volts AC, ensuring safe operation across various applications.
• Construction: Housed in a durable metal case, providing robust protection and longevity.
• Dimensions: Approximately 127 mm x 90 mm x 96 mm (5 x 3.5 x 3.8 inches), offering a compact form factor suitable for benchtop use.

Applications

The CDA5 is ideal for:

• Laboratory testing and calibration.
• Educational demonstrations in electronics.
• Prototyping and development of electronic circuits.

Design and Usability

Featuring a user-friendly interface with clearly marked dials, the CDA5 allows for quick and precise adjustments of capacitance values. Its sturdy construction ensures reliability and accuracy over extended periods of use.

Whether you’re an engineer, educator, or hobbyist, the Cornell Dubilier Decade Capacitor CDA5 offers the precision and durability needed for a wide range of electronic applications.
