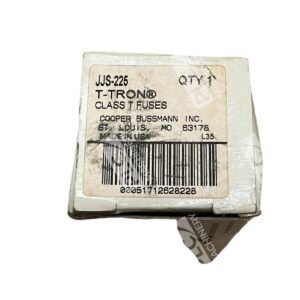

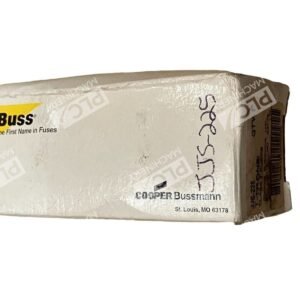

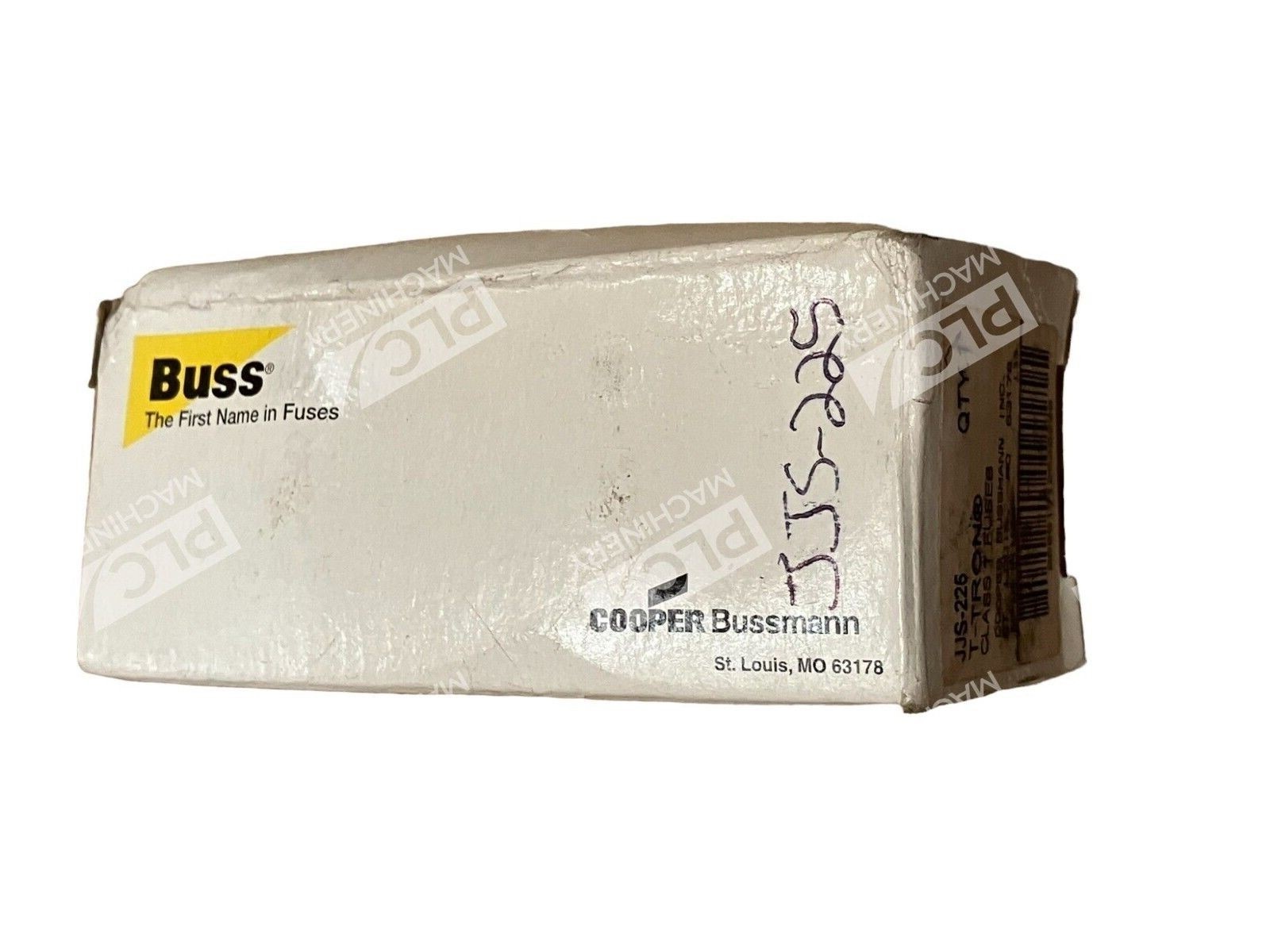

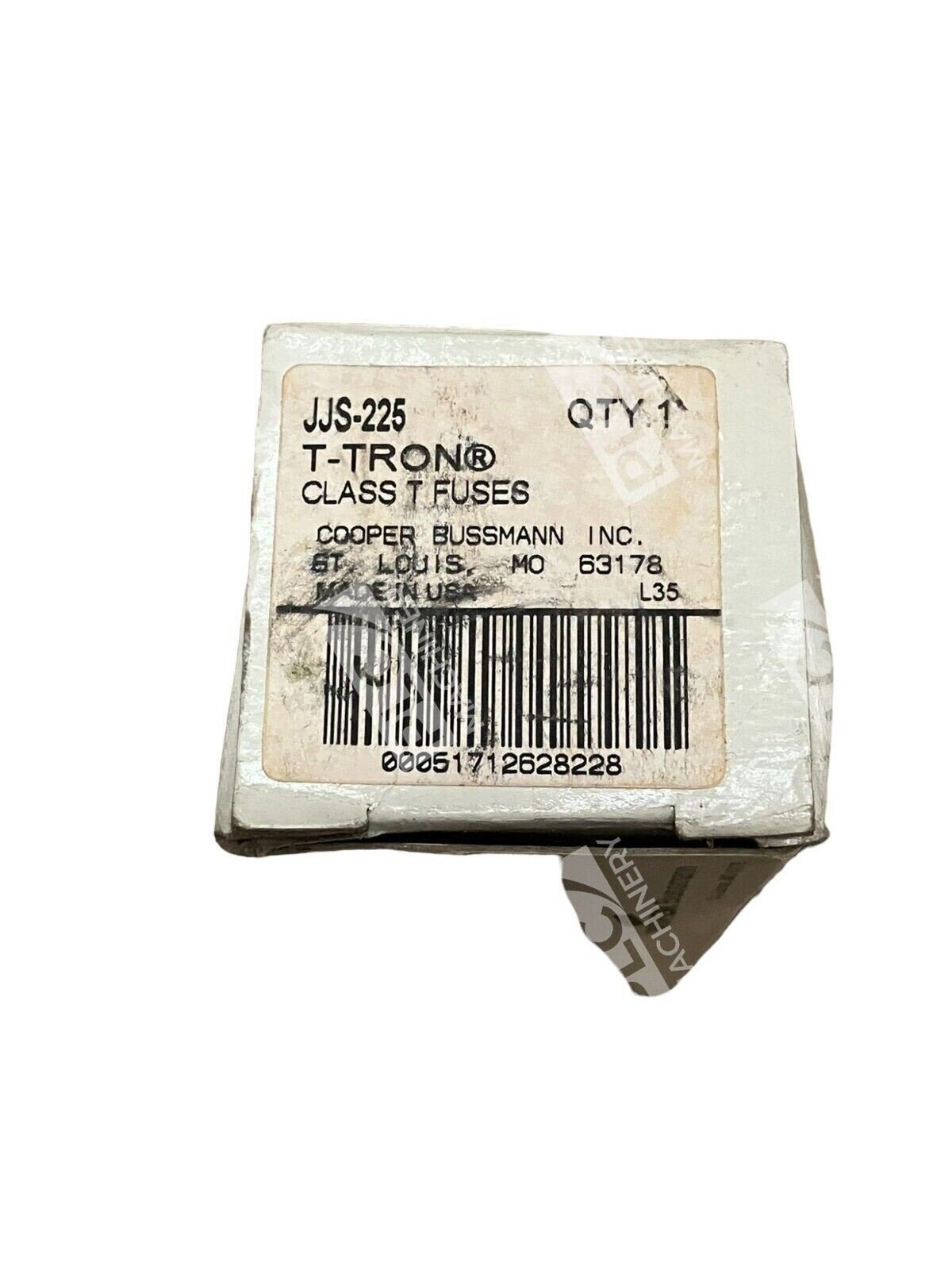

The Cooper Bussmann JJS-225 is a 225-ampere, 600-volt AC, fast-acting Class T fuse designed for high-performance overcurrent protection in various electrical applications.
Key Features
- High Interrupting Capacity: Rated at 200,000 amperes interrupting capacity (AIC) at 600 volts AC, ensuring reliable protection against high fault currents.
- Fast-Acting Response: Provides immediate response to overcurrent conditions, safeguarding sensitive equipment from damage.
- Compact Design: Its small footprint allows for efficient use of space within electrical panels and enclosures.
- Non-Indicating: Designed without an indicator, suitable for applications where visual indication of fuse status is not required.
- Versatile Applications: Ideal for protecting variable frequency drives (VFDs), large apartment complexes, multi-family meter stacks, and other critical industrial or commercial systems.
Specifications
- Amperage Rating: 225 A
- Voltage Rating: 600 V AC
- Interrupting Rating: 200 kAIC at 600 V AC
- Fuse Class: Class T
- Terminal Type: Bolted blade end x bolted blade end
- Body Material: Melamine
- Dimensions: 3.63 inches (length) x 1 inch (diameter)
- Compliance: CE Marked, UL Listed (Standard 248-15, Class T, Guide JDDZ, File E4273), CSA Certified (C22.2 No. 248.15, Class 1422-02, File 53787), RoHS Compliant
The JJS-225 fuse is engineered to provide superior current limitation, effectively reducing the potential for equipment damage during short-circuit events. Its robust construction and high interrupting capacity make it a reliable choice for demanding electrical protection needs.
