Concoa Precision Gas Controls 3023361-01-350

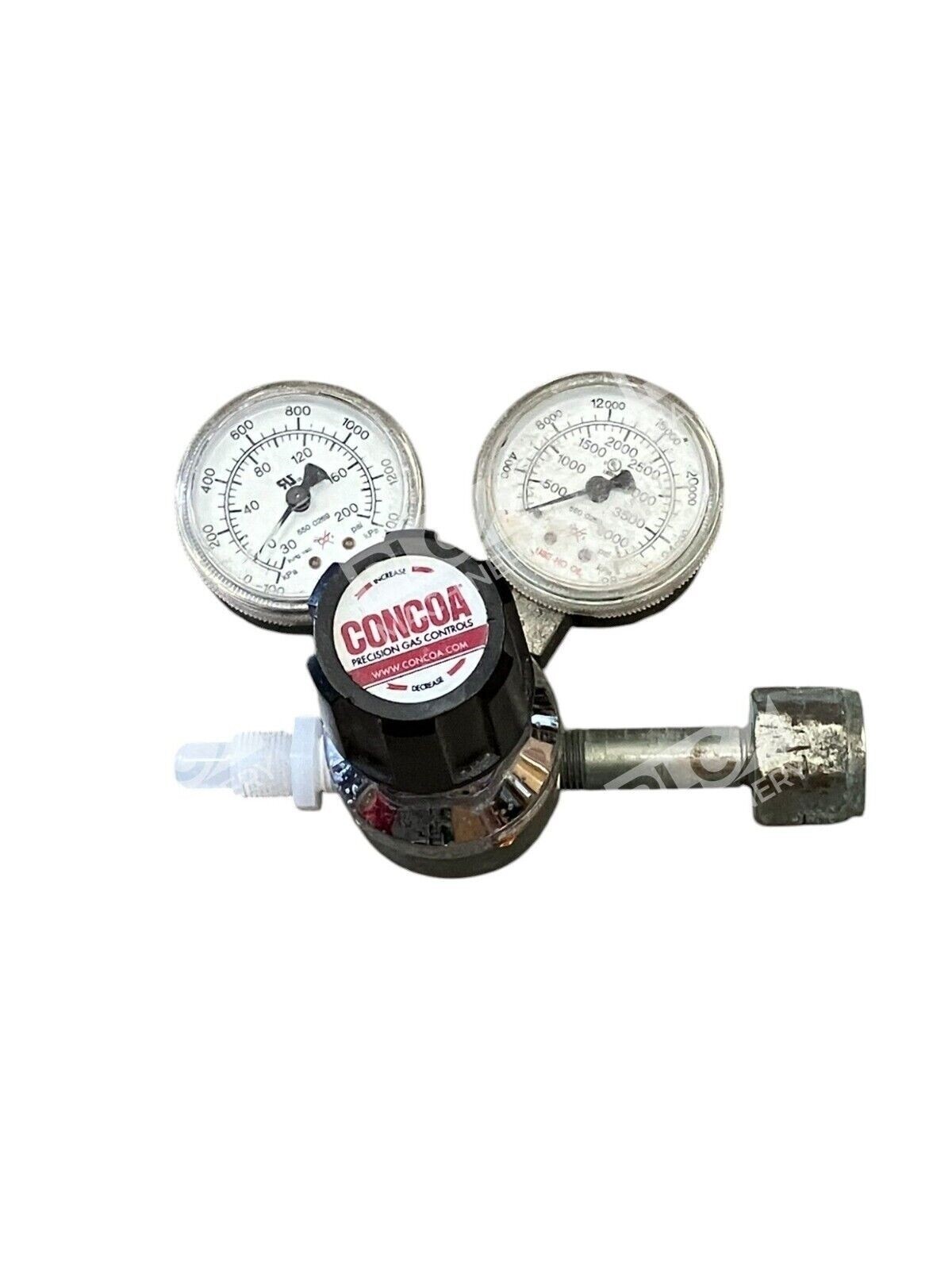

The Concoa Precision Gas Controls 3023361-01-350 is a high-performance gas regulator designed for ultra-high purity inert gas applications. This dual-stage cylinder regulator ensures consistent delivery pressure, making it ideal for environments where precise gas control is critical.

Key Features

• Metal-to-Metal Diaphragm Seal: Prevents gas contamination, ensuring purity in gas delivery.
• CAPSULE® Seat Design: Incorporates integral 360° filtration in both stages, enhancing performance and longevity.
• Front and Rear Panel Mountable: Allows for versatile installation options to suit various setups.
• Pipe-Away Relief Valve: Safely vents exhaust gases, maintaining a secure operating environment.
• Cleanroom Assembly: Assembled in a cleanroom to eliminate contamination during installation.

Specifications

• Maximum Inlet Pressure: 3000 PSIG (210 BAR); optional upgrades to 3500 PSIG (240 BAR) or 4500 PSIG (310 BAR).
• Body and Bonnet Material: Chrome-plated brass barstock for durability and corrosion resistance.
• Gauges: 2-inch (50 mm) diameter plated case for clear pressure readings.
• Seat Material: PCTFE for the first stage; PTFE for the second stage, ensuring reliable sealing.
• Filter: 10-micron sintered bronze to prevent particulate contamination.
• Temperature Range: Operates effectively between -40°F to 140°F (-40°C to 60°C).
• Diaphragm: 316L stainless steel for enhanced strength and purity.
• Cv Value: 0.1, providing precise flow control.
• Helium Leak Integrity: 1 x 10⁻⁹ scc/sec, ensuring minimal leakage.
• Internal Seals: PTFE for chemical resistance and longevity.
• Port Connections: 1/4-inch FNPT for compatibility with standard fittings.
• Conformances: Meets or exceeds CGA G-4.1 cleanliness standards; complies with ANSI/ASME B40.1; PED 2014/68/EU; CRN OH5216.

The Concoa 3023361-01-350 regulator is engineered to provide reliable and precise gas control, making it a trusted choice for laboratories, research facilities, and industrial applications requiring ultra-high purity gas delivery.
