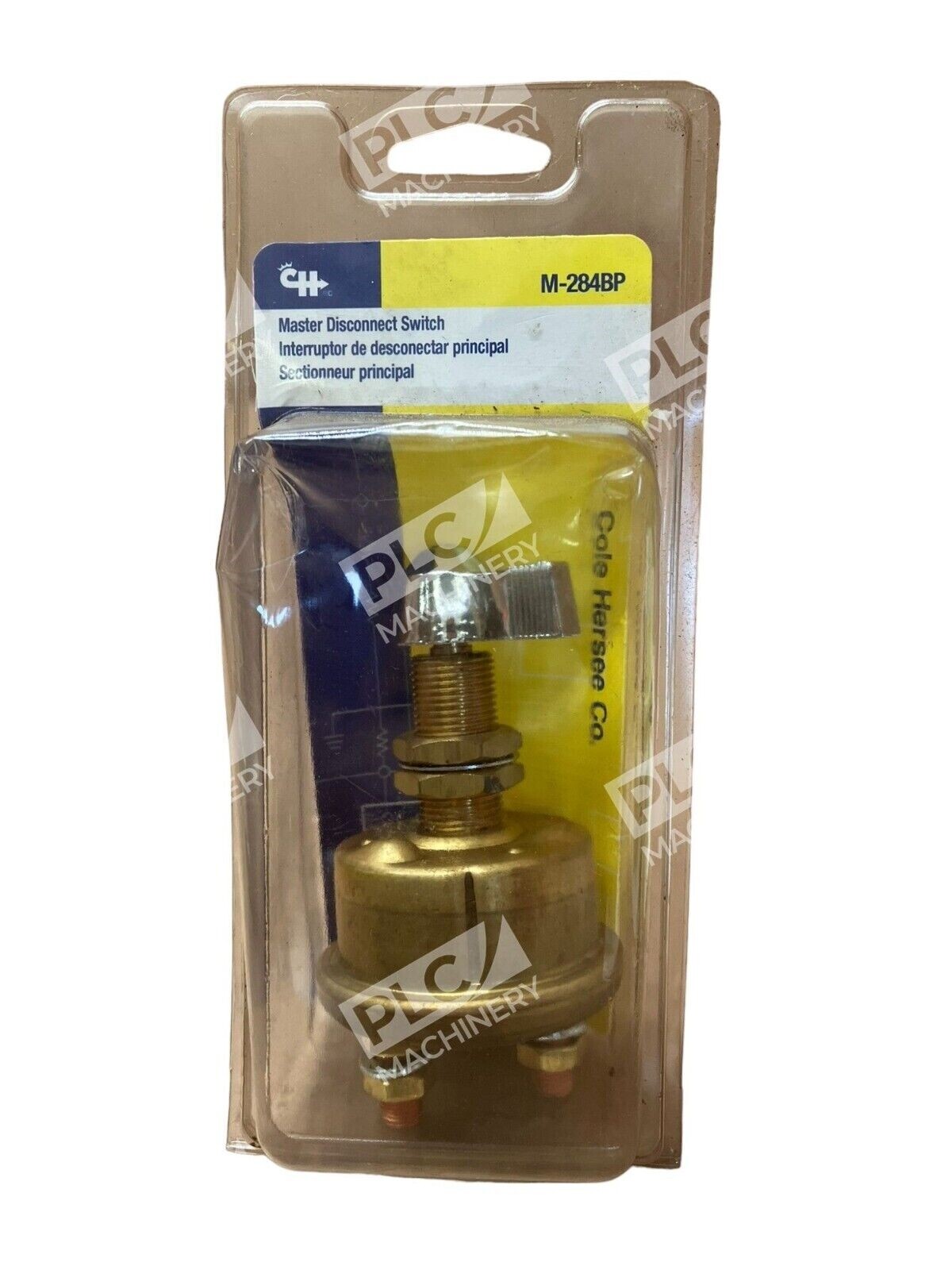

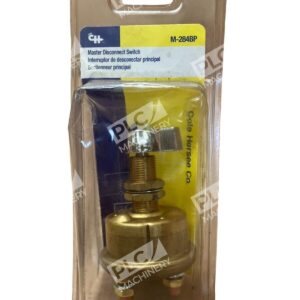

Cole Hersee M-284BP Master Disconnect Switch

Cole Hersee M-284BP Master Disconnect Switch

The Cole Hersee M-284BP Master Disconnect Switch is a robust and reliable solution designed to safely disconnect the battery from a vehicle’s electrical system. This feature is essential for preventing potential thermal events, ensuring system shutdown during maintenance or emergencies, and protecting against battery drain during periods of inactivity.

Key Features

• Voltage Compatibility: Suitable for 6 to 36V DC systems.
• Current Ratings: Continuous rating of 175 Amps; intermittent rating of 1000 Amps for 15 seconds on, 5 minutes off.

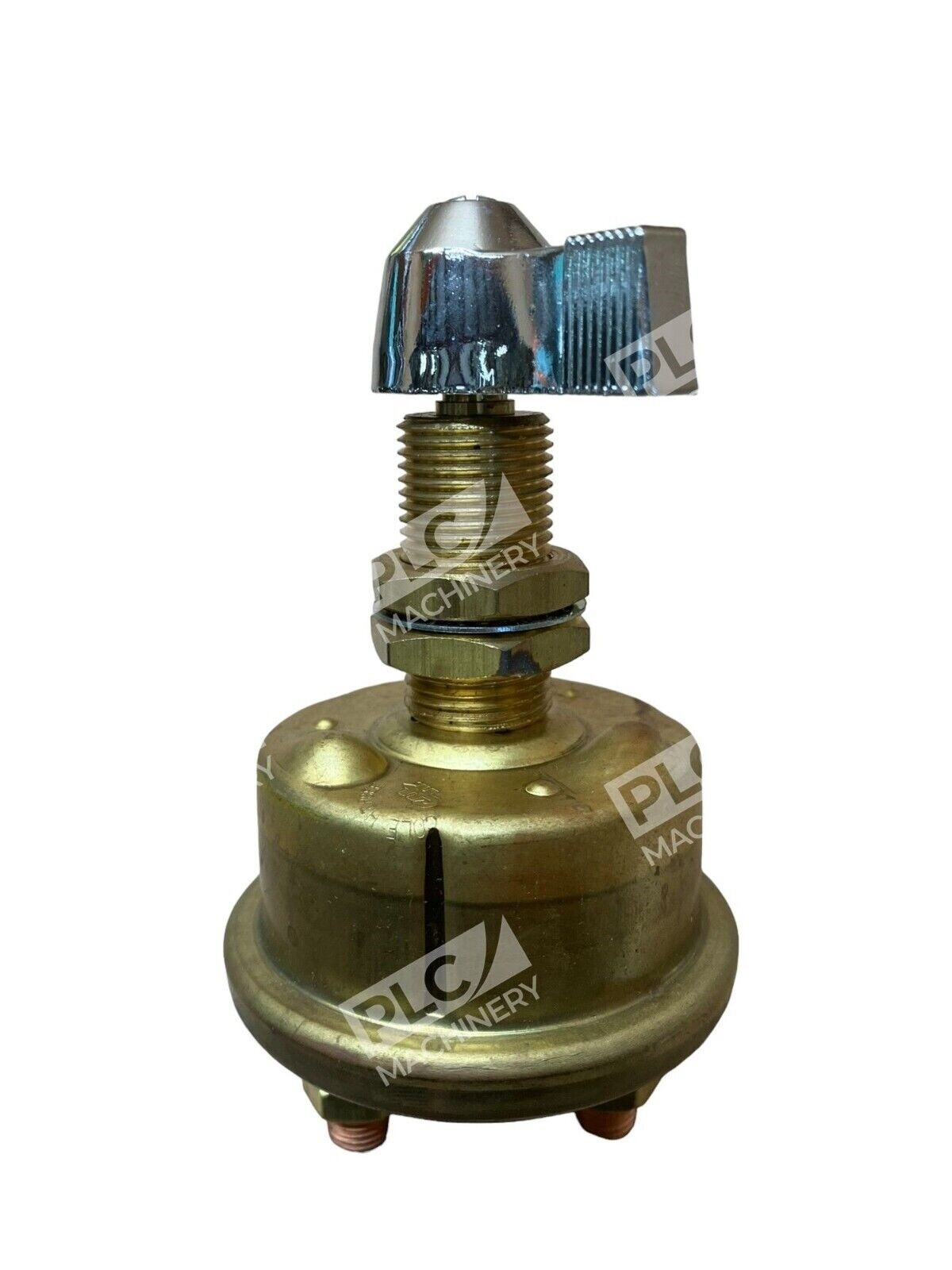

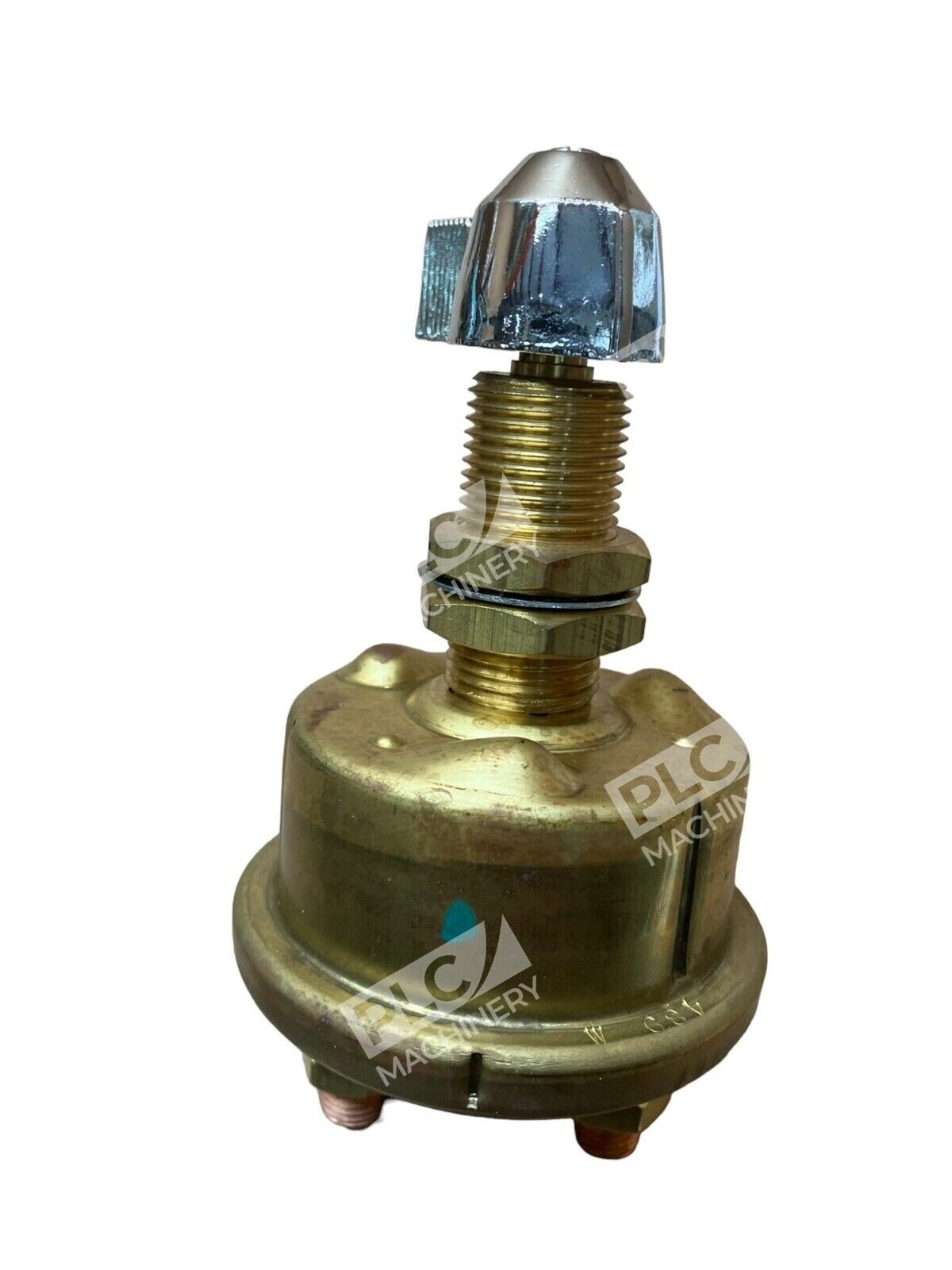

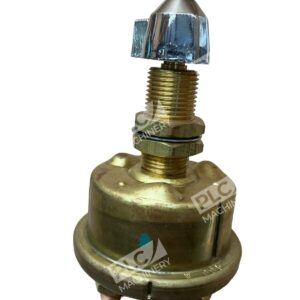

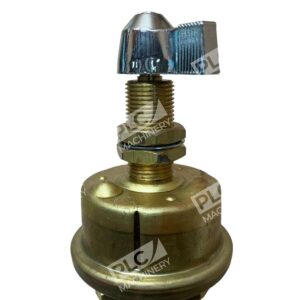

• Construction: Durable brass case and mounting stem with copper contacts and a chrome-plated actuator lever.
• Mounting: Designed to fit panels up to 15/16″ thick, with a mounting stem measuring 3/4″ in diameter and 1-13/32″ in length.

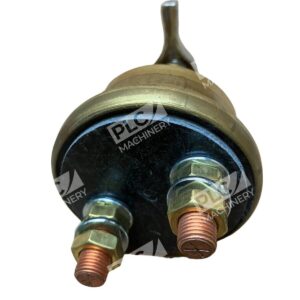

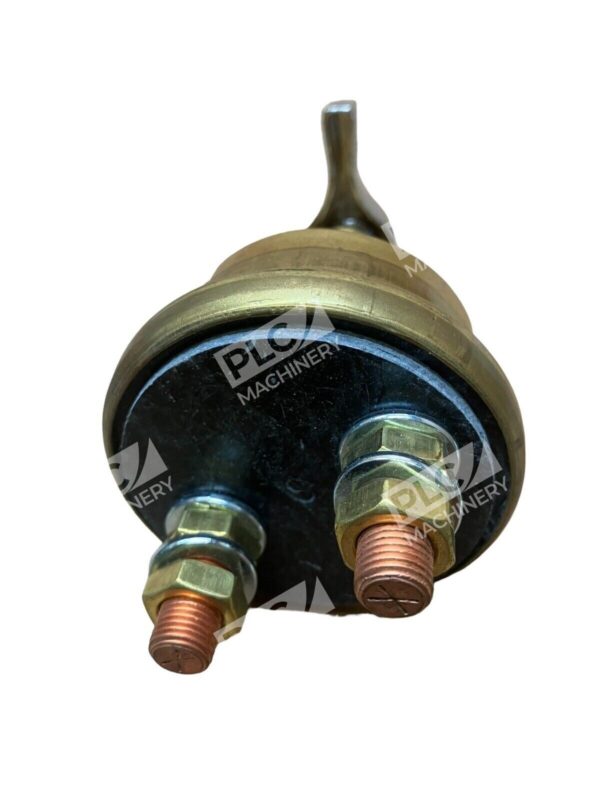

• Terminals: Equipped with two 3/8″ diameter copper studs for secure connections.
• Regulatory Compliance: Marine UL listed 707B, ensuring adherence to safety standards.

Applications

This master disconnect switch is ideal for use in marine environments, emergency vehicles, heavy-duty trucks, buses, and transit systems. Its marine-grade construction ensures durability and reliability in demanding conditions.

Benefits

• Safety: Provides a reliable means to disconnect the battery, reducing the risk of electrical fires and unauthorized use.
• Maintenance: Facilitates safe maintenance procedures by ensuring the electrical system is completely shut down.
• Battery Preservation: Prevents parasitic loads from draining the battery during periods of inactivity, extending battery life.

The Cole Hersee M-284BP Master Disconnect Switch combines durability, safety, and ease of use, making it an essential component for managing vehicle electrical systems effectively.
